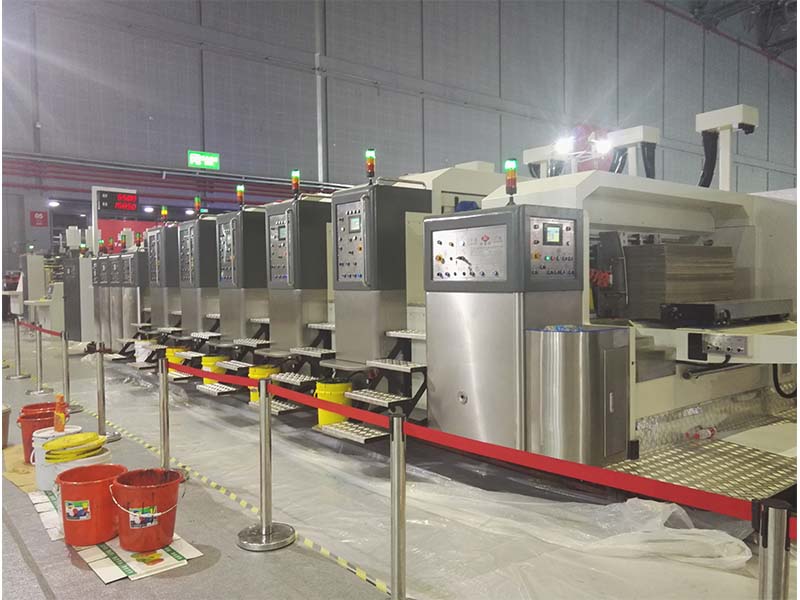

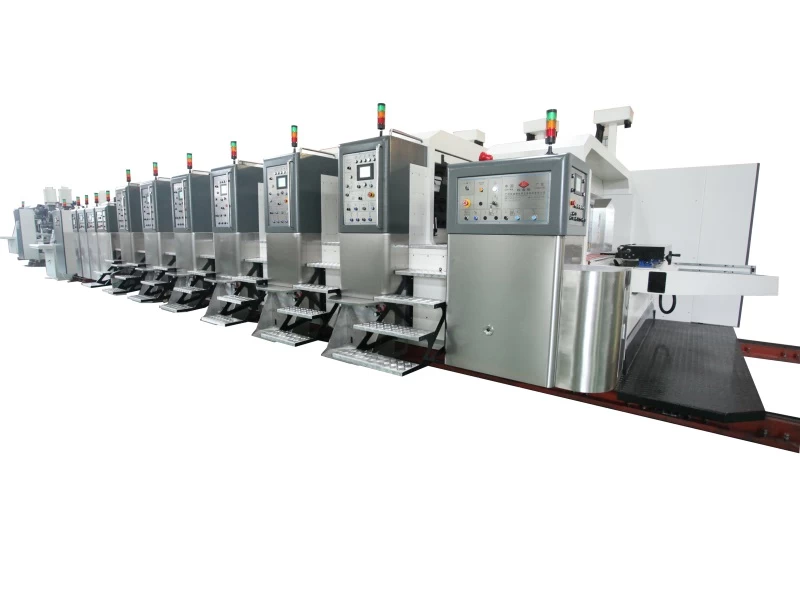

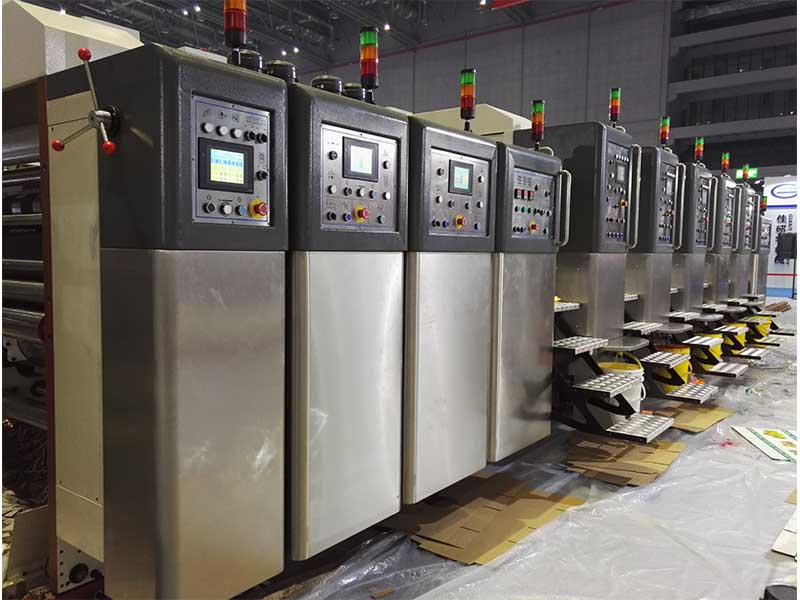

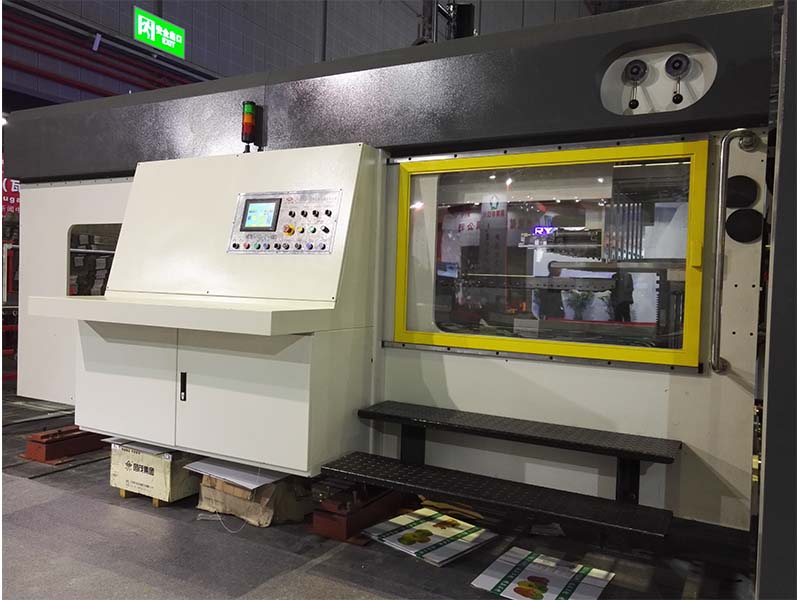

Corrugated Cardboard Printing Machine Fixed Structure of Model KL

KL-Computerized printing slotting die-cutting in-line folding gluing countering ejecting machine of corrugated cardboard printing machine for fixed structure from Chinese manufacturer.



Corrugated Cardboard Printing Machine Fixed Structure of Model KL


Cardboard Box Printing Machine Features:

·This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto   control and quick order shift.

·Computerized control,order setting in touch screen.

·The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding   quality.

·The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system.

·The correction device in the Countering Section can conquer the fish-tail,makes the carton even.

·The quantity of bundle come out from the Counter Ejector can be set in touch screen.

·Able to shift order of the idle Printing Section under production.

·All electronic and pneumatic components are with European standards.


Cardboard Printing And Cutting Machine Specification:

Data/Model
900x2000 900x2400 1200x2000 1200x2400
Printing Speed(m/min)
200 200 200 200
Max Machine Speed(pcs/min)
350 300 250 250
Max Feeding Size(mm)
880x2000 880x2400 1180x2000 1180x2400
Min Feeding Size(mm)
280x640 280x640 320x700 320x700
Skip Feeding(mm)
1100x2000 1100x2400 1500x2000 1500x2400
Max Printing Area(mm)
800x2000 800x2400 1150x2000 1500x2400
Thickness of Printing Plate(mm)
7.2 7.2 7.2 7.2
Min Panel(mm) Slot Type L.
240x80x240x80 240x80x240x80
260x90x260x90
260x90x260x90
Max Slotting Depth(mm)
250 250 320 320
Min Folding Size(mm) 280x760 280x760
320x800 320x800
Max Thickness of Sheet(mm)
8 8 12 12
Dimension(LxWxH)
T
F

T:18832x4750x2800

F:19552x4750x2800

T:18832x5150x2800

F:19550x5150x2800


T:20255x4870x2800

F:20975x4870x2800


T:20255x5270x2800

F:20975x5270x2800



Cardboard Box Printing Machine Details:

Condition:New

Plate Type:Letterpress

Colors Unit:1~7 colors

Automatic Grade:Automatic

Certification:CE Certificate, ISO9001

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months
