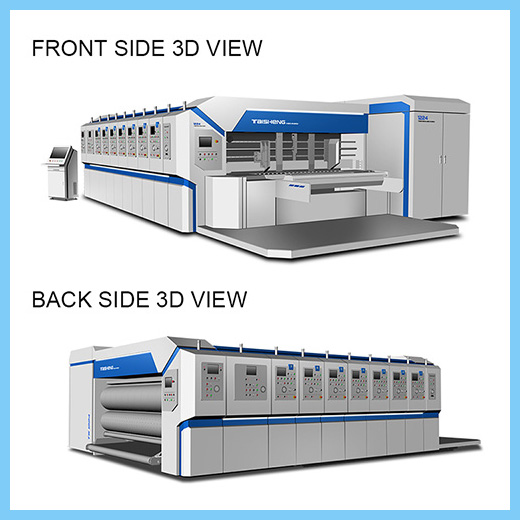

Full Automatic Printing Slotting Die Cutting Machine TSV3
The automatic printing slotting die cutting machine is full computer PLC controled. This printing slotting die cutting machine combines high efficiency, precision and ease of operation. The capacity of the factory can be greatly mentioned.
|
Model
|
TSV3-920
|
TSV3-1224
|
TSV3-1628
|
|
Max. Machine Speed (pcs/minute)
|
350
|
280
|
180
|
|
Max. Feeding Size (mm)
|
900×2000
|
1200×2400
|
1600×2800
|
|
Jump Feed Max. Cardboard Size(mm)
|
1200×2000
|
1500×2400
|
1900×2800
|
|
Min. Cardboard Size(mm)
|
300×600
|
365×600
|
450×600
|
|
Max. Printing Size
|
900×1960
|
1200×2360
|
1600×2760
|
|
Min Slotter Blade Space（Male）(mm)
|
150×150×150×150
|
150×150×150×150
|
150×150×150×150
|
|
Min Slotter Blade Space（Female）(mm)
|
240×65×240×65
|
260×65×260×65
|
260×100×260×100
|
|
Max Slotting Deep(mm)
|
250
|
300
|
400
|

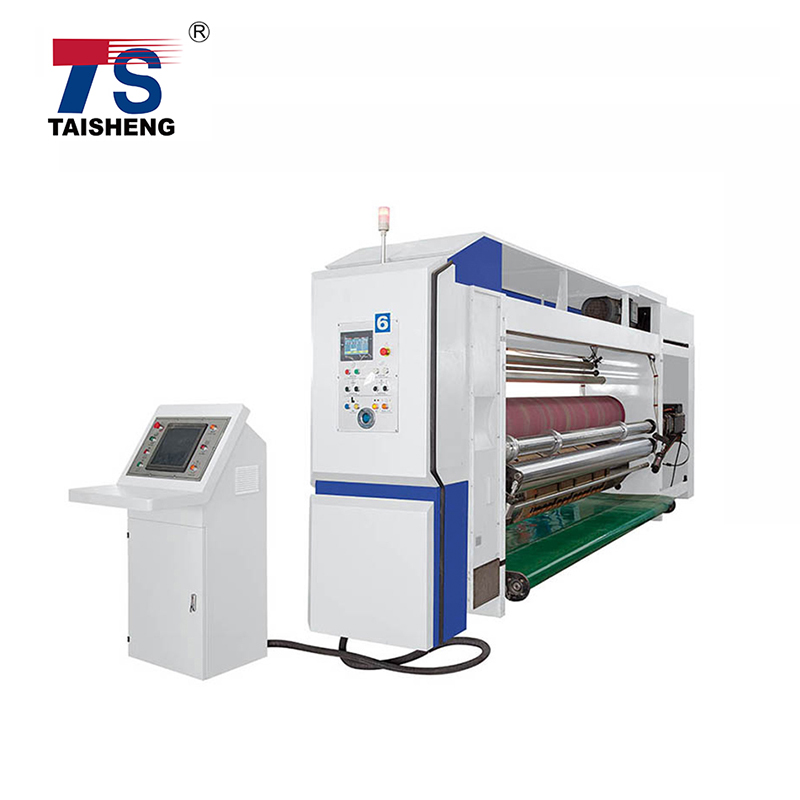

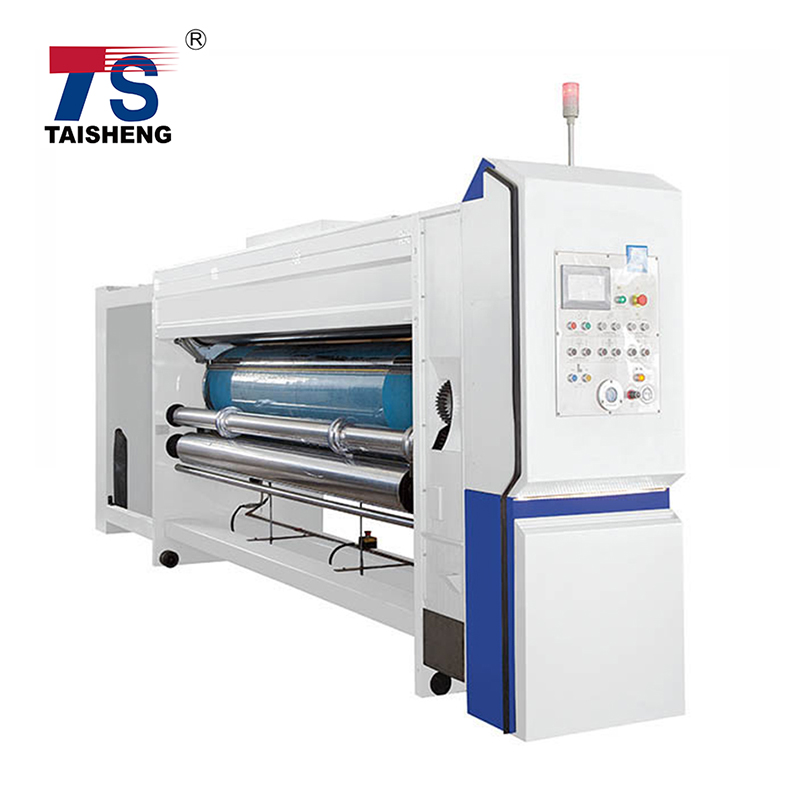

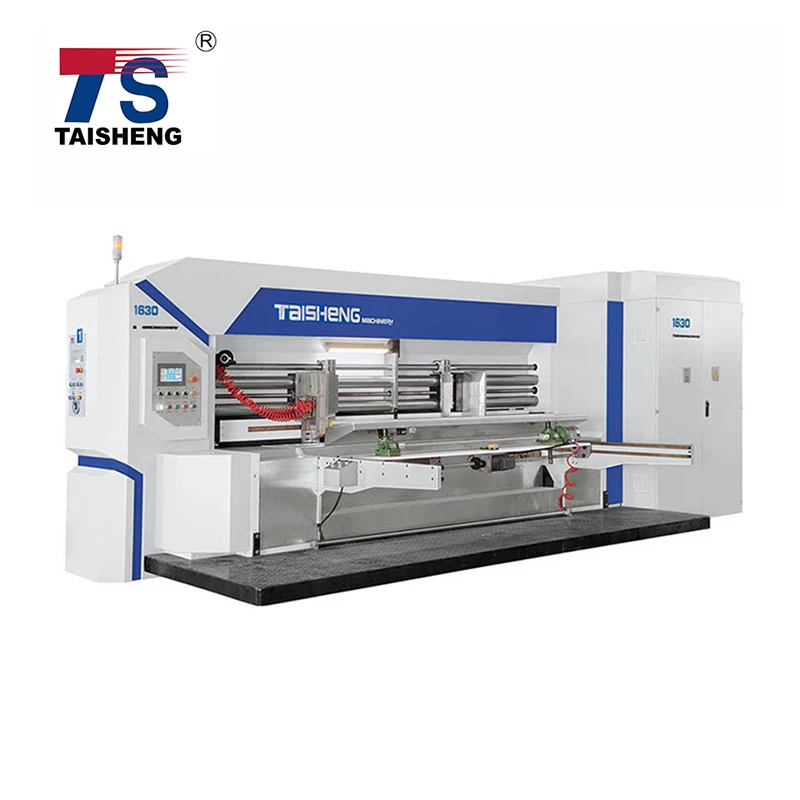

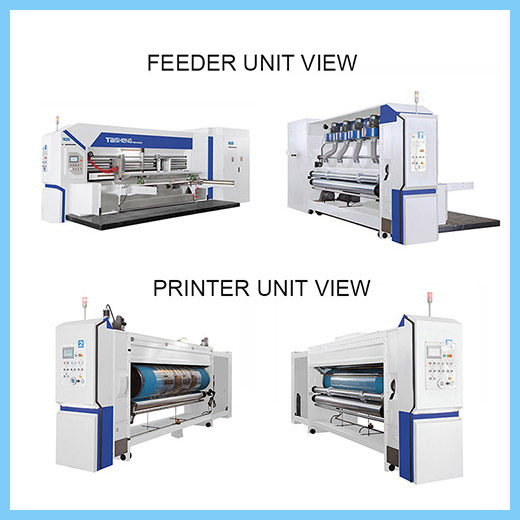

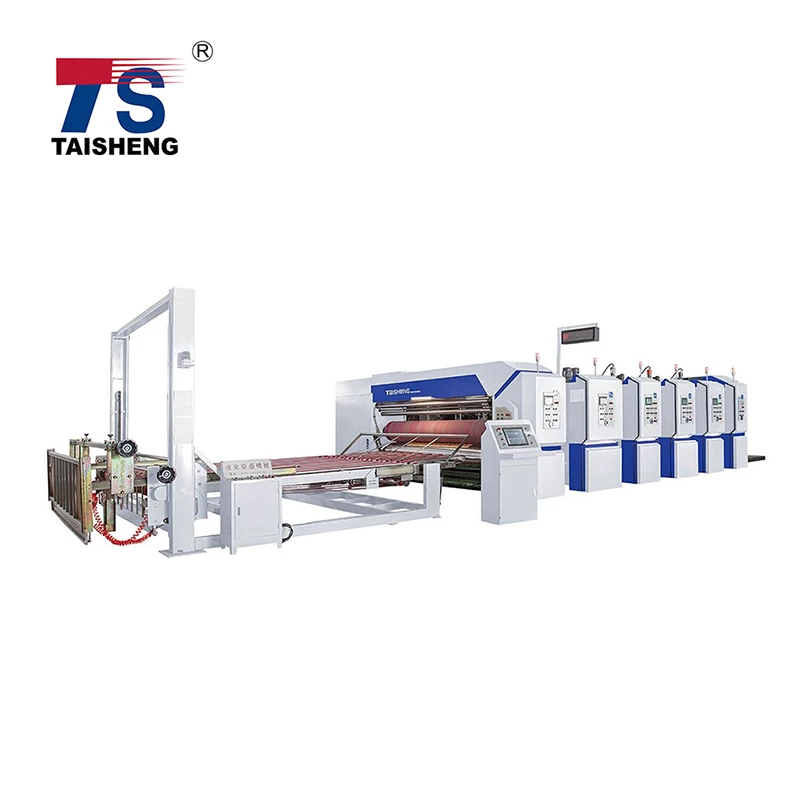

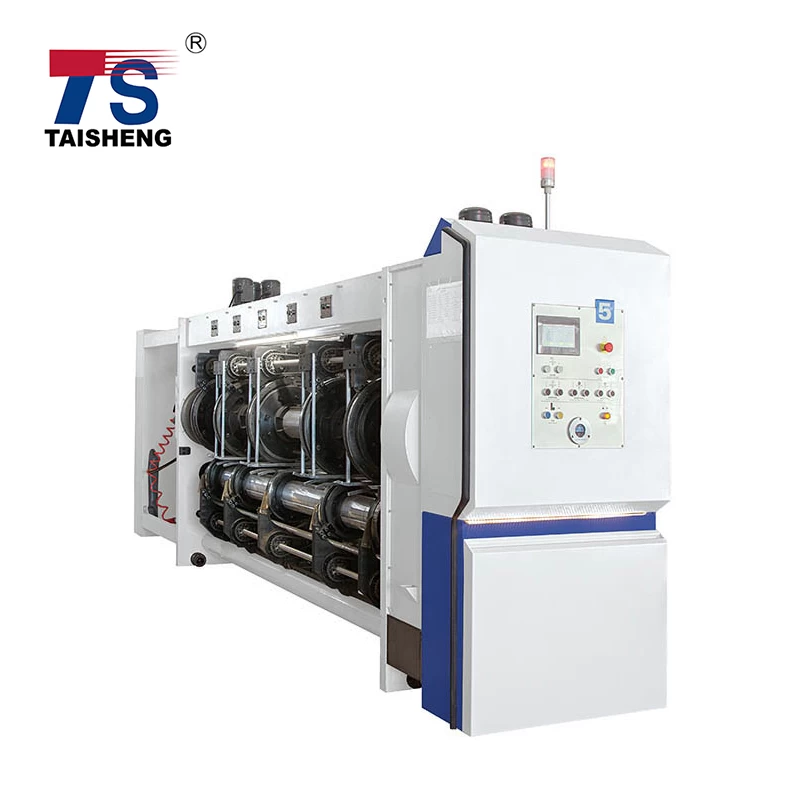

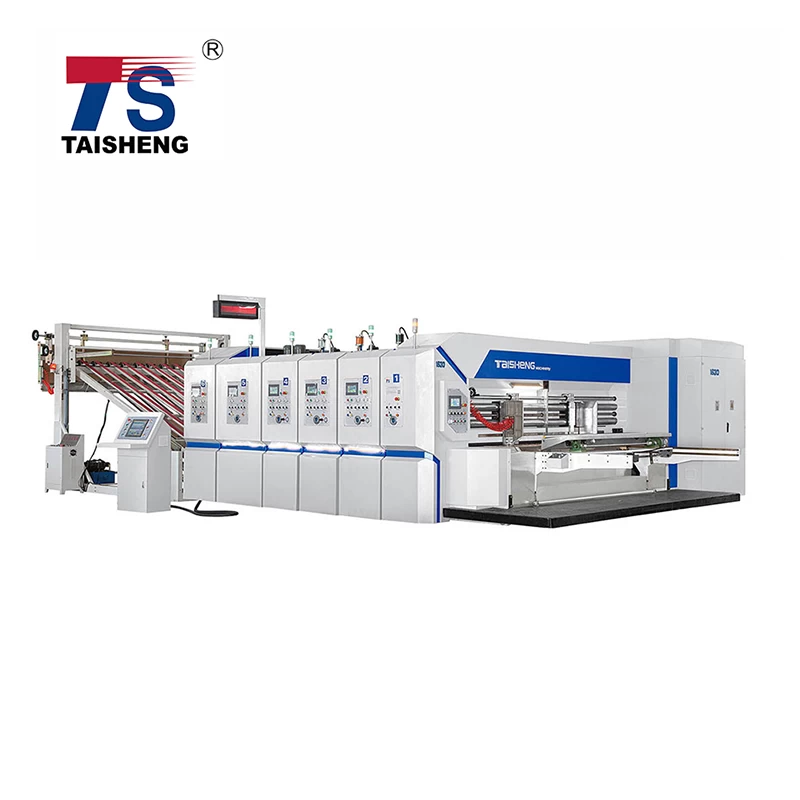

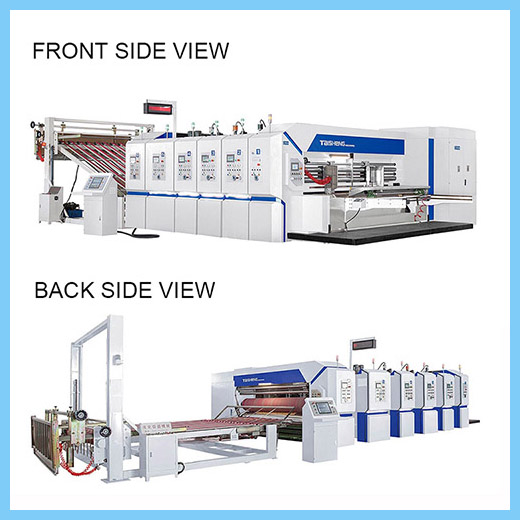

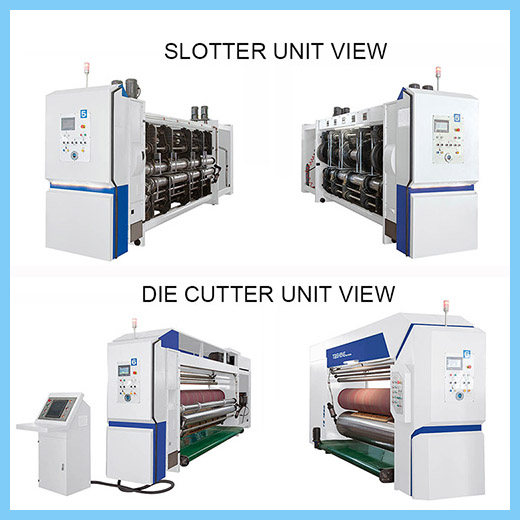

Printing Slotting Die Cutting Machine Automatic Products Display
