Product parameters
|
Model NO.
|
Thickness
(mm)
|
Yield Strength(MPa)
|
Tensile strength (N/mm²)
|
Weight
(KG/M²)
|
I(cm4/m)
|
I(cm3/m)
|
|

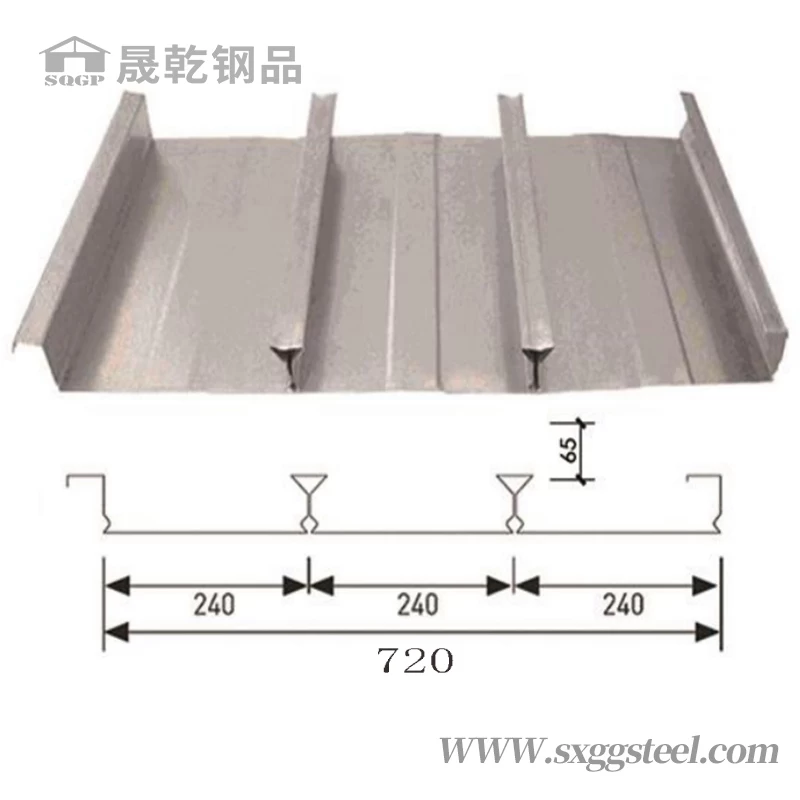

YX65-240-720
|
0.75
|
≥345
|
300
|
6.18
|
83.5
|
21.3
|
|
0.9
|
≥345
|
300
|
7.66
|
96.6
|
24.2
|
|
1
|
≥345
|
300
|
8.14
|
104.3
|
25.9
|
|
1.2
|
≥345
|
300
|
9.71
|
126
|
29.8
|
Product advantage
1.The closed-type corrugated galvanized floor decking sheet uses special closed rib design and its vertical shear performance is good . Under the limitation allowance of the truss floor deck’s design loads,steel deck and concrete don’t slip off each other.
2.The closed-type corrugated galvanized pressure plate can substitute the sagging moment reinforcing steel bars at the end of sheet,and there is no need to paint any fire-retardant coating,it reduces the steel amount and then lowers the cost.
