Corrugated Roof Panel Roll Forming Machine

low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength.

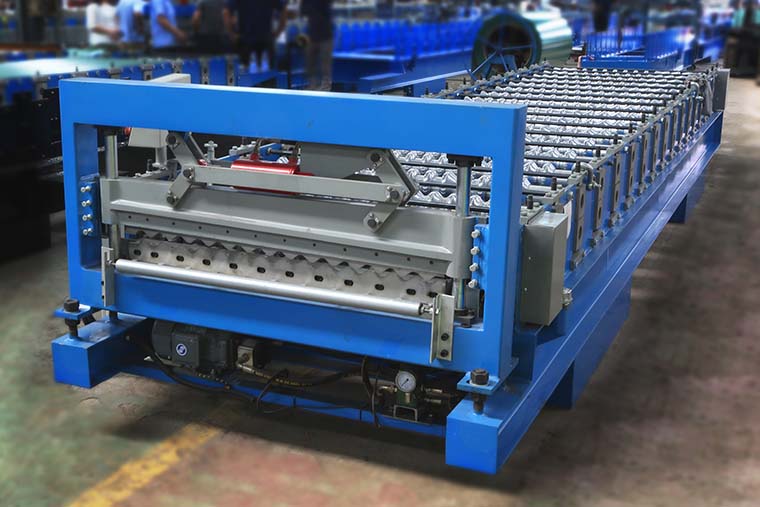

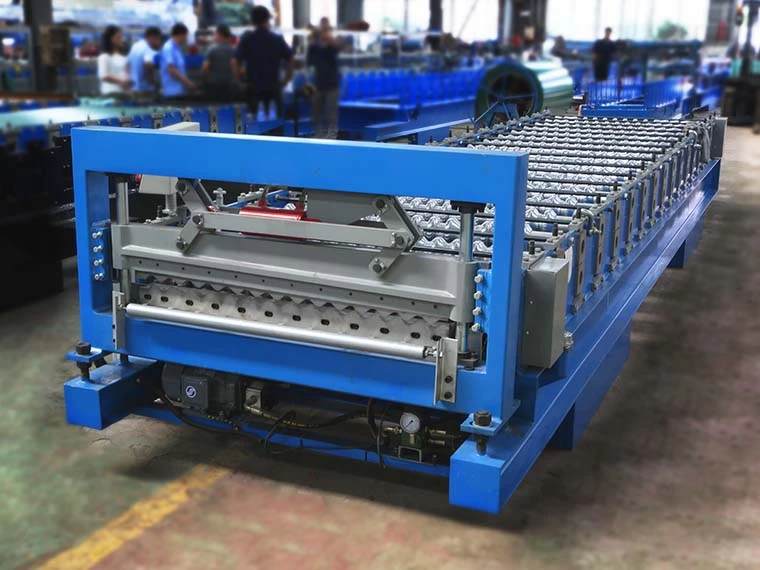

          YX18-912 Corrugated Panel Roll Forming Machine



Corrugated Roof Panel Roll Forming Machine


1.Main features of YX18-912 Corrugated panel roll forming machine


    The advantages of YX18-912 Corrugated roof panel forming machine are as follows:

    1.Products widely used in modern factory,such as workshop,4S auto shop,is a new popular roof panel.

    2.Easy operation, low maintenance cost



2.Detailed Images of YX18-912 Corrugated panel forming machine


    Machine Parts

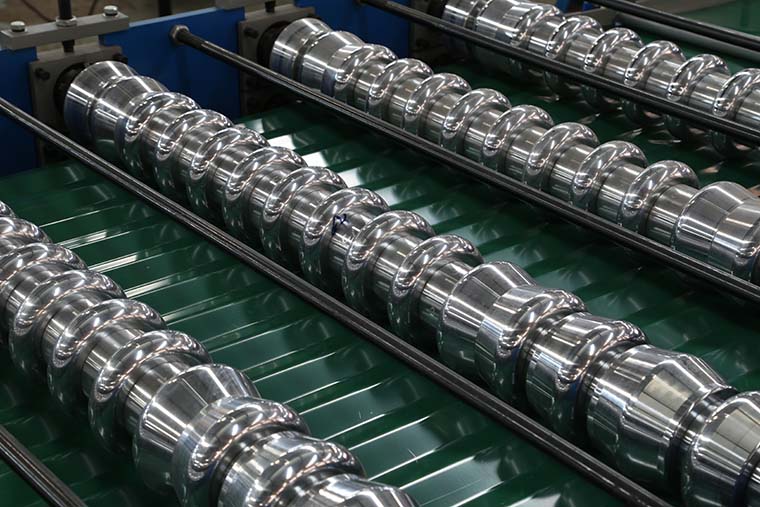

        1)   YX18-912 Corrugated roof panel forming machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        With feeding material guide,Body framemade from 300# H type steel by welding


Corrugated Roof Panel Roll Forming Machine

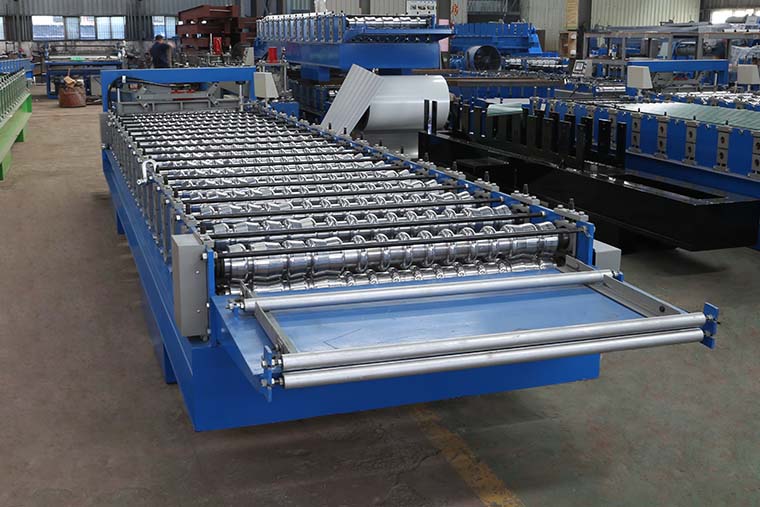

        2) YX18-912 Corrugated roof panel machine feeding guide


 Corrugated Roof Panel Roll Forming Machine

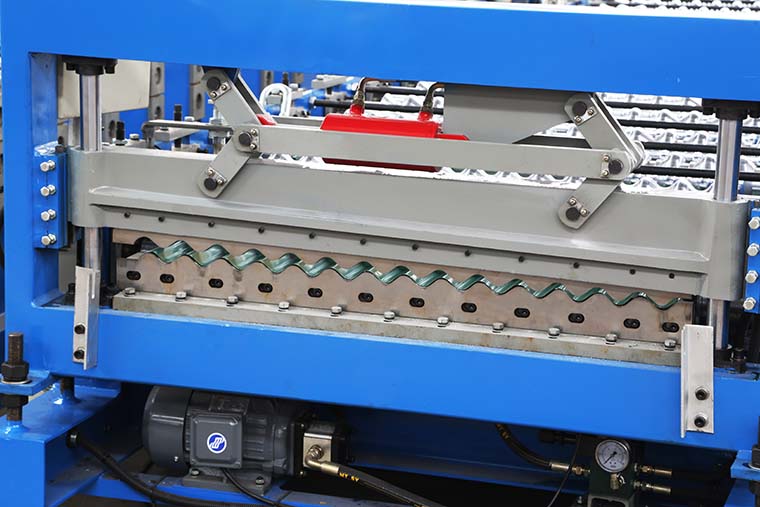

       3) YX18-912 Corrugated roof panel machine post cutter

        Cutter frame made from high quality 20mm steel plate by welding

        Post cut, stop to cutting, use the same hydraulic motor drive

        Hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa

        Cutting tool material: Cr12, Heat treatment


Corrugated Roof Panel Roll Forming Machine

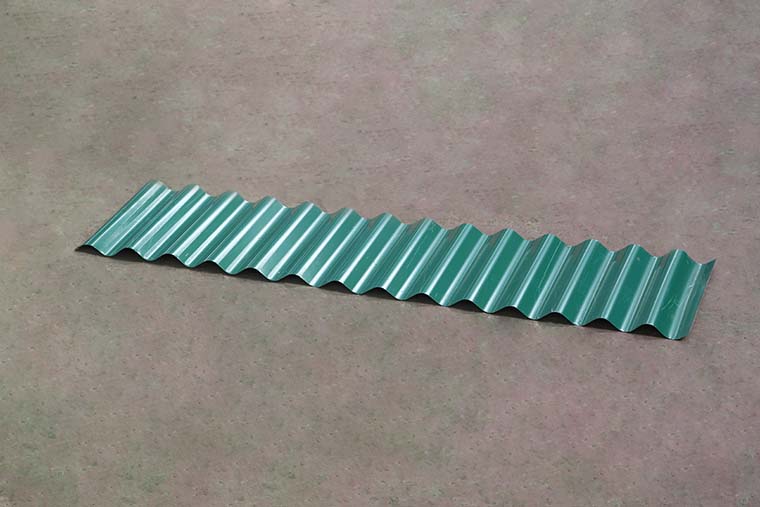

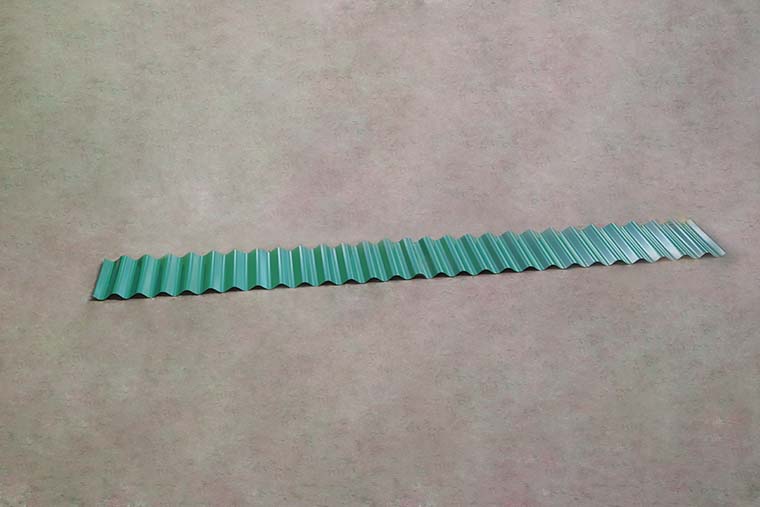

        4) YX18-912 Corrugated roof panel machine product


Corrugated Roof Panel Roll Forming Machine

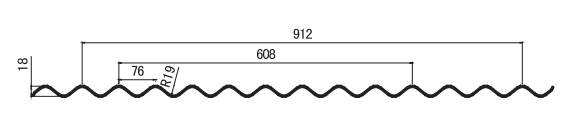

                                                             Overlap

Corrugated Roof Panel Roll Forming Machine


        5) YX18-912 Corrugated roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1000mm, coil ID range 470mm±30mm

        Capacity: Max. 5Ton

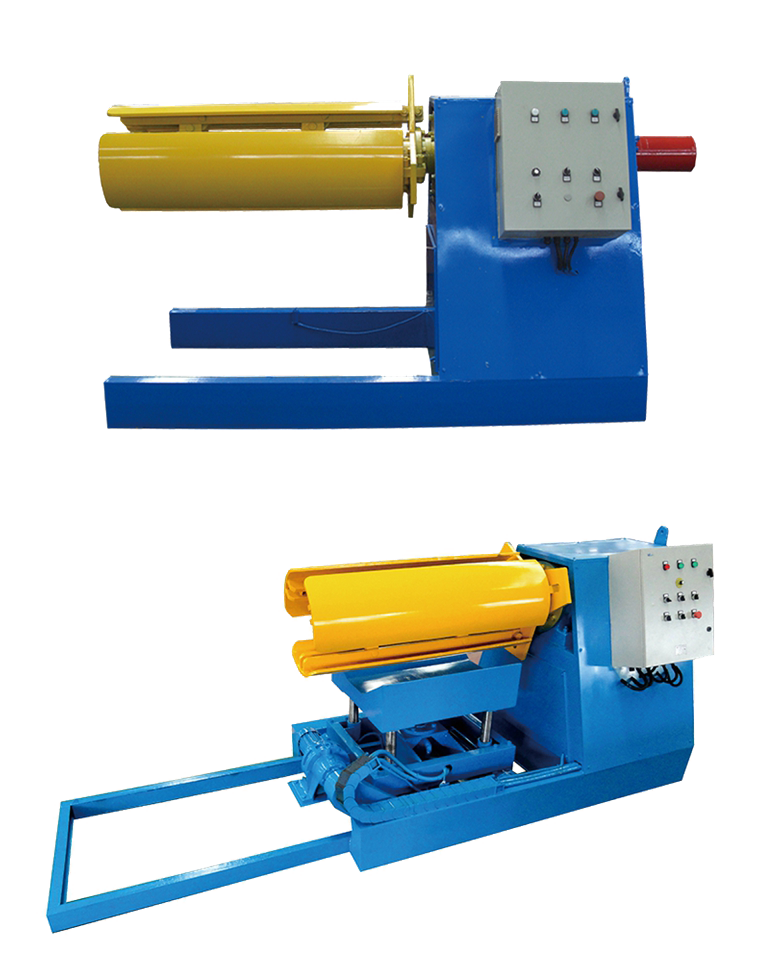

        With 6  tons hydraulic decoiler for option





        6) YX18-912 Corrugated roof panel machine exit rack

        Un-powered,three units



Other detailes of YX18-912 Corrugated roof panel roll forming machine



Suitable for material with thickness 0.4-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form

Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manual in English



After-sale service of YX18-912 Corrugated machine



1. The warranty of purlin roll forming machine  YX12-912 Corrugated roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
