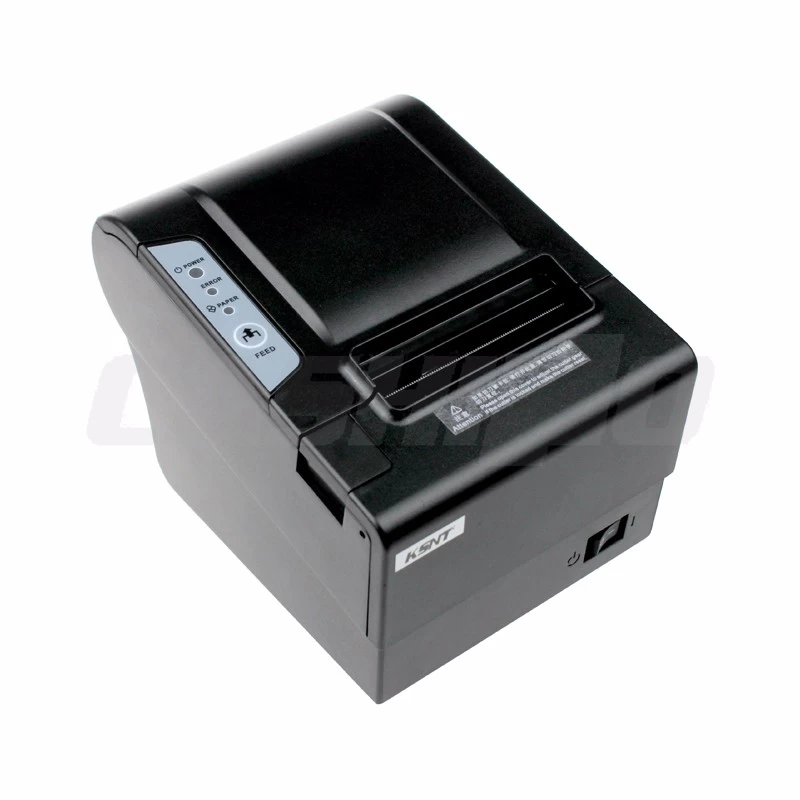

80mm auto cutter thermal pos printer
CSN-80V auto cutter thermal pos printer is a POS receipt printer, using auto cutter to cut the paper and offering multiple interfaces. It featuers fast printing speed, easy-to-use and superior reliability. POS receipt printers are an important part of a POS system. They are widely used in retail environments to print credit card slips and customer receipts
Feature:
1). High printing speed, up to 250mm/s, easy to maintain, improve work efficiency.
2). Low noise, high speed image&characters printing

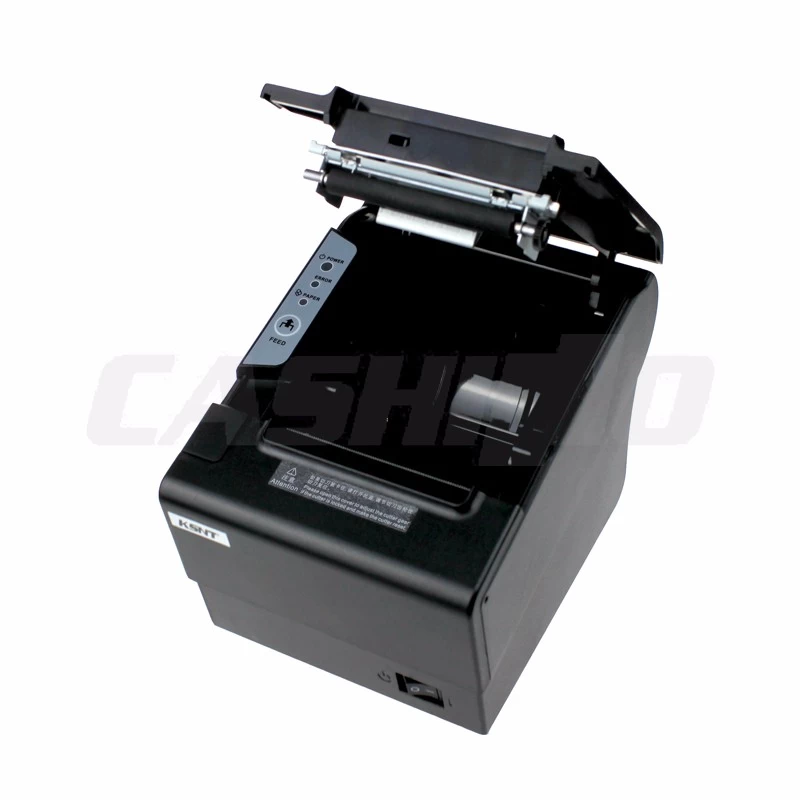

3). Easy paper loading, with auto cutter,partial cut
4). Serial+USB+Ethernet interface
5). Compatible with EPSON ESC/POS command sets
6). Support paper out alarm and print prompt
7). Driver compatible: Win2000/WinXP/Windows7/Windows10/Linux
Specification:
| Model No. |
CSN-80V |
| Print Method |
Thermal line printing |
| Print Speed |
Max.250 mm/sec |
| Effective Print Width |
72mm |
| Thermal paper roll |
Paper width:80mm |
| Max.80mm(O.D) |
| Paper thickness:0.055-0.09mm |
| Resolution |
203dpi |
| Reliability |
TPH life:100km |
| Cutter life:1 million cuts or more |
| Character size |
(ANK Character):12×24 dots,1.5(width)×3.00(height)mm |
| (Jan/traditional form):24×24 dots,3.00(height)×3.00(high)mm |
| Characters Set |
ANK:Font A:12x24dots |
| Font B:9x17dots |
| Jan/traditional form:24x24dots |
| Barcode type |
UPC-A,UC-E,JAN13(EAN13),CODABAR,ITF,CODE39,CODE93,CODE128 |
| PDF417,QR Code |
| Memory flash |
8M bytes |

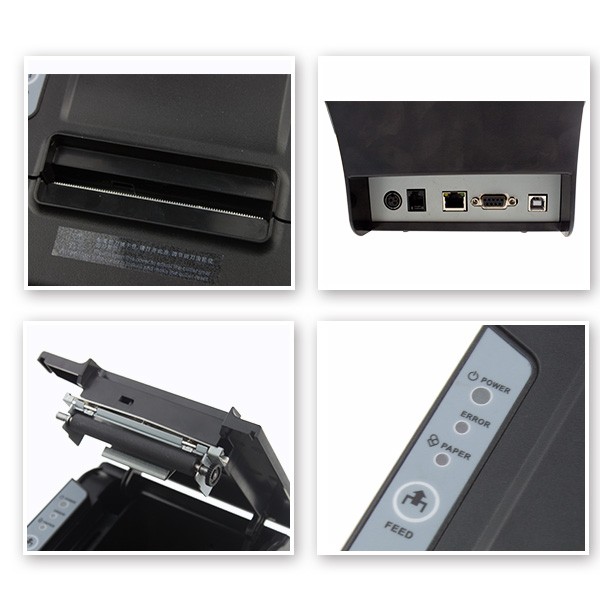

| Interface |
RS232C+USB+LAN |
| Auto-Cutter |
Full cut and Partial cut by command |
| Cashbox Control |
24V/1A |
| Power supply |
DC24V/2.0A |
| Printing command |
Compatible with ESC/POS command set |
| Dimension (WxLxH) |
148x198x145mm |
| Work environment |
Temperature 0°C~45°C;Relative humidity:10%~80% |
| Store environment |
Temperature-10°C~60°C;Relative humidity:10%~90% |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK, Windows SDK |
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
