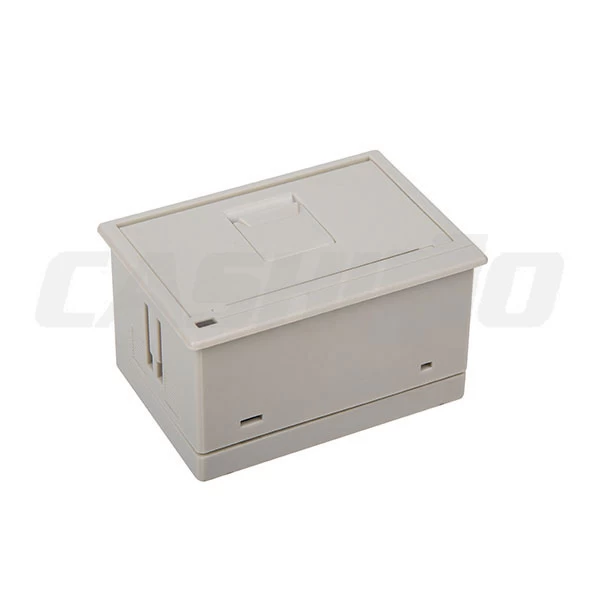

CSN-A4 58mm mini panel thermal receipt printer

RS232/TTL

DC5-9V





CSN-A4 58mm mini panel thermal receipt printer


Feature:

Interface:RS232/TTL

Power supply: DC5-9V

Color:Black/White

Specification:

Print

Printing Method

Thermal  Line

Printing Speed

50-80mm/s

Resolution

8 dots/mm, 384 dots/line

Effective Printing Width

48mm

Character

Character Set

ASCII,GB2312-80(Chinese)

Print Font

ANK:9x17,12×24,

GBK: 24×24

Paper Spec

Paper Type

Thermal paper

Paper Width

57.5± 0.5mm

Paper Thickness

60-85µm

Paper Roll Diameter

Max: 30mm

Reliability

MCBF

5 million lines

Interface

RS-232/TTL/USB

Insert Depth

43 mm

Power Supply (Adapter)

DC5V-9V / 12V

Physical

Outline Dimension (WxDxH)

82x58x45 mm

InstallationPortSize

77x53 mm

Color

Beige / black

Environment

Operating Temp

0°C ~ 50°C

Operating Humidity

10% ~ 80%

Storage Temp

-20°C ~ 60°C

Storage Humidity

10% ~ 90%


FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
