CSN-A5L 2 inch micro panel mount thermal receipt printer

Serial(RS232,TTL)/USB/Parallel; DC5-9V/12V; Front fixing

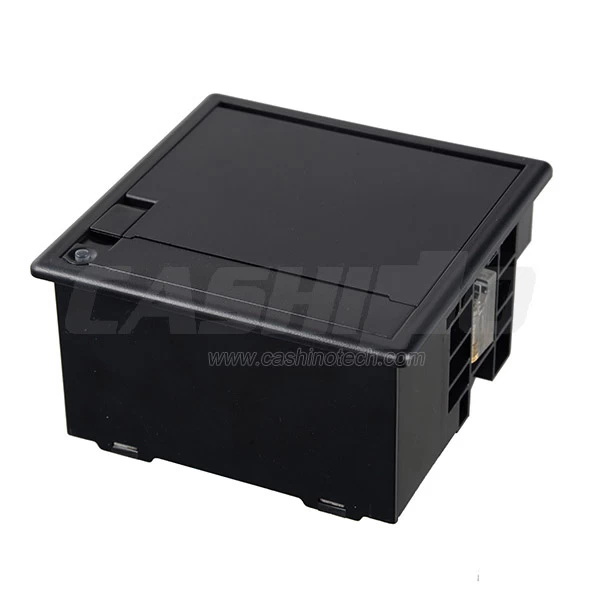

CSN-A5L 2 inch micro panel mount thermal receipt printer

CSN-A5 is a direct thermal panel printer. They are compact and a thermal receipt printer solution that will easily integrate behind any panel to provide thermal printer functionality to your device or application.


Feature:

1. Easy paper loading type

2. Interface:Serial(RS232,TTL)/ USB/ Parallel

3. Power supply: DC5-9V/12V

4. Low noise thermal printing

5. Front fixing

6. Available in any order quantity


Specification:

Model No.

CSN-A5L

Print

Printing method

Printing speed

Resolution

Printing width

Thermal line printing

90mm/s

203DPI (8 dots/mm)

48mm

Character

Character Set

Print Font

ASCII,GB2312-80(Chinese)

ANK: 9×17,12×24 GBK:24×24

Paper spec.

Paper Type

Roll Diameter

Paper Width

Paper Thickness

Thermal paper

50mm (Max.)

57.5±0.5mm

55-90μm

Reliability

TPH

50km(12.5% print ratio)

Interface

Power Supply (Adapter)

Parallel/Serial(RS232,TTL)/USB

DC5V-9V/12V

Physical

Outline Dimension (WxLxH)

Installation Port Size(WxL)

Insert Depth

Color

88×87×57mm

80.3×80.8mm

54mm

Black/Beige

Environment

Operating Temp

Operating Humidity

Storage Temp

Storage Humidity

0°C~50°C

10%~80%

-20°C~60°C

10%~90%



Application:

1. Taxi meter print proposal

2. Recording Meter print proposal

3. Self-service Print proposal

4. Ticket Machine print proposal

5. Medical instrument print proposal

6. Weight Machine Print proposal

7. Electric Instrument Print proposal

8. Test Instrument Print proposal


Company Information:

We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer



Our Services:

portable bluetooth printer





FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
