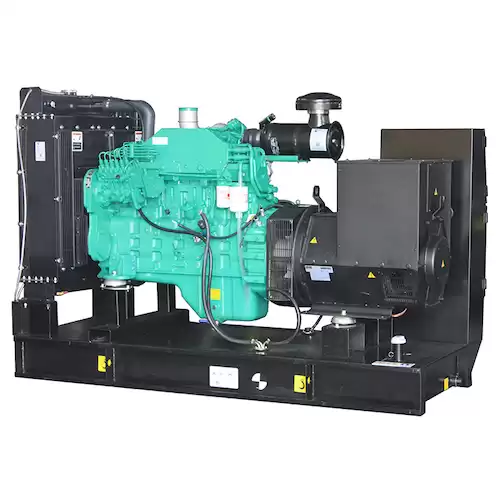

New type hot sale big promotion diesel generator price DCEC 160KW 200KVA Prime Power
AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
|
Engine model
|
6CTA8.3-G1
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kW)
|
163KW
|
|
Standby power rating
|
204KVA
|
|
Prime power rating
|
200kva
|
|
Type
|
4-Cycle, In line, 6 Cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Borer * Stroke (mm)
|
114* 135
|
|
Displacment (litre)
|
8.3
|
|
Compression Ratio
|
17.3:1
|
|
Voltage
|
Standby Rating (ESP)
|
Prime Rating (PRP)
|
|
kVA
|
kW
|
kVA
|
kW
|
|
400/230
|
220
|
176
|
200
|
160
|
Diesel Engine Specifications
Powered by UK engine 2000kva super silent diesel generator price with 4016TAG2A
|
Engine model
|
6CTA8.3-G1
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kW)
|
163KW
|
|
Standby power rating
|
204KVA
|
|
Prime power rating
|
200kva
|
|
Type
|
4-Cycle, In line, 6 Cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Borer * Stroke (mm)
|
114* 135
|
|
Displacment (litre)
|
8.3
|
|
Compression Ratio
|
17.3:1
|
|
Alternator brand
|
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
|
|
Prime power
|
200kva
|
|
Frequency/speed
|
50HZ
|
|
Exciter type
|
Brushless
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Voltage regulation NL-FL
|
±0.5%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|

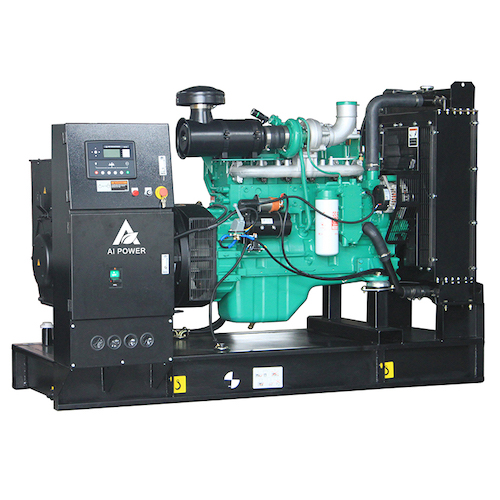

200kva diesel generator (Control panel)
|
Brand
|
Deepsea/ComAp
|
|
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
|
-
24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
AI Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
-
In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
AI Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
-
Lower noise level is important.
AI power generators are made to be environment friendly with low emission and lower noise level
-
Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
