High power UV LED series are designed for high current operation and high power output applications. It incorporates state of the art SMD design and low thermal resistant material. CUN6GF1A(CA3535) NUV LED is ideal UV light source for curing, printing, and detecting applications.
Features:
Super high power output
Designed for high
current operation
Low thermal resistance
SMT solderable
Lead Free product
RoHS compliant
Applications:
UV Curing
Printing
Coating
Adhesive
Counterfeit Detection/Security
UV Torch
Fluorescence Photography
Dental Curing
Crime Inspection
Oil leak Detection
Parameters
Brand : SVC
Model:CUN6GF1A
Origin: Korea imported
Package size: 3.5*3.5mm
Peak wavelength: 365nm
Radiated power: greater than 1150mW
Power consumption: 5W
Voltage: 3.7V
Current: 1400mA
Light output angle: 115 degrees
Package material: quartz glass flat angle window

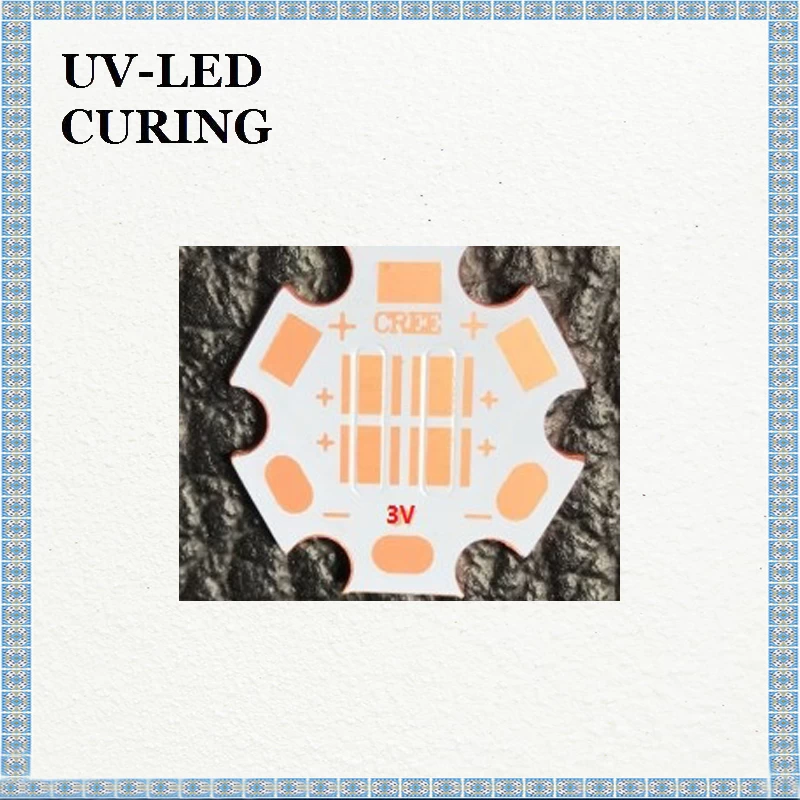

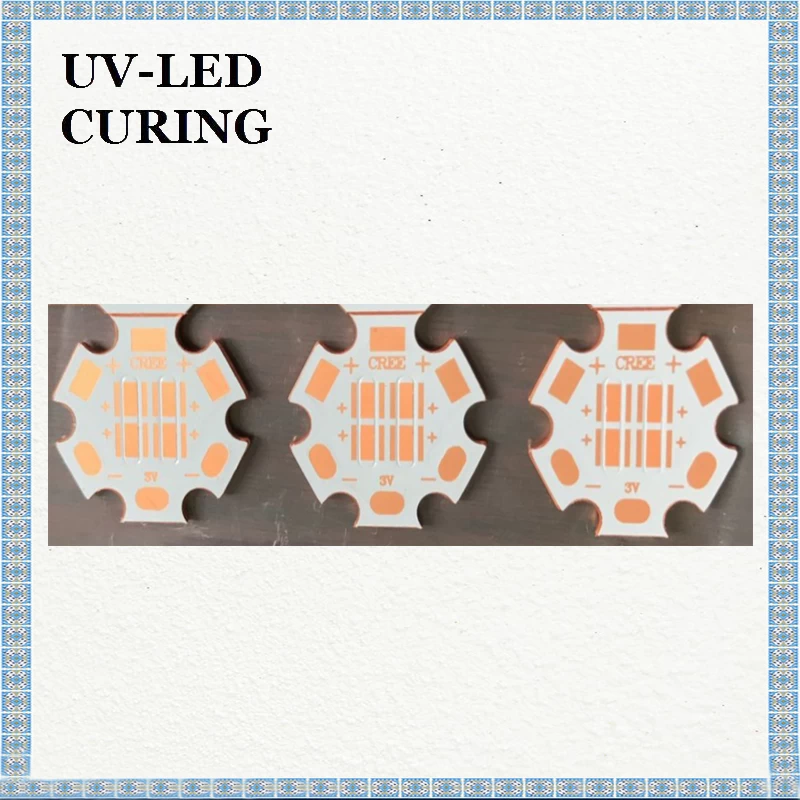

Copper specifications: 20mm diameter * 1.5mm thick ------ Click to view other copper specifications
