Custom 2.7 Inch 240X320 Resolution IP TFT Panel With Touch Panel
It is a small size 240x320 IPS TFT panel display product with touch panel. Normally, there are two kinds of touch panel for TFT LCD product as one is capacitive touch and the other one is resistive touch. Placed on the monitor panel, the capacitive touchscreen is a type of screen with a system formed by an electrically charged layer. Due to this feature, the capacitive display is capable of transmitting electrons to everything that contains an electrical charge at very low intensity, for example human skin. Skin charges interfere with the touchscreen's electrical fields at the moment your finger comes into contact with its surface.
In general, for a IPS TFT touch panel, the accuracy of this type of screen can reach 100% which has greater durable.
Small Size TFT Display
Product Parameters
Display Type |
TFT Display |
Display Size |
2.7 Inch |
View Angle |
IPS/TN |
Resolution |
240x320 |
AA |
57.6x43.2mm |
Backlight Color |
White LED |
Brightness |
450cd/m2 |
Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
Control IC |
ST7789V2 |
Connector |
FPC |
Operating Temperature |
-20-70°C |
Operating Voltage |
3.3V |
Touch Panel |
Capacitive/Resistive |
Requirements On Environmental Protection |
ROHS HSF |

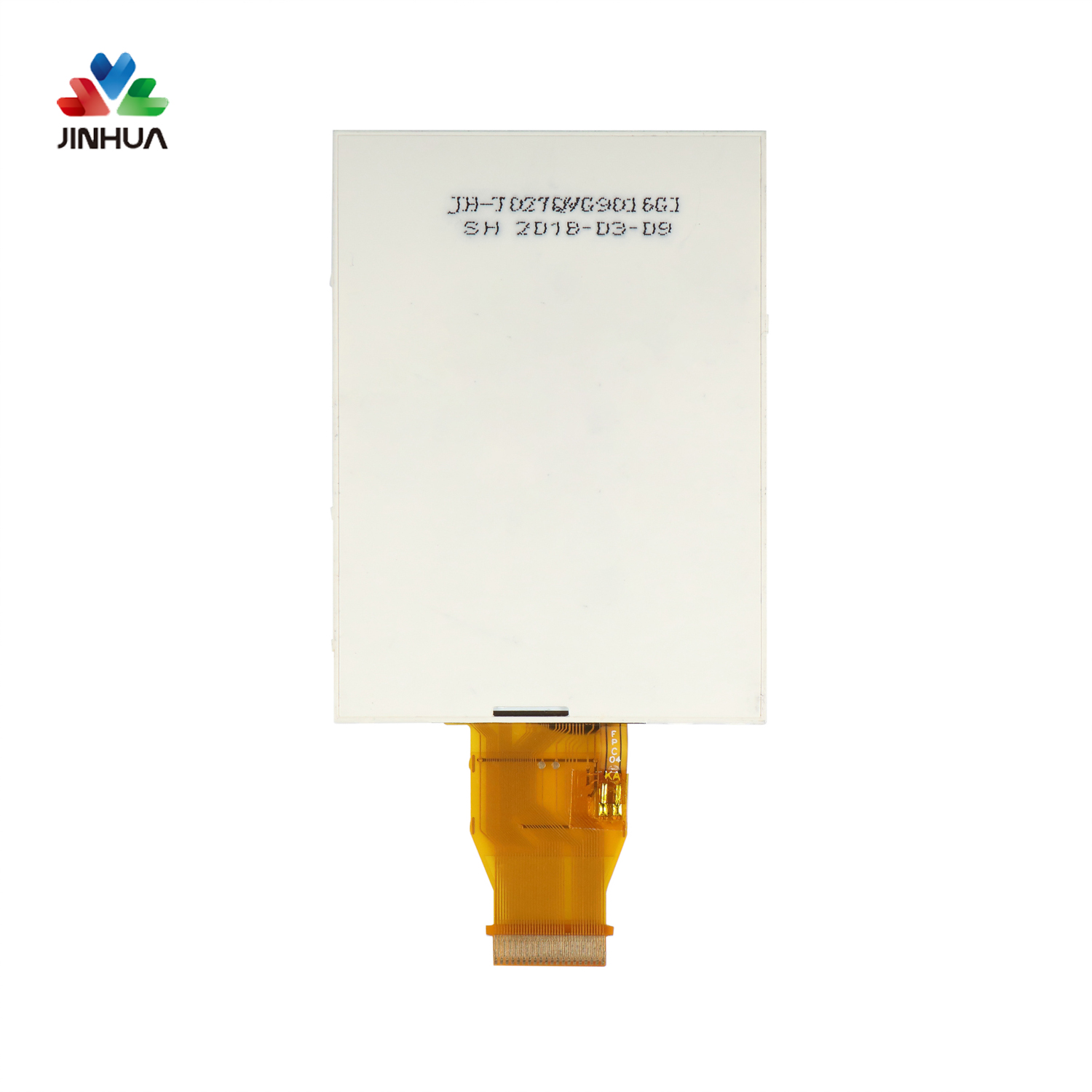

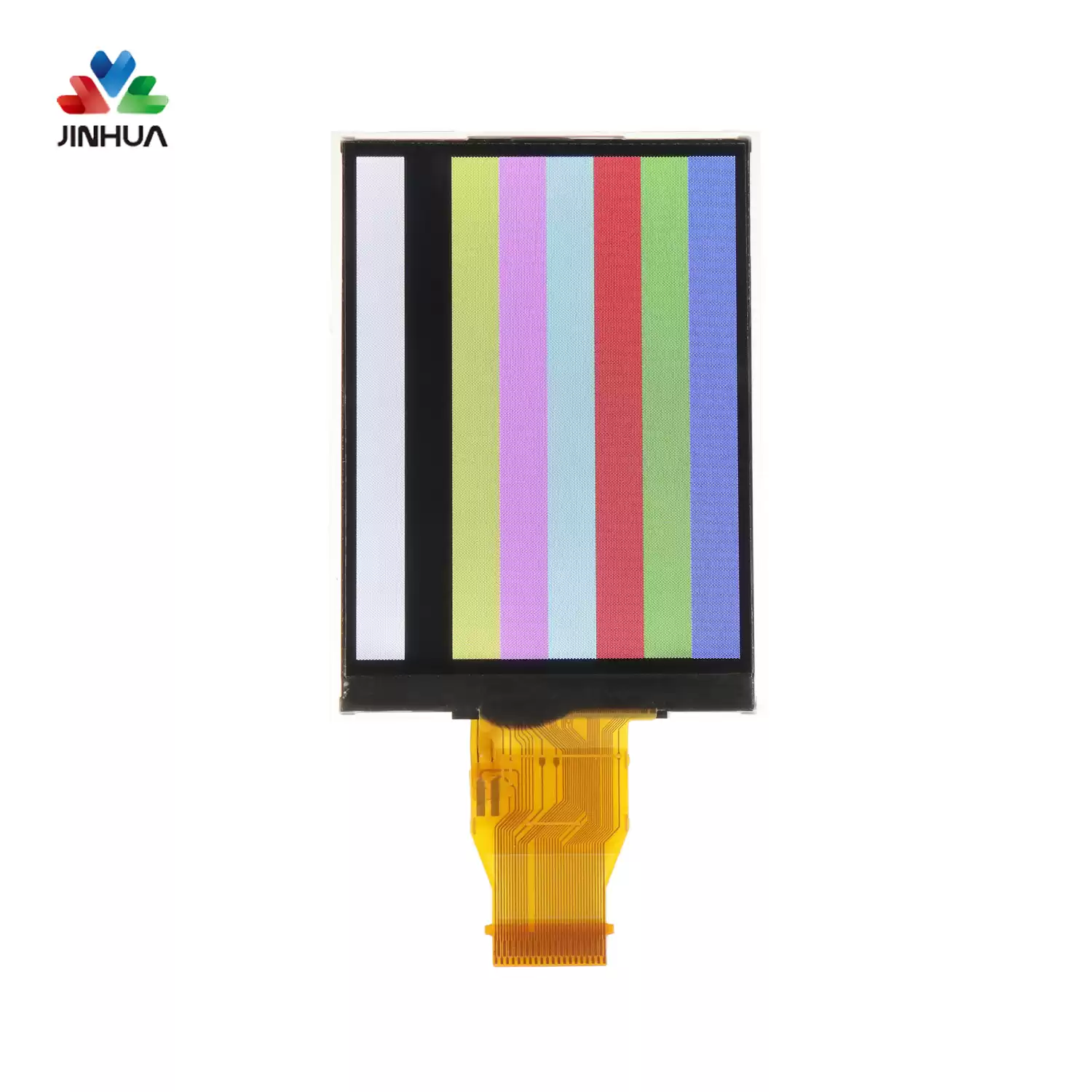

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Small Size TFT Touch Panel is extensively used in many industrial such as smart medical, conversation terminal, smart hardware, smart home, smart phone, hand-held terminal, face recognition, instrument&meter, car network terminal, etc.
