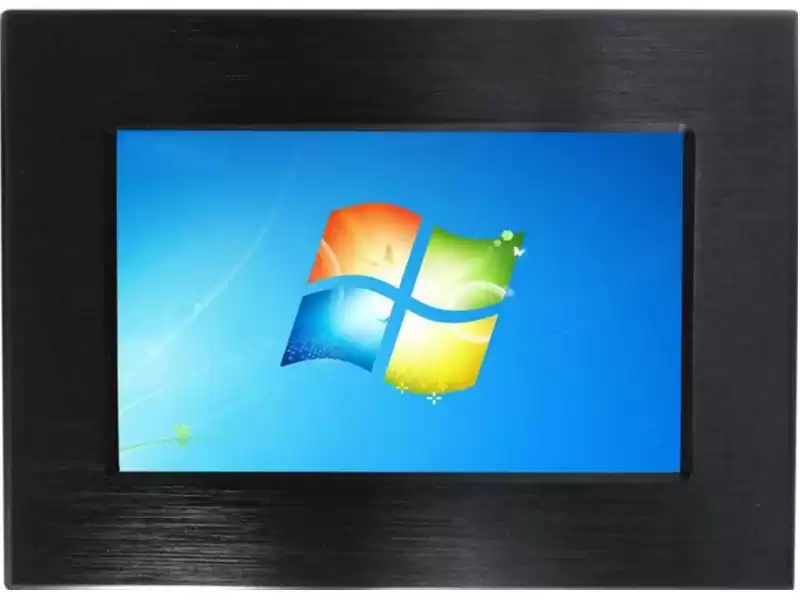

Custom 7 inch Touch Industrial Panel PC with 4th generation Celeron / Pentium i3 / i5 / i7 CPU
Product Introduction
Creating a custom 7-inch Touch Industrial Panel PC with a 4th generation Celeron/Pentium i3/i5/i7 CPU involves several steps, including selecting the appropriate hardware components, designing the enclosure, and configuring the software. Choose a 4th generation Celeron, Pentium i3, i5, or i7 CPU based on your performance requirements and budget. Select an industrial-grade operating system based on your application requirements. Options include Windows Embedded, Linux, or a real-time operating system (RTOS).
Product Features
■ Ultra-low power consumption, thin design
■ Aluminium alloy brushed panel
■ Panel IP65 waterproof rating
■ Soldered on board 4th generation Celeron / Pentium i3 / i5 / i7 CPU

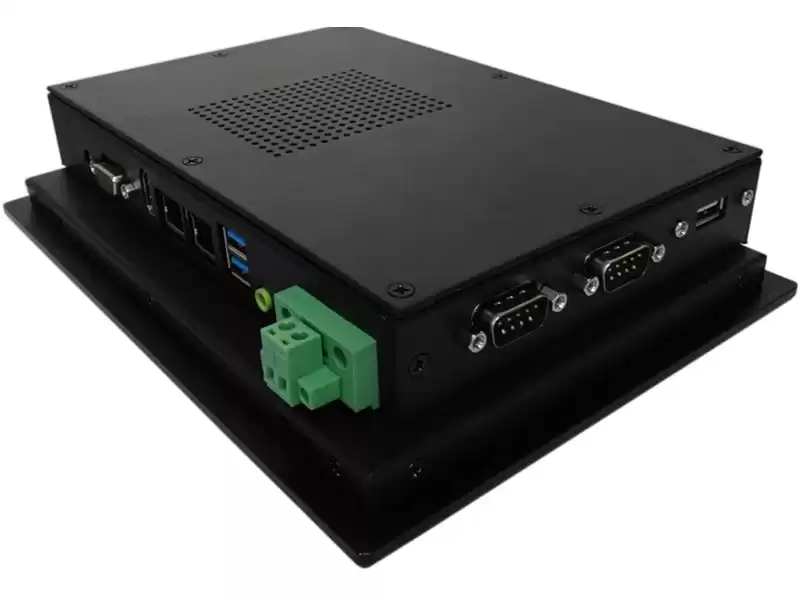

■ 2LAN, 2COM, 3USB
■ Resistive touch screen, can be OEM capacitive screen
| Specification |
Optional Configurations |
| Panel |
Aluminium panel, brushed oxidised black |
Available in black or other colours with optional sandblasted finish |
| Rear chassis |
1.2mm steel plate, black |
Available in industrial black, or other colours |
| Adaptive Main Board |
3.5" 4th generation dedicated motherboard |
Optional J1900 dedicated motherboard |
| LCD |
7" TFT, LED backlight; Resolution 1024*600; Dot Matrix: 0.158*0.158; Maximum Colour: 16.7M; Brightness: 250cd/㎡; Contrast Ratio: 700:1; Response Speed: 16ms; MTBF: 30,000h Viewing Angle: (+75° ~ -75°) (+75° ~ -75 °); |
| Touchscreens |
4-wire resistive screen |
Customisable capacitive screen |
| CPU/GPU |
4th Generation Pentium 3805U |
Optional 4th Generation I3/I5/I7 U-Series CPUs |
| Memory |
4G DDR3 |
Optional 2G/8G/16G DDR3 notebook memory |
| Hard drive |
64G MSATA |
Optional 32G/128G/256G/512G Msata Solid State Drive |
| Interface |
DC12V; VGA; HDMI; 2RJ45(Gigabit); 2USB3.0; DC-In Audio Out; 2COM; USB2.0 |
Customisable 6USB or 6COM or 1LPT; Customisable Wide Voltage Input; Customisable Wireless Antenna Holes |
| Size |
219mm (length) * 160mm (width) * 47mm (thickness) |
Weight |
2/2.5KG |
| Powersupply |
12V@5A adaptor |
Optionally not available |
| Installation |
Flush Screw Mount; Flush Hook Mount; VISA Wall Mount |
| Work and environment |
| Operating temperature |
0～60℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, non-condensing |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

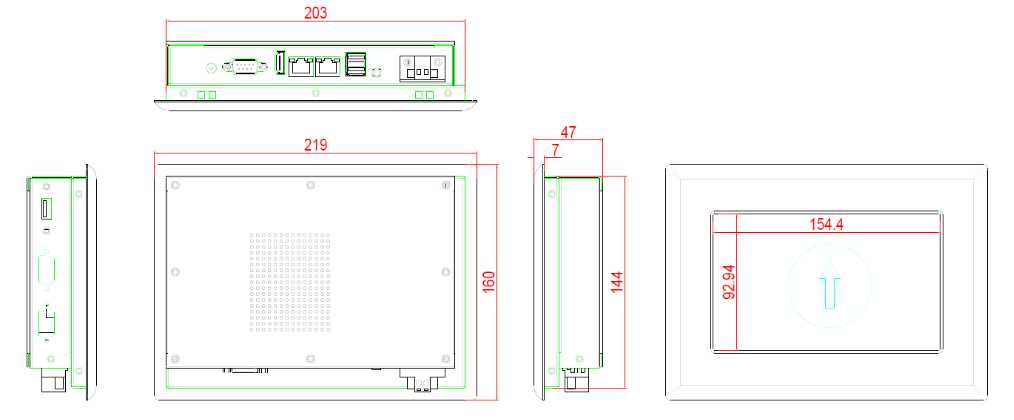

Mounting Dimension Drawing
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
