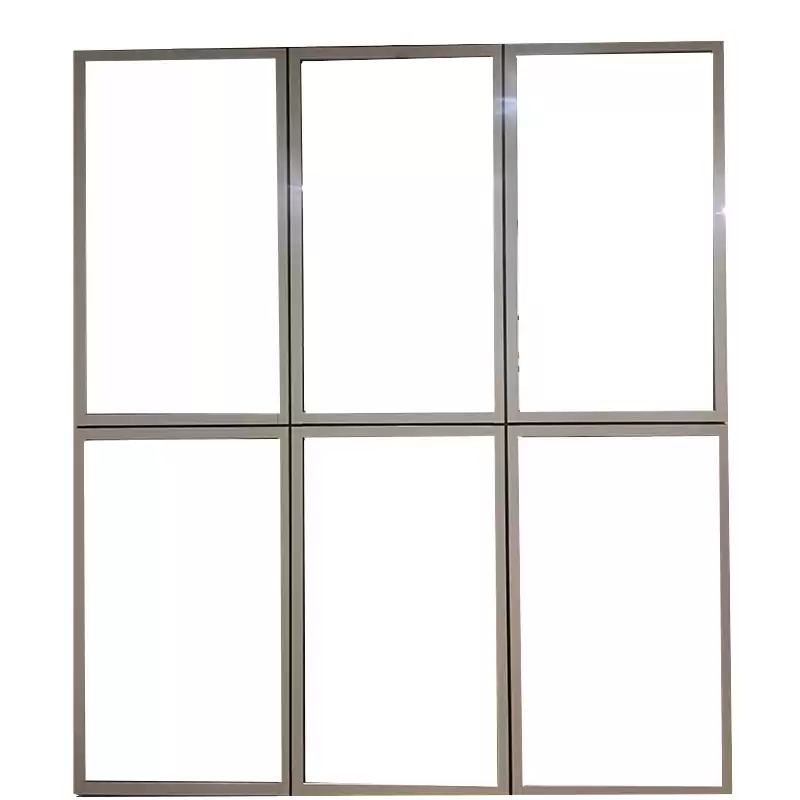

Custom Architectural Aluminum Unitized Glass Curtain Wall
The unitized curtain wall has the following advantages: firstly, the installation speed is very fast, and the construction period is short; secondly, it allows vertical cross work, which also greatly shortens the overall construction period of the building; finally, because the unit panels are produced in high beams, the assembly precision is high, Good quality.
- HDM180 unitized curtain wall system is a ready prefabricated units which can be installed without scaffolding.
- This is the ideal option for large construction and tall towers.
- The external glazing bars can be fitted easily and quickly saving valuable construction time.
- Broken glasses can be replaced easily
- Opening units fully integrated into load-bearing structure can be constructed
| Parameters |
Suitable Width/Height of Sash
(mm) |
Visible Width/Height
(mm) |
Aluminium width
(mm) |
Glass Thickness
(mm)
|
|
Curtain wall awning window sash
-Width 500-1800mm
-Height 500-1800mm
-Weight 60kg
|
/
|
/
|
SGU:
6-10mm
DGU:
14-35mm |
| Performance |
|
Heat Preservation Performance
W(m2.k)
|
Sound Insulation Performance
(DB)
|
Watertight Performance
(Pa)
|
Airtight Performance |
Wind Load Resistance
(KPA)
|
|
6+12A+6 Low-E,2.3-2.8,
level 5/6
|
35DB
level 4
|
based on elevation
|
based on elevation |
based on elevation
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
