Custom Breath Spray Box With Clear PET Sleeve And Paper Drawer — Manufacturer | OEM/ODM | Wholesale

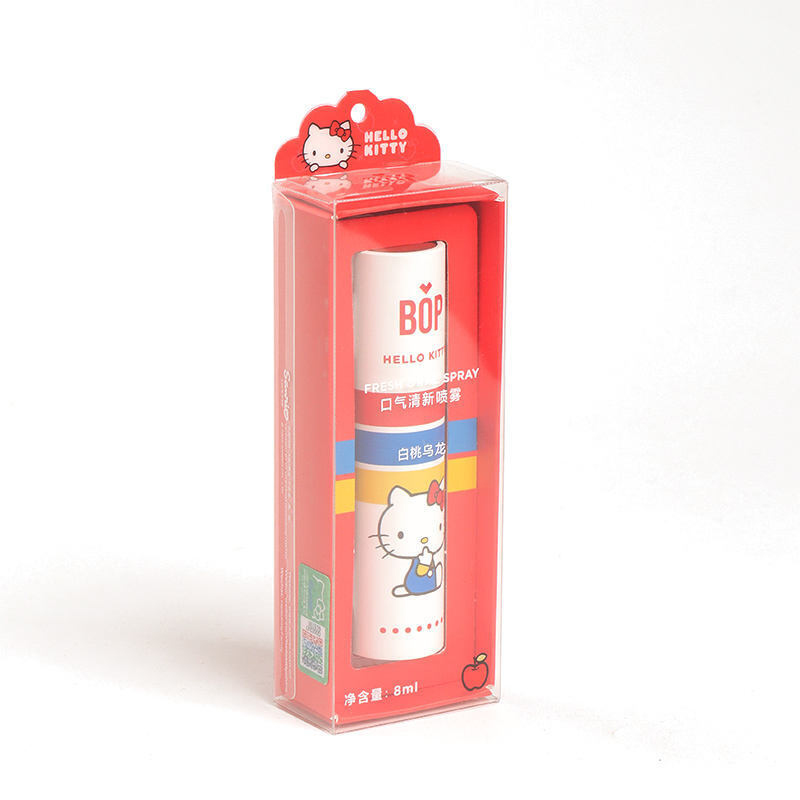

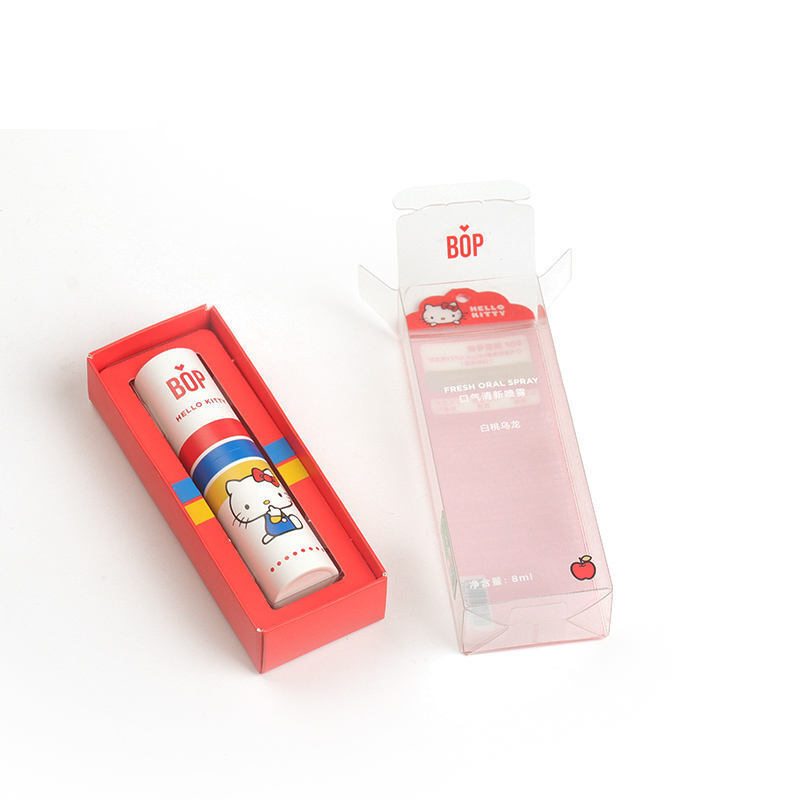

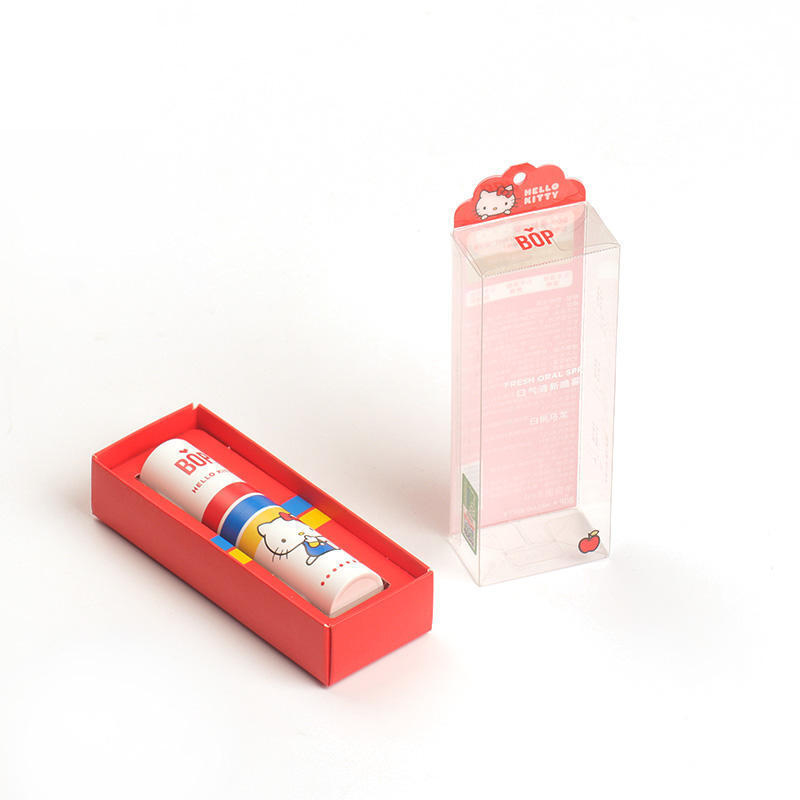

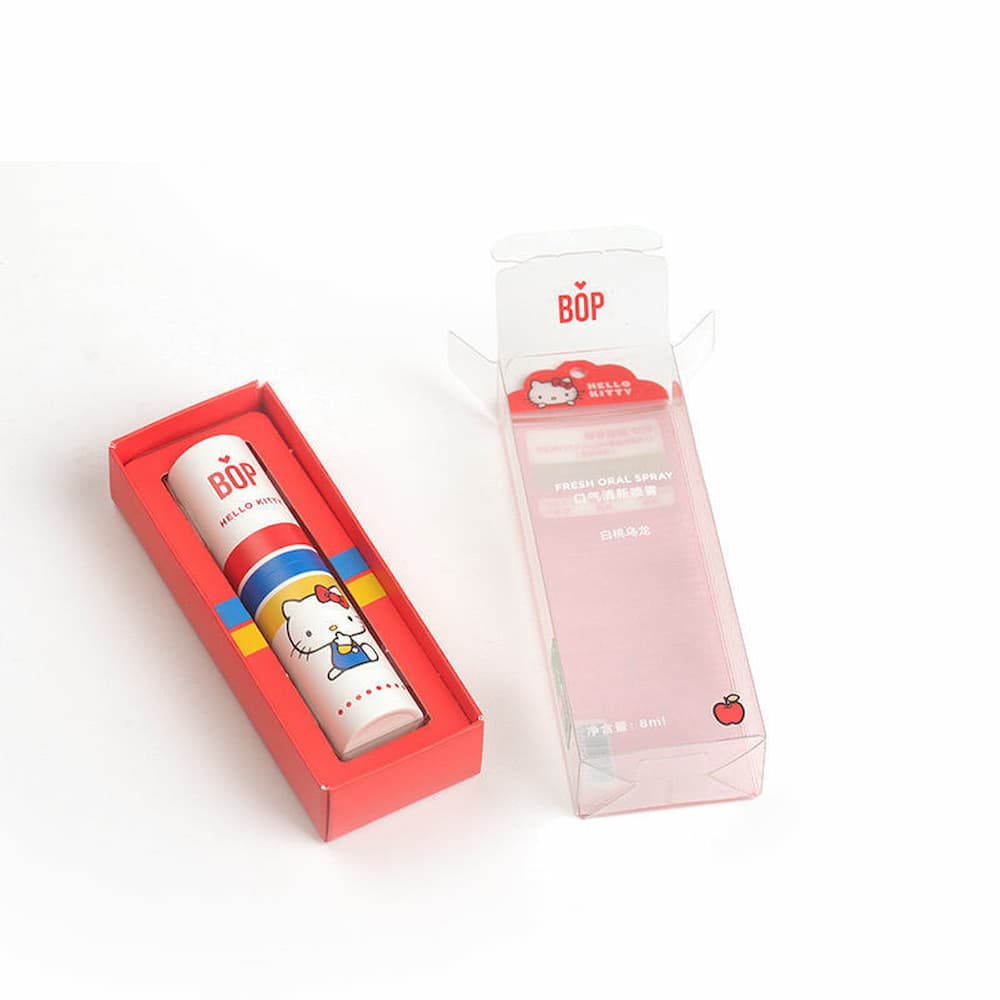

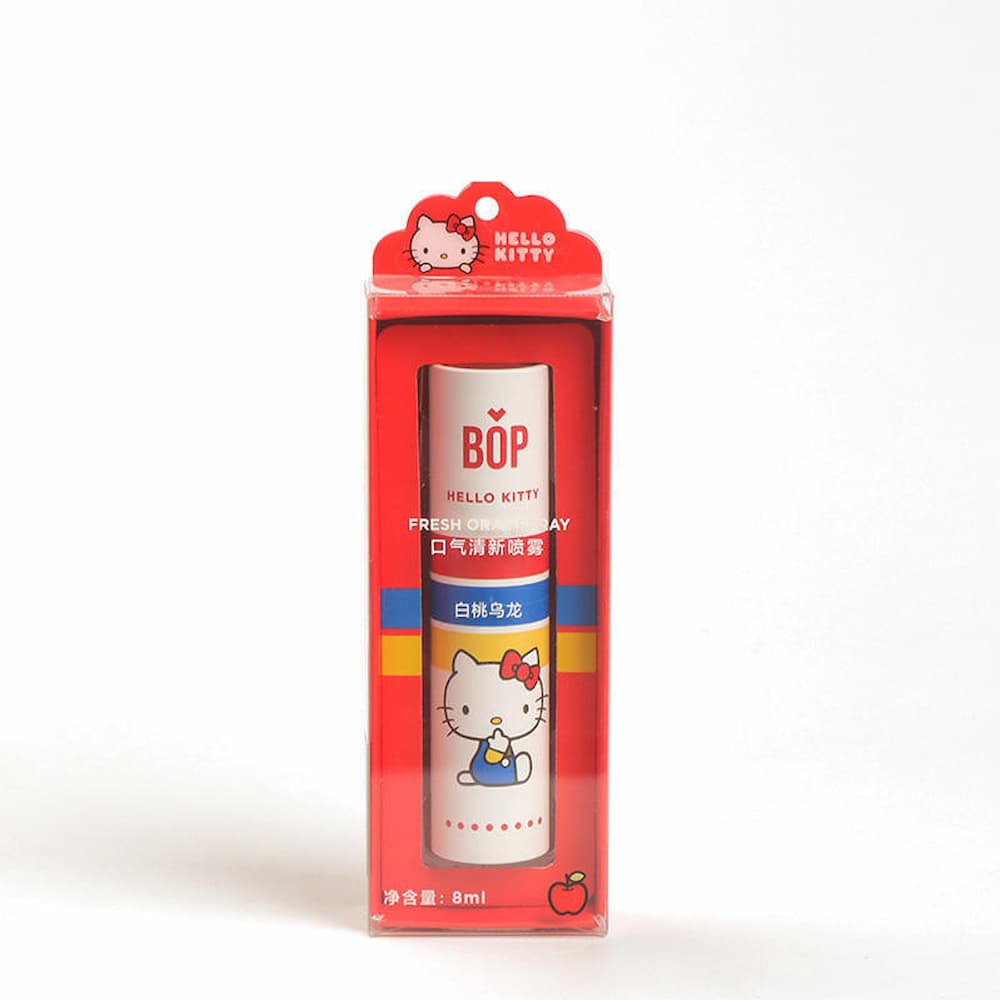

As an experienced OEM/ODM packaging manufacturer, ColorRise engineers composite display packs that balance presentation, protection, and line efficiency. The upright rectangular outer sleeve (four creases, top/bottom tuck-end) stays crystal clear for direct product view, while the internal paper drawer cradles a cylindrical glass or plastic bottle for smooth pull-out and reinsert. A die-cut character-shaped header with hang hole adds instant shelf recognition on peg strips and endcaps. Graphics can be reverse- or outside-printed on PET and CMYK printed on the drawer, with optional foil, spot UV, and anti-scratch coatings. Paper and plastic separate easily for recycling streams (availability varies by region).
1. Advantages
- Showcase that sells: high-transparency PET and vivid graphics keep the bottle and flavor notes in full view; the header shape boosts "stop power."
- Protects in motion: dust/scratch resistance plus drawer positioning reduces wobble and transit scuffs.
- Peg-ready merchandising: die-cut hang hole fits standard retail pegs and strip systems.
- Brand & compliance carrier: ample panels for capacity, ingredients, usage, barcodes, and regulatory marks.
- Sustainable separation: paper drawer and PET sleeve can be sorted post-use; mono-material subcomponents where practical.
- Scalable OEM/ODM: dielines supplied; pilot runs to mass production under Breath Spray Box Wholesale programs from a proven Breath Spray Box Supplier.
2. Features
(1) Basic Information
- Industry: Beauty & Personal Care
- Form: Clear PET folding outer sleeve, four creases, top/bottom tuck-end; character-shaped header with hang hole; inner paper drawer with round cut-out to seat the bottle
- Material: Transparent APET/PET sleeve + printed white card drawer (auxiliary labels/seals as needed)
(2) Basic Characteristics
- Reference Size: ~140 × 50 × 35 mm (L×W×H) ≈ 5.51 × 1.97 × 1.38 in
- Custom Range: 120–160 × 45–60 × 30–45 mm (≈ 4.72–6.30 × 1.77–2.36 × 1.18–1.77 in)
- Thickness: PET sleeve 0.30–0.50 mm (up to 0.60 mm for gift-like stiffness); paper drawer 300–400 gsm (≈ 0.35–0.50 mm)
- Weight: ~30–60 g per set, depending on sheet thickness and paper basis weight
- Capacity: One 8–15 mL breath spray (secondary pack; no liquid contact)
(3) Basic Functions
- High-visibility display (clear PET + reverse/outside print)
- Basic protection (dust, scuff, anti-wobble with drawer fit)
- Peg display with die-cut character header
- Information carrier (capacity, flavor/scent, ingredients, usage, compliance)
- Tamper-resistance via seal label/tear tape or hot-melt spot seal
- Recyclable streams by separating paper and plastic after use
Basic Parameters
| Item |
Specification |
| Material |
Transparent APET/PET sleeve + printed white card drawer |
| Structure |
Folding sleeve with four creases; top & bottom tuck-end; die-cut header with hang hole; inner paper drawer |
| Reference Size |
140 × 50 × 35 mm (≈ 5.51 × 1.97 × 1.38 in) |
| Custom Range |
120–160 × 45–60 × 30–45 mm |
| Thickness |
PET 0.30–0.50 mm (up to 0.60 mm); Paper 300–400 gsm |
| Weight |
~30–60 g/set |
| Capacity |
1 bottle, 8–15 mL breath spray |
| Insert |
PET: UV offset/screen (with white underlay as needed); Paper drawer: CMYK offset + film lamination (gloss/matte) |
Other Attributes
| Attribute |
Option/Detail |
| Decoration |
Hot foil (Au/Ag), spot UV, emboss/deboss, matte/frosted tactile varnish |
| Security |
Seal/tear label; hot-melt spot seal; QR/RFID; batch/date coding |
| Process Flow (PET) |
UV print → die-cut & creasing → side-glue/forming → header & hang hole punching |
| Process Flow (Paper) |
CMYK print → gloss/matte lamination or varnish → die-cut & creasing → gluing to drawer form |
| Assembly |
Insert drawer & bottle → apply labels/seals → pack into export cartons |
| Compliance |
Material statements; RoHS/REACH materials upon request |
| Packaging |
Export cartons; palletization; FBA/3PL-compliant barcodes and ship marks |
| Samples |
3–7 days (standard); custom tooling as quoted |
| MOQ |
Typically from 3,000 sets (adjustable by spec/finish) |
| Lead Time |
~15–25 days after artwork approval; complex finishes may extend |
1. Target Users & Products
- Breath freshener brands, oral care lines, travel kits, convenience/gas-channel SKUs
- Co-branded and licensed editions (e.g., character-themed headers) with valid IP authorization
2. Scenarios & Programs
- Peg-strip and endcap merchandising in supermarkets and convenience stores
- Gift-with-purchase bundles and DTC subscription kits
- Seasonal drops using Custom Breath Spray Box designs and Breath Spray Box Wholesale rollouts
Company Advantages & Capability
Breath Spray Box Manufacturer & Supplier Strength
1. Scale, Capacity, Exports, Honors
Specialist in composite retail packs (clear PET sleeves + paper structures) for beauty and oral care
Flexible capacity from pilot to mass production; integrated printing, finishing, and assembly lines
Mature export workflow for North America/EU/other developed markets; bilingual technical support and paperwork
2. Services, After-Sales, Guarantees
Dielines, sampling, character-header templating; quick structural tweaks to fit bottle OD and height
Rigorous IQC/IPQC/FQC; retained standards for color/finish consistency across reorders
NDAs for custom programs; remake or credit for verified supplier-attributable defects
Sustainability guidance: clear separation labeling for paper/plastic; local recyclability notes
FAQs
1. Product & Industry
Q1: Will the Breath Spray Box scratch or cloud in transit?
A1: Reverse printing protects graphics behind PET; anti-scratch coatings further reduce rub marks.
Q2: Can the header support peg display without tearing?
A2: Yes—reinforced header design and proper crease geometry distribute load on pegs.
Q3: Does the drawer fit both glass and plastic bottles?
A3: Yes—share diameter/height; we size the round seat and rails for smooth pull.
Q4: Can we add foil and spot UV together?
A4: Absolutely—we register foil lines and UV areas for crisp edges and highlight effects.
Q5: Is the Breath Spray Box recyclable?
A5: Paper and PET separate into their respective streams after label removal (availability varies by region).
2. Service Process
Q1: How do we start a Breath Spray Box order fast?
A1: Send bottle specs (OD/height), target box size, header artwork, finishes, and forecast—we’ll return dielines and a sampling plan promptly.
Q2: What are typical MOQ and lead time?
A2: From 3,000 sets; ~15–25 days after artwork approval (finishes/volume may affect timing).
Q3: Can you add tamper seals, QR, or RFID?
A3: Yes—seal/tear labels, QR serialization, and RFID tagging are supported.
Q4: Can you produce a character-themed header (e.g., co-brand)?
A4: Yes—upon proof of IP authorization; we follow your brand guide for colors and placement.
Q5: How do you ensure color consistency across reorders?
A5: Pantone locks, press proofs, and retained standards; specs documented in your QC sheet.
