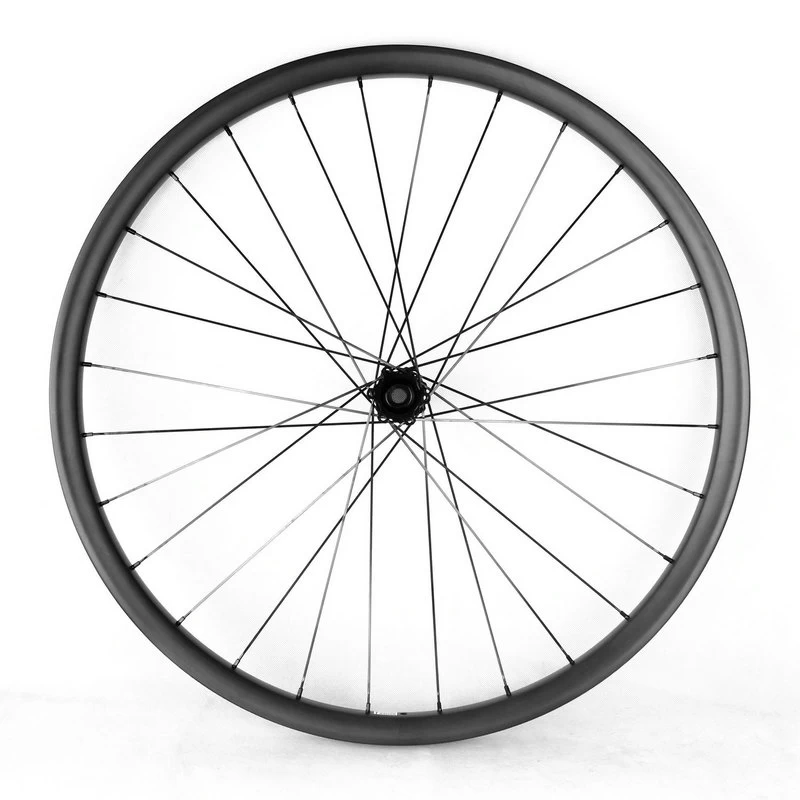

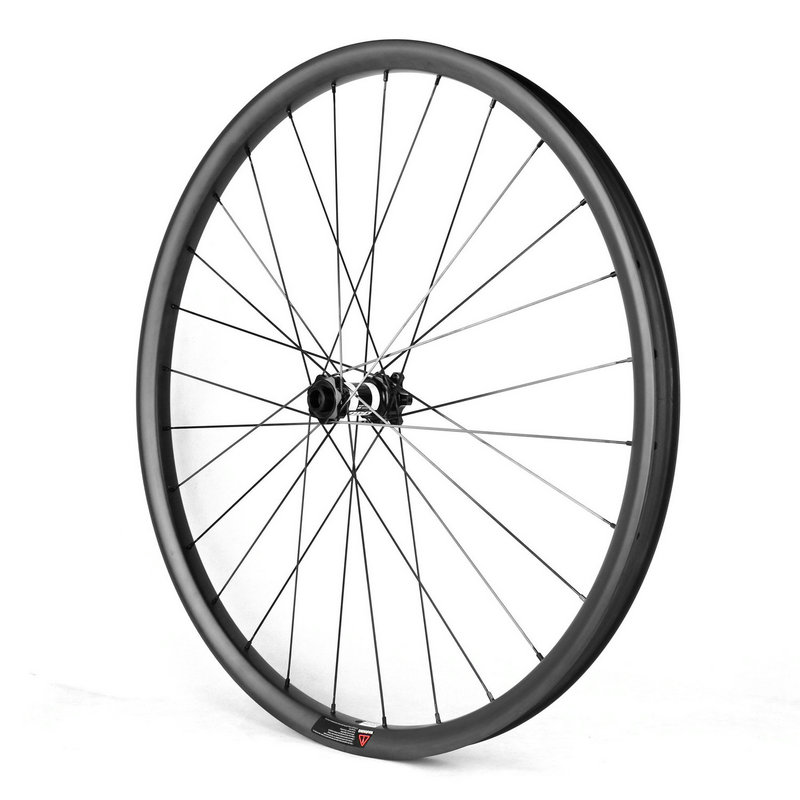

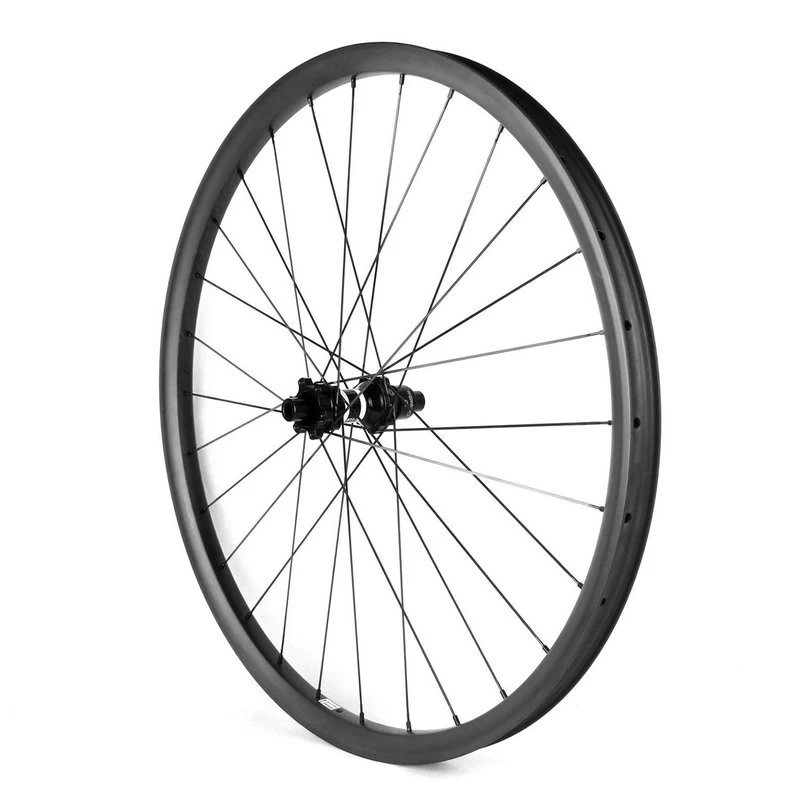

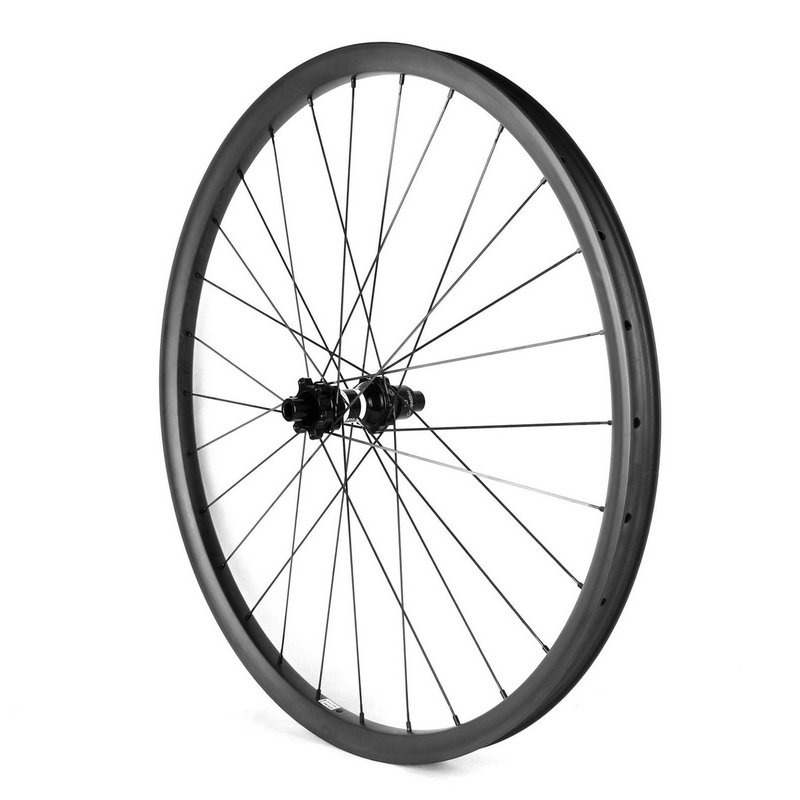

Custom DT Swiss 350 hub + Sapim CX-Ray spoke mountain bike carbon wheels

Custom hand built mountain bike carbon wheels with DT swiss 350 hub + Sapim CX-Ray spokes, Sapim SILS nipples. Choose your favorite carbon mtb rim model. Each wheelset is painstakingly hand built by experienced wheel builder.


  • StandardEN standard
  • LevelMid Racing
  • BrakeDisc brake
  • Hole28/28 or 32/32
  • RimCarbonal mtb carbon rims
  • LacingF - 3 cross, R - 3 cross
  • NippleSapim alloy, black or red
  • SpokeSapim CX-Ray, black
  • HubDT Swiss 350 hub

Product Item: Custom DT Swiss 350 hub + Sapim CX-Ray spoke mountain bike carbon wheels.

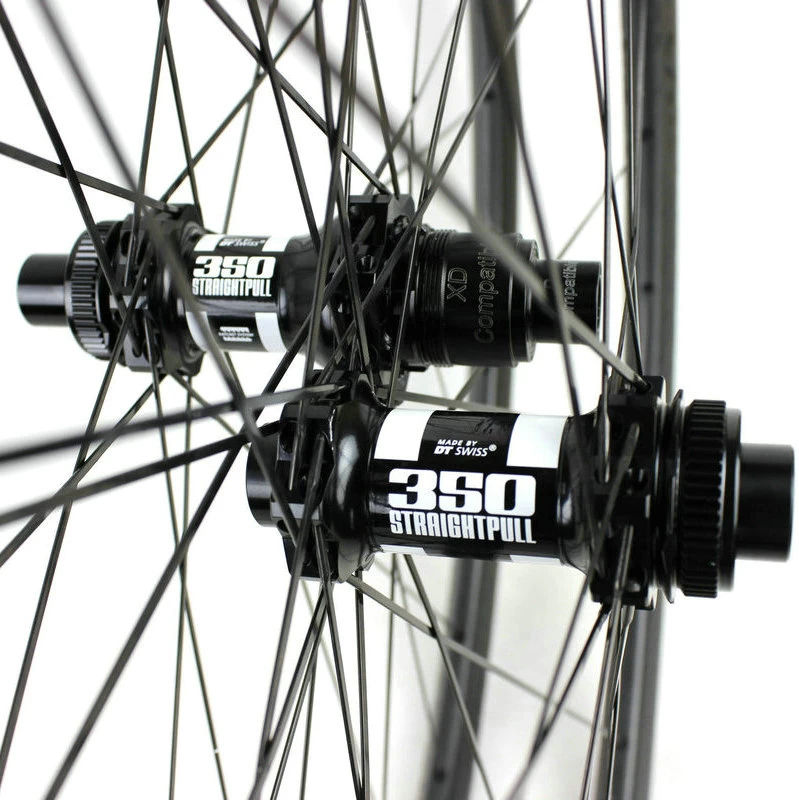

DT Swiss 350 hub

DT Swiss 350 hub is the most affordable high performance hub available. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost. Being available in all standards and for any application, the 350 hub is for those who maybe like to ride the trails a little more than drooling over catalogs and specs.


Hub:

DT swiss 350 hub, straight pull or classic (J bend);

Axle system: front 15*100mm, rear 12*142mm;

Material: Aluminum;

Brake interface: Disc 6 bolts / Disc center lock;

Free hub system: Ratchet System 18T (optional 36T / 54T);

Freehub body: Shimano MTB 10/11S (optional 12SP) or Sram XD;

Hole: 28/28 or 32/32;

Color: black.


Spoke:

Sapim CX-Ray, black;


Nipple:

Sapim alloy nipple, black or red.


Lacing:

Front wheel - 3 cross;

Rear wheel - 3 cross.


Rim:

Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.

5 years warranty.


Weight:

Freehub body
Hole
Axle system
Hub weight / set
Spokes + nipples weight
Weight without rims *
Shimano 11SP
28/28
F-15*100mm / R-12*142mm
415g
255g
670g
Sram XD
28/28
F-15*100mm / R-12*142mm
381g
255g
636g
Shimano 11SP
32/32
F-15*100mm / R-12*142mm
474g
291g
765g
Sram XD
32/32
F-15*100mm / R-12*142mm
450g
291g
741g


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.

* All our mtb rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Please choose your favorite carbon mountain bike rim model, leave a message below with the rim "item number" (such as item MX930XC) to get a best quote of your custom mtb wheelset.
