Custom LED Screen Module For Scooter

Basic Info.


Emitting Color All Colors Circuit Common Common cathode/anode
Chips Material Algainp Power Comsumption 50MW
Package Size Customized Forward Voltage If=20mA 2.5V Max, adjustable
Reverse Current Vr=5V 50μa, or customized Peak Forward Current 60 Ma
Luminous Intensity If=20mA 42mcd Max, adjustable Luminous Intensity If=20mA 42mcd Max
Storage Temperature -30° to 85°C Operating Temperature -20° to 80°C
Packging Epoxy Connector Pin
Origin China Transport Package Carton/Pallet
Production Capacity 1.5 Billion Dots/Month MOQ 1000 pcs, negotiable




Custom LED Screen Module For Scooter

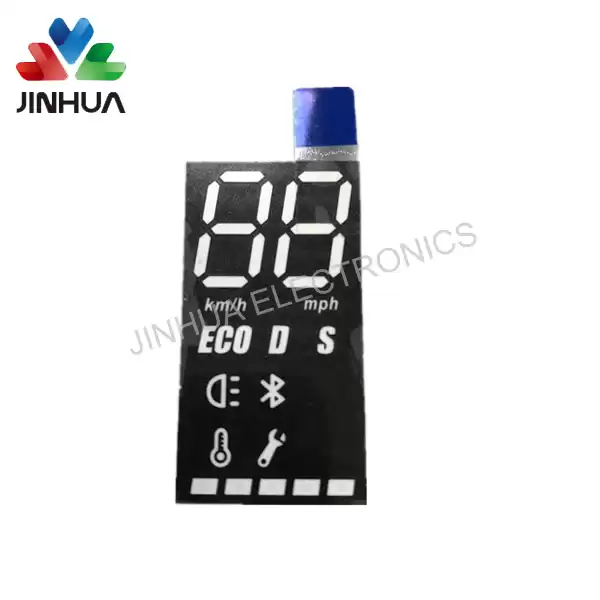

It is a custom LED screen module whose application is for scooter display.



Pins Customize LED Screen Module
Product Parameters
Display Size Customized
Dimensions Customized
Digit Context Text, numeric and graphic
Available Emitting Color Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green
Surface Color Black/Gray (white epoxy)
Epoxy Colors Red, Milky, Blue, Green and more
Polarity Common Anode/Common Cathode
Connector Pin
Operating Temperature -20-80°C
Requirements On Environmental Protection ROHS HSF
Customized is available according to our customer's requirements on the special matrix height, dot size, and internal circuit and outline dimension!

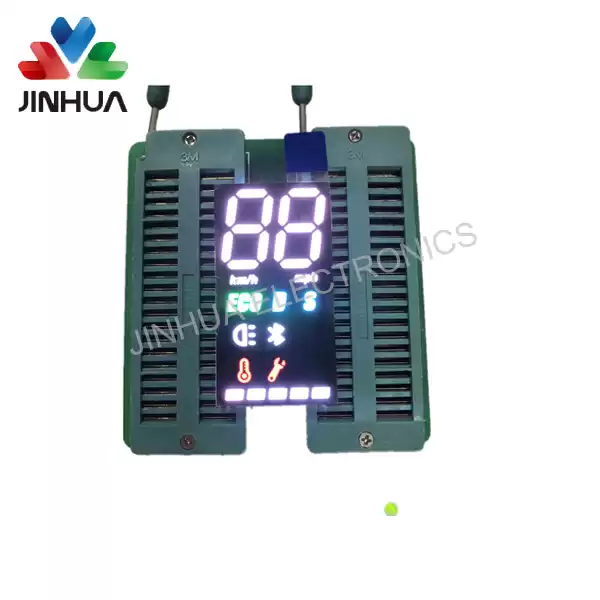

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
