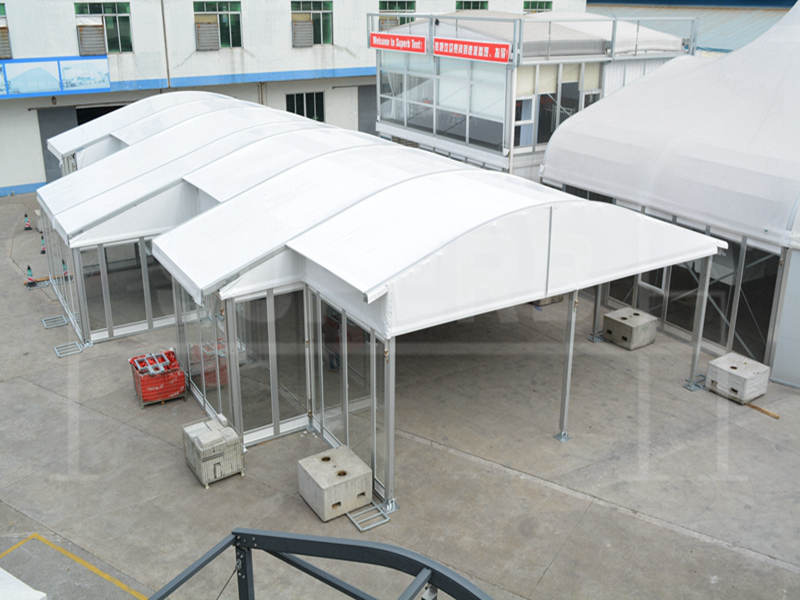

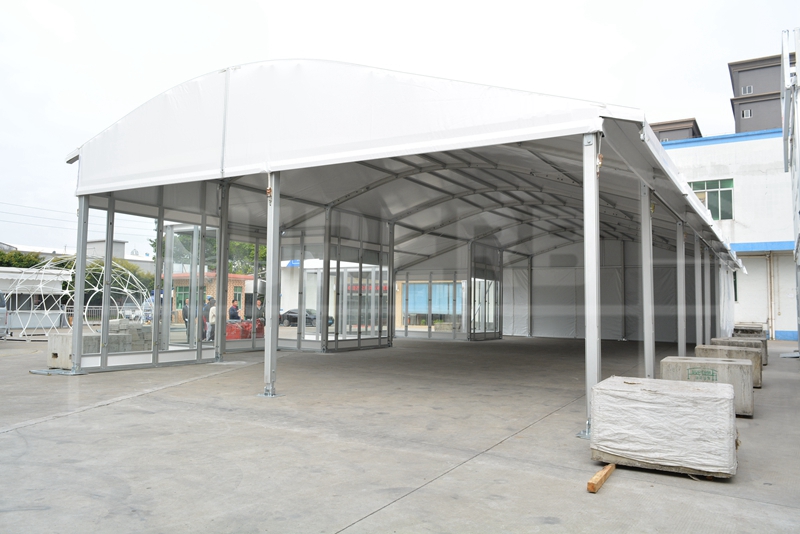

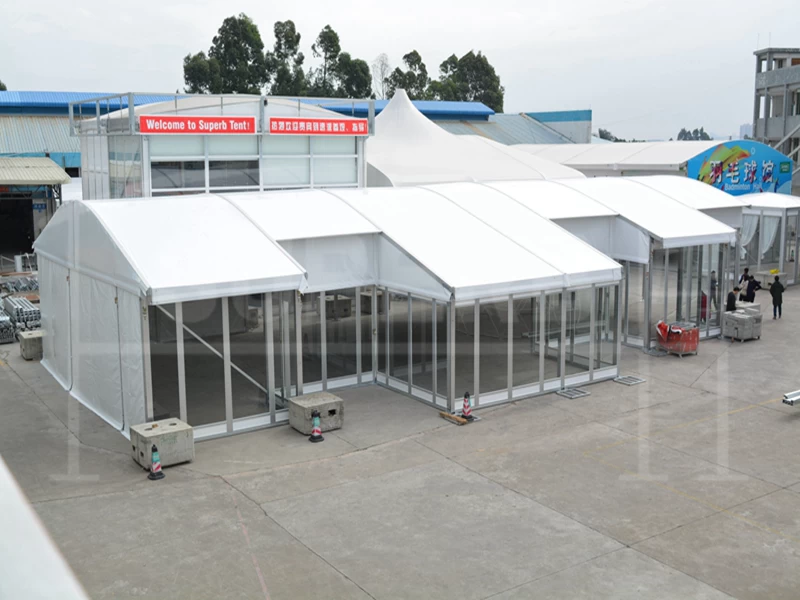

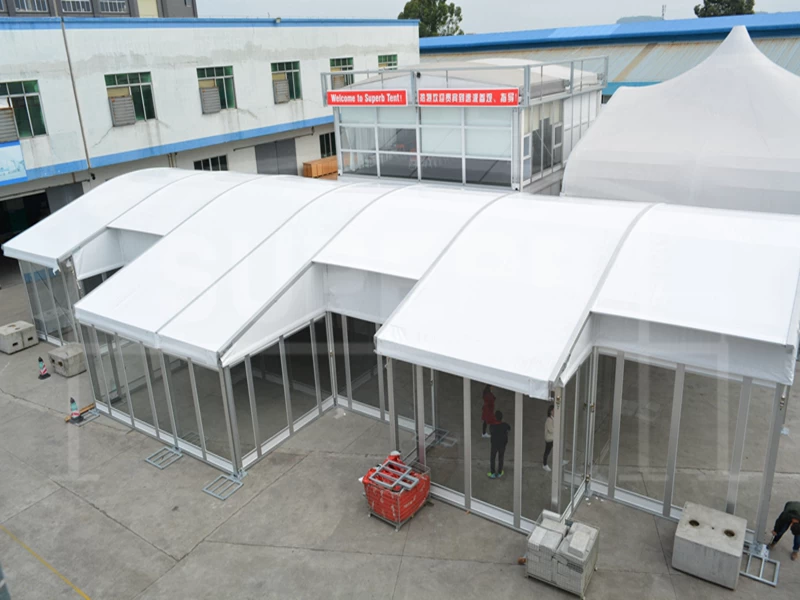

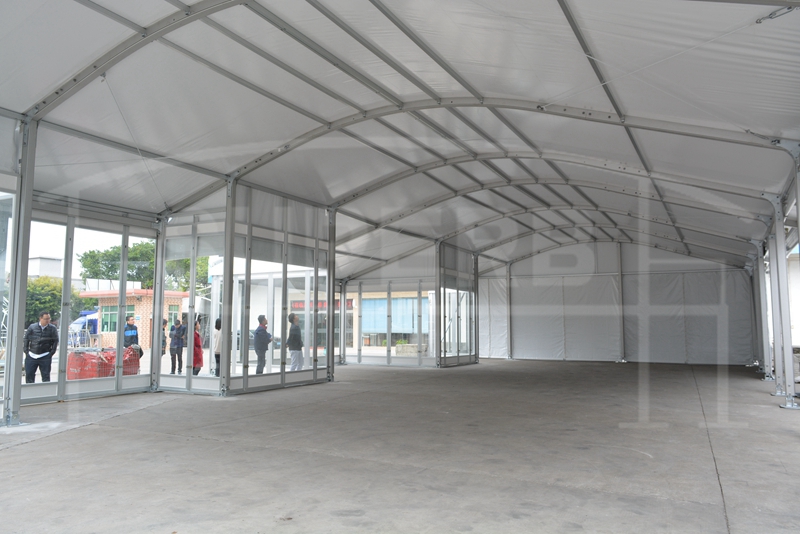

Custom-made Arcum Exhibition Dome Tent
The exhibition tent design is actually the display space of the product.The product is the main body, the space is the auxiliary body, the space must make bedding for the product, and the product also must fuse in the space.
Analyzing the role of plane layout, first of all, we should divide the space, so let's start our design.
The specification of Custom-made arcum exhibition dome tent:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
BS10/4-5AT
|
10
|
3.9
|
4.9
|
5
|
18°
|
9.2
|
100
|
|
BS15/4-5AT
|
15
|
3.9
|
5.7
|
5
|
18°
|
9.2
|
100
|
|
BS20/4-5AT
|
20
|
3.9
|
6.5
|
5
|
18°
|
9.2
|
100
|
|
BS25/4-5AT
|
25
|
3.9
|
7.3
|
5
|
18°
|
11.2
|
100
|
|
Main frame Profile
|
204x120x4mm（4-Channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|

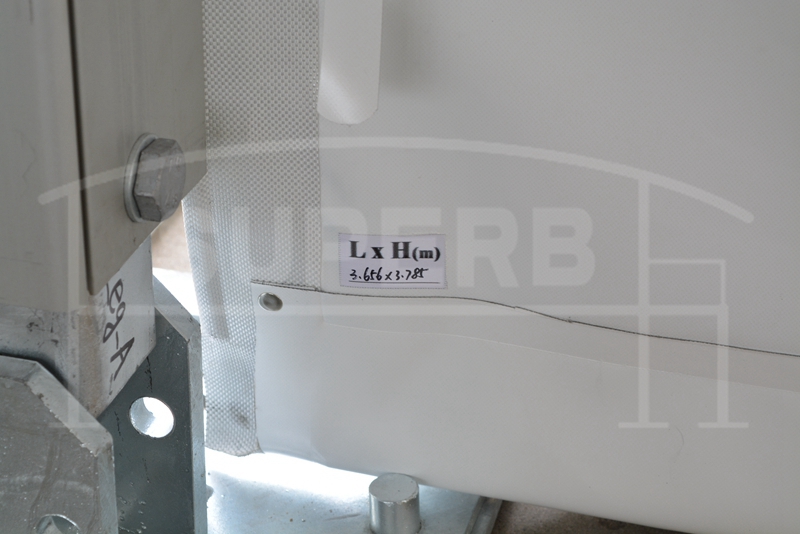

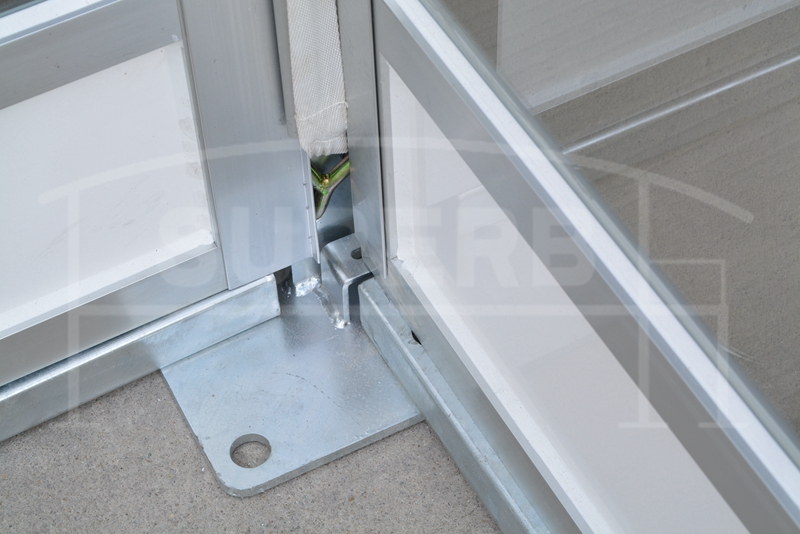

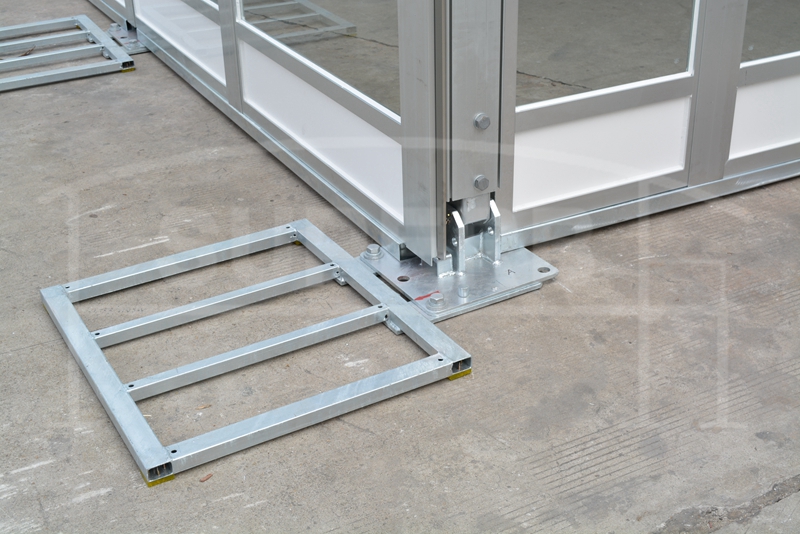

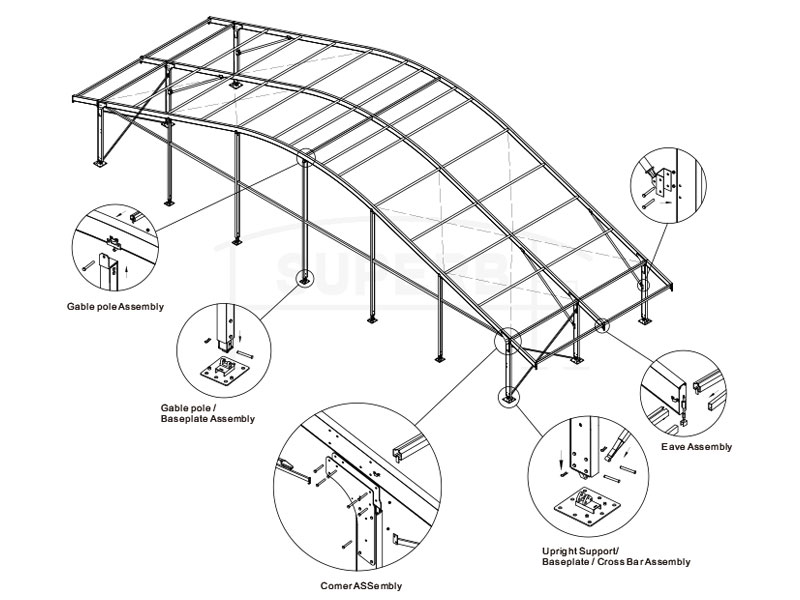

The accessories of arcum exhibition dome ten:
