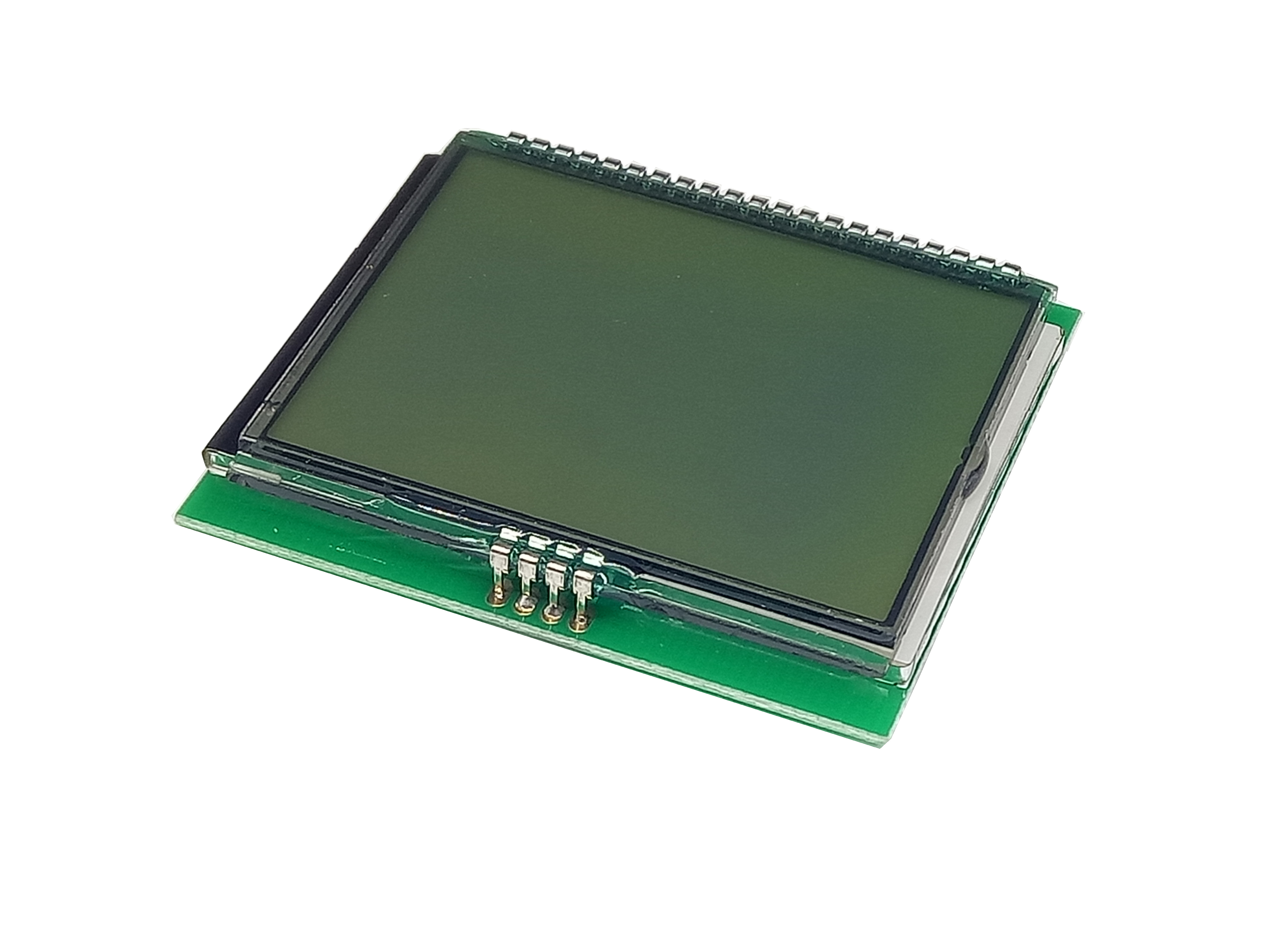

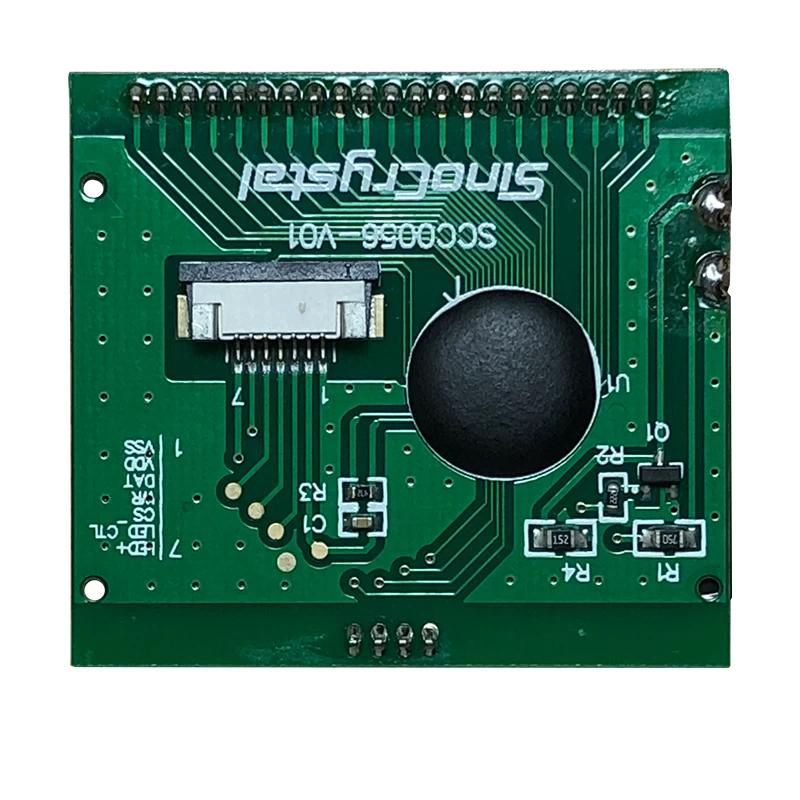

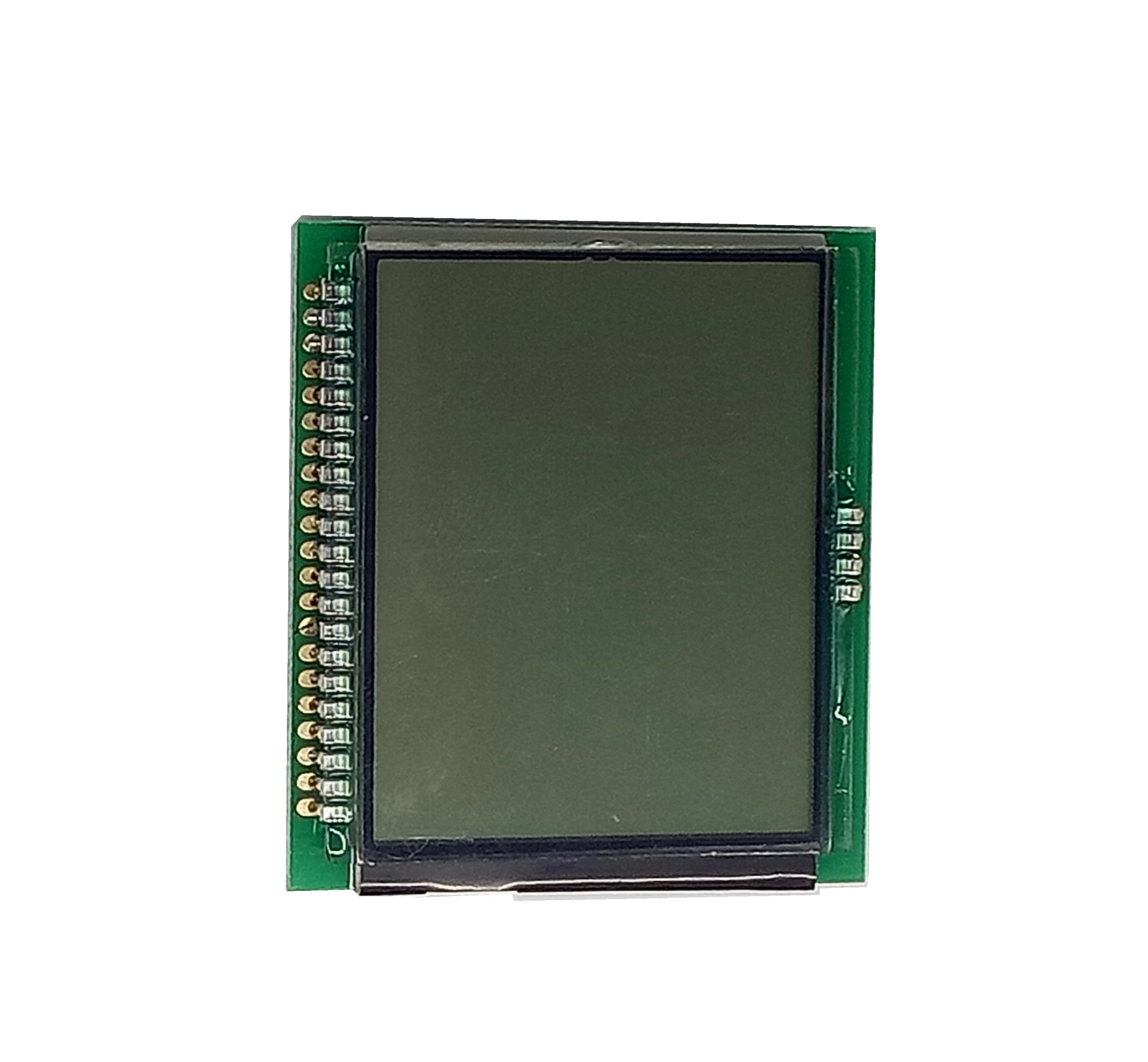

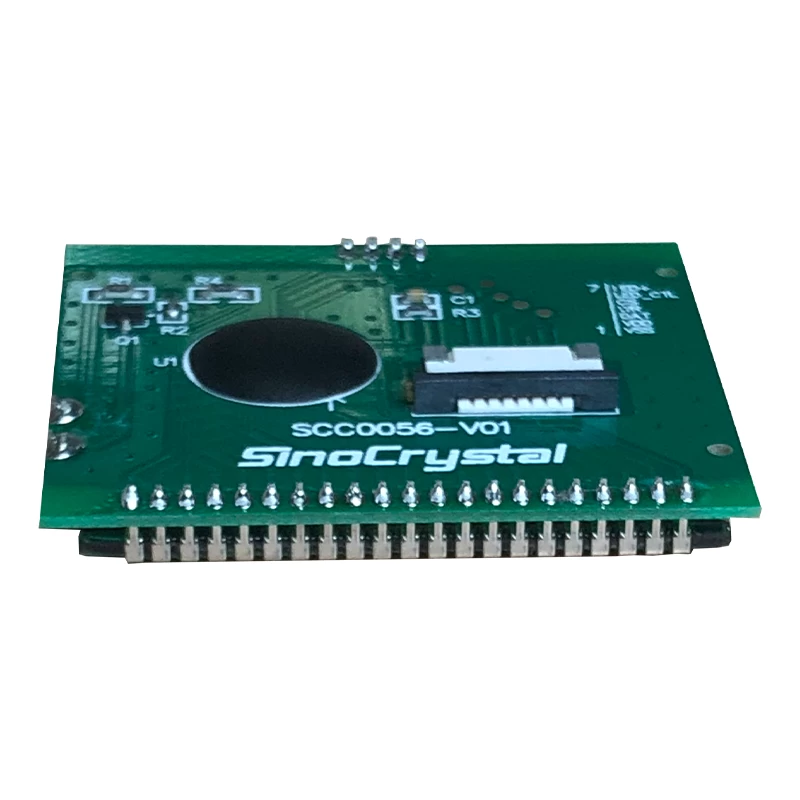

Basic Information
LCD Type: TN Postitive Transmissive
Number of Graphic: Segment
Outline Dimension: 46.80*42.00*7.90
View area: 40.00*31.00
View Direction: 6 o'clock
PIN: 7
Backlight: White LED

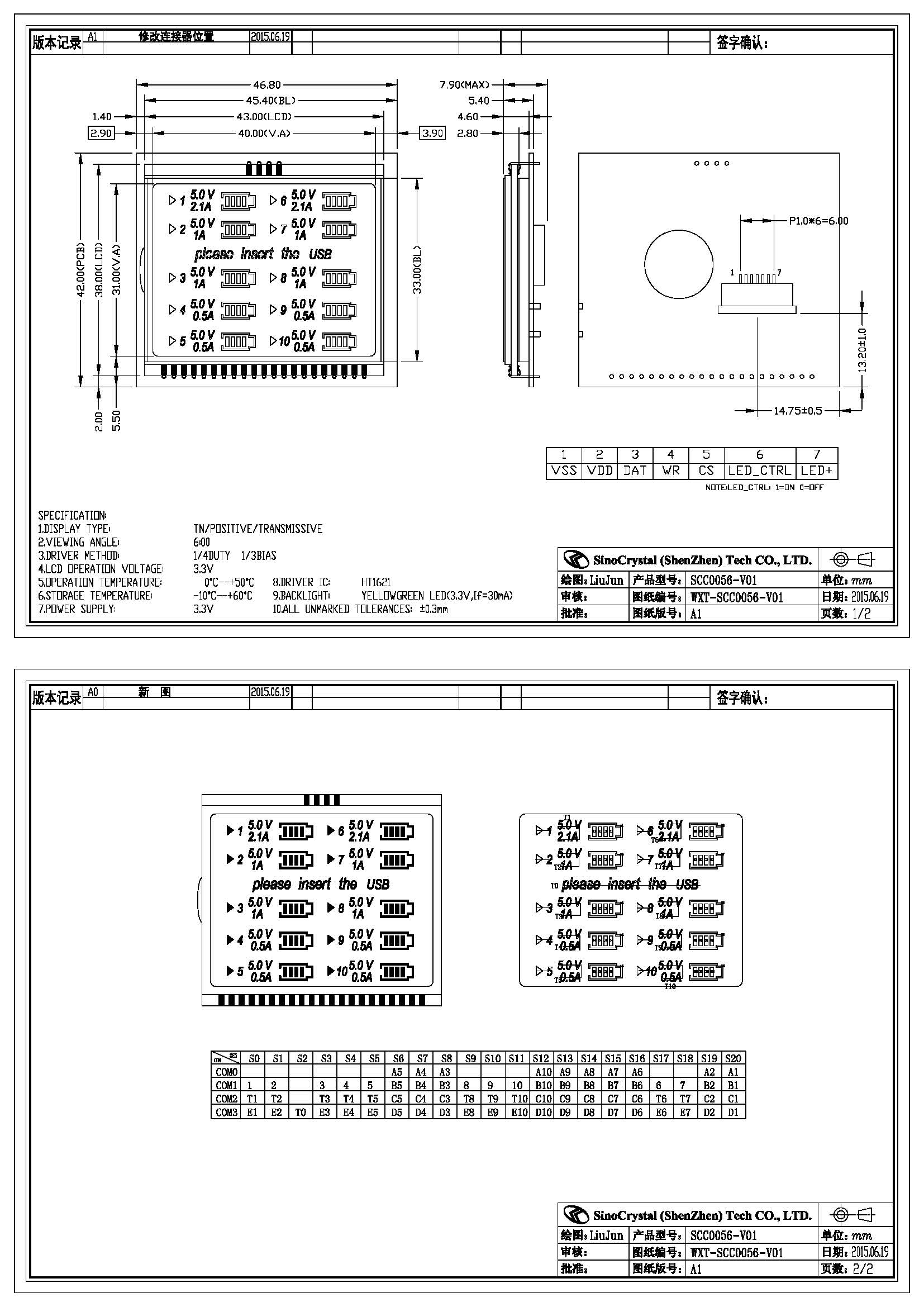

Drawing
General Specification
|
ITEM
|
STANDARD VALUE
|
UNIT
|
|
NUMBER OF GRAPHIC
|
SEGMENT
|
Mm
|
|
MODULE DIMENSION
|
46.80*42.00*7.90
|
Mm
|
|
VIEWING AREA
|
40.00*31.00
|
Mm
|
|
DOT SIZE
|
-
|
Mm
|
|
DOT PITCH
|
-
|
Mm
|
|
LCD TYPE
|
TN/ POSITIVE/TRANSMISSIVE
|
|
|
DUTY
|
1/4
|
|
|
VIEWING DIRECTION
|
6:00
|
o'clock
|
|
BACK LIGHT TYPE
|
SIDE LIT LED
|
|
|
BACK LIGHT COLOR
|
Yellow-Green
|
|
|
APPROX. WEIGHT
|
TBD
|
G
|
