Customed Tents For Events
Nowadays standardized Aluminum tents are very convenient to use for different functions. However, on some special occasions, it cannot meet the requirements of the event. In order to solve this problem, Superb Tent Co., Ltd provides customized tent to satisfy customers’ personalized demands. Customized service includes the tent design and material can be changed to meet clients’ needs. Customized tents for event, exhibition, party, sport or personal use can give clients a unique using experience. You can find what you expect from Superb Tent. Improvement and Innovation is our eternal pursuit.

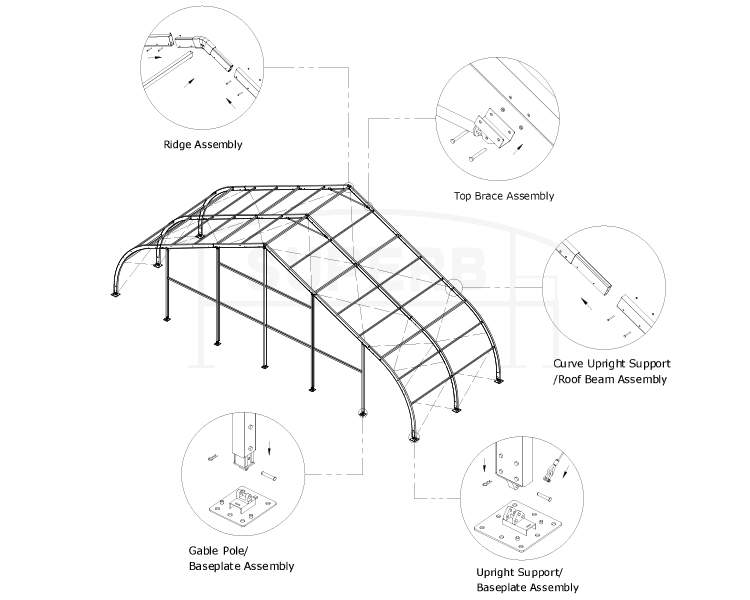

Tents For Events's Frame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
Tents For Events's Cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning roof & sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Tents For Events's Available size:
● Clear span available between 10-40m.
● Modular structure, the length is adjustable by 5m unit.
The Specification of Customed Tents For Events
|
Type
|
Span (m)
|
Side height
(m)
|
Ridge height
(m)
|
Bay Distance
(m)
|
Roof Pitch
|
Longest
Component (m)
|
Wind Load
(km/h)
|
|
XLS20/4-5CT
|
20
|
3.9
|
8.8
|
5
|
25°
|
8
|
100
|
|
XLS25/4-5CT
|
25
|
3.9
|
9.9
|
5
|
25°
|
9.1
|
100
|
|
XLS30/4-5CT
|
30
|
3.9
|
11.2
|
5
|
25°
|
11.8
|
100
|
|
XLS40/4-5CT
|
40
|
3.9
|
13.5
|
5
|
25°
|
11.8
|
100
|
|
Main frame
Profile
|
300x120x5mm （4-Channel)
|
|
Eave
Connection
|
Hot-dip
Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame
Material
|
Hard Pressed
Extruded Aluminum 6061/T6
|
|
Cover
Material
|
Double PVC
coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
