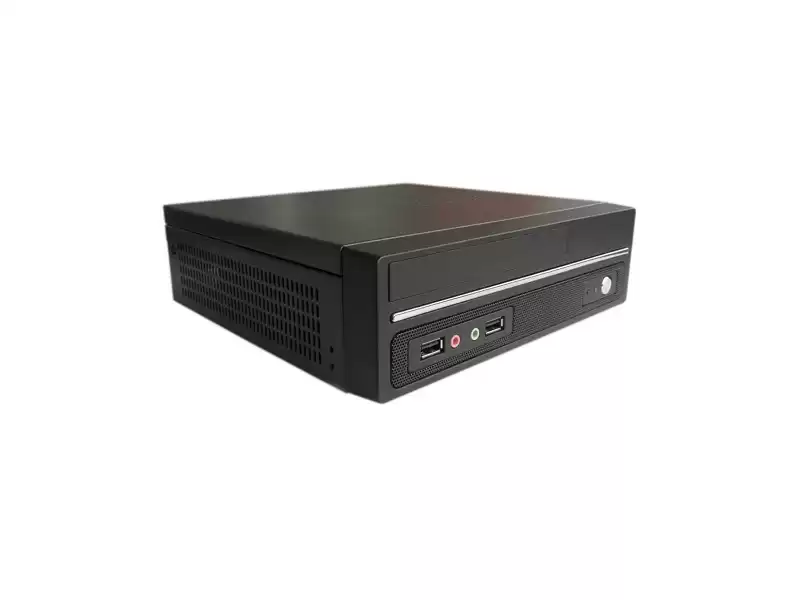

Customizable Thin Client PC Support i3 i5 i7 Notebook CPU
Product Introduction
The thin client can be used as a cloud terminal, widely used in government, education, finance, medical, manufacturing, retail and other fields, its deployment is simple and low cost, and can realize the centralized management of resources, resource sharing.
| Specifications |
Optional Configurations |
| Chassis |
All steel construction + plastic panel, black |
|
|

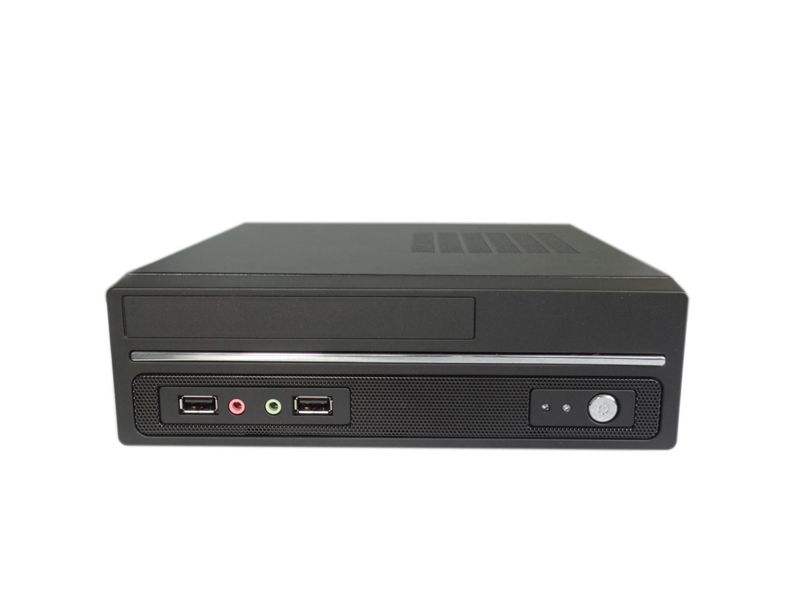

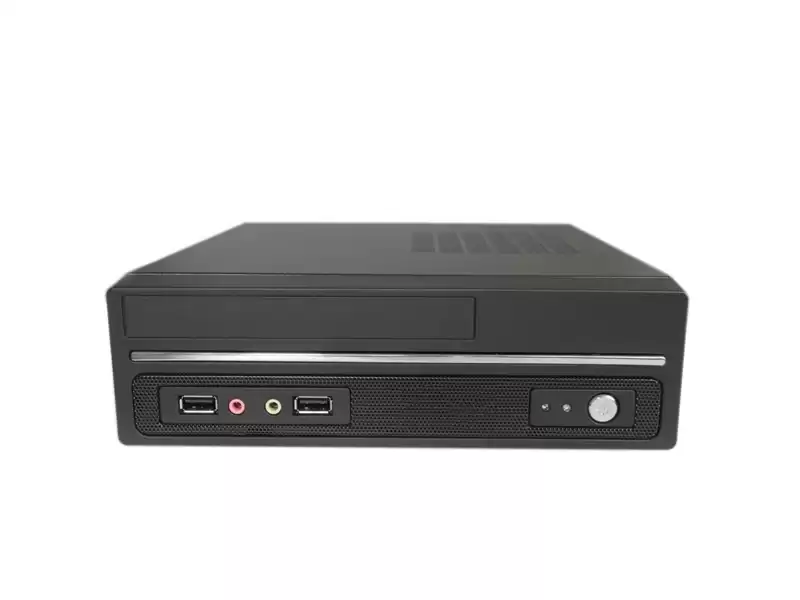

| Front |
Metal POWER Switch with Indicator , 2USB2.0. |
Customizable with customer logo or more serial or parallel ports |
| Back |
DC In; VGA + HDMI display; 2USB2.0;2USB3.0; 1RJ45 gigabit network port; 2Audio;4 x DB9 unbroken holes |
Optional 2LAN (2 less USB), 6COM |
| Hard disk rack |
1 hard disk rack, supporting 1x 2.5 inch HDD/SSD |
Optional Double Hard Disk Rack |
| Adaptive Motherboard |
Supports Yanyue HM76/HM86 Mini-ITX motherboards |
|
| CPU/GPU |
Intel i3 3110M |
Support all 3rd/4th Gen notebook CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G,Max up to 32G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G up to 1T mSATA SSD; support 2.5 inch SSD and HDD |
| Interfaces |
DC in; VGA + HDMI display; 2USB2.0;2USB3.0; 1RJ45 gigabit network (Standard); 2Audio; |
Optional 2LAN (2 less USB), 6COM |
| Size |
234*202*56mm(Height with padded feet, which cannot be removed) |
Net/Gross Weight |
3/3.5KG |
|
| Power Supply |
Standardized 12V@5A adapter |
|
| Installation mode |

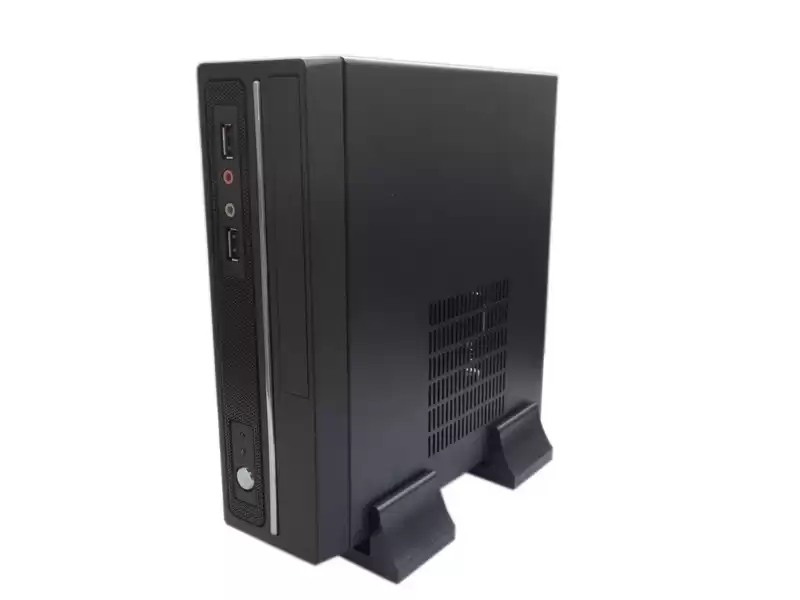

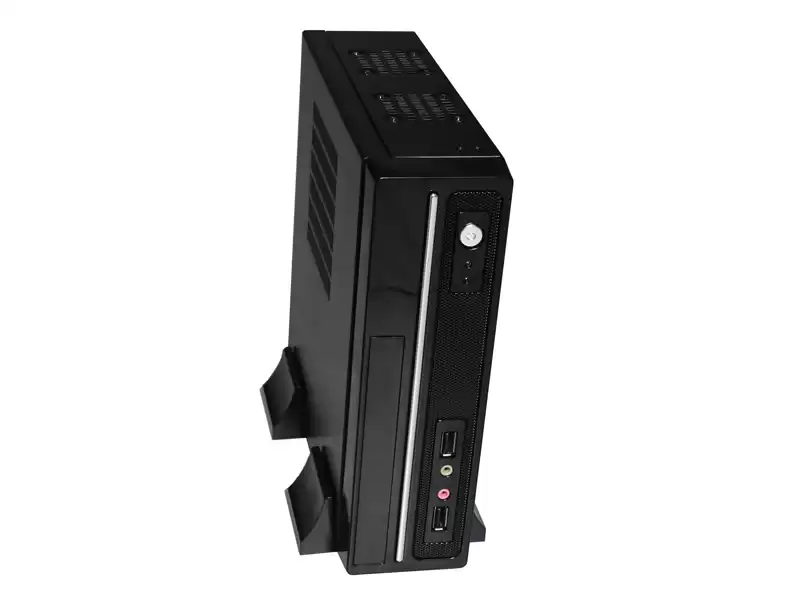

Desktop mounting; Behind the monitor mounting; Stand mounting |
Product Features
■ Supports i3/i5/i7 Notebook CPU or desktop CPU
■ Economical solution
■ Supports desktop mounting
■ Supports behind monitor mounting, bracket mounting
■ 1LAN,2COM, 6 USB as standard, optional 2LAN,6COM
| Work and Environment |
| Working Temperature |
（-20～60）℃ |
Storage Temperature |
-40～75℃ |
Environmental Humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

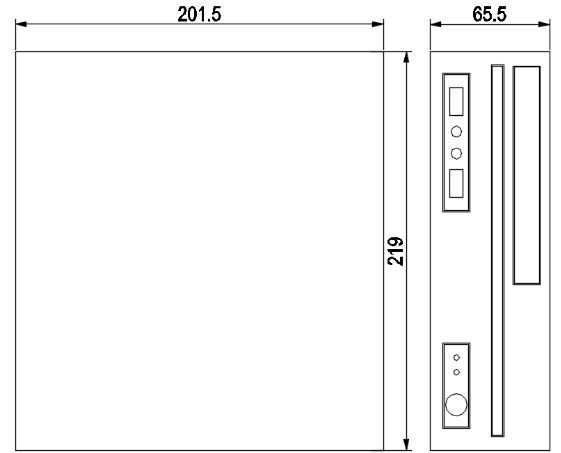

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
