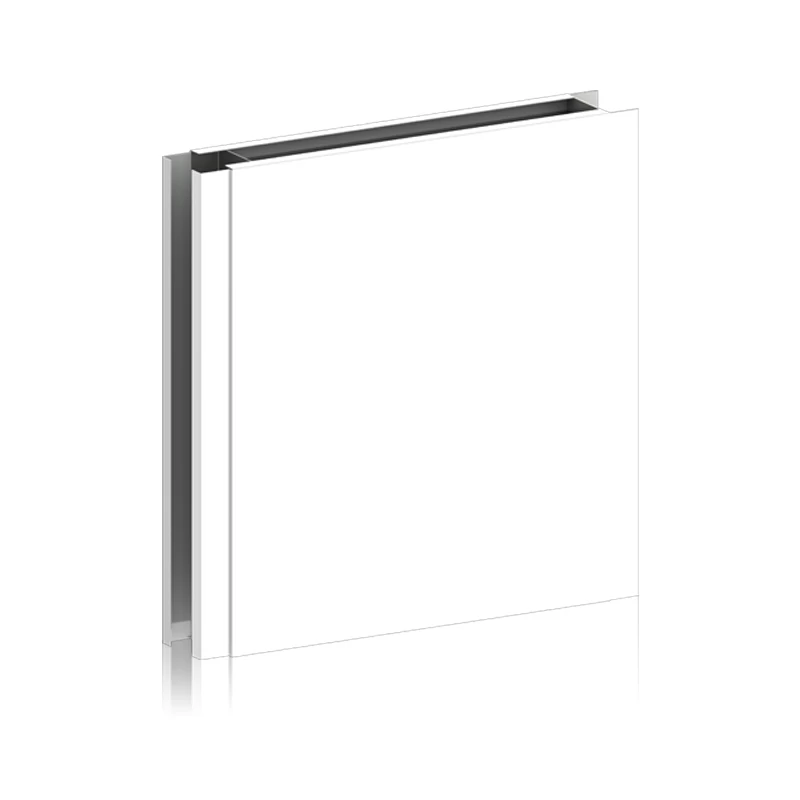

Customization High Strength Modular Hardwall Biological Cleanroom Wall Panel

The product is a customizable modular sandwich wall panel system, which is directly spliced on site, does not require aluminum profiles, has a large overall strength, matches the cleanroom door and window system, and is perfectly connected to the wall panel, which can be applied to the biological clean room.





  • Frame Thickness0.6-0.8mm
  • Steel Facer Thickness0.4-0.8mm
  • CoatingPE,PVDF,HDP
  • Core MaterialPU,Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb, Plaster,EPS, etc.
  • Max Length6000mm
  • Wall Thickness50mm,75mm,100mm,150mm
  • Outer Plate MaterialPPGI,Al-mg-mn Steel,Stainless Steel,Ti-Zn Steel, HPL,VCM
  • Width950mm,1150mm
  • Applicationpharmaceutical factory

Product Descirption

Product Name

Customization High Strength Modular Hardwall Biological Cleanroom Wall Panel

Wall Thickness

50mm,75mm,100mm,150mm

Outer Plate Material

PPGI,Al-mg-Mn Alloy Steel,SS Steel,Ti-Zn Steel,HPL,VCM

Coating

PE,PVDF,HDP

Core Material

PU,Rock Wool,Magnesium Board,Paper Honey Comb,Aluminium Honey Comb,

Plaster,EPS, etc.

Application

Pharmaceutical Clean Room, Electronic Clean Room, Food Clean Room, etc.


Advantage:

1、Modular Hardwall Cleanroom over all strength is high and the product quality is stable.

2、Factory accepts customization.

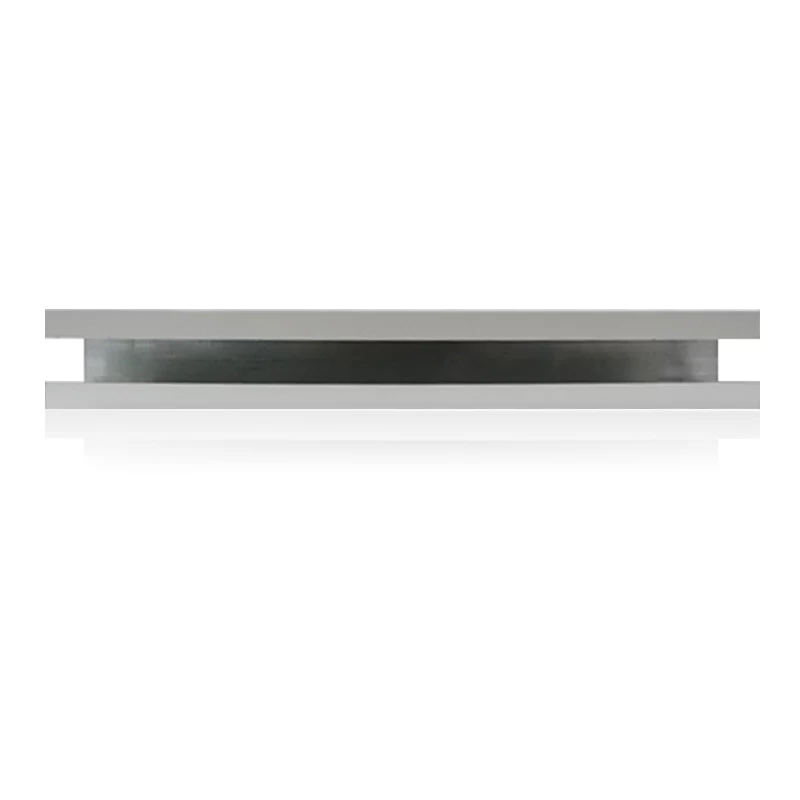

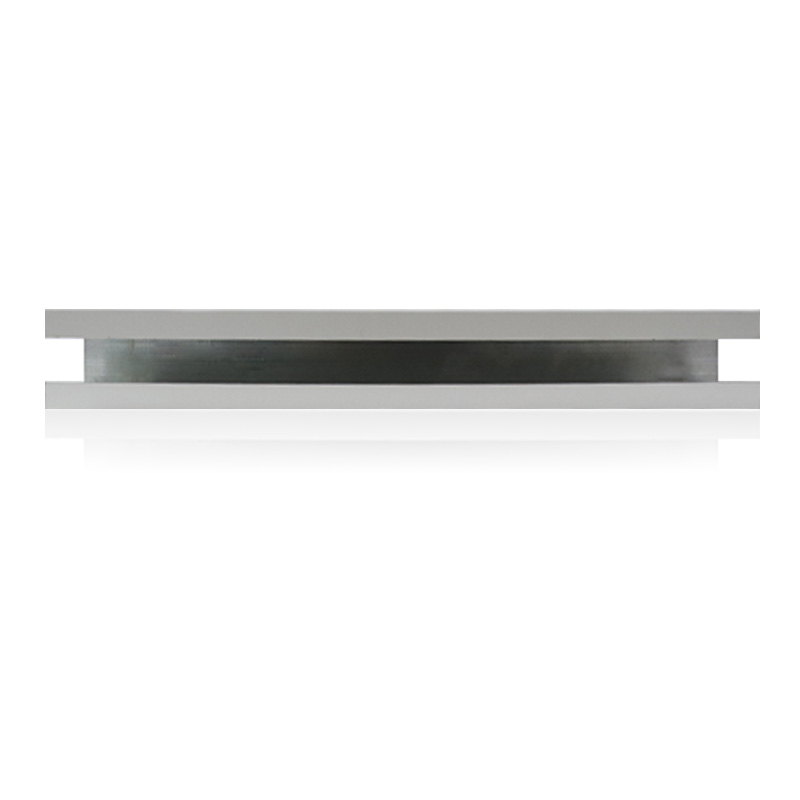

Customization Cleanroom Panel

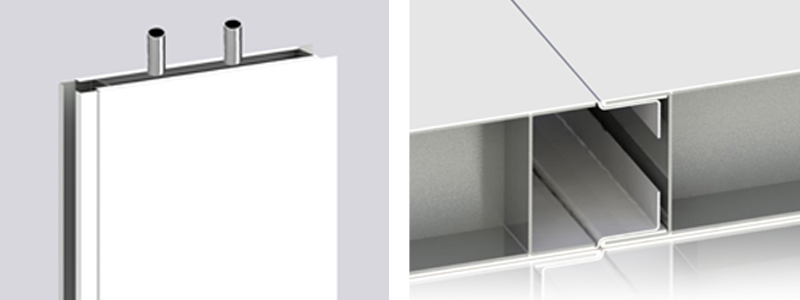

3、Reserved space in the tongue and groovefor easy access to PVC pipe.

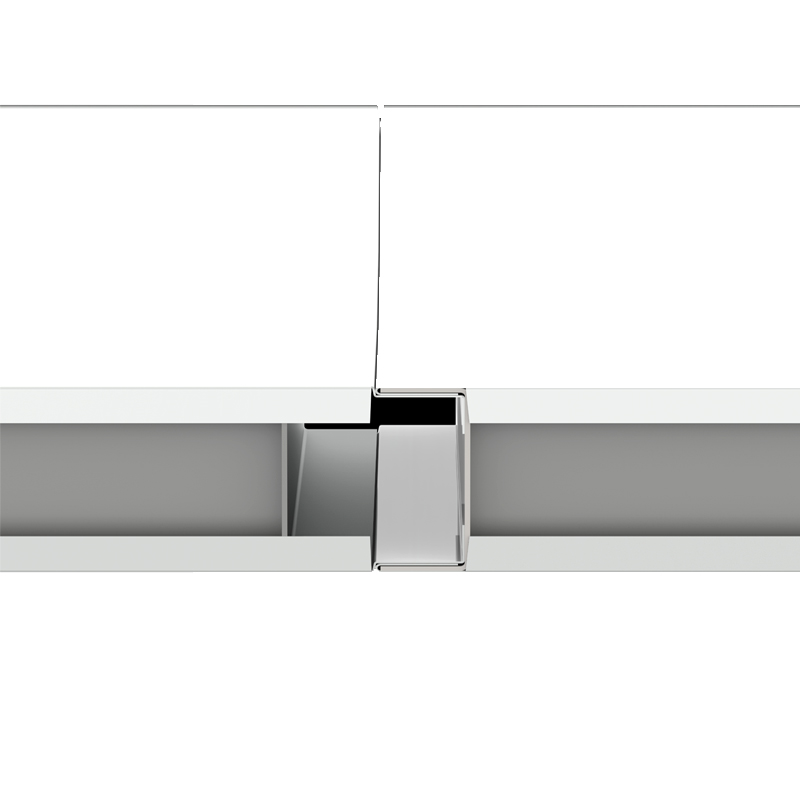

4、The hardwall cleanroom does not need to be connected with the aluminum profile,the clean room wall panel is inserted into the wall,and the internal space is reserved,which can be directly used as a threading pipe,which is convenient and practical.

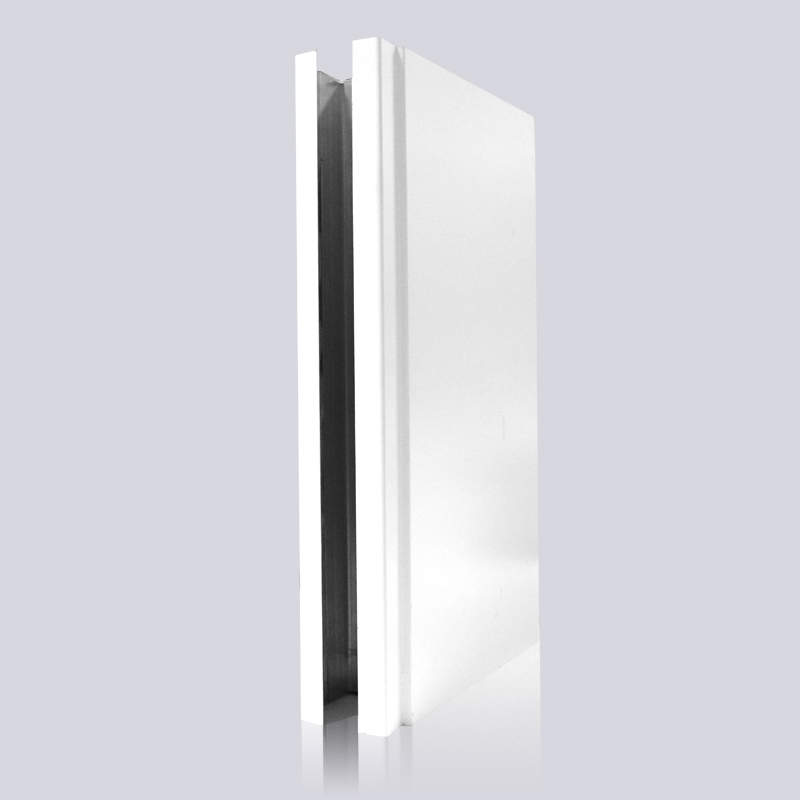

5、Male and Female connection type ,Closed seam,suitablein Biology laboratory.

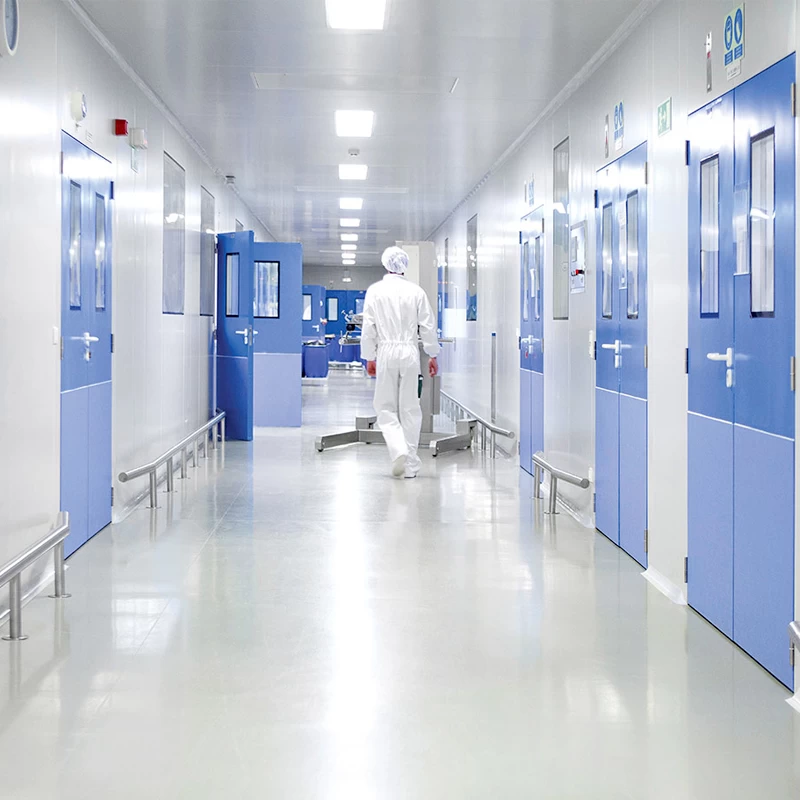

6、With clean room door flush installation, beautiful and generous.

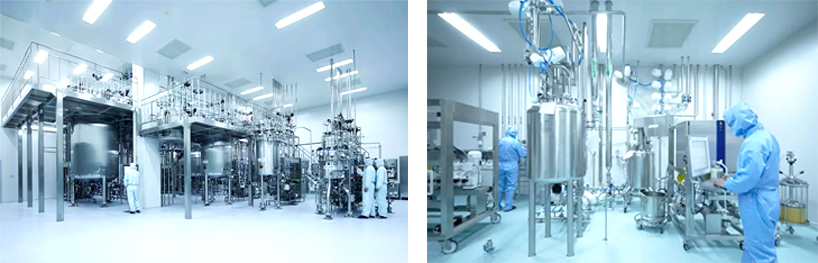

Biology Laboratory Cleanroom Wall Panel System

At present, we commonly used steel plate cooperation manufacturers Baosteel,  Yieh Phui, BlueScope Steel and other high-end well-known enterprises, high material stability, T bending performance, tensile, yield stability.


The high-quality rock wool core material adopted by Wiskind is specially waterproof, non-hygroscopic and water-repellent, with long and thin fiber and no capillary penetration, water-repellent rate ≥98%, melting temperature up to 1000℃, bulk density standard is far higher than peers and industry standards, bending load resistance of 1.1KN/㎡;We also carry out corresponding quality control for the returned halogen phenomenon of glass magnesium. In the form of sponsorship, we set up a maintenance shed in the glass magnesium plate manufacturer to carry out special conservation, and test the moisture content of each batch of products to strictly control the quality from the source.


In terms of colorized painting steel plate inspection, equipped with professional equipment more than 40 units, we are the first to introduce the spectrum instrument, hue to the brightness of the photo of the steel plate data comparison, we can experiment in acidic, neutral and alkaline, etc, also can simulate the factory actual experiment environment, can also according to the different environment for stainless steel, aluminum, magnesium, manganese, titanium zinc plate, VCM plate, HDPPGI board and other solutions.

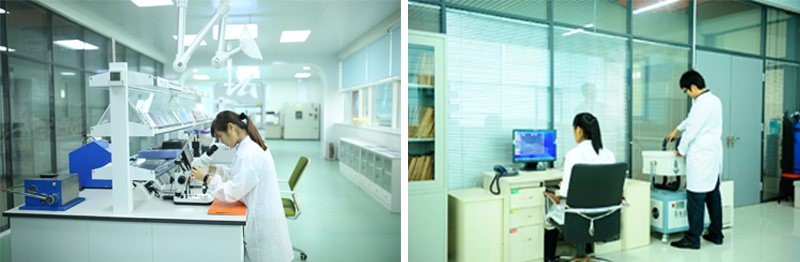

Wiskind Clean Room Panel Lab
