1200W 54V 22A switching power supply built-in active PFC function
Description:
This K19H-UP1200S series switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 1200W 54V 22A power supply with wide range of AC input voltage ;
2, 54V 22A power supply have short circuit, overload, overvoltage and over temperature protection;
3, 1200W 54V power supply with built-in active filters,low output noise;
4,This smps has high efficiency and used in stange lighting and LED driver etc.
|
Item NO.
|
K19H-UP1200S54
|
|
Output
|
Output voltage
|
+54V
|
|
Rated current
|
22A
|
|
Current range
|
0-22A
|
|
Rated power
|
1188W
|
|
Ripple
|
540mVp-p
|
|
Adjustment range
|
±5%
|
|
Output accurancy
|
±2%
|
|
Line regulation
|
±0.5%
|
|
Load regulation
|
±1%
|
|
Set up,rise,hold up time
|
1000ms, 30ms, 10ms/115VAC 500ms, 30ms, 20ms/230VAC
|
|
Input
|
Input voltage range
|
88~264V AC
|
|
Input current
|
12A/115V 6A/230V
|
|
Frequency
|
47~63Hz
|
|
Efficiency
|
92%@230VAC
|
|
Power factor
|
>0.9@220V,>0.95@110V
|
|
Incursh current
|
40A@230V
|
|
Leakage current
|
<3.5mA@240V
|
|
Protection
|
Over-load protection
|
105~150% protection,automatic recovery.
|
|
Over output-voltage ptotection
|
63-68V
|
|
Over-temp. protection
|
When the shell temp.>105℃,The output is closed, automatic recovery.
|
|
Others
|
|
|
|
Environment
|
Working temp.and humidity
|
-20~+60℃,10~90% RH,No condensation.
|
|
Storge temp. and humidity
|
-40~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle,PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standard
|
Safety standard
|
GB4943
|
|
Withstand voltage
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
EN55022 CLASS A,EN61000-3-2
|
|
Others
|
Dimension
|
205*82*63mm doesn’t including the terminals’ length.
|
|
Weight
|
1.5Kg
|
|
Remark
|
1. All parameters are measured at 230 VAC input, rated load, ambient temperature 25 ° C, humidity 70%
2. Accuracy: including setting error, line regulation, load regulation rate;
3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4. Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: Measured output is measured from 0 load to 100% load change.
|

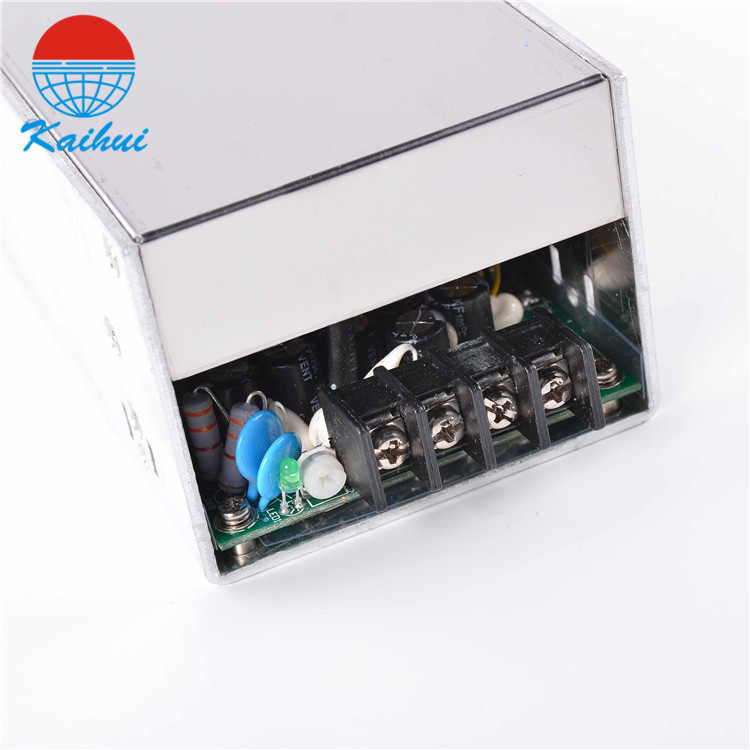

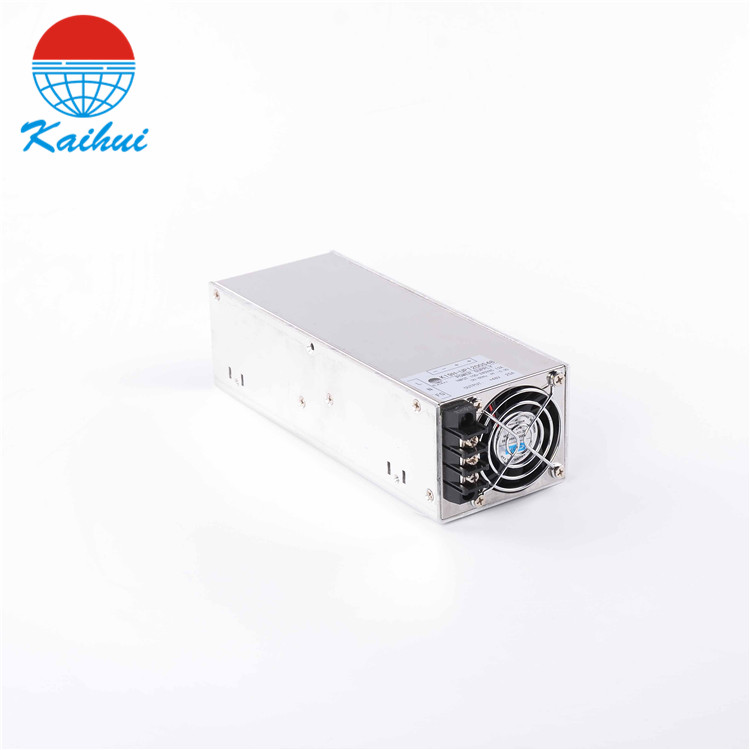

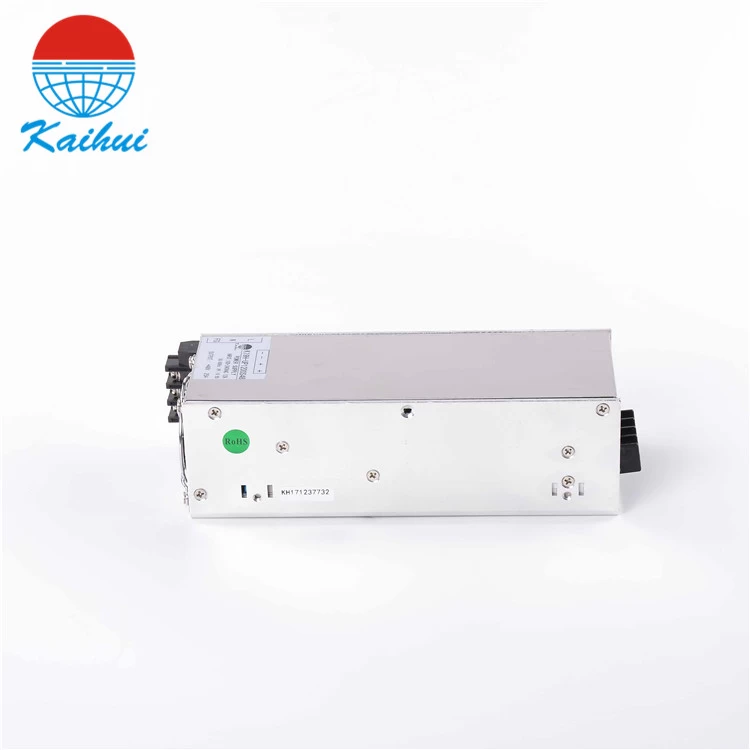

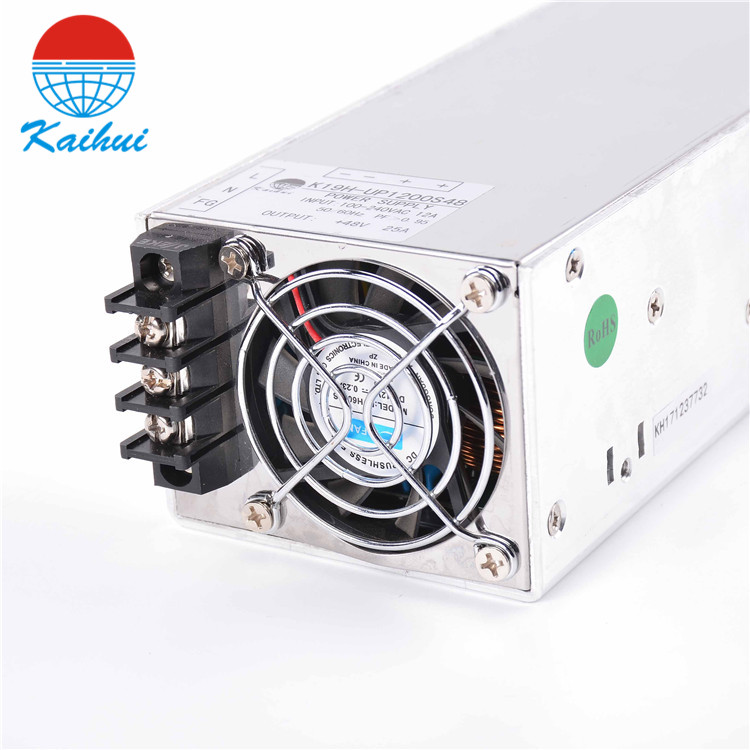

Product picture:
