Anodized Aluminum Solar Carport Structure
Carport PV mounting offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
Technical Data
| Install Site |
Open field area |
| Max Wind Speed |
≤60m/s |
| Snow Load |
≤1.4KN/M2 |
| Tilt Angle |
0-45 degree |
| Applicable Module |
Framed or frameless |
| Module Orientation |
Landscape, portrait |
| Standards |
AS/NZS 1170, ASCE 7-10, JIS2017 |
| Material |
AL6005-T5, SUS304 |
| Anti-corrosive |
Anodized |
| Color |
Silver, Black |
Foundation
|
Concrete, Ground Screw
|
| Warranty |
12 years |
Key Features
- Using aluminum as main material can anti-corrosion well and stainless steel makes sure the intensity. Solar parking canopy design is more economicial solution than others.has anti-corrosion.
- this solar pv carport system with functions of parking, producing green power, and it can full ultilize the space.
- Rigorous test under harsh outdoor conditions;
- Charging station can be optional to matched our carport mounts;
- Unique design based on the engineering requirements of your solar projects.

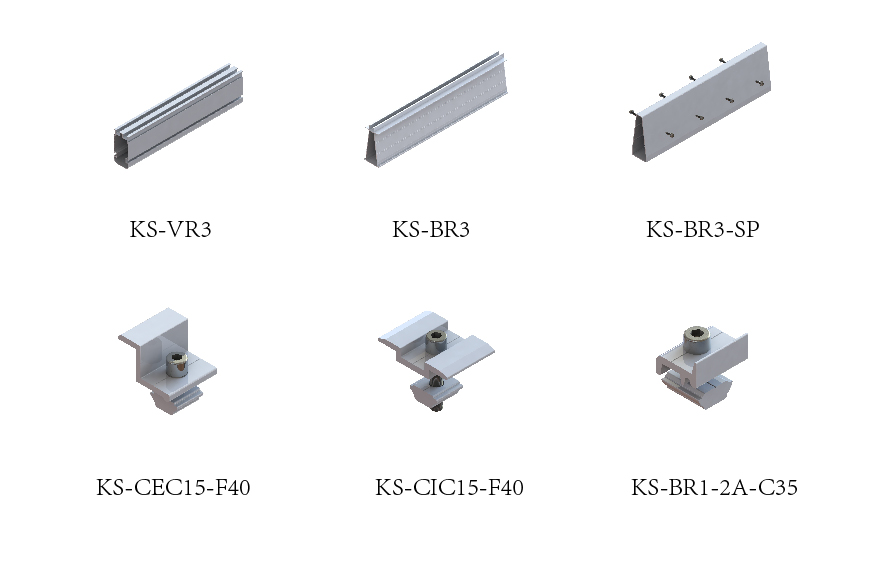

Components

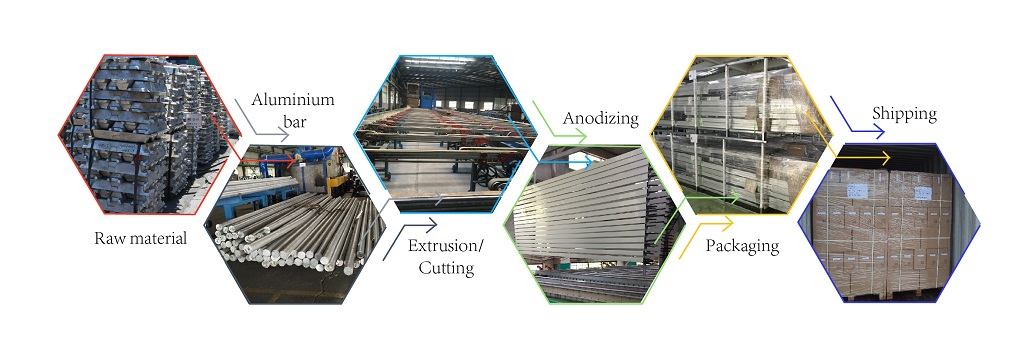

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
