Customized Track Key Function
- Track Length:
To facilitate transportation and elevator access, the standard length is 2 meters per section. Optional lengths include 1 meter and 3 meters.
- Track Load Capacity:
The track load capacity is 600kg/m, with a safety factor of over 2 times.
- Weight of Track:
The selected track body has a self-weight of 19kg/m, reducing weight for easier transport and installation.
- Track Drive:

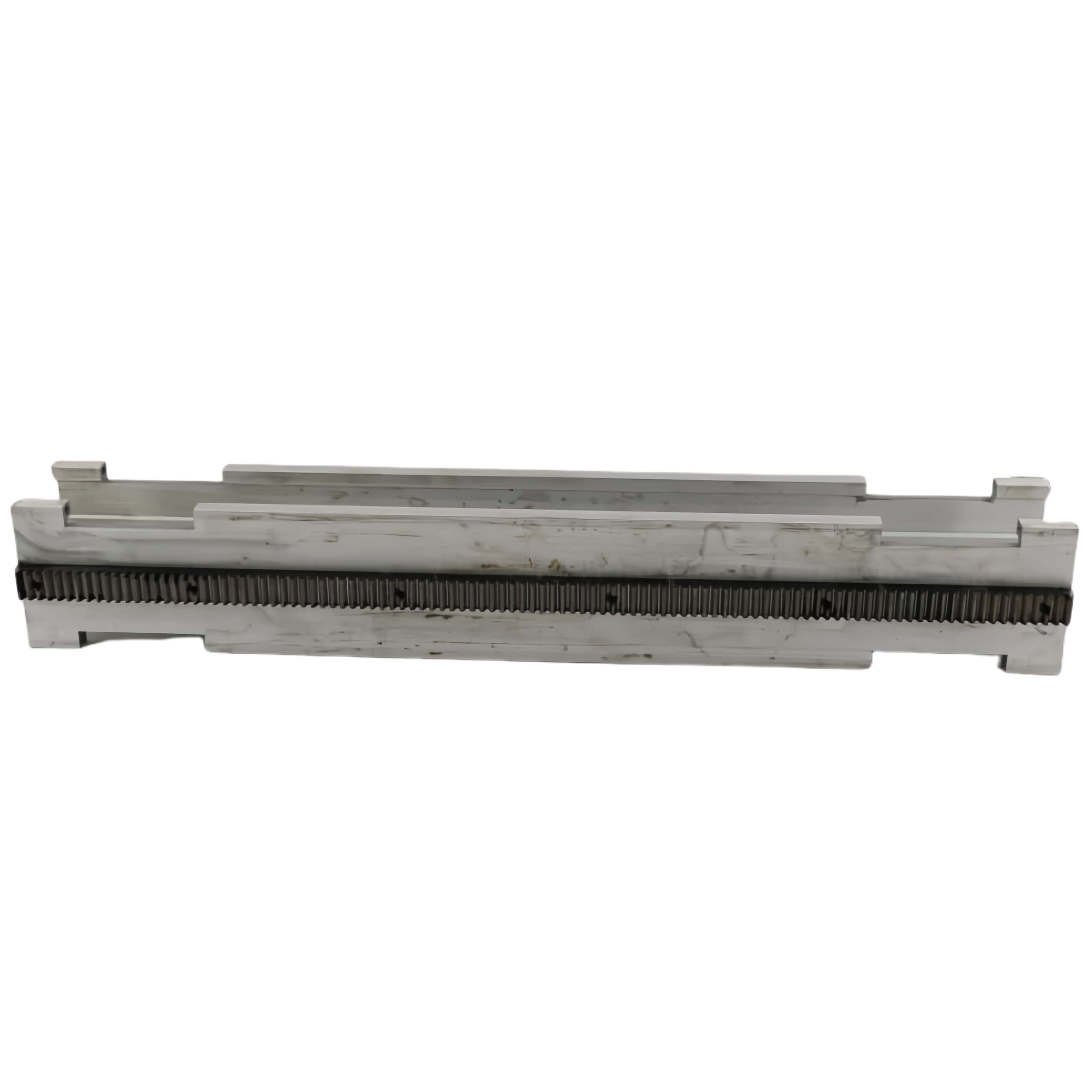

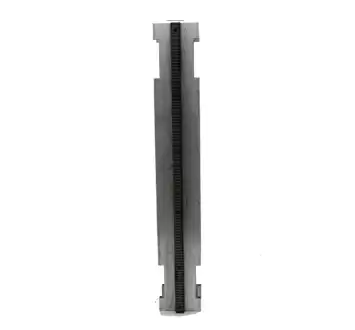

Considering the usage scenario involves a modular setup, gear transmission is used between the track and the trolley’s gears.
- Track Connection:

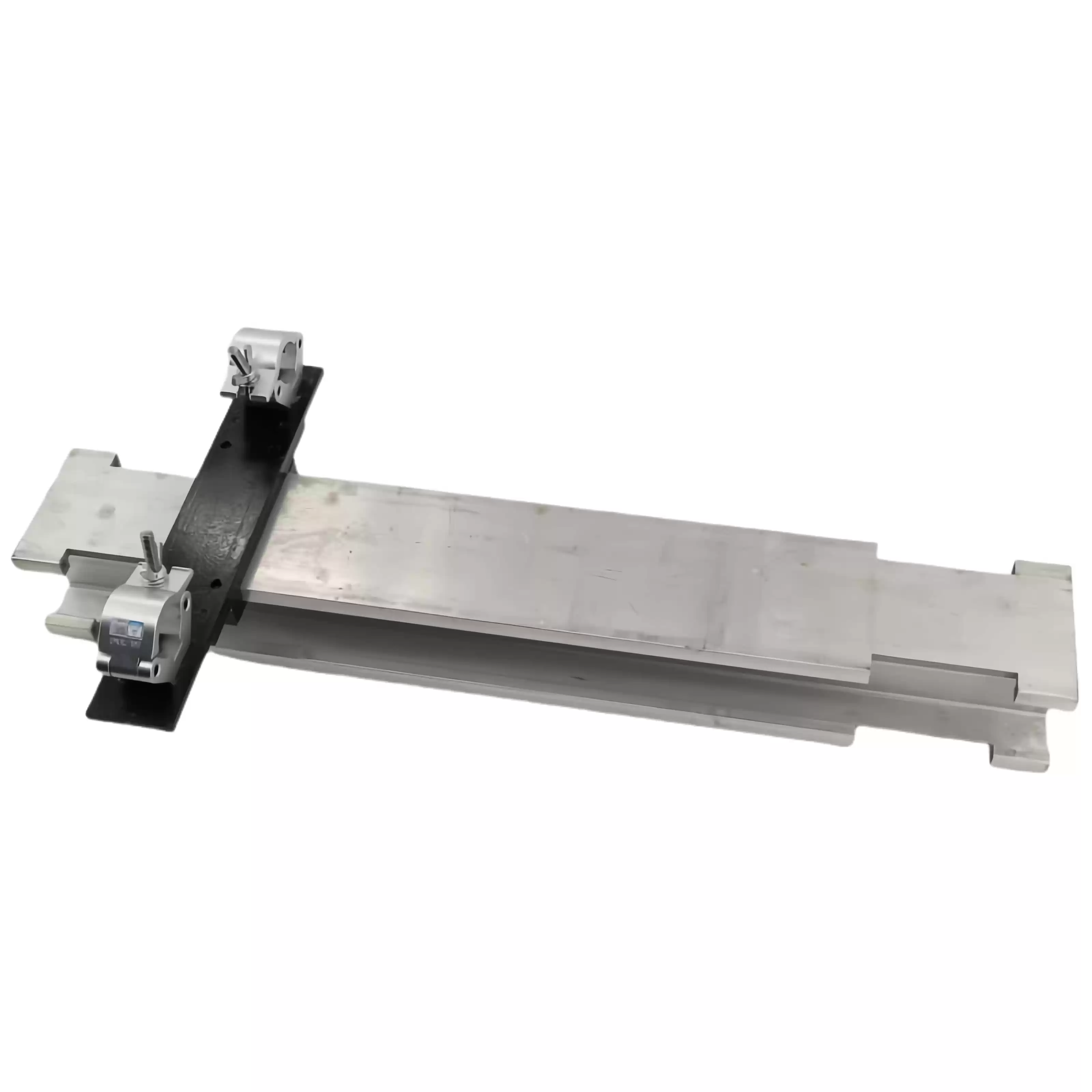

Track connections are convenient and straightforward, stable and reliable. Screws and pressure blocks are used to connect the tracks, while lighting hooks are used for connecting tracks to trusses. The connection points for the lighting hooks can be adjusted forward and backward on the track to avoid interference from the truss side pipes. The default track connection plate is 400x400 truss, with other sizes available as options.
- Aerial Track Wiring:
For aerial tracks with a total length of less than ten meters, wiring can be done using a tensioned steel wire rope to hang curtains. For aerial tracks longer than ten meters, the steel wire rope will sag significantly in the middle, requiring a structural profile to hang curtains for wiring.
- Lighting Hooks Used for Track and Truss Connection:
The lighting hooks used for connecting the track to the truss are TUV certified, with each hook rated for a load of 750kg.
- Track Load and Hanging Point Span:
The track load is related to the span of the hanging points, as shown in the table below (with a safety factor of 2 times):
|
Hanging Point Span(m)
Load Capacity (kg)
|
|
|
|
|
1.5m
|
1200
|
1200
|
1200
|
|
3m
|
400
|
650
|
1000
|
|
4m
|
225
|
300
|
500
|
Installation of Track
- The track can be quickly assembled and disassembled using lighting hook components, which can be positioned freely along the length of the track for flexible and convenient use.
- Track sections are connected using bolts and nuts.

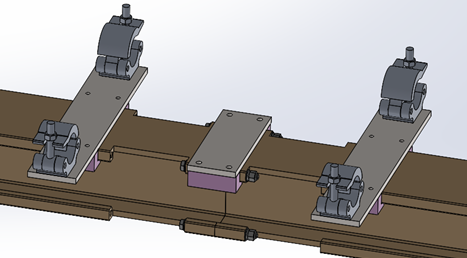

- A pressure plate component is installed at the track joint, using bolts on the locking plate to clamp the two sections of track together, which increases the stiffness and smoothness of the joint.

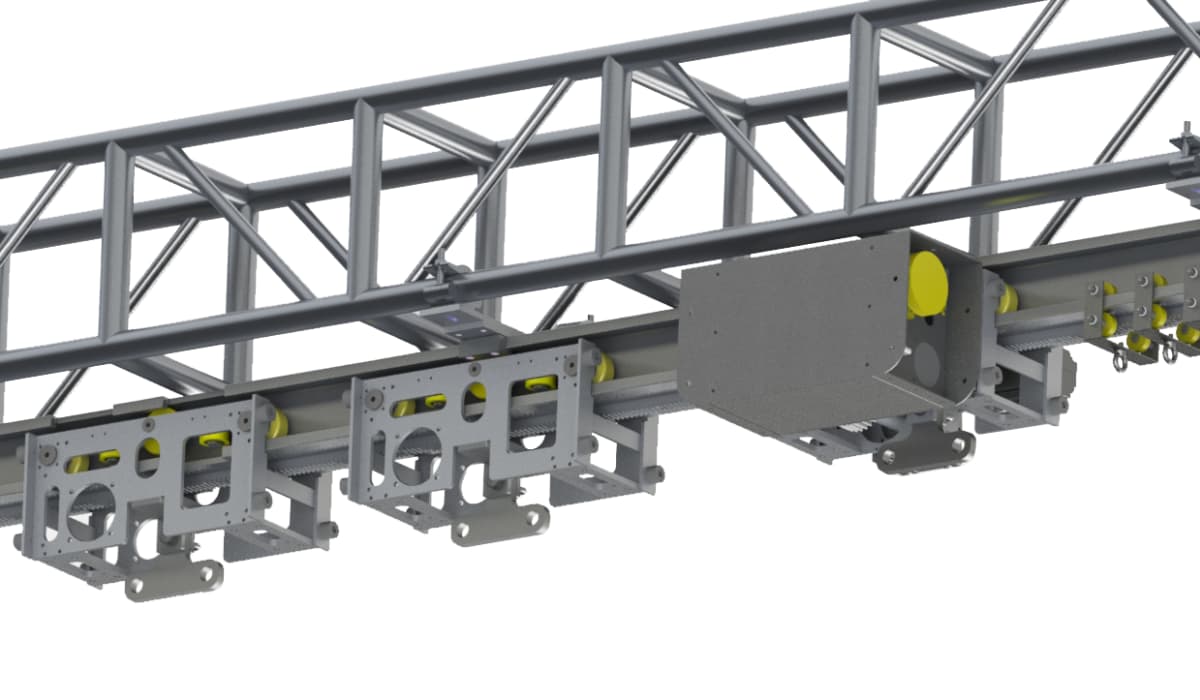

Hanging Installation

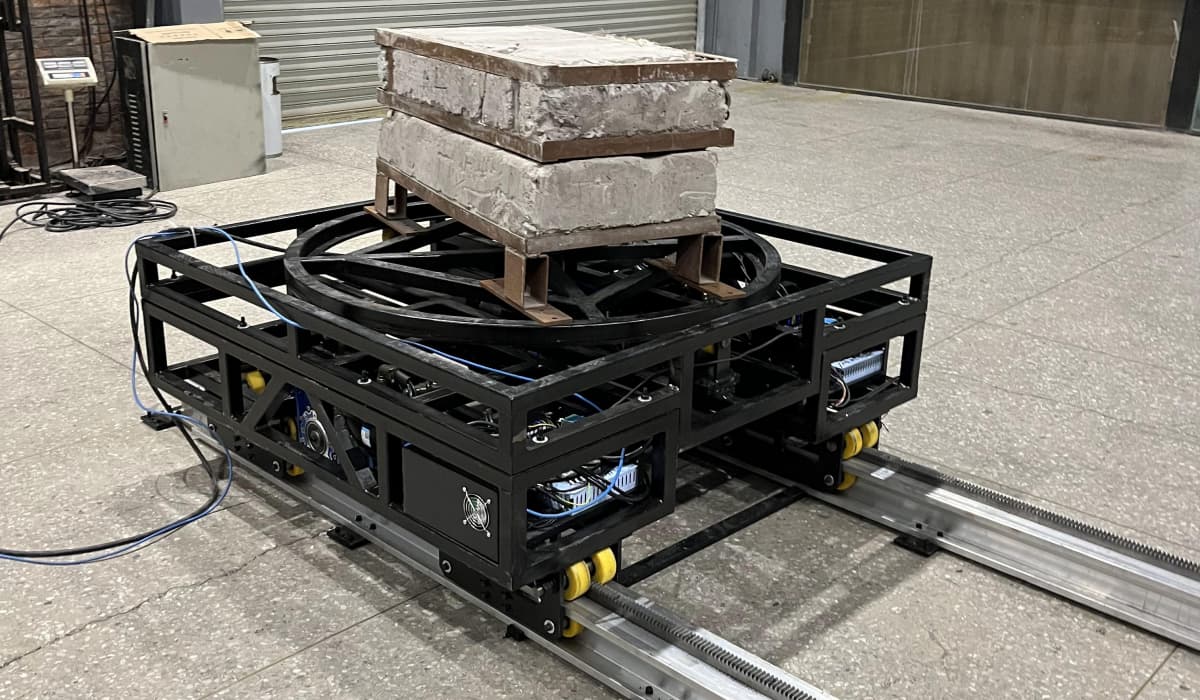

Ground Dual-Spec Installation
