Brief introduction:

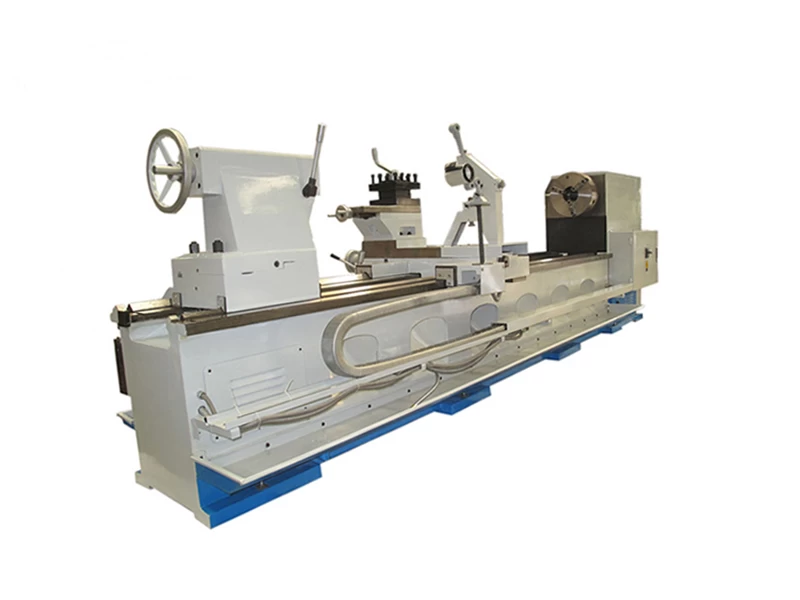

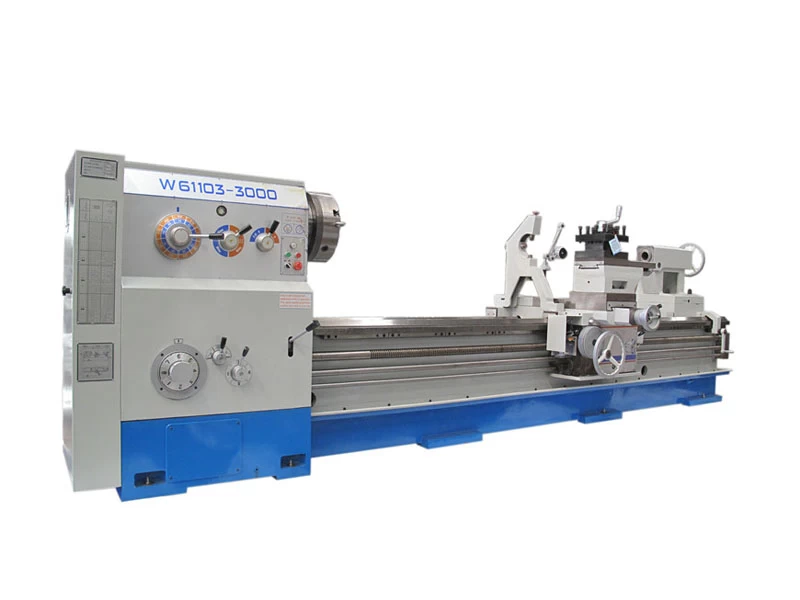

This machine tool is widely applied to the cutting operations of various spare parts, including end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread, diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling, hole-reaming, jacketing, boring, groove-cutting, etc. Hard alloy tools may be utilized to cut the screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare parts machined via this machine tool can be IT8 and the surface coarseness may be 6.3μm.
Detailed specification:
|
Model
|
Unit
|
CW61103C
CW62103C
|
CW61123C
CW62123C
|
CW61143C
CW62143C
|
CW61163C
CW62163C
|
CW61183C
CW62183C
|
|
Swing over bed
|
mm
|
1030
|
1230
|
1430
|
1630
|
1830
|
|
Swing in gap
|
mm
|
1290
|
1490
|
1690
|
1890
|
2090
|
|
Swing over cross slide
|
mm
|
700
|
900
|
1100
|
1240
|
1440
|
|
Distance between centers
|
mm
|
1500,2000,3000,4500,6000
|
|
Length in gap from face plate
|
mm
|
380
|
|
Spindle nose
|
|
C11 or D11
|
|
Spindle bore
|
mm
|
105, 130
|
|
Spindle speeds/steps
|
rpm/steps
|
10—800/18
|
7—531/18
|
6—480/18
|
|
Cross slidle travel
|
mm
|
615
|
715
|
815
|
915
|
|
Toprest travel
|
mm
|
300
|
|
Rapid traverse
|
mm/min
|
Longitudinal Z:3240,Cross X:1870
|
|
Quill diameter
|
mm
|
120
|
|
Quill travel
|
mm
|
270
|
|
Quill taper
|
|
MT6
|
|
Bed width
|
mm
|
610
|
|
Metric threads
|
mm/kinds
|
1—240/53
|
|
Inch threads
|
tpi/kinds
|
30—2/31
|
|
Module threads
|
mm/kinds
|
0.25—60/46
|
|
Diametral pitch threads
|
Lpi/kinds
|
60—1/2/47
|
|
Main motor power
|
kW
|
11
|
|
Gross weight
|
kg
|
5200
|
5350
|
5550
|
5750
|
6000
|
|
5500
|
5650
|
5850
|
6100
|
6350
|
|
6350
|
6500
|
6700
|
6900
|
7150
|
|
7600
|
7750
|
7950
|
8150
|
8400
|
|
8800
|
9000
|
9200
|
9400
|
9650
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
