Cylindrical Battery Membrane Equipment - Small Battery
Products Description

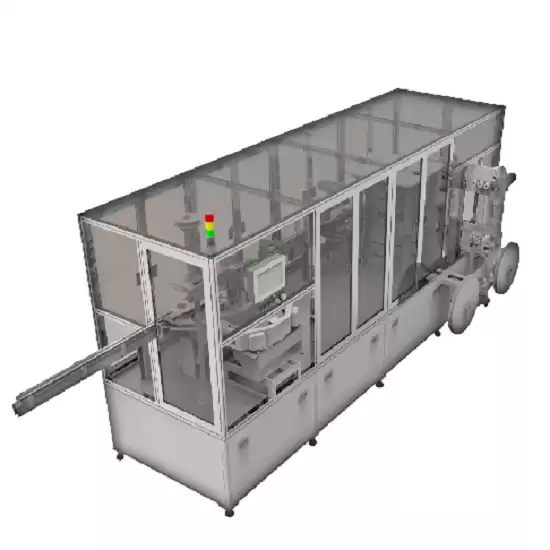

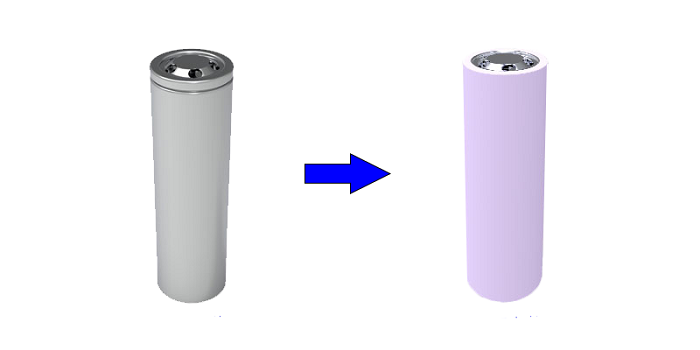

The cylindrical cell laminating equipment is used for laminating and heat shrinkable film of 18650, 21700, 22650 and other cylindrical cells. The cell uses conveyor belt conveyor chain, PET film is automatically fed and cut, and the beat of cell laminating can reach 130 PCS / min. The equipment has high efficiency and good stability, and can be connected with the front and rear production line equipment through belt line transportation.
Performance Characteristics
1. Automatic film feeding and cutting, precision control ±0.5;
2. Automatic core film sleeve, shrink film;
3. The beat can reach 130 pcs / min;
4. It can connect with the production line seamlessly to realize the automatic flow of cell.
Technical Parameter
|
Model Number
|
TMAX-PEW18-D-03
|
Beat
|
130pcs/min
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
4KW
|
Table Height
|
600mm
|
|
Pressure
|
6kgf/cm²
|
Dimensions
|
4100*1200*2000(mm)
|
