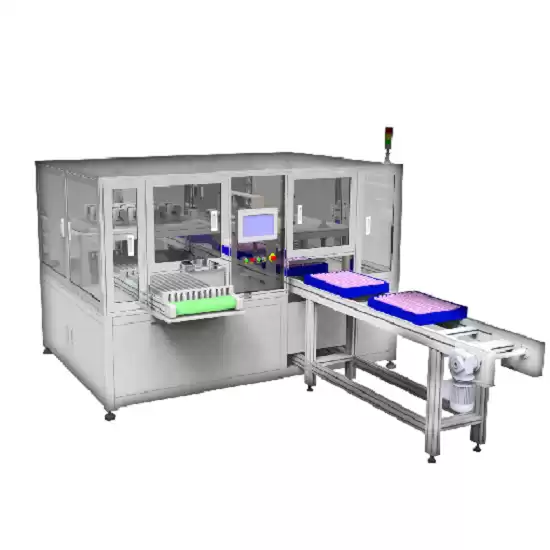

Cylindrical Battery Sorting Machine - 8 Grades
Products Description
The high-speed separation equipment of the electric core is used for OCV test and sorting of 21700, 22650, 26650, 32131, 32650 and other cylindrical electric cores. The material frame core is fed by the product and discharge type of conveying line. The needle plate covers the whole basket of electric core for one time test. With the use of multi-channel high-precision battery tester, the core can be divided into 8 grades according to the capacity. The high-speed split manipulator moves the load cell, and the sorting time can reach 250 pcs/min.
Performance Characteristics
1. Stacking type feeding of frame cell;
2. Multi channel battery tester, high efficiency;
3. The separation efficiency of the split gripper is high, and the beat can reach 250 pcs/min;
4. It can be divided into 8 grades according to the capacity battery;
5. It can be used as a single machine or as a production line.
Technical Parameter
|
Model Number
|
TMAX-PFU18-D-13
|
Beat
|
250pcs/min
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
21700/22650/32131 ect.
|
|
Power
|
4.5KW
|
Table Height
|
750mm
|
|
Pressure
|
6kgf/cm²
|
Dimensions
|
2500*2000*1800(mm)
|
