Cylindrical Cell Grooving Goover Machine For Laboratory 18650 Cell Assembly Grooving



Description:

It is mainly used in the sample production of laboratory battery material research and development, shell rolling groove of cylindrical battery and cylindrical capacitor, and it can also be used in small batch trial production in the factory.



1. Introduction:

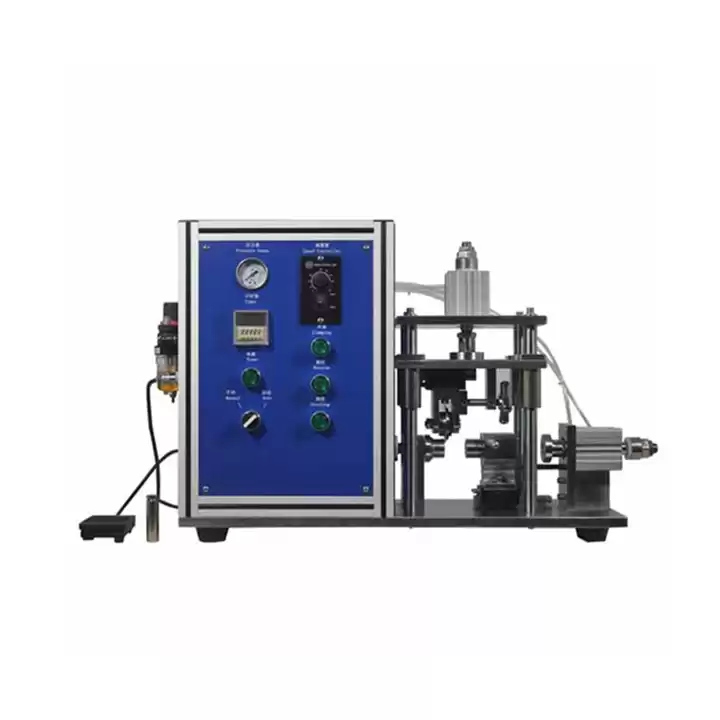

TMAX-GC650 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cell cases including CR123, 18650, 26650,2100, 32650 and AA, etc.

Each type of cylinder cell can only be grooved specifically by certain model of this equipment, please select the right grooving die for different cylinder cell.



2. Main Features:

 * The width of the groove is adjustable.

*The depth of groove is adjustable.

*Groove depth time can be set.

*The groove rolling speed is stepless speed regulation.

*Adopt manual and automatic groove rolling mode.

*Can process all kinds of cylindrical battery shell groove.

*The hob adopts precision machining to ensure the accuracy, reliability and stability of groove forming.



Watt

140W

Voltage

110/220V

Compatibility

CR123 / 18650 / 26650 / 32650 /21700/ AA, etc

Grooving depth

1.2~2.0mm

Grooving height

1.1~1.5mm

Accuracy

±0.1mm

Grooving blade lifetime

> 1 million times

Productivity

400 grooving /hr

Air pressure

0.5MPa~0.7MPa ( air compressor not included )

Size

500mm*400mm*340mm

Weight

55Kg

Warranty

One year limited with lifetime support



18650 Grooving Machine



Cylindrical Cell Preparation
