Cylindrical Cell Lithium Battery Material For 18650 26650 32650 21700 Cell Making and Production

Features

The main materials of lithium-ion battery include electrolyte, separator, anode and cathode materials, etc. The anode materials account for a large proportion (the mass ratio of anode and cathode materials is 3:1 ~ 4:1). Because the performance of anode materials directly affects the performance of lithium-ion batteries, the selection of high-quality battery materials plays a key role in batteries.

Specification

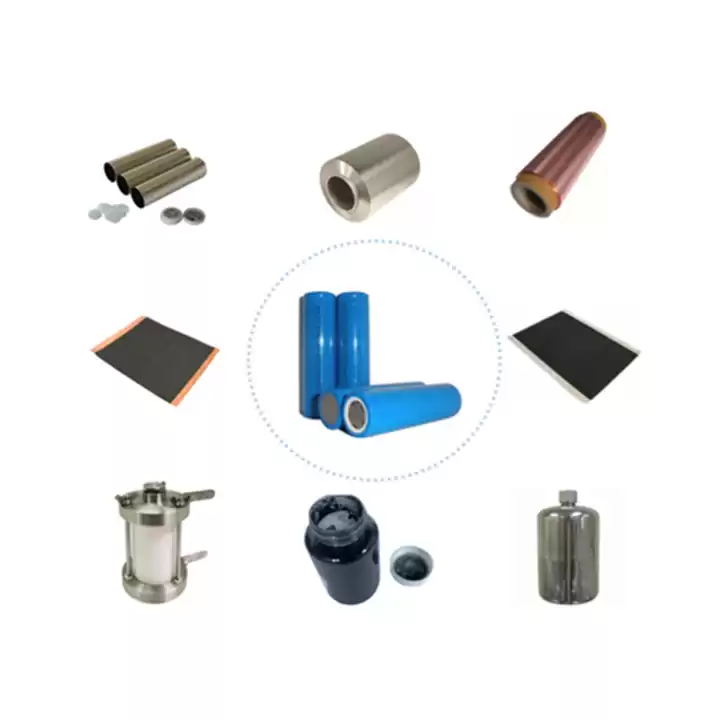

Type	Product Name	Main Features
Cathode Material for Li-ion Battery	LiCoO2 Powder	1. Formula：LiCoO2 2. Appearance: Black Powder 3. Molecular Weight：97.88 4. First Discharge Capacity (mA/g) : 145 @1C 5. Reasonable A-G Range: 6. 6. Anode has 5% ~10% more capacity than the cathode. 6. Voltage Range vs Li: 3V ~ 4.2V
	PVDF Binder	1. Purity:≥99.5% 2. standard specific gravity:1.74~1.77 3. Dielectric constant :4.50~5.50; 8.00~9.50 4. Melting Point:160-168 5. Melting Indix:1-2 6. Solubility:Transparent and dissolvable 7. Rotation Viscosity:≥2000 8. Intrinsic Viscosity :1.0-2.0 9. Moisture:≤ 0.1
	NMP Solvent	1. The molecular  formula:C5H9NO 2. Purity:99.90% 3. Melting point: -24℃ 4. Boiling point: 202℃ 5. Density:1.028 g/ml 6. Refractive index:1.465-1.470 7. Flash point:95℃
	Super Conductive Carbon Black Powder	1. BET Nitrogen surface area:62M2/g 2. Adsorption Stiffness Value (2):32Ml/5g 3. Moisture (as packed):0.1% 4. Density：160Kg/m3 5. Sulpher Content：0.02% 6. Iron(3)：10ppm 7. Nickel:1ppm
	Aluminium Foil	1. Thickness:9-19um 2. Standard width:200mm 3. Length:120m/roll (size can be customized according to request）
	Carbon Coated Aluminum Foil	1.Aluminum foil thickness:12-30um 2.Conductive coating single surface density(g/㎡/ side):0.5-2.0 g/㎡ 3.Double coating 4.Each side coating thickness is 1um
Anode Material	Graphite Powder	1. Single Layer Graphene Oxide 2. Multilayer graphene oxide Single layer reduced graphene oxide 3. Reduced graphene oxide in a few layers (1-5 layers) 4. Multilayer reduced graphene oxide (6-10 layers) 5. Natural graphite 6. Conductive graphite
	High Purity Carboxymethyl Cellulose Powder CMC	1. Viscosity, mpa.s (2% aqueous solution):7000~10000 2. Purity:≥99.5% 3. Water content:≤10% 4. substituting degree:0.6~0.9 5. PH:6.0~8.5 6. heavy metal(pb), ppm:≤15 7. Fe, ppm:≤40 8. As, ppm:≤2
	Copper Foil	1.Thickness:9-15um 2.Standard width:200mm (Size can be customized according to request)
	Conductive Coating Copper Foil	1.Size:201*0.008mm 2.Length: 35m-40m 3.Cooper Foil width: 150mm 4.Double coating 5.Each side coating thickness is 1um
	SBR Styrene Butadiene Rubber	1.Total solide (wt%):48~53 2. PH:5~7 3. Broofield viscosity (mPa.s):50~250
Other	Cylindrical Battery Cases With Anti-Explosive Cap And Insulation O-Ring	1. Case are made of 304 stainless steel 2. Cap are made of Nickel plated steel 3. Seal O-ring are made of nylon(Optional) 4. Insulating gasket are made of PP
	Separator	PP PE Celgard Optional
