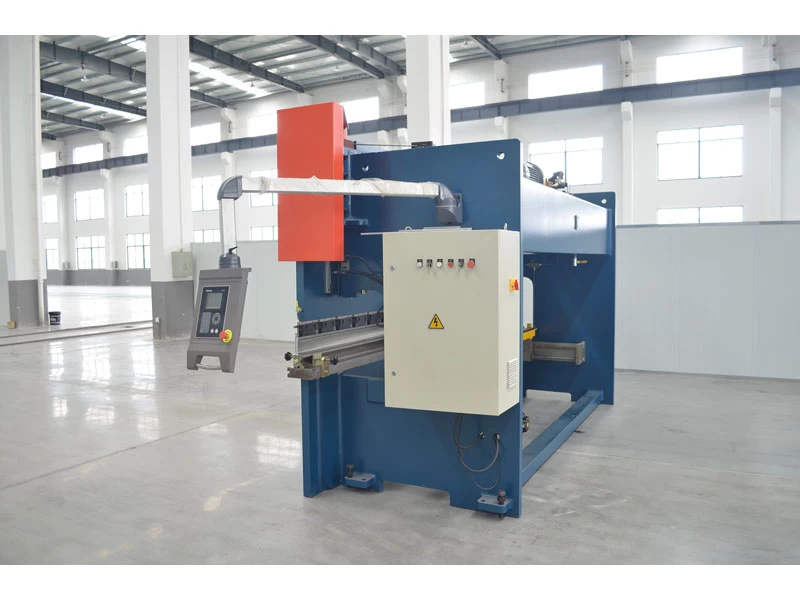

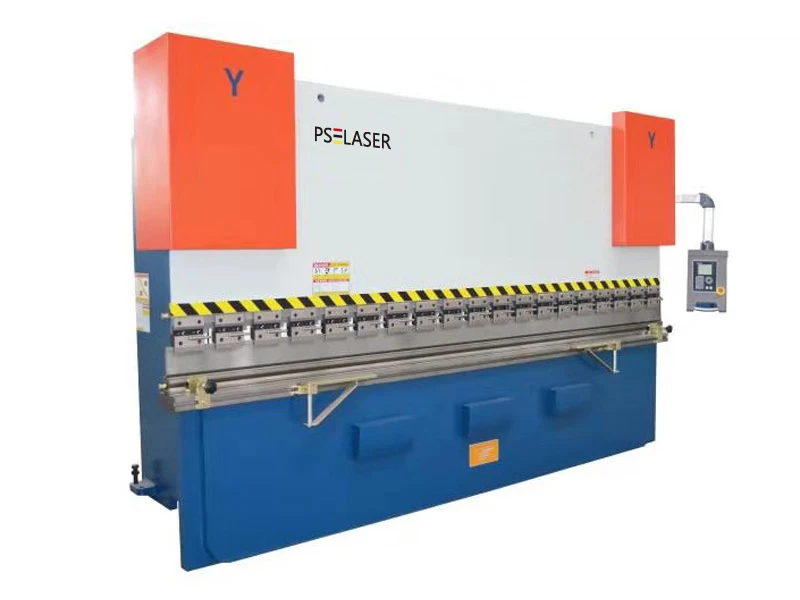

DA41S Hydraulic Torsion Bar Press Brake

DA41S Hydraulic Torsion Bar Press Brake,The DELEM brand is professionally trustworthy.

Servo control technology;4.7"high light liquid crystal display screen with multi languages interface including Chinese;Tooling parameters setting,bending angle programming;About 100 programs are stored,and there are 25 operations in each program.



Product Item: DA41S Hydraulic Torsion Bar Press Brake


1. Main Features:

1.Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

2.Hydraulic synchronous control and Delem CNC programmable controller guarantee precise repeatability and easy use.

3.Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.

4.X ,Y-axis realize accurate positioning function through CNC DA41S controller programming and servo motor.

5.Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

6.Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

7.WC67K series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done


2.Main Configuration

●Holland DELEM DA41S controller

●Controller controls and adjusts Y-axis and X-axis

●Servo drive and control positioning of X-axis and Y-axis

●Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

●Front supporter bracket

●Germany Bosch Rexroth hydraulic valve block

●Germany EMB oil tube connector

●Germany Siemens main motor

●France Schneider electrics

●Hydraulic & electrical overload protection

●Upper and lower dies(86°, R0.6mm, material: 42CrMo)


3. Safety Standard:

1.EN 12622:2009 + A1:2013

2.EN ISO 12100:2010

3.EN 60204-1:2006+A1:2009

●Front Finger protection ( safety light curtain )

●South Korea KACON pedal switch ( safety grade 4 )

●Back metal safeguard, CE standard

●Safety relay monitor pedal switch, safety protection

●Safety standard ( 2006/42/EC)


4.Delem DA41S CNC controller

●High-definition LCD display

●Control slider stop position

●Backgauge control

●Angle programming

●Setting die parameters

●Material-escaping control function

●100 programs, 25 process steps per rogram

●Servo motor control, servo drive control

●Die library

●mm / inch

●Chinese / English




5.Technical Parameters:

Model

WC67K

  Nominal

pressure

(KN)

  Length of

  table(mm)

 Distance between

housings (mm)

  Throat depth
(mm)
  Stroke travel
   (mm/min-1)
  Open height
(mm)

  Main

  motor

(kw)
  Overall Dimension
(L×W×H mm)
30T/1600 300 1600 1250 200 80 320 3 1650×950×1650
40T/2200 400 2200 1775 220 120/10 320 4 2300×1500×2000
40T/2500 400 2500 1975 220 120/10 320 4 2600×1500×2000
63T/2500 630 2500 2035 260 120/10 370 5.5 2600×1600×2300
63T/3200 630 3200 2535 260 120/10 370 5.5 3300×1600×2300
80T/3200 800 3200 2540 320 120/10 380 7.5 3300×1700×2300
80T/4000 800 4000 3240 320 120/10 380 7.5 4100×1700×2300
100T/3200 1000 3200 2560 320 120/10 380 7.5 3300×1800×2400
100T/4000 1000 4000 3160 320 120/10 380 7.5 4100×1800×2400
125T/3200 1250 3200 2600 320 120/10 380 7.5 3200×1750×2520
125T/4000 1250 4000 3100 320 120/10 380 7.5 4000×1750×2520
160T/3200 1600 3200 2550 350 180/6 470 11 3300×1600×2600
160T/4000 1600 4000 3250 350 180/6 470 11 4100×2000×2600
160T/6000 1600 6000 4740 350 180/6 470 11 6100×2000×2600
200T/3200 2000 2000 2540 350 250/5 480 15 3300×2100×2800
200T/4000 2000 2000 3140 350 250/5 480 15 4100×2100×2900
200T/5000 2000 2000 3940 350 250/5 480 15 5100×2100×3000
250T/4000 2500 2500 3120 400 250/4 540 18.5 4100×2200×3500
250T/5000 2500 2500 3920 400 250/4 540 18.5 5100×2200×3500
250T/6000 3000 3000 4720 400 250/4 540 18.5 6100×2200×3500
300T/5000 3000 3000 3910 400 250/3 560 22 5100×2600×4000
300T/6000 3000 3000 4710 400 250/3 560 22 6100×2600×4000
300T/7000 3000 3000 5620 400 250/3 560 22 7100×2600×4400
320T/7000 3200 3200 5620 400 250/2.5 560 22 7100×2600×4400
350T/6000 3500 3500 5100 400 250/2.5 560 30 6100×2600×4200
350T/7000 3500 3500 5620 400 250/2.5 560 30 7100×2600×4500
400T/4000 4000 4000 3100 400 300/2.5 600 30 4100×2700×3800
400T/6000 4000 4000 4880 400 350/2.5 620 30 6100×2800×4200
500T/5000 5000 5000 4100 400 350/2.5 630 37 5100×3000×4400
500T/6000 5000 5000 4820 400 350/2.5 630 37 6100×3000×4700
500T/7000 5000 5000 5620 400 350/2.5 630 37 7100×3000×4900
600T/6000 6000 6000 4820 400 350/2.5 630 45 6100×2965×4700
600T/7000 6000 7000 5620 400 350/2.5 630 45 7100×2965×4900


6. Standard/Optional Configuration List:

No Accessory Name Model / Manufacturer
Configuration
1 CNC System
E21  NC System Estun
Standard
2 Electrics
Germany Schneider Electric / Travel switch & Limit switch
3 Main Motor
Siemens Motor
4

Back gauge, synchronous belt,

synchronous wheel

Taiwan, China

positioning control / Guaranteed precision

5 Frequency Converter

JRACDRIVE

positioning controlGuaranteed precision

6 Pedal Switch
South Korea KACON
7 Backgauge
Ball screw linear guide rail-Taiwan HIWIN
8 Hydraulic system
Bosch Rexroth-Germany
9 Oil Pump
SUNNY-USA
10 Sealing Ring
PARKER-America
11 Oil Tube Connector
Casing connector
12 Front Safety Guard
Produced by DURMA CNC
13 Back Safety Guard
Produced by DURMA CNC
14 Die
One set of standard dies
15 Clamping
General clamping tools

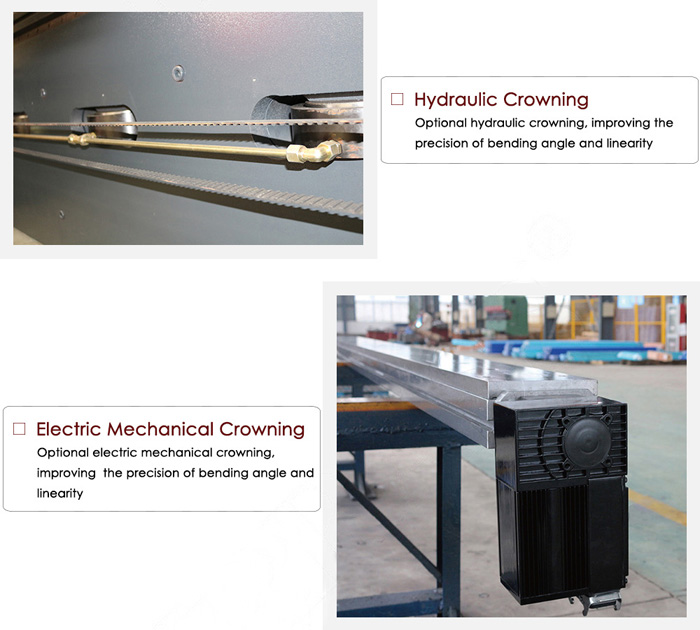

16 Crowning Mode
Hydraulic crowning
Optional
17 Crowning Mode
Mechanical crowning
18 Laser Protection
DSP- Italy
19 Front Photoelectric Protection
LNTECH-Shandong
20 Back Photoelectric Protection
LNTECH-Shandong
21 Clamping
Quick clampings
22 Safety Standard
CE   □CSA   NR-12   □OSHA


7.Optional components:
