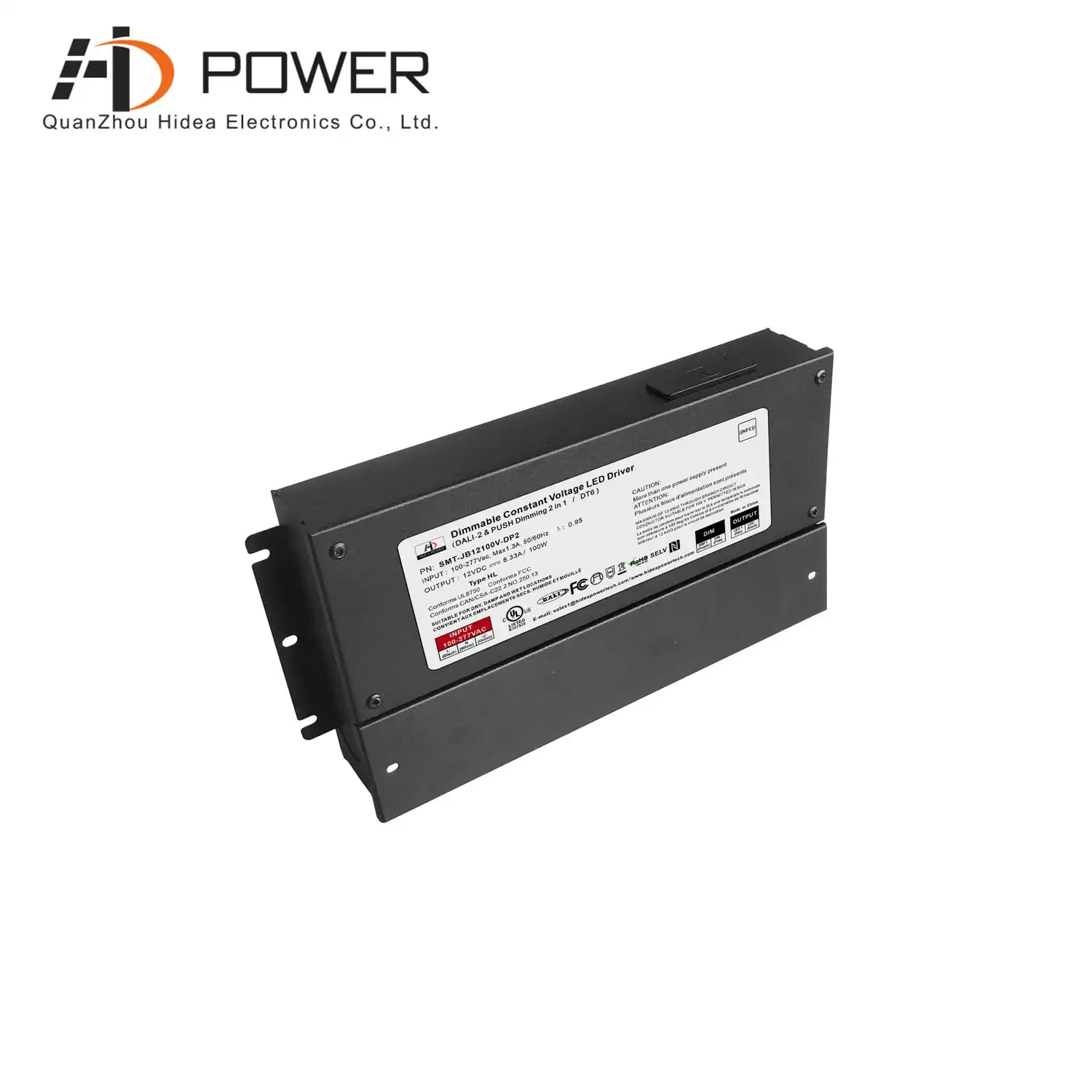

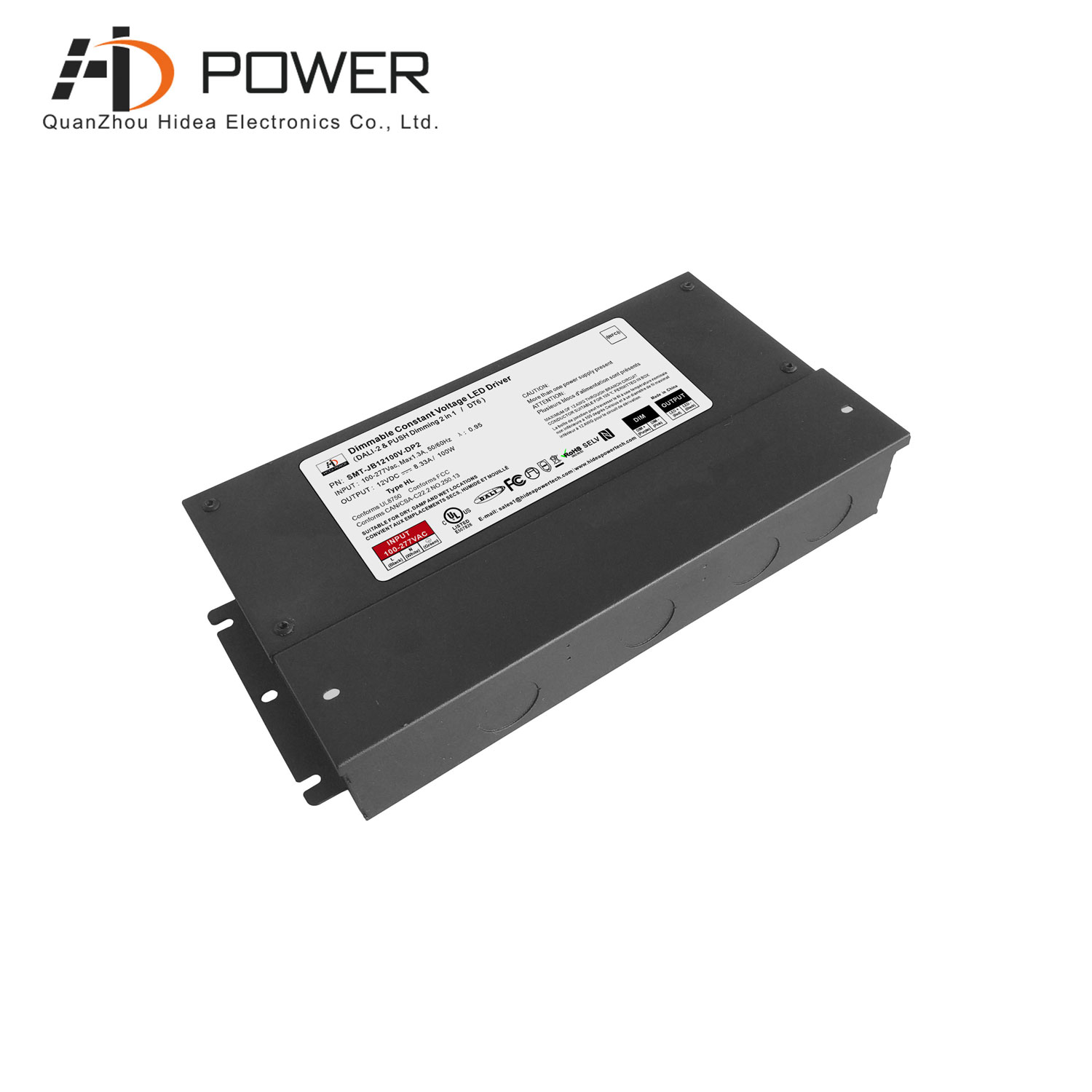

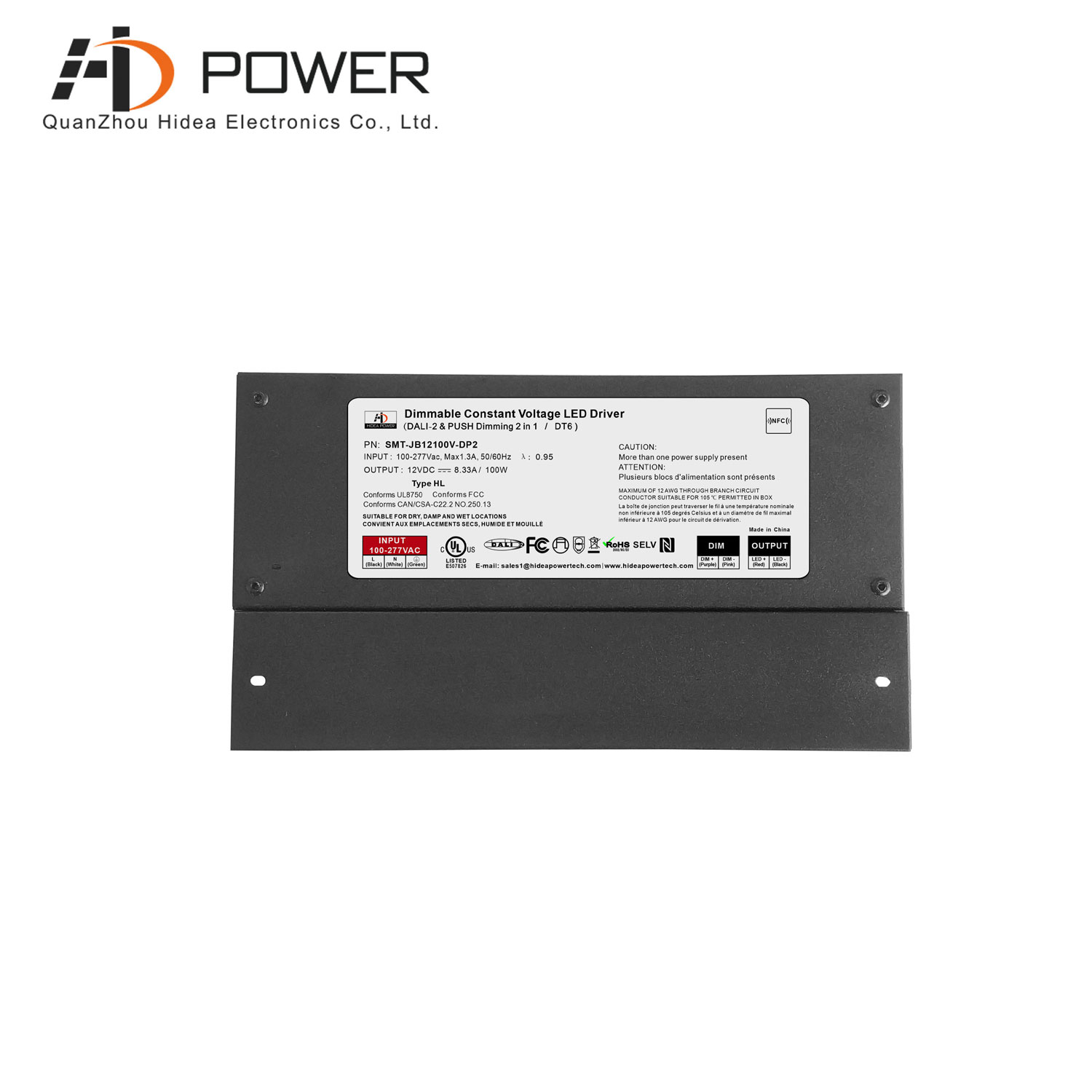

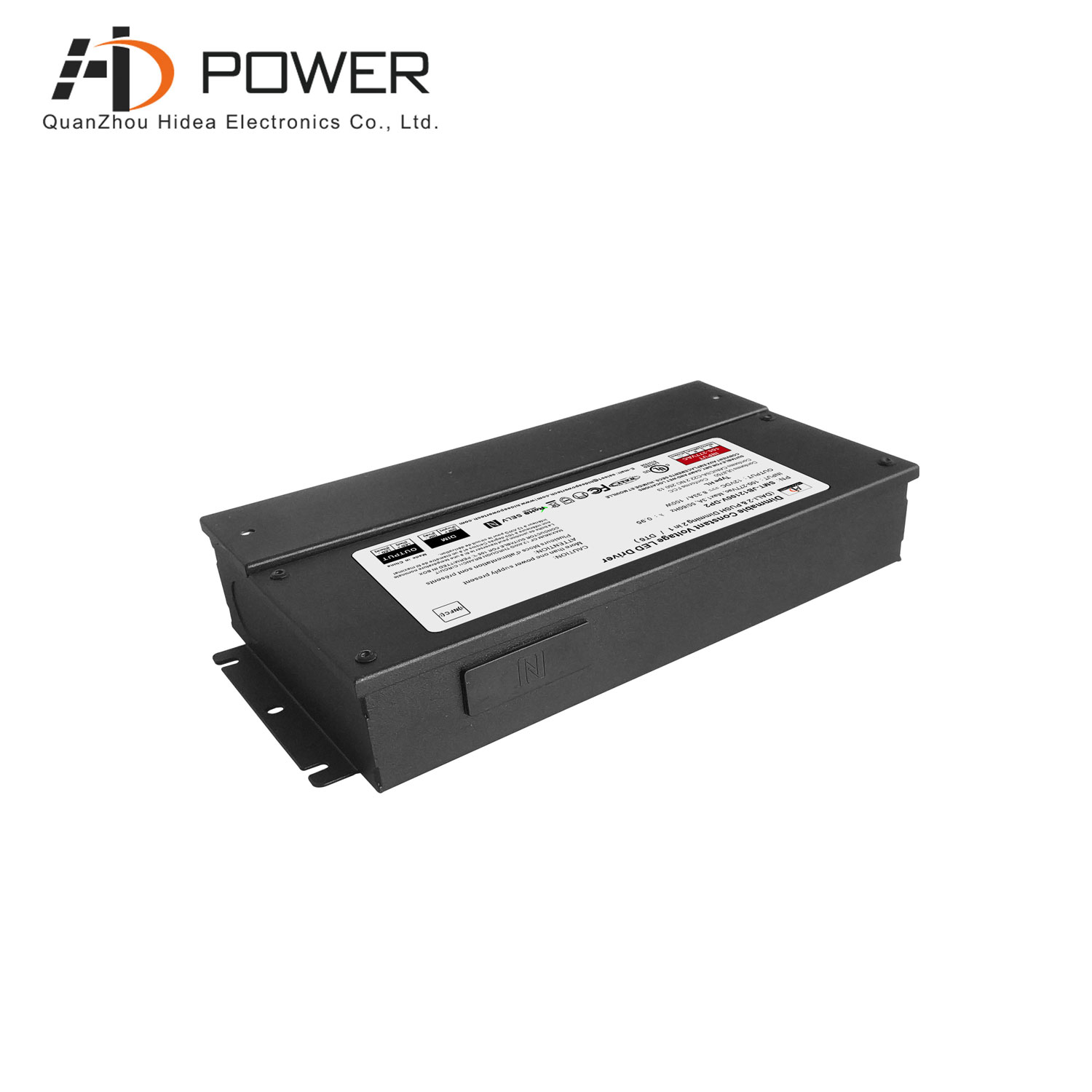

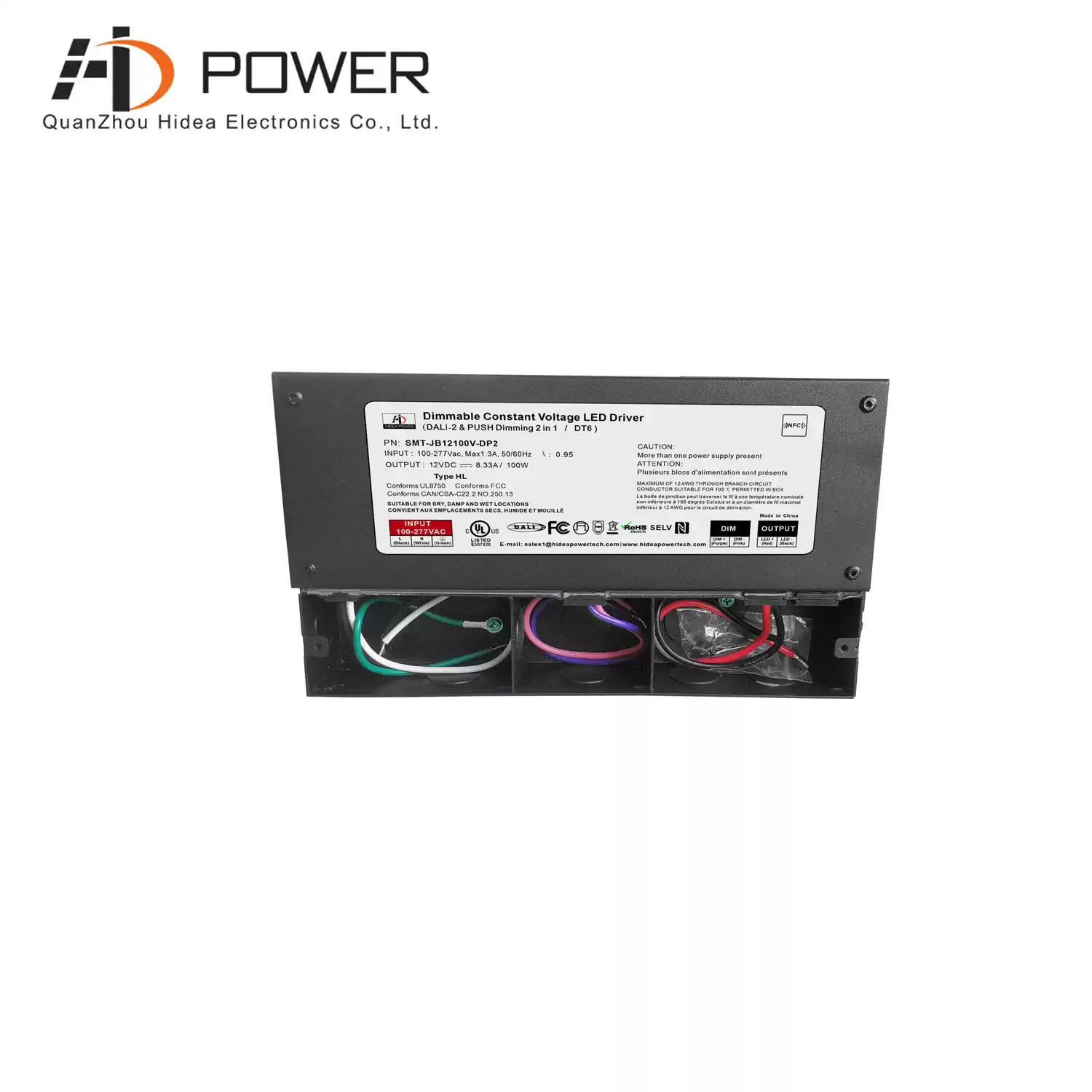

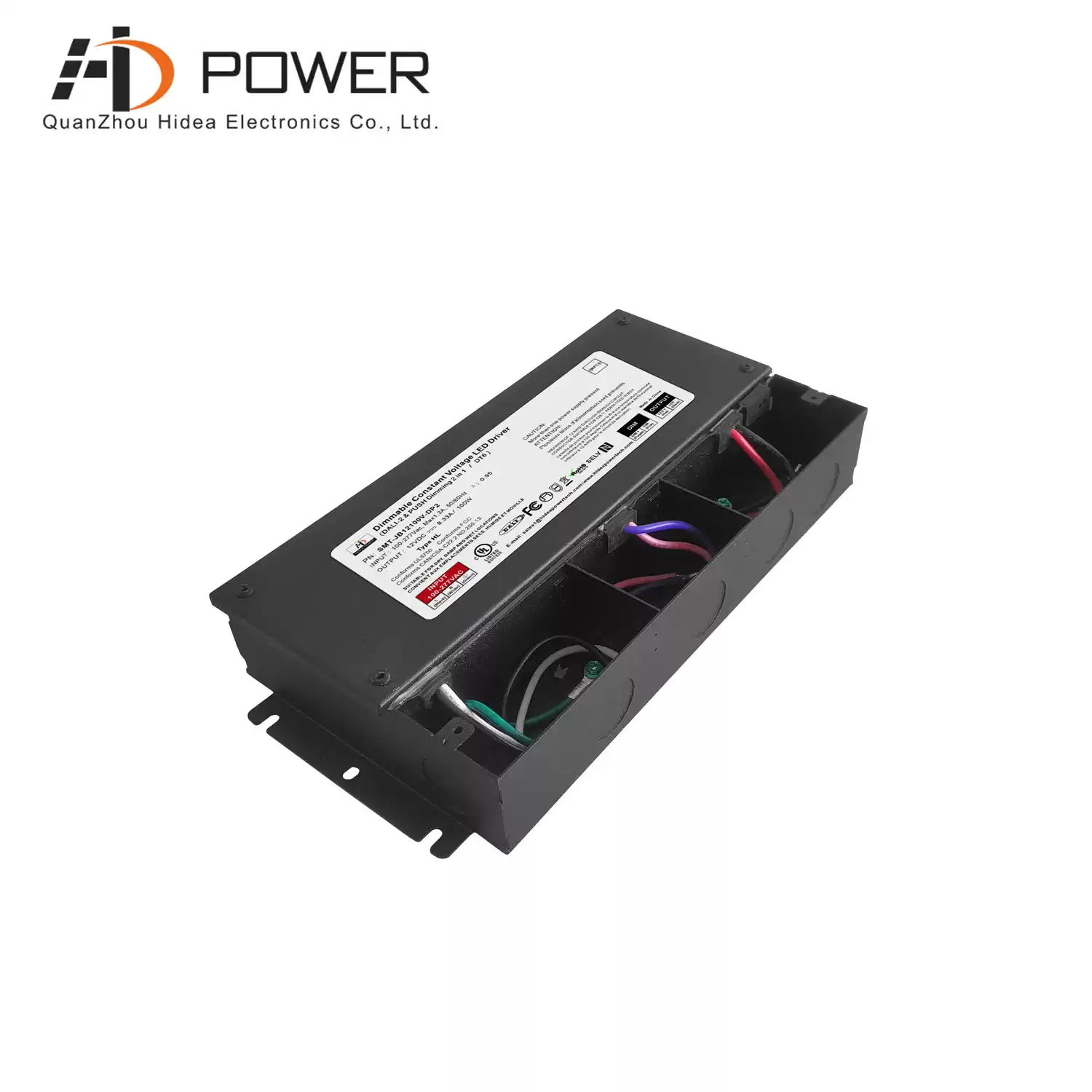

DALI-2 & PUSH dimmable 100w rgb constant voltage led driver electronic transformer 12v
DALI-2 & PUSH dimmable led driver 100W constant voltage mode, 0-100% dimming range, flicker-free dimming, output frequency PWM
Specification
|
Model
|
SMT-JB12096V-DP2
|
SMT-JB24096V-DP2
|
SMT-JB36096V-DP2
|
SMT-JB48096-DP2
|
|
Certificate
|
UL/cUL/SELV / CE
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage range(adjust by NFC)
|
12-13.5V
|
24-26V
|
36-38V
|
48-50V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
8.0A
|
4.0A
|
2.67A
|
2.0A
|
|
Rated power
|
96W
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor (Typ.) @ full load
|
No-load power
Consumption(optional)
|
1.15W(@120V)
0.95W(@230V)
1.05W(@277V)
|
1.00W(@120V)
0.85W(@230V)
0.95W(@277V)
|
1.10W(@120V)
0.95W(@230V)
1.05W(@277V)
|
|
Efficiency(Typ.)@ full load
|
88.5%@120VAC
89.5%@277VAC
|
87.5%@120VAC
89.5%@277VAC
|
88%@120VAC
90%@277VAC
|
88%@120VAC
90%@277VAC
|
|
AC Current (Max.)
|
1.3A
|
|
leagkagecurrent
|
<0.5mA
|
|
Protection
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40 ~ +70℃ (see below derating curve)
|
|
Working Humidity
|
20 ~ 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 ~ +80℃,10 ~ 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 ~ 50℃)
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13(EU) & UL8750(US) & UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU)
I/P-O/P:1.80KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/ 500VDC/ 25℃/ 70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2-3(EU)≥50% Load & FCC Part 15 B (US)
|
|
Others
|
Net Weight
|
0.9Kg
|
|
Dimension
|
241*125*42.7mm(L*W*H)
|
|
Packing
|
305*262*283mm 20pcs /CTN
|
|
Notes
|
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
2.Under low input voltage, reduced output is required to ensure a long life.
|
Related Products
|

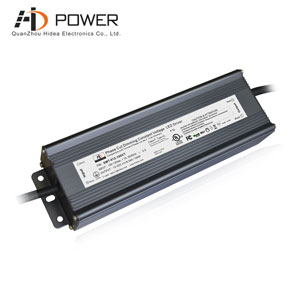

100w triac dimmable led driver ETL certified, aluminum case waterproof rating ip67 to effectively waterproof and dust, 5 year warranty
