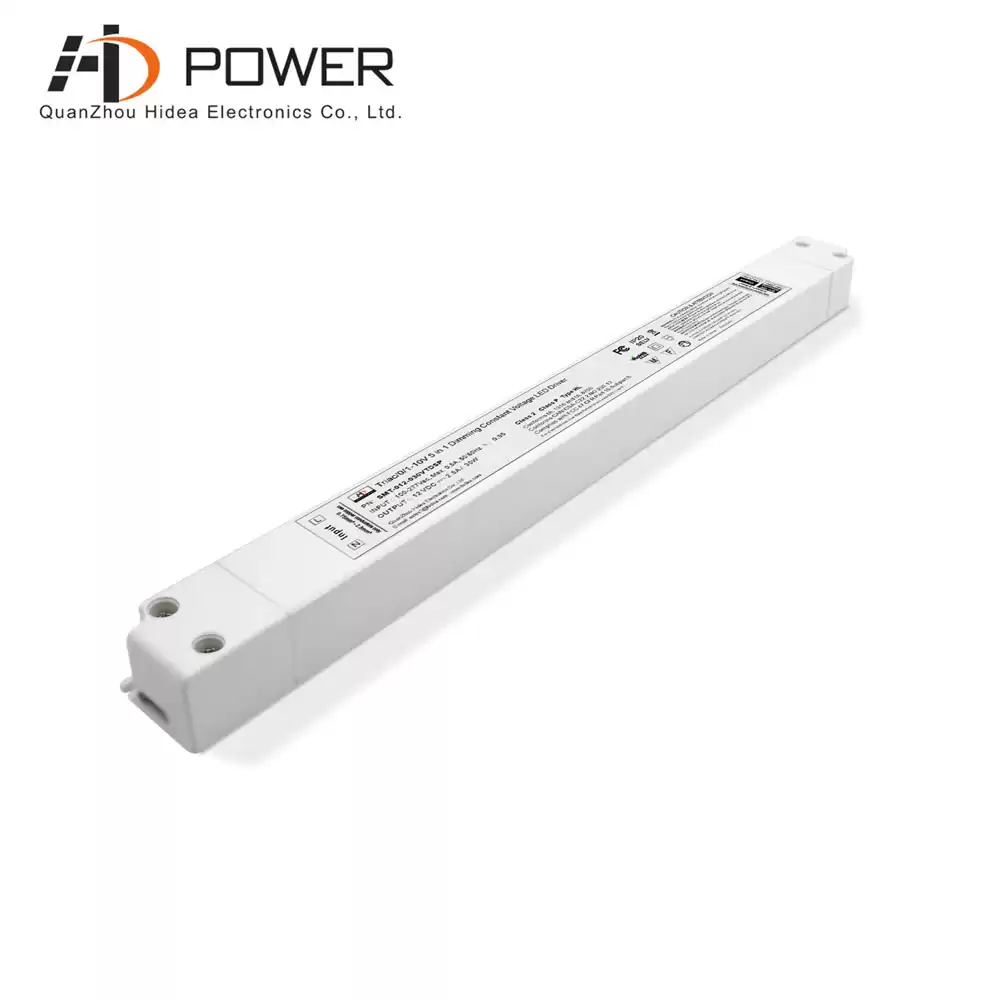

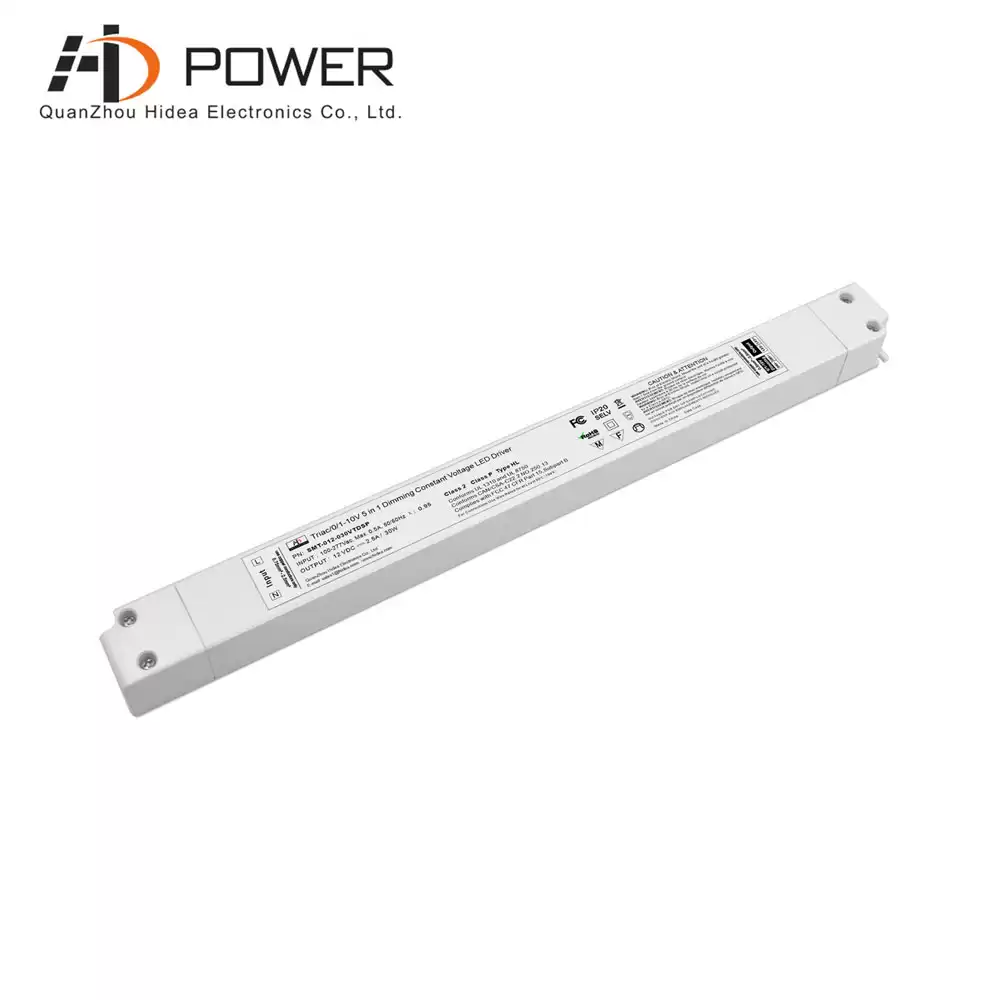

DALI 30w 12v led driver led dimming power supply
DALI led dimming driver 30w has output voltage option 12v and 24v dc,, wattage avalile in the same series at 36w, 60w, 100w and 150w, all drivers with PWM output, work with RICH PORTER lighting 12vdc lights.

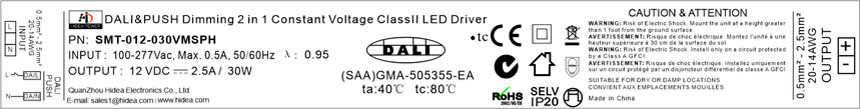

Label
Specification
|
model
|
SMT-012-030VMSPH
|
SMT-024-030VMSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC
|
0.98@120VAC
|
|
Efficiency(Typ.)@ full load(Typ.)
|
>81%
|
>81%
|
|
AC Current(Max.)
|
0.38A@100VAC
|
|
THD(Typ. ) @ full load
|
10%@120VAC
|
10%@120VAC
|
|
Inrush Current(Typ.)
|
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ;12.4A (twidth=430us) @277VAC ;
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Protection Class
|
II
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Net Weight
|
0.20Kg
|
|
Dimension
|
260*30*18.5mm(L*W*H)
|
|
packing
|
330*275*130mm/50PCS/CTN G.W.:11KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
LED dimming dali driver are avalible in constant current and constant voltage type, CE and ROHS approval for using in EU market mainly, suitable for STEEL LIGHTING commercial lights.
