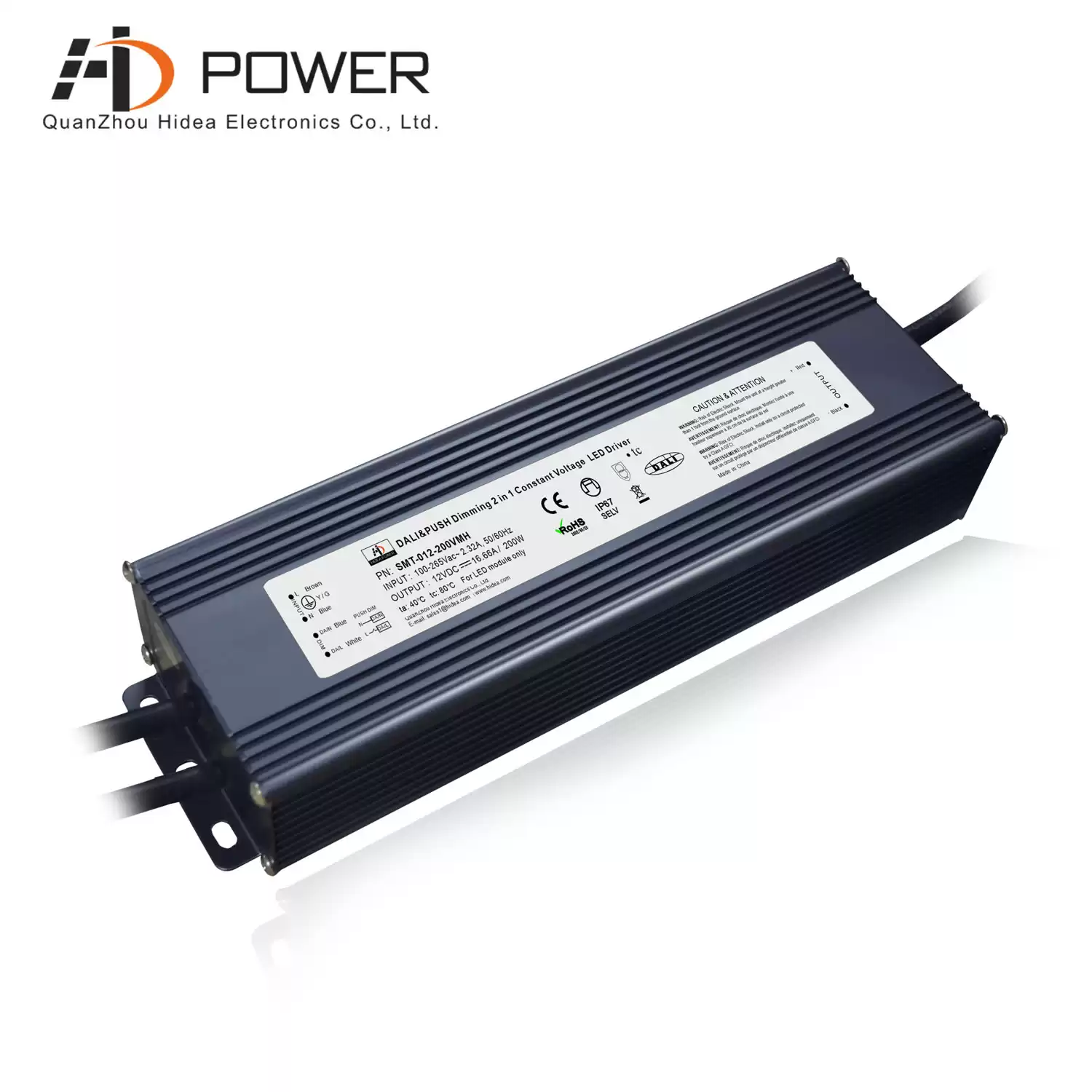

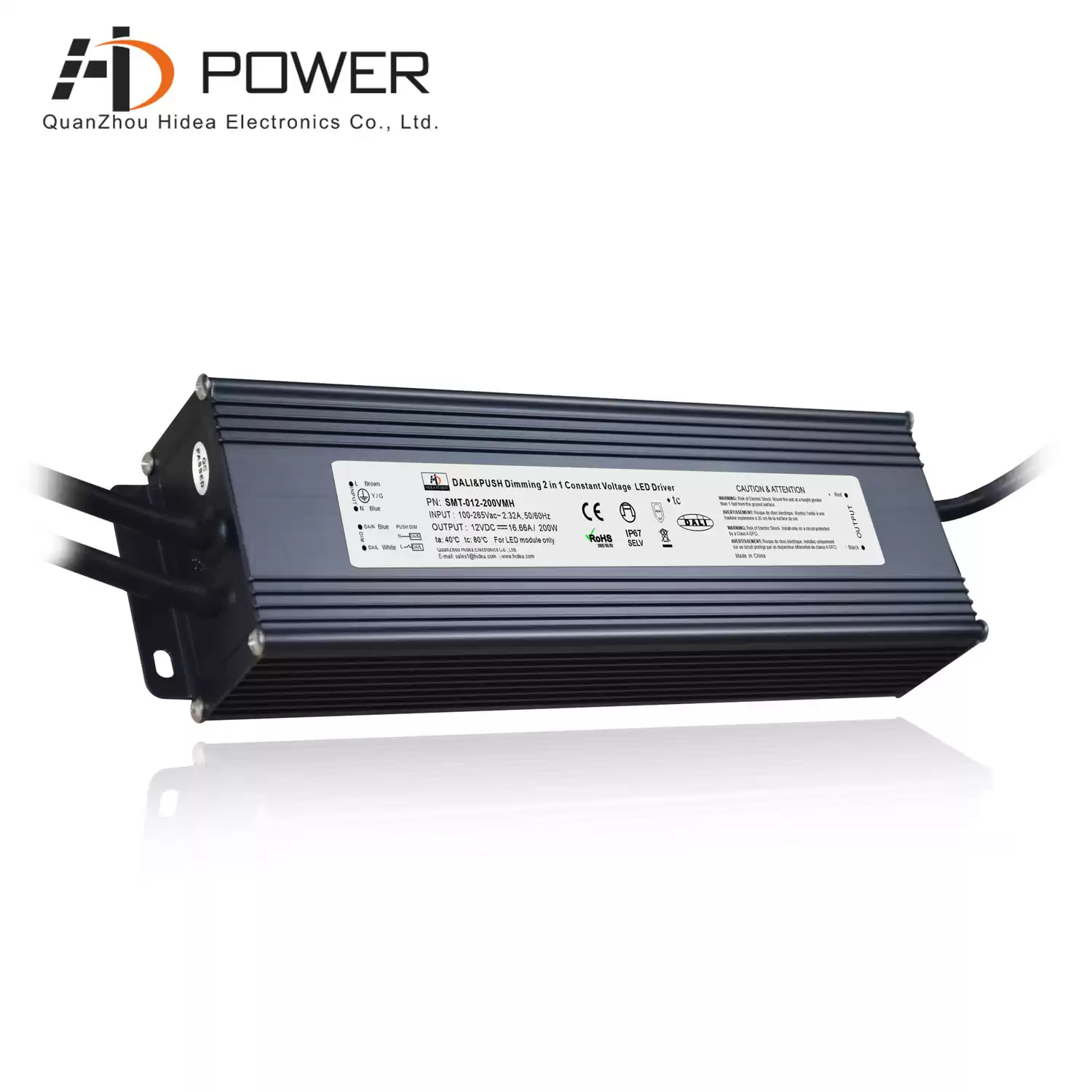

Dali 200w led power supply is listed by CE, ROHS, the Dali 12v 200w led driver is excellent compatibility with a series of dimmers for Alphabe free flicker lighting.
Specification
|
Model
|
SMT-012-200VMH
|
SMT-024-200VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
16.6A
|
8.33A
|
|
Rated power
|
200W
|
|
Load Regulation
|
±0.2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.99 / 120VAC PF≥0.97/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
87%
|
88%
|
|
AC Current(Max.)
|
2.32A
|
2.30A
|
|
Inrush Current (Typ.)
|
16A/120VAC 56A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
Ⅰ
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547:2009
|
|
Others
|
Weight
|
1.2Kg
|
|
Dimension
|
245*70*43mm(L*W*H)
|
|
packing
|
320*270*170mm/10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

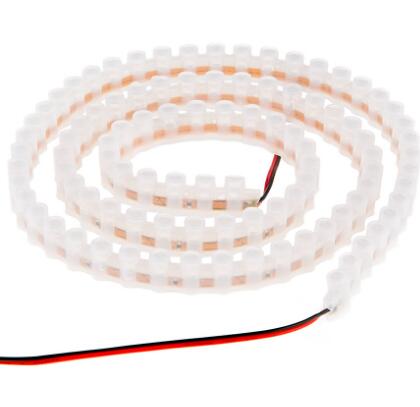

Superbright waterproof LED strip light operates on 12 VDC. using 5-mm through hole LEDs, it emits up to 85 lumens of cool white, warm white, UV (blacklight), blue, green, yellow, orange, or red illumination per foot, They are great for landscape lighting, marine lighting, and many more indoor or outdoor applications with led waterproof power supply.
Related Products
|

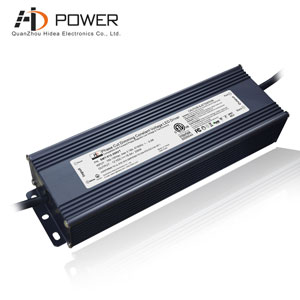

 Triac dimmable 200w led power supply is for the North American market.can work with leading edge triac dimmers.
