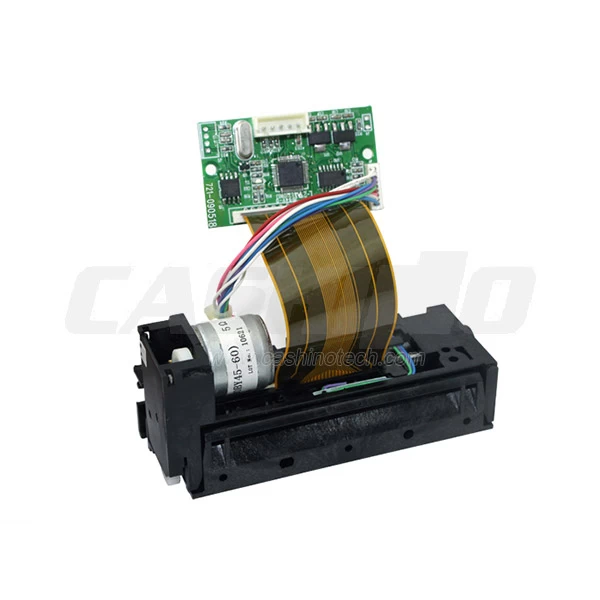

DB-721S 80mm thermal printer control board

  • Compatible with Seiko LTPV345
  • Paper width:79±1mm



DB-721S 80mm thermal printer control board
Feature:
  • Compatible with Seiko LTPV345
  • Paper width:79±1mm
  • Easy paper load
  • Compact design
  • Low Noise
  • With paper detect
  • Mechanism life(50KM)
  • High speed (85mm/sec, MAX)
  • Printing  width 72mm
  • Specification:



    Item No. DB-723F
    Printing Method:  Thermal dot line printing
    Paper Width:  80mm
    Printing width: 72mm
    Resolution:  203DPI
    Printing Speed:  60mm/s(8.5VDC)
    Barcode Supported:

    I25,UPC-A,UPC-E,EAN-8, EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI;

    2D: QR CODE, PDF 417

    Font:  ASCII(12x24)
    Graphic printing:  Direct bitmap printing
    Paper Sensor: Photo-sensor
    Head tempeture detection:  Thermistor
    Communication Interface: RS232/TTL
    Power supply:  5V-9V
    Head Life:  50km
    Operation condition:  5~45°C,20~90%RH(40°C)
    Storage condition:  -40~60°C,20~93%RH(40°C)

    FAQ:

    Q: About samples

    A: Samples are available for testing.

    Q: Delivery date.

    A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

    delivery date approximately 2 weeks.

    Q: Payment terms

    A: Paypal, western union, T/T in advance, or order in aliexpress.

    Q: Warranty

    A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

    responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

    reasonable price to the customer.
