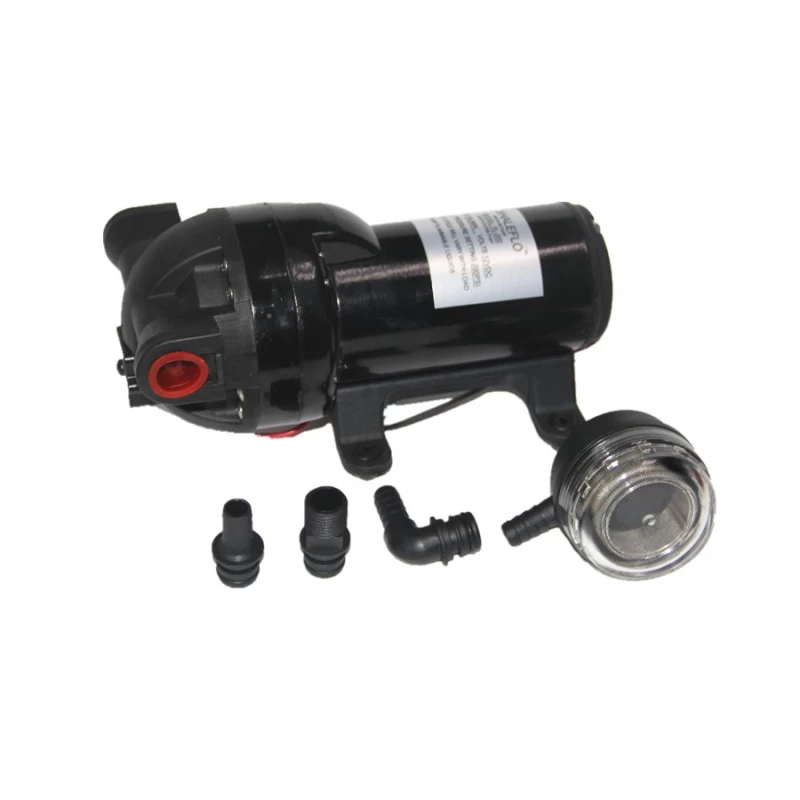

DC 12V 10LPM 200PSI Diaphragm Agriculture Irrigation DC Water Pump
Whaleflo FL 5 Chamber High Volume Diaphragm Pumps
Adjustable pressure switch from 50psi-200psi for OEM needed
Built-in thermal protector
Quick attach connections,fittings easy to connect with any outlet.
Rubber feet for noise reduction from vibration
Whaleflo Pump Application
caravan,RV,marine, garden,camping,boat, outdoor,agriculture irrigation
|
Pump Design
|
5 chamber Daiphragm
|
|
Port size
|
3/4''(19mm) Quick attach
|
|
Connector
|
1pc 3/4" Male Thread ,1pc 1/2'' hose barb , 1pc 1/2" hose barb filter
|
|
Voltage
|
12V, 24V
|
|
Check value
|
EPDM or VITON
|
|
Liquid temp
|
140F(60C) maximum
|
|
Seld-priming
|
8 feet （ 2M）suction Lift
|
|
Model number
|
Volt
|
Max Flow LPM(GPM)
|
Max Pressure Psi(Bar)
|
Amps(A)
|
Packing Size(mm)
|
N.W/G.W
|
|
FL-55
|
12v dc
|
20(5.2)
|
55(3.8)
|
16.0
|
240*135*138mm
|
3.2/3.5kgs
|
FL-200
|
12v dc
|
10(2.6)
|
200(13.8)
|
15.0
|
210*125*105mm
|
3.2/3.5kgs
|
|
FL-200B
|
24v dc
|
10(2.6)
|
200(13.8)
|
7.5
|
210*125*105mm
|
3.2/3.5kgs
|
