Single Output 12V Switching Power Supply 150W
Description:
KH-150 series 150W switching power supply AC input range selectable by switch, equips with high efficiency, long life and high reliability and 5v 12v 15v 24v output voltage adjustable with 2 years warranty.
Features:
1, AC input range selectable by switch；
2, Forced air cooling by built-in dc fan；
3, 12v 12.5a power supply with high efficiency, long life and high reliability;
4, Protections: Short circuit / Overload /Over Temperature.
|
SPECIFICATION
|
|
Item NO
|
KH-150-5
|
KH-150-12
|
KH-150-15
|
KH-150-24
|
|
OUTPUT
|
DC OUTPUT VOLTAGE
|
+5V
|
+12V
|
+15V
|
+24V
|
|
OUTPUT RATED CURRENT
|
25A
|
12.5A
|
10A
|
6.3A
|
|
OUTPUT CURRENT RANGE
|
0-30A
|
0-12.5A
|
0-10A
|
0-6.3A
|
|
DC OUTPUT POWER
|
125W
|
150W
|
150W
|
151.2W
|
|
RIPPLE & NOISE
|
100mVp-p
|
100mVp-p
|
150mVp-p
|
150mVp-p
|
|
DC VOLTAGE ADJ.
|
±10%
|
|
|
|
|
OUTPUT V. TOLERANCE
|
±2%
|
±1%
|
±1%
|
±1%
|
|
LINE REGULATION
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
LOAD REGULATION
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
SETUP,RISE,HOLD UP TIME
|
50ms,50ms,20ms
|
|
INPUT
|
INPUT VOLTAGE RANGE
|
90~132V/180~264V AC;200~360V DC
|
|
AC CURRENT
|
3A/115V;1.5A/230V
|
|
INPUT FREQUENCY
|
47~63Hz
|
|
EFFICIENCY
|
78%
|
84%
|
84%
|
85%
|
|
INRUSH CURRENT
|
40A@230V
|
|
LEAKAGE CURRENT
|
<0.5mA@240V
|
|
PROTECTION
|
O.L.P
|
105~150%,TYPE:SHUT-DOWN RESET:RE-POWER ON
|
|
SHORTPROTECTION
|
TYPE:SHUT-DOWN RESET:RE-POWER ON
|
|
O.V.P
|
6~7V
|
15~17V
|
18~20V
|
30~33V
|
|
O.T.P
|
------
|
|
OTHER FUNCTION
|
|
|
|
ENVIROMENT
|
WORKING TEMP., HUMIDITY
|
-10~50℃，10~90% RH，non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-20~85℃，10~95% RH
|
|
TEMP. COEFFICIENT
|
±0.03%/℃(0~50℃)
|
|
VIBRATION
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
GB4943,EN60950
|
|
WITHSTAND VOLTAGE
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC STANDARDS
|
GB9254,EN55022 CLASS B
|
|
OTHER
|
DIMENSION
|
199*98*38mm CASE：K808
|
|
WEIGHT
|
0.7Kg
|
|
NOTE
|
1. ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.
2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.
3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.
4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD.
5.LOAD REGULATION IS MEASURED FROM 20% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.
|

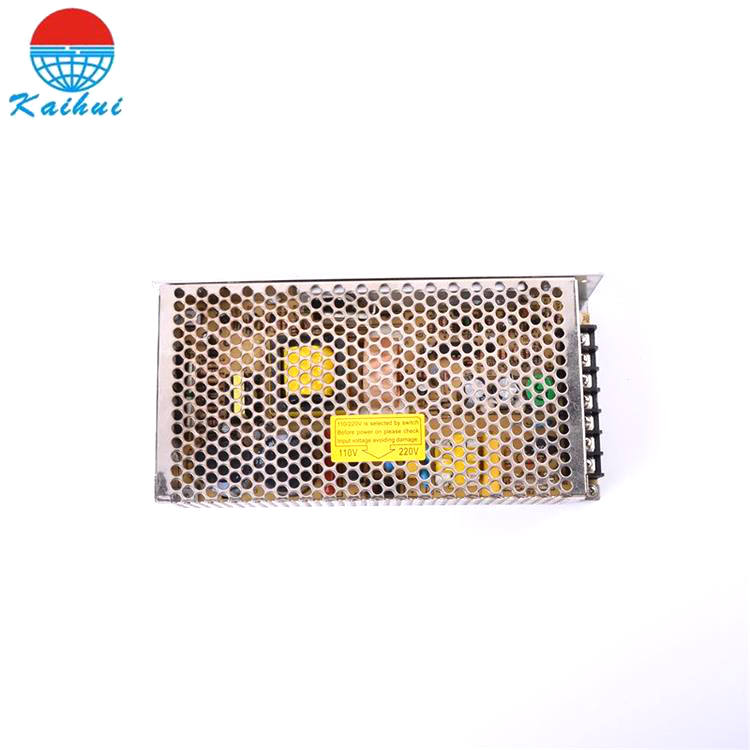

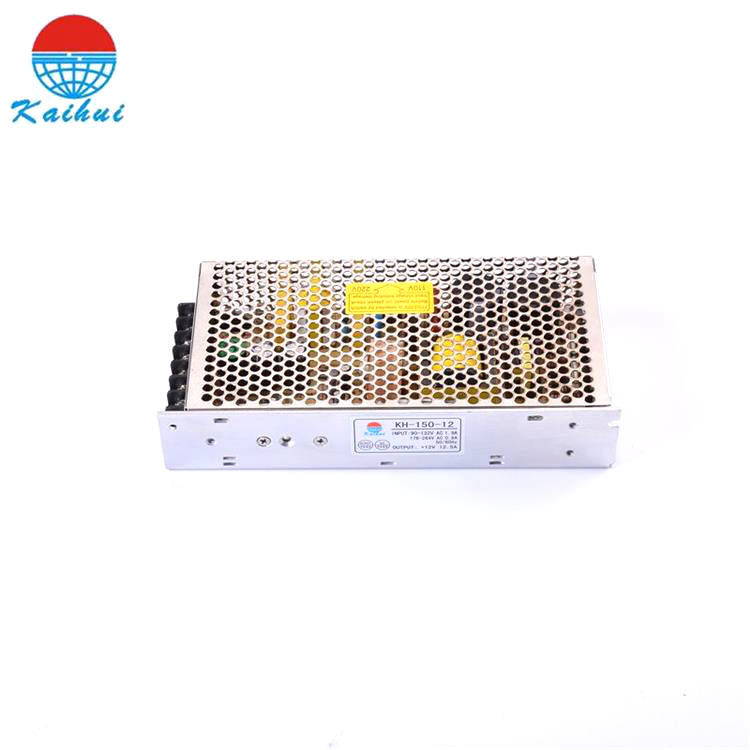

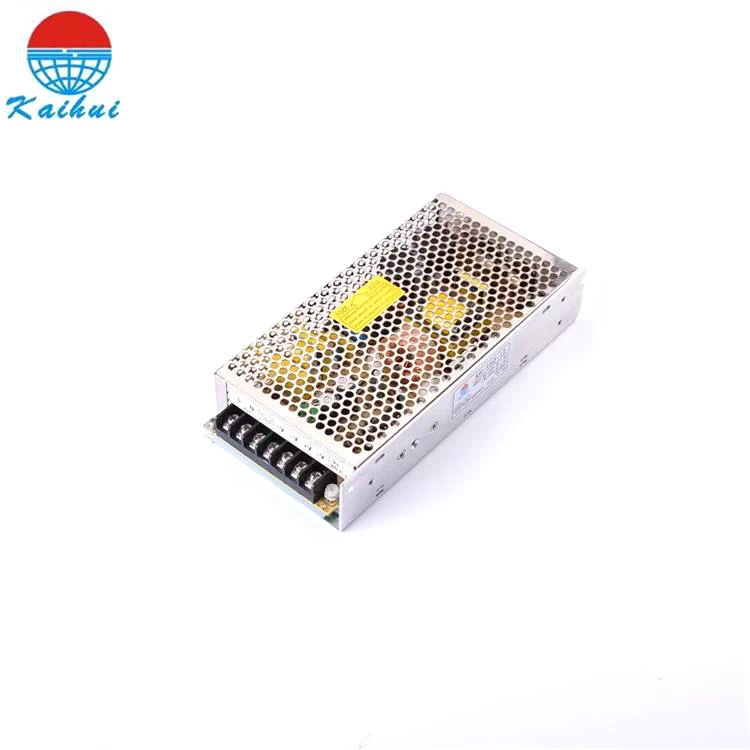

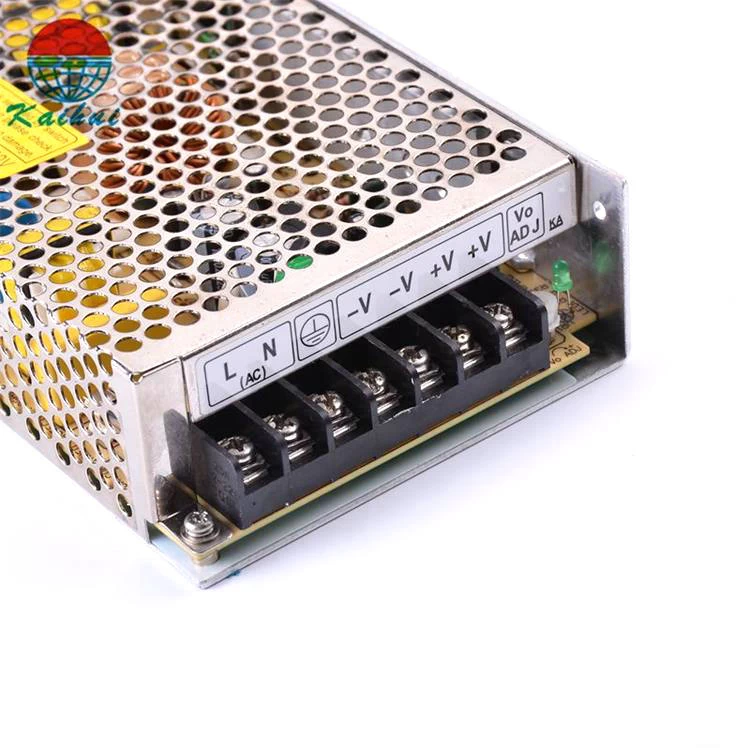

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
