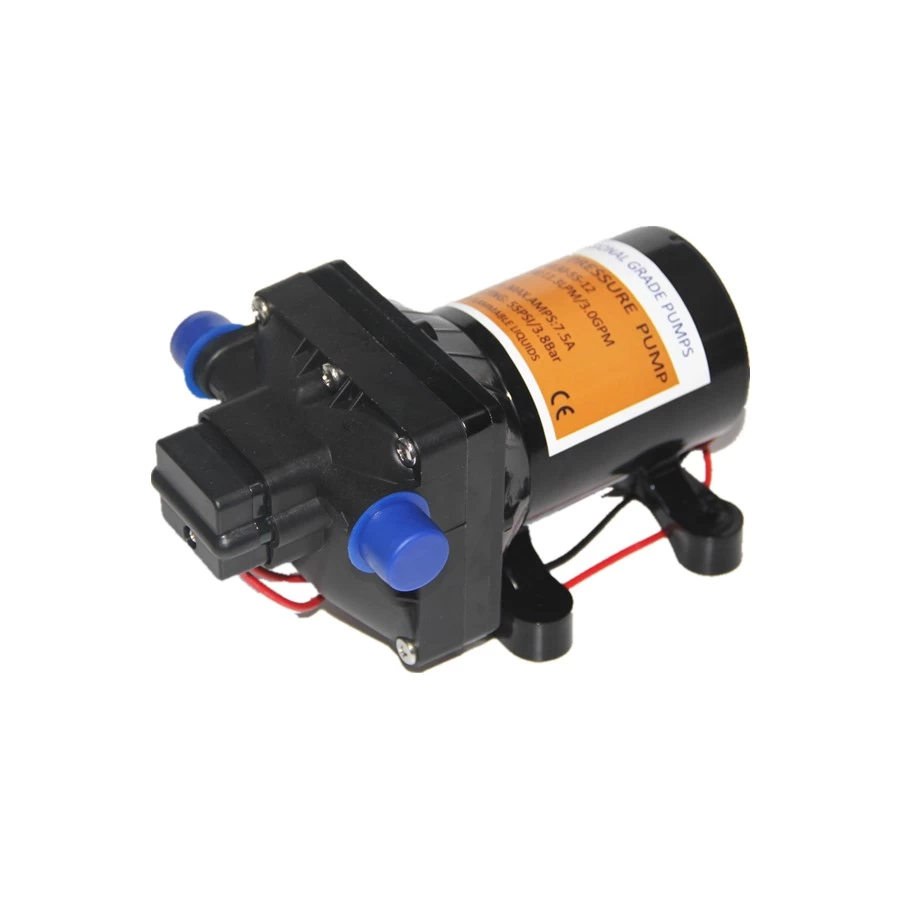

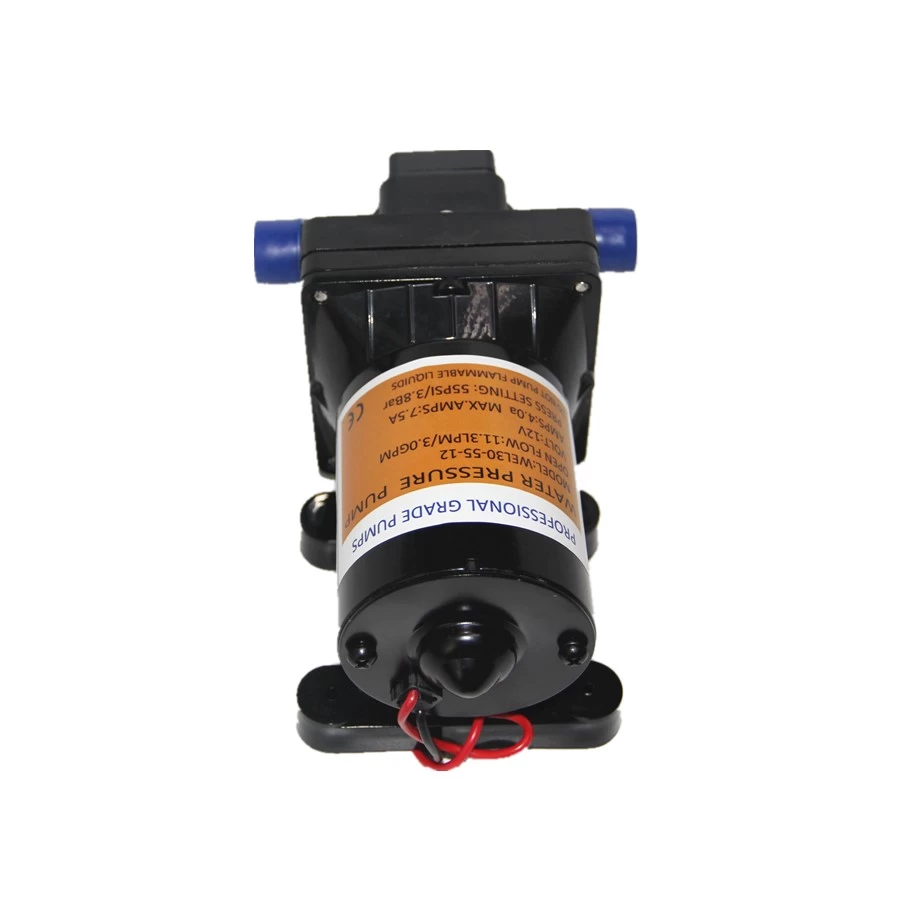

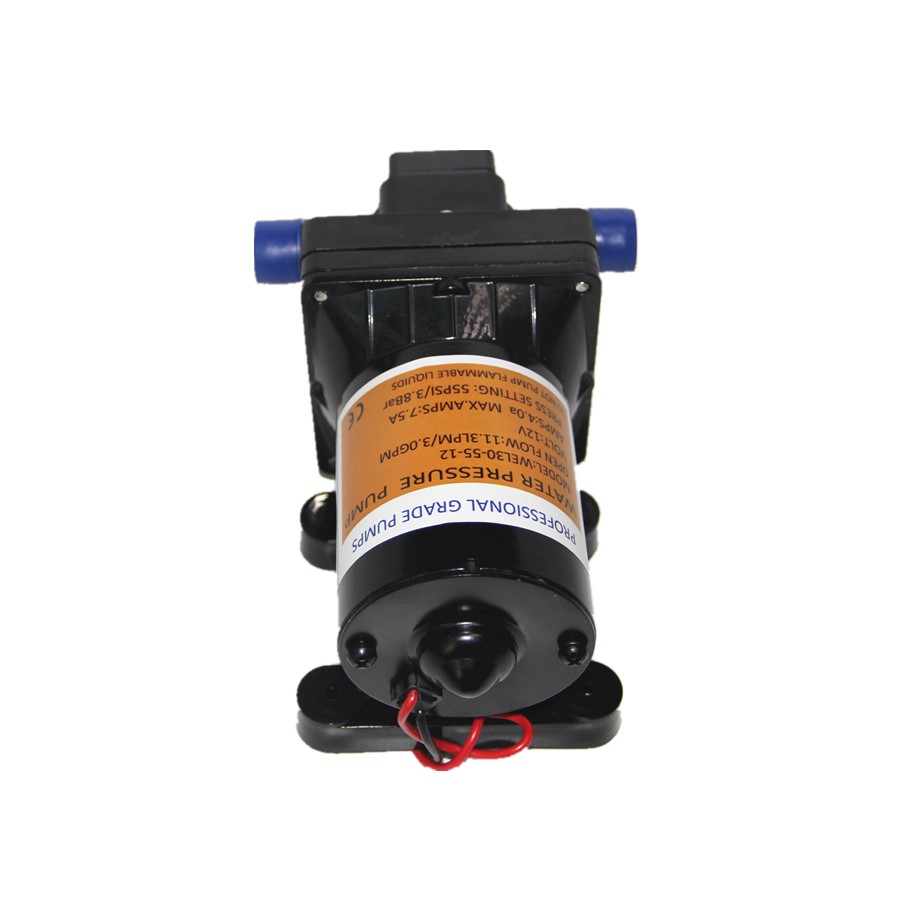

DC 12V 24V Washdown Water Pressure Diaphragm Pump 55Psi 11.3L/min
12V DC Washdown Pump
Specification
Model:WEL30-55-12
Open Flow:11.3LPM/3.0GPM
Volt:12V DC
Amps:4.0a Max.Amps:7.5A
Press Setting:55PSI/3.88Bar
Package Includes:
- 1 x WEL30-55-12 Model Water Pressure Diaphragm Pump
- 1 x Installation Instructions - 2 x 1/2" Barbed Hose Adaptors
- 1 x 50 Mesh Strainer/Filter
|

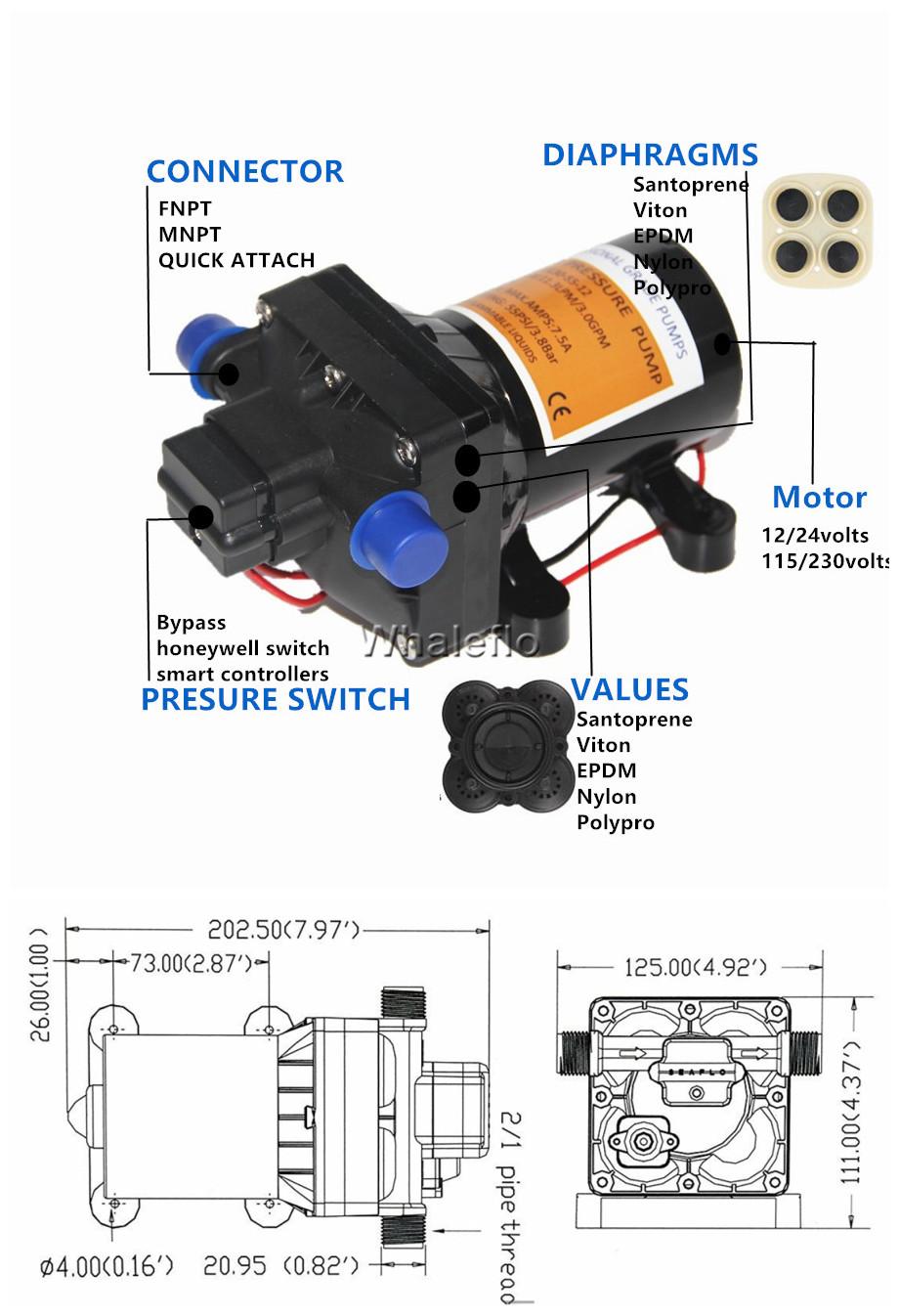

Whaleflo Washdown Pump
|
|
Type
|
4 Chamber diaphragm pump, self priming
|
|
Control Type
|
Pressure switch & By pass control
|
|
Max Recommended Temperature
|
60° C（140° F）
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Re-start Pressure
|
Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar)
|
|
Inlet/Outlet Ports
|
QUICK ATTACH
|
|
Weight
|
4.3 lbs (2.0 kg)
|
|
MOTOR
|
|
Leads
|
16 AWG, 13" (33 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Max.Amp Draw
|
7.5 A
|
|
Fuse
|
11.3 A
|
Whaleflo Pump application
Typical Applications
Agriculture/Yacht / RV/Caravan pressurized water system
* Agricultural Spraying
* General Industrial
* Automotive
* Marine/RV
Technical data
|
Model
|
Volt(V）
|
Open Flow（LPM/GPM）
|
Demend Pressure（PSI/Bar）
|
Amps Draw(A)
|
Check value
|
Diaphragm
|
Ports
|
Wire connections
|
|
WEL30-55-12
|
12
|
4.6(1.2)
|
60(4.1)
|
7.5
|
EPDM/VITON
|
Santoprene
|
QUICK ATTACH
|
2-pin/Leads
|
|
WEL30-55-24
|
24
|
4.6(1.2)
|
60(4.1)
|
4.0
|
EPDM/VITON
|
Santoprene
|
QUICK ATTACH
|
2-pin/Leads
|
