24V 5A open frame switching power supplies
Description:
Features:
1, 120W high efficiency 24v single output power supplies;
2, K31B-UP120S24 model including filter, low output noise;
3, This 24V version power supply with 100-240 VAC input voltage;
4, Overload, overcurrent protections.
|
Parameter
|
|
Item NO.
|
K31B-UP120S24
|
|
Output
|
Output Voltage
|
24V
|
|
Rated Current
|
5A
|
|
Current Range
|
0-5A
|
|
Rated power
|
120W
|
|
Ripple noise
|
120mVp-p
|
|
Adjustable output range
|
±10%
|
|
Output accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
/
|
|
Input
|
Input voltage range
|
100~240V AC
|
|
Input Current
|
2A/ 115Vac
|
|
Frequency
|
50~60Hz
|
|
Efficiency
|
86% @230Vac
|
|
Power factor
|
>0.9@230Vac, >0.95@115Vac
|
|
Inrush current
|
Cold start 15A 230V AC
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Overload protection
|
105-180% Automatic protection/385v Do not overload
|
|
Output overvoltage protection
|
/
|
|
Over temperature protection
|
/
|
|
Environment
|
Working Temp.,Humidity
|
-20~40℃,10~90%RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943
|
|
Withstand voltage
|
I/P-O/P:3.0KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
/
|
|
Others
|
Dimension
|
118*55*38mm
|
|
Weight
|
0.3Kg
|
|
Remarks
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

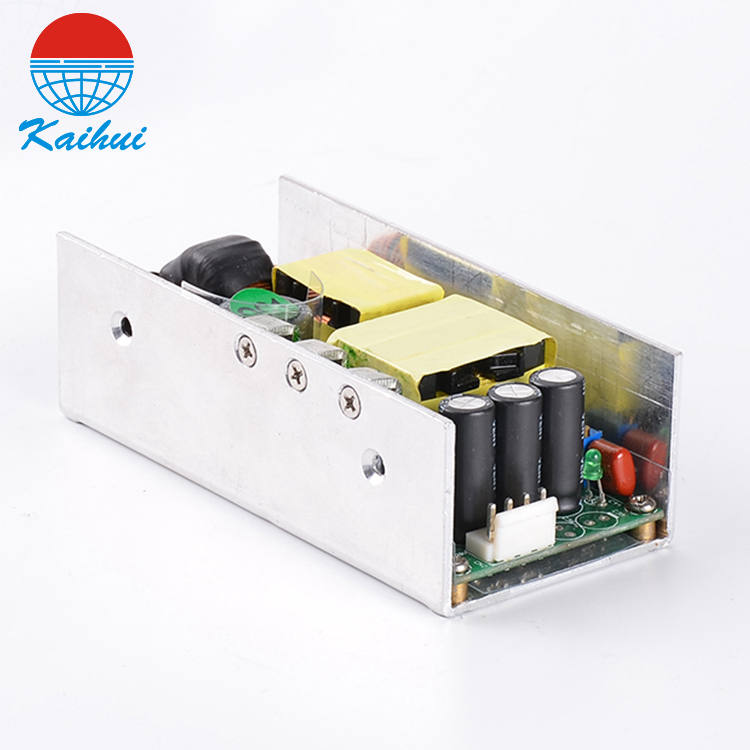

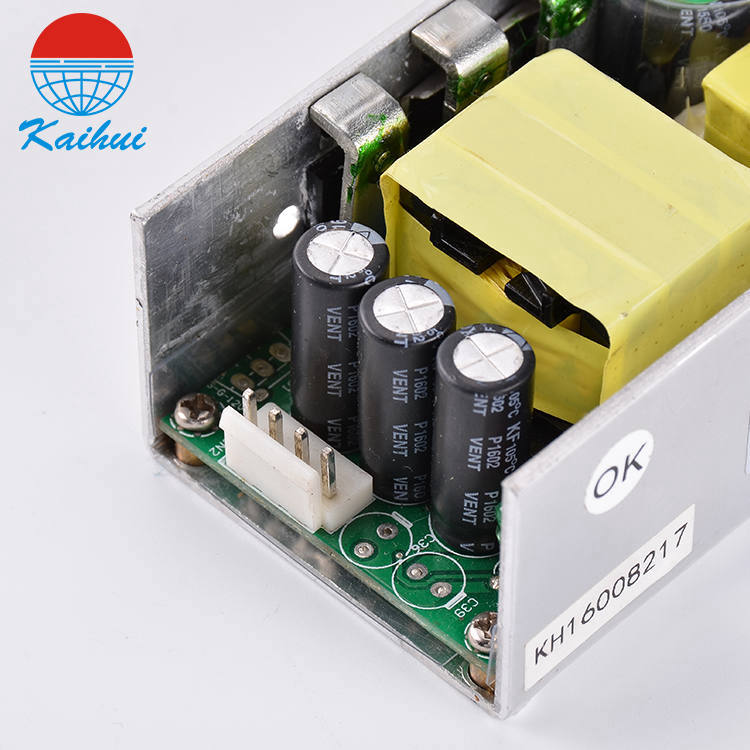

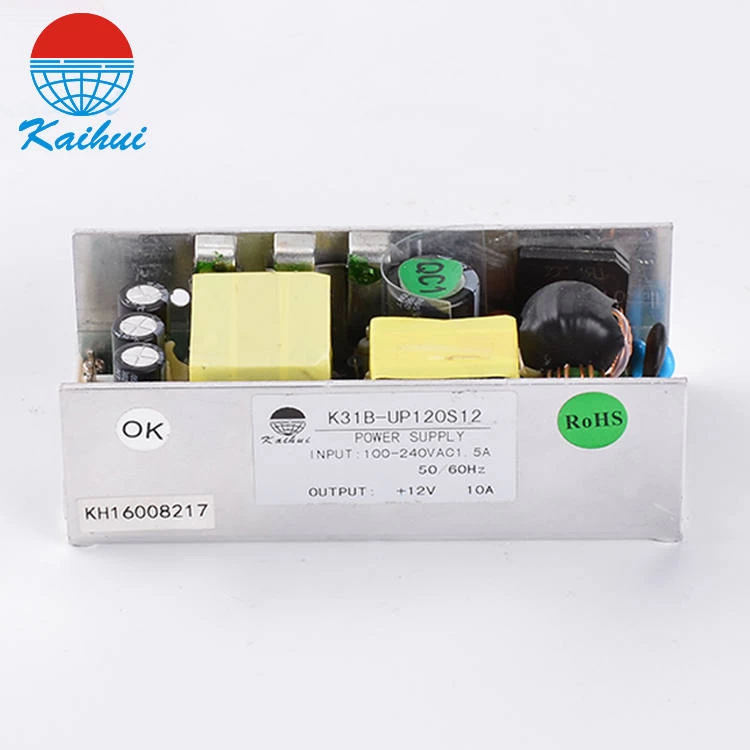

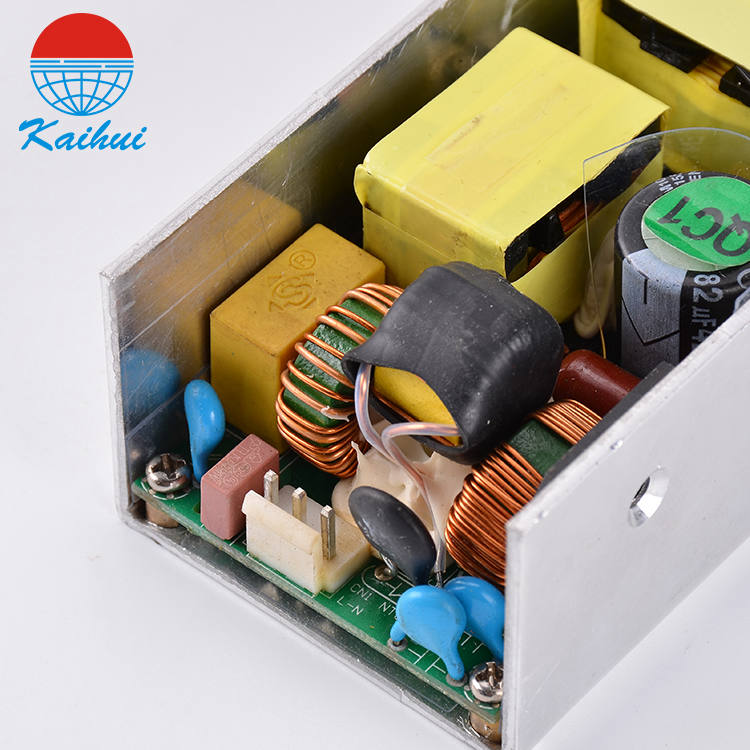

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
