Product Name

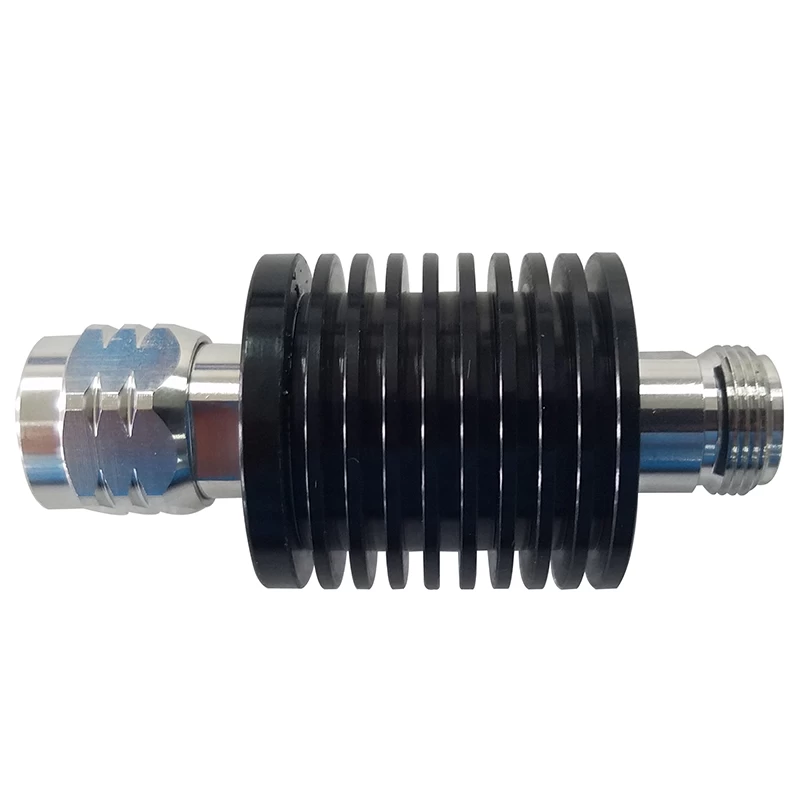

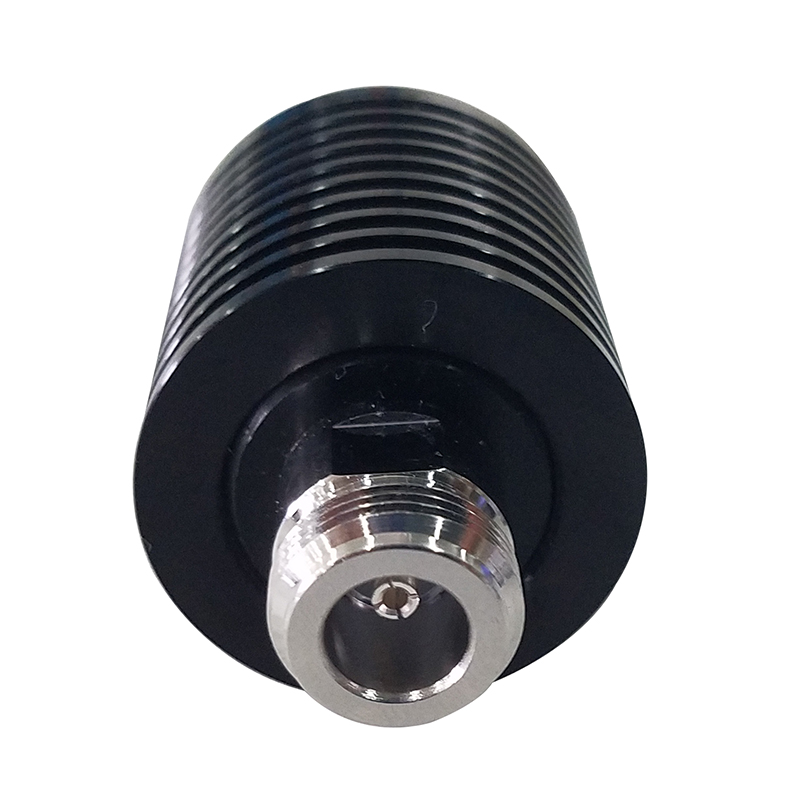

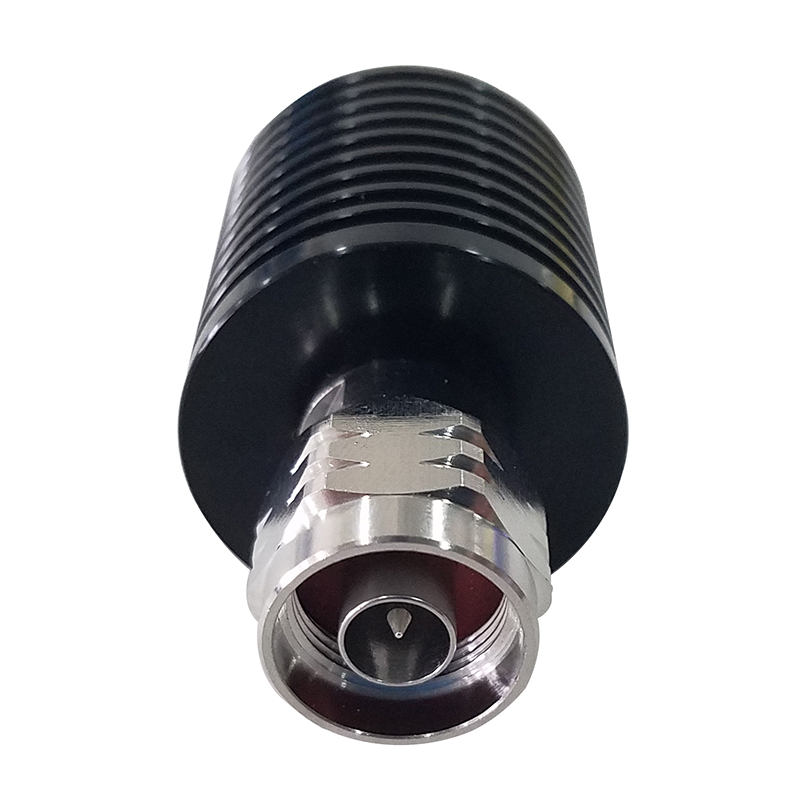

Attenuator (DC-3G,10W,4.3-10M/F,N M/F,DIN M/F )
DC-3GHz RF Attenuator is wide frequency band (2G/3G/4G/LTE Coverage),10W 3dB RF Attenuator is low VSWR,Low Attenuation Accuracy and widely used in DAS.
Product Features
◆ Wide Frequency Band DC-3GHz
◆ Low VSWR
◆Low Attenuation Accuracy
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
|
Model No.
|
MNA-3G-10-3-N
|
MNA-3G-10-6-N
|
MNA-3G-10-10-N
|
MNA-3G-10-15-N
|
MNA-3G-10-20-N
|
MNA-3G-10-30-N
|
|
Freq(MHz)
|
DC-3GHz
|
|
Attenuation(dB)
|
3
|
6
|
10
|
15
|
20
|
30
|
|
Accuracy(dB)
|
±0.5
|
±0.5
|
±0.8
|
±1.0
|
±1.0
|
±1.0
|
|
VSWR
|
≤1.2
|
|
Average Power(W)
|
10
|
|
Impedance
|
50 ohm
|
|
Connector
|
4.3-10 M/F, N M/F ,DIN M/F,
|
|
Color
|
Black
|
|
Ambient Temp(deg)
|
-35~+75
|
|
Relative Humidity
|
5%-95%
|

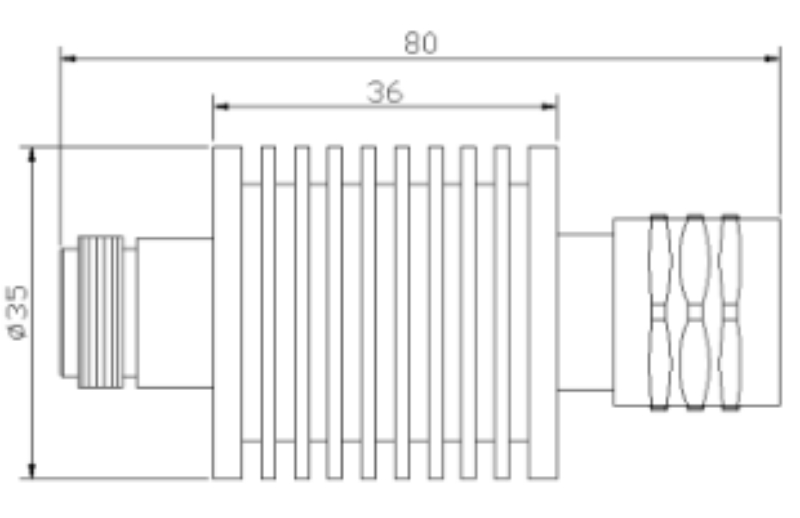

Mechanical Drawing
