Micro dc mini permanent electromagnet, low voltage, low power supply, widely used for home appliance, electronic products.
Compared with the standard electromagnet, dc permanent electromagnet work type is opposite, power off for holding power on for release.
Product Description
|
Brand
|
Landa
|
Model
|
XH1720
|
|
Rated Voltage (V)
|
DC12/24
|
Rated Power(W)
|
1-10W
|
|
Work Model
|
Holding Type
|
Holding Force (N)
|
100
|
|
Stroke(mm)
|
0
|
Reset Time(s)
|
0.2
|
|
Service Life
|
500 Thousand Times
|
Certification
|
CE,ROHS,ISO9001
|
|
Material
|
Iron
|
Lead Wire Length(mm)
|
200
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Non-excitation
Holding Force
|
80
|
|
Residual Magnefism
|
/
|
Duty Cycle
|
100%
|
|
Working Temperature
|
-10°C-100°C
|
Thread Size(mm)
|
M4
|
|
Thread Depth(mm)
|
5
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 Year
|
|
MOQ
|
10 pcs
|
Supply Ability
|
5000 pcs per Week
|
|
Delivery Time
|
8 Days
|
Port of Loading
|
Zhongshan
|
|
Weight
|
Packaging Details
|
Shipment Details
|
|
N.W.(KG)
|
G.W.(KG)
|

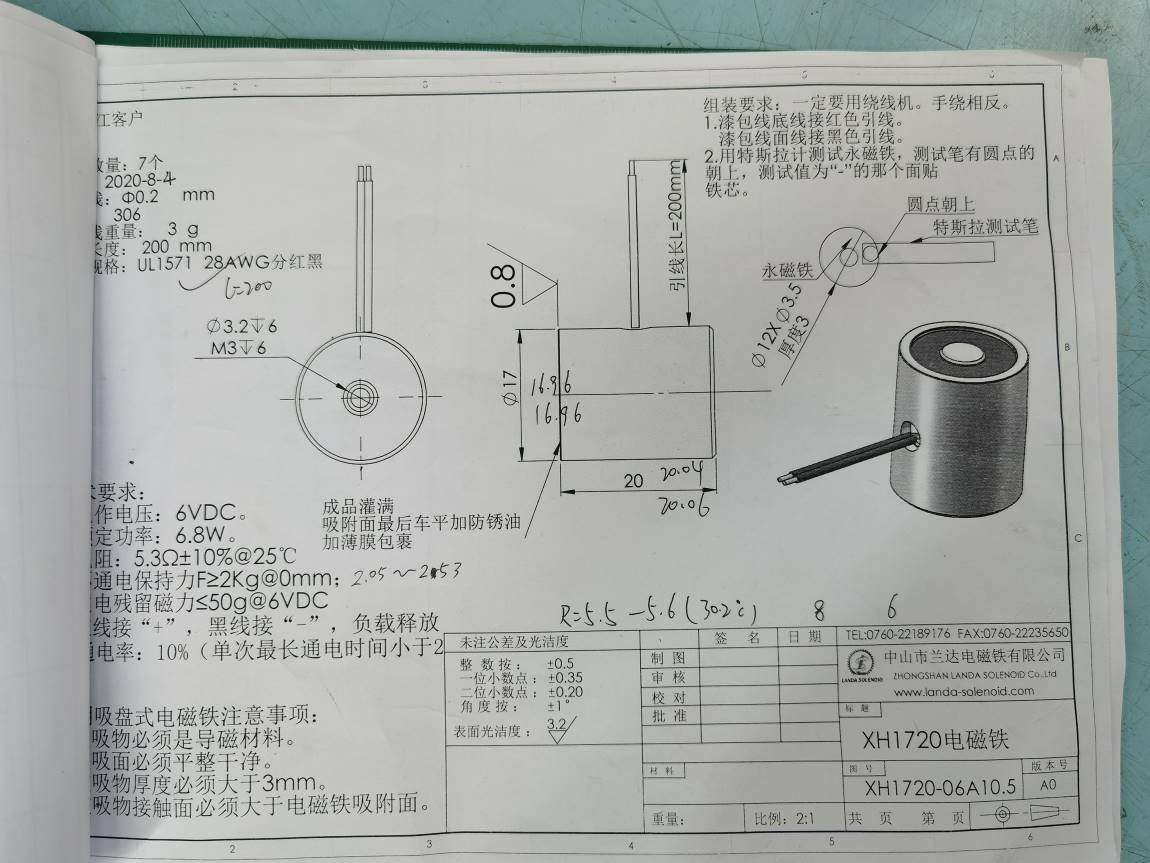

Product Size(mm)
|
Carton Box Size(mm)
|
20GP
|
40GP
|
40HQ
|
|
0.2
|
0.2
|
17*17*20
|
350*310*180
|
/
|
/
|
/
|
Product Features
-
High Quality Bistable Solenoid Keep Holding Magnetic Solenoid
-
Small in size
-
Big in force
-
With force power on and without force power off
-
Easy to operate
-
Epoxy filled
-
IP65
-
Wide range of application
-
10 years of designing and producing experience
-
OEM/ODM is welcomed

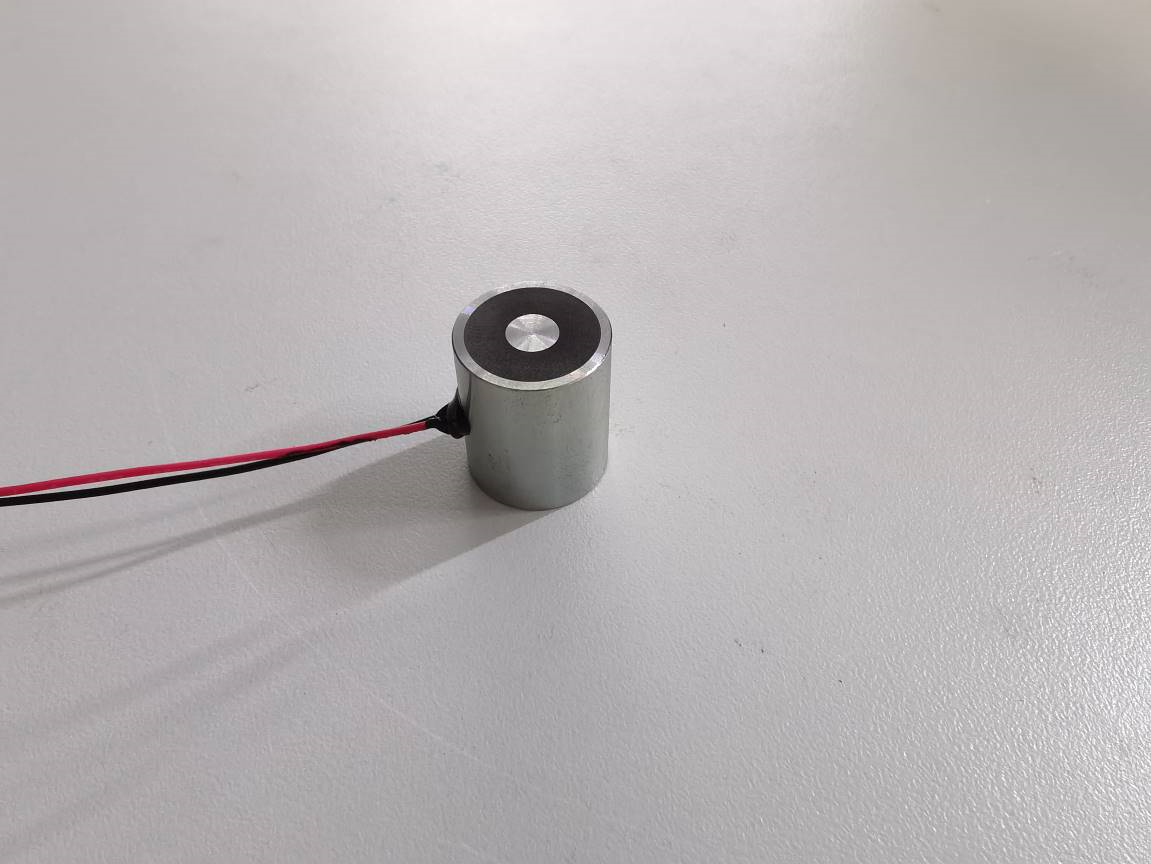

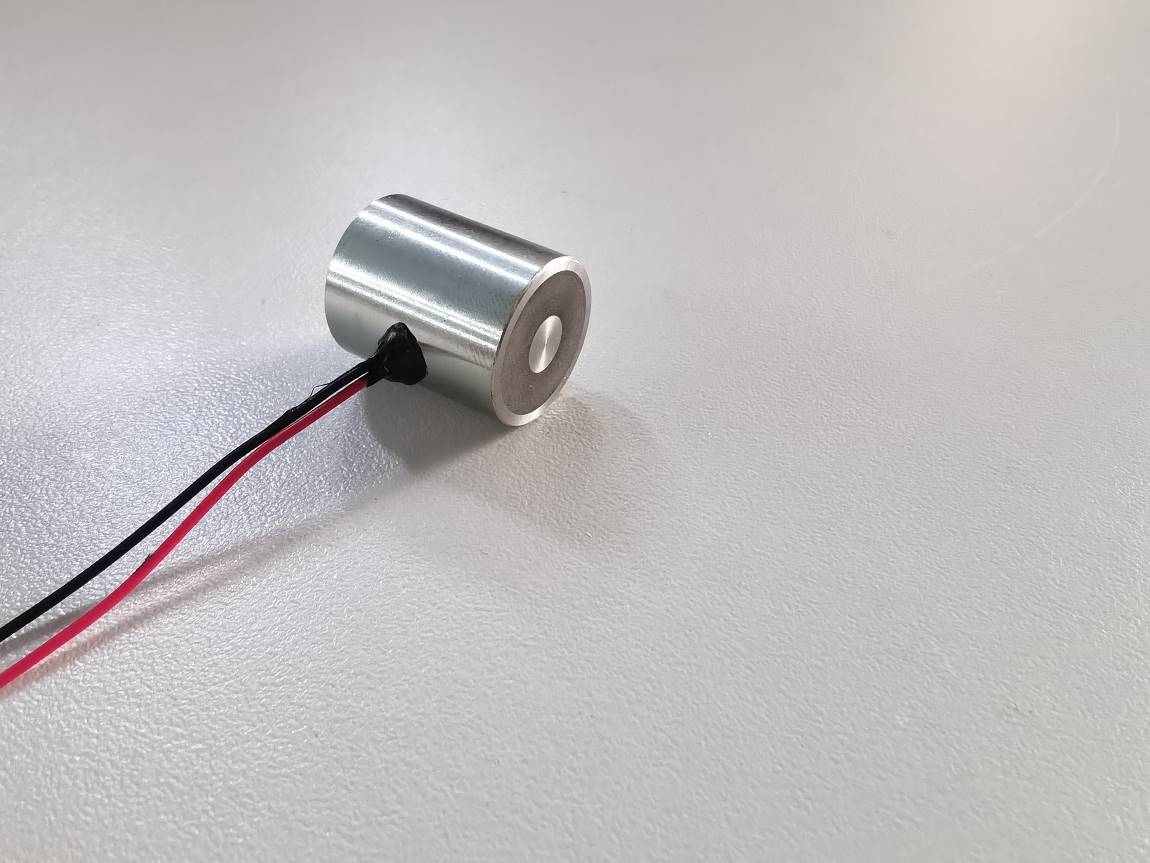

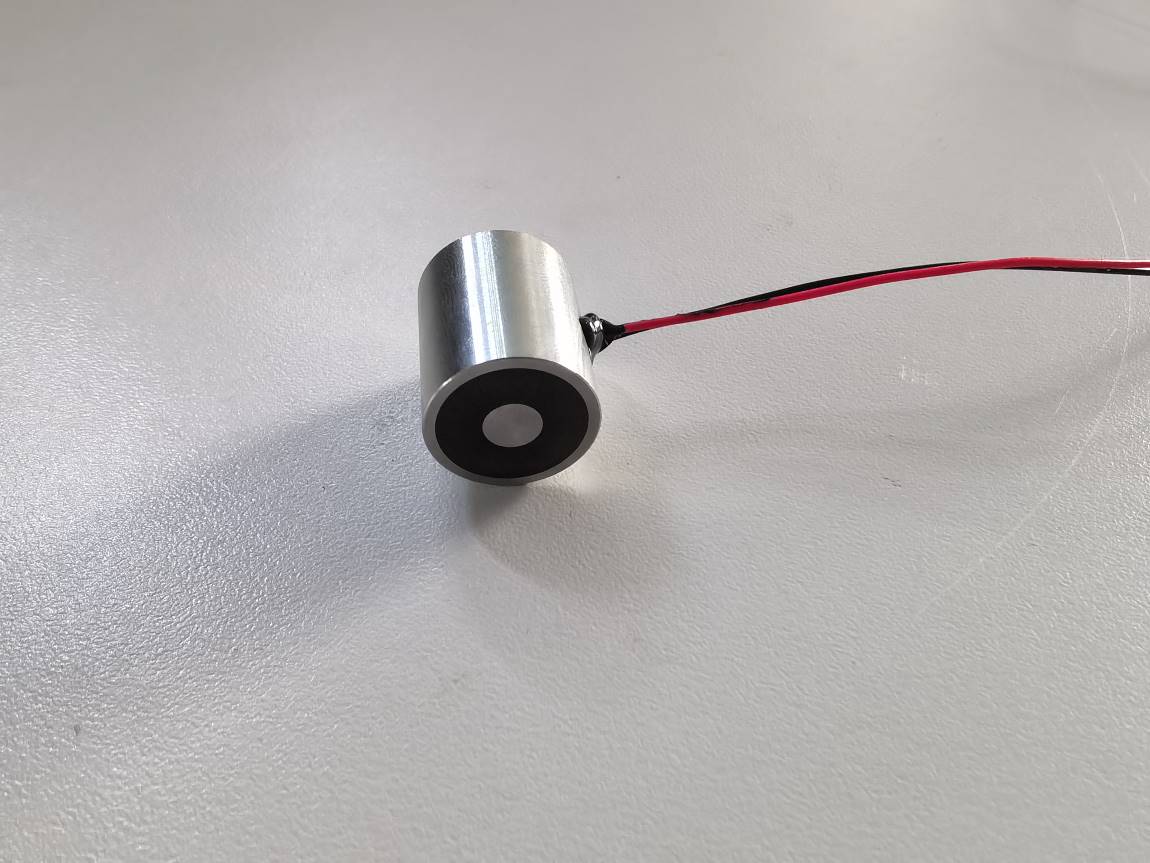

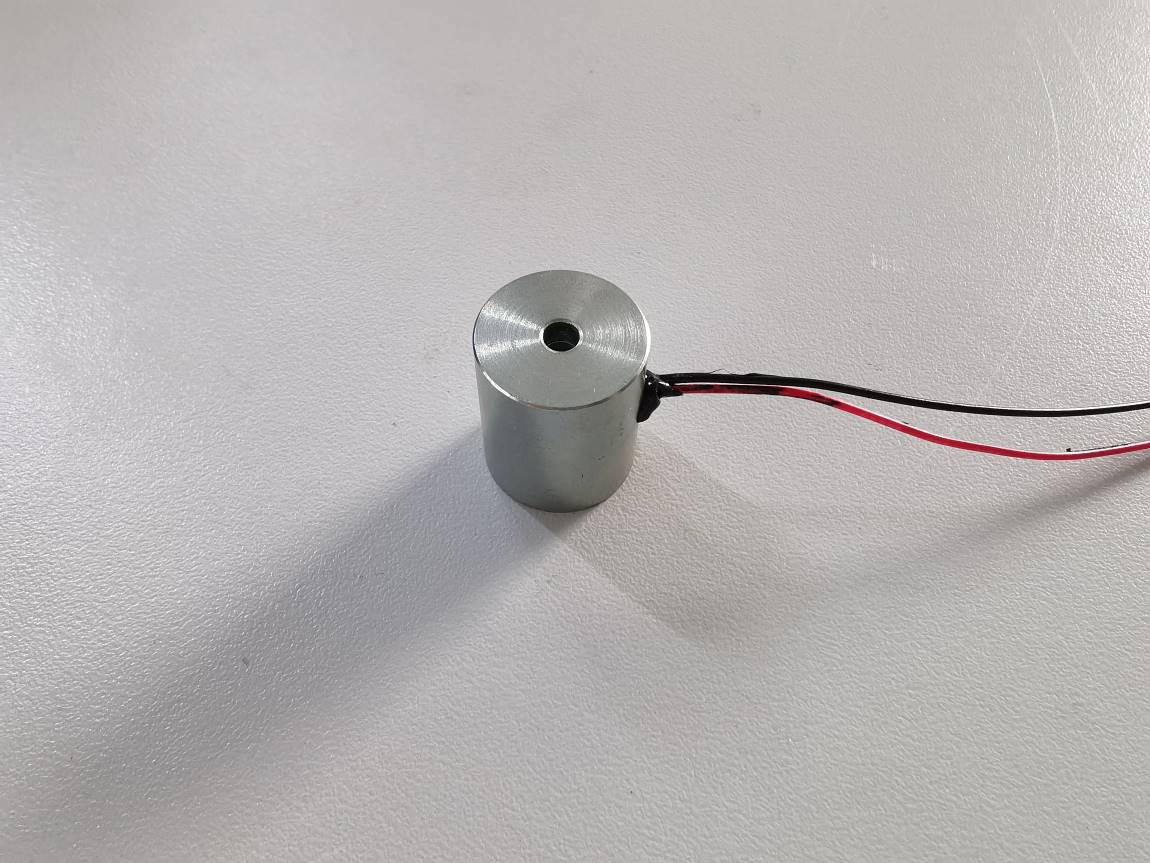

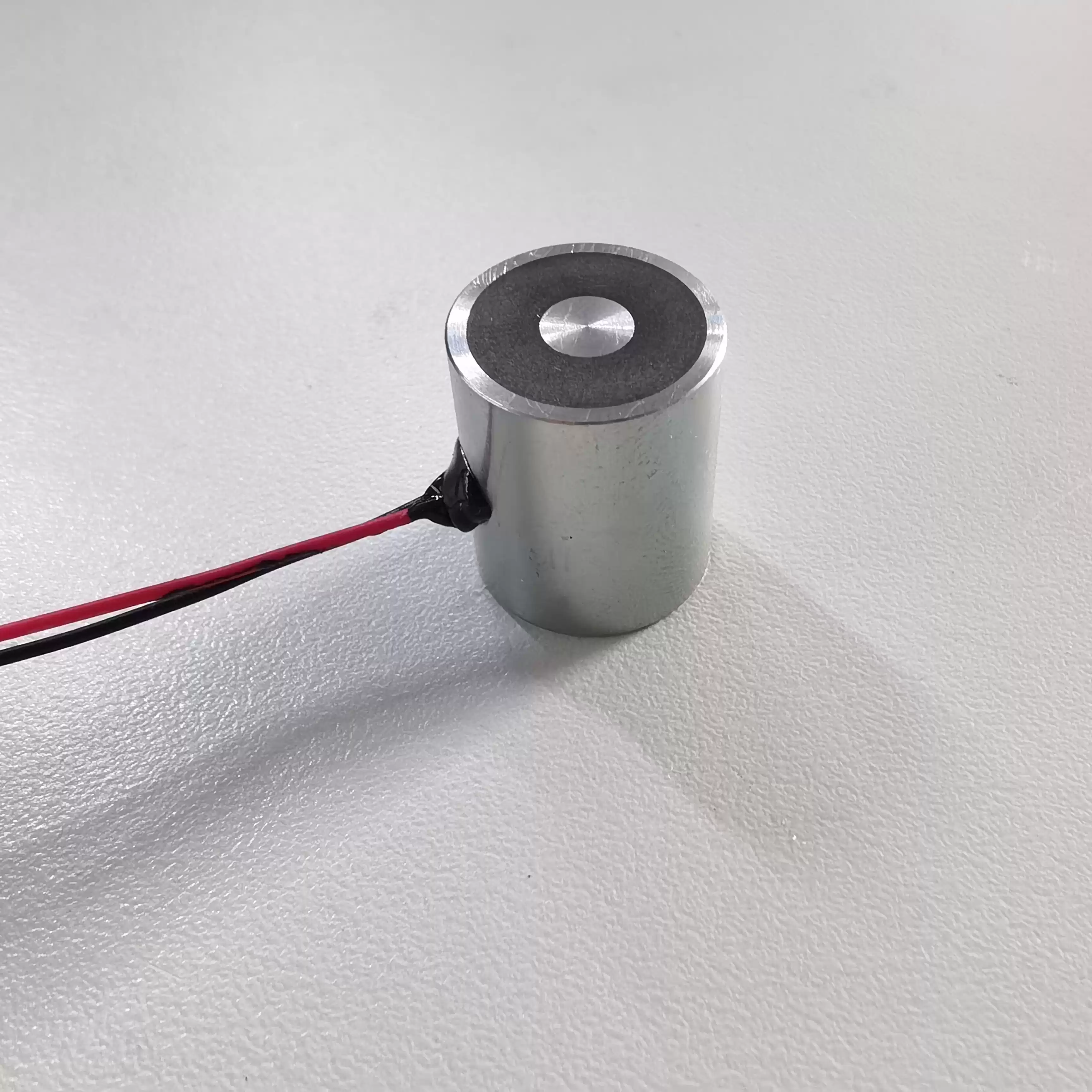

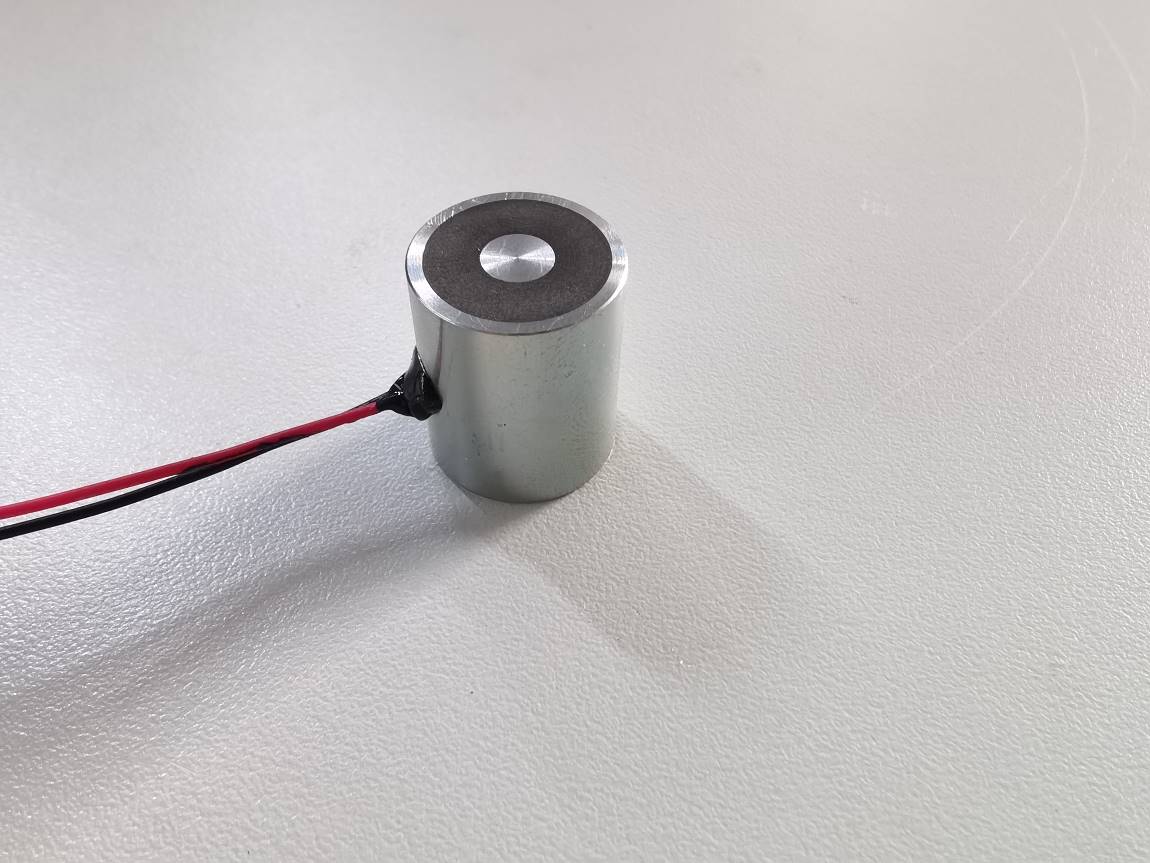

Product Details
