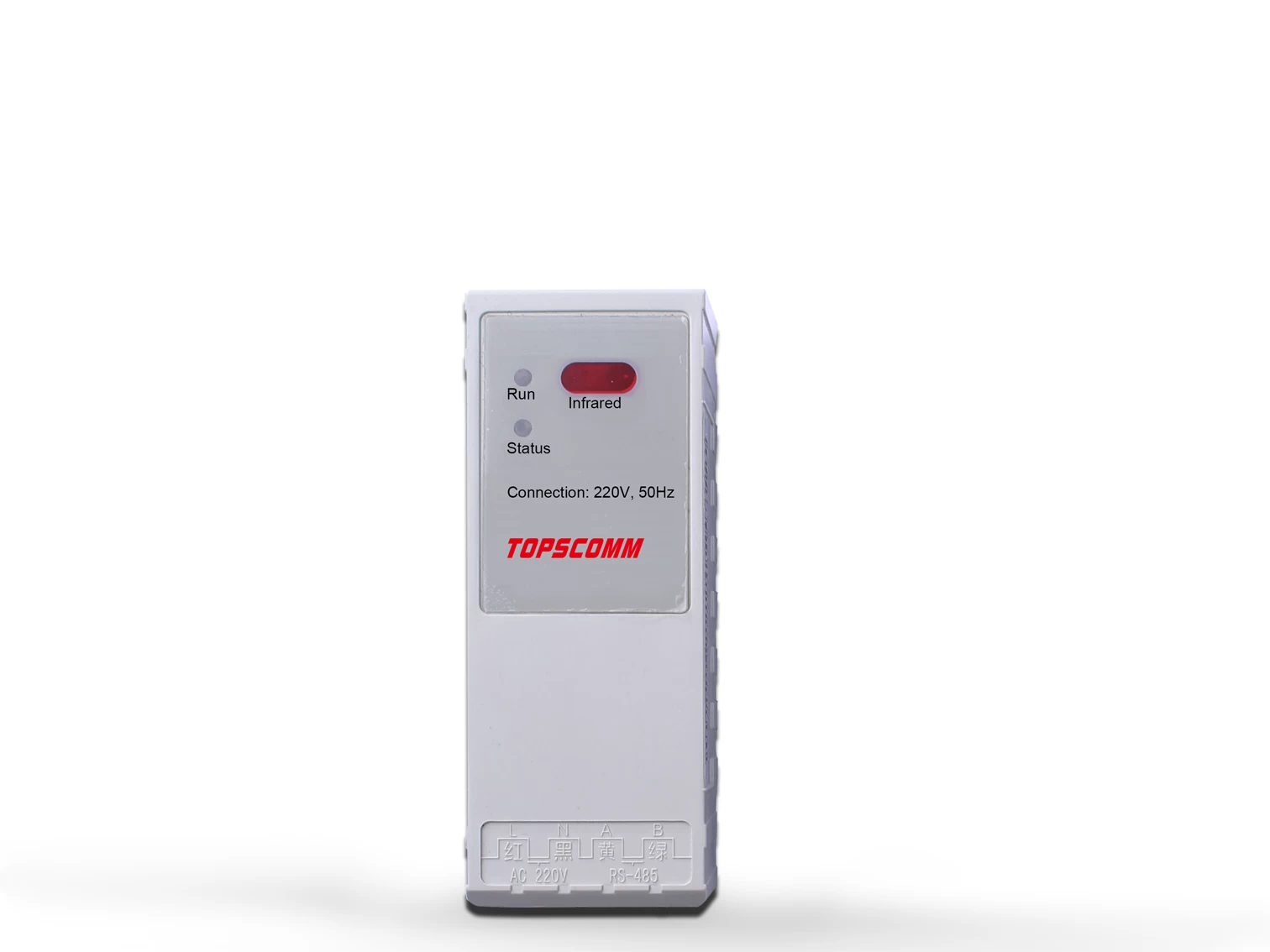

DCZL13-II data collector is characterized with wide temperature and wide voltage, compact size features etc. It uplinks the data concentrator through PLC, and downlinks the meters by RS 485. The collector is preferred to be used in energy meter centralized installed smart AMR/AMI metering projects, one collector is up to connect 32 energy meters, which is a high cost-effective with good performance option.
Operating voltage
|
220V±20%
|
Frequency
|
50Hz±5%
|
RTC error
|
≤0.5s/d
|
Communication
|
PLC, RS 485, Infrared
|
Dimension
|
100mm*40mm*50mm
|
