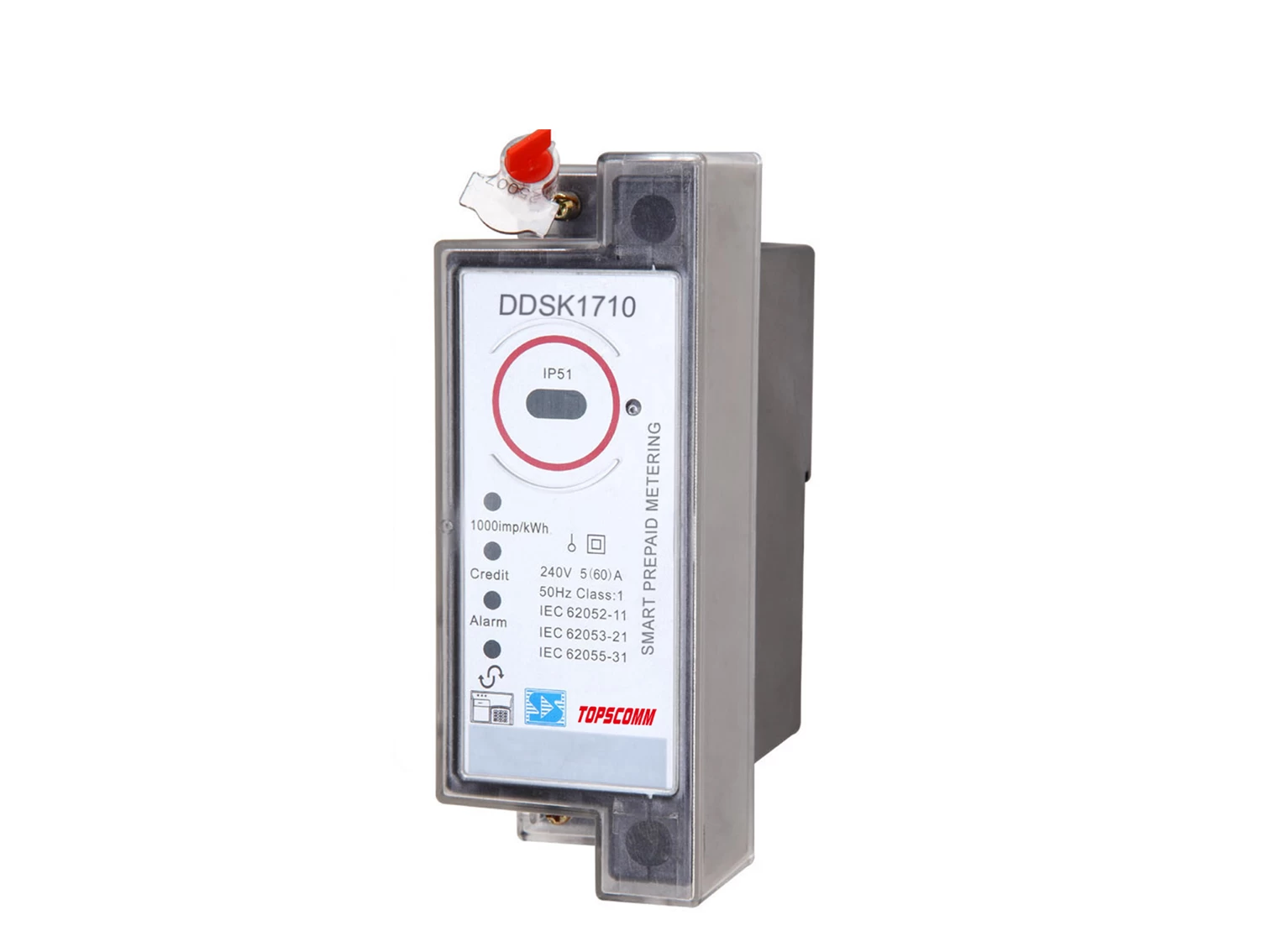

DDSK1710 Single Phase Split DIN Prepayment Energy Meter

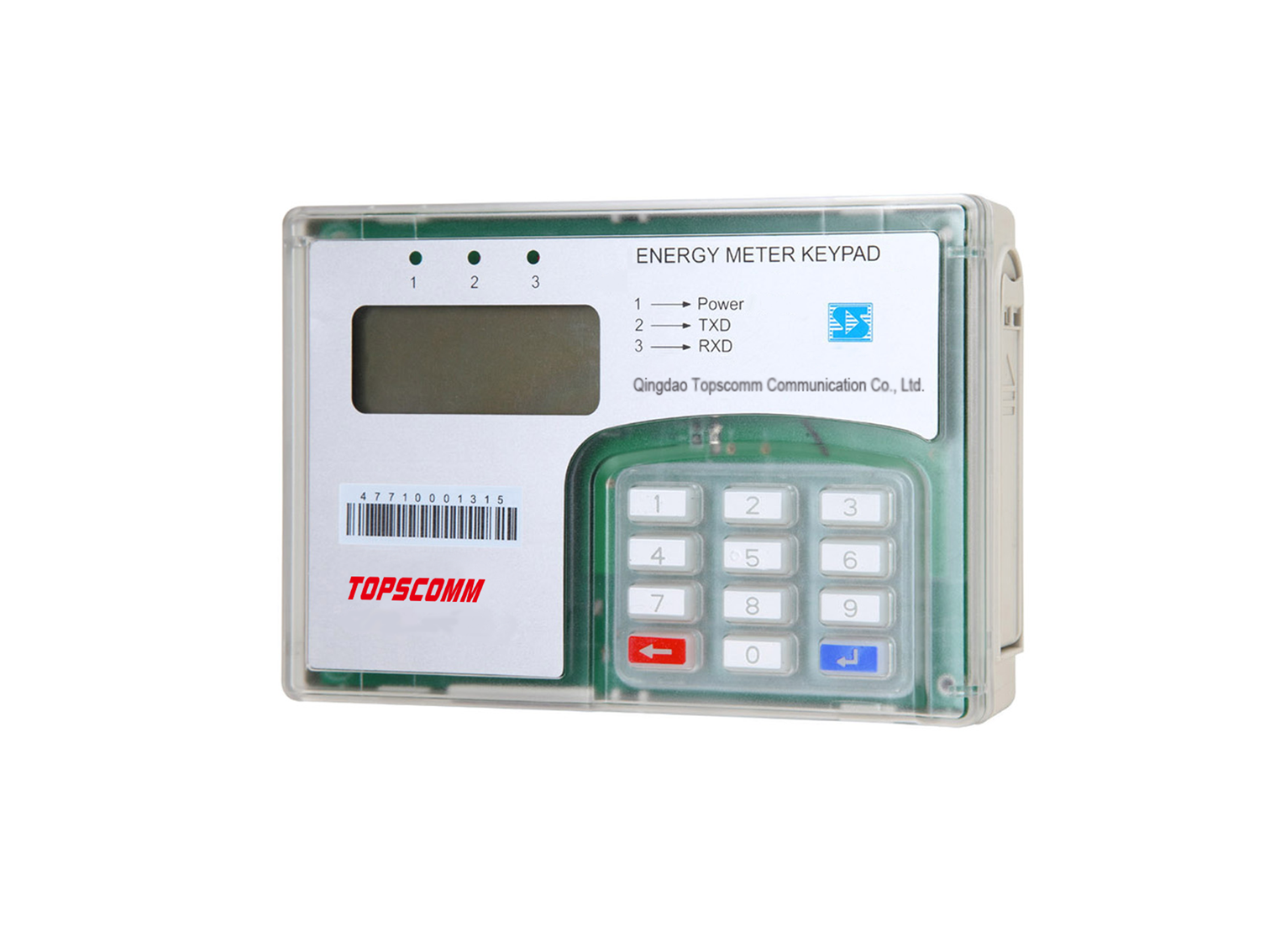

DDSK1710 is a STS keypad split DIN rail prepaid electricity meter. It consists of two parts, MCU (Measuring Control Unit) & CIU (Customer Interface Unit), the communication between MCU and CIU is optional among PLC/RF or wired Cable. By querying the CIU, user could read MCU data and input Tokens at indoor.

Facebook Twitter Pinterest LinkedIn 分享

DDSK1710 Single Phase Split DIN Prepayment Energy Meter is able to operate in prepaid or post-paid mode as per the requirements of utilities. This type DIN rail mounting prepaid electric meter is also specially equipped with RS 485 communication port for AMR/AMI smart metering system, which enable it able to act as smart energy meter.


Standards IEC 62052-11, IEC 62053-21, IEC 62055-31, IEC 62056-21
Accuracy
 Class 1.0
Rated Voltage
 220/230/240V
Operating Range
 70%-120%Un
Current
    Basic Current
 5A,10A
    Maximum Current
 60A, 80A, 100A
    Starting Current
 0.4%Ib
Frequency
 50 Hz or 60Hz
Power Consumption
    Voltage Circuit
 ≤1.5W,  10VA
    Current Circuit
 ≤1VA
Display
 LCD 7+0/6+2/7+1( Optional)
Communication
 GPRS/3G/4G/RF/PLC, Infrared, RS 485 etc.
Communication Protocol
 DLT/645, DLMS/COSEM etc.
Protection Degree
 IP54
Operating Temperature
 -25℃-70℃
Humidity
 ＜95%
