Decal paper joint machine is widely used in melamine tableware factories.

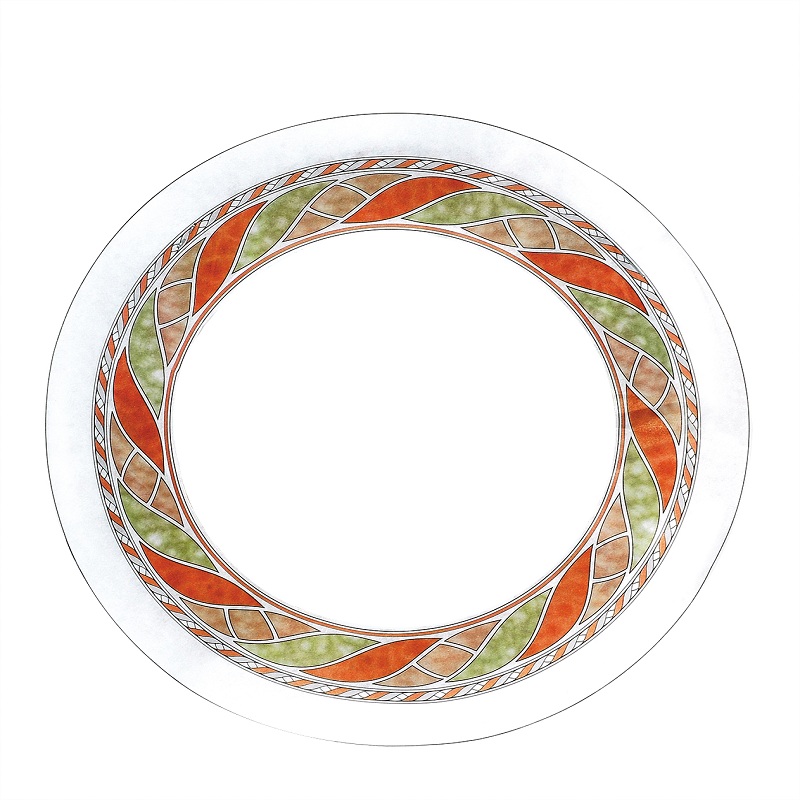

Decal paper has different shapes, because of the radius of the melamine products.

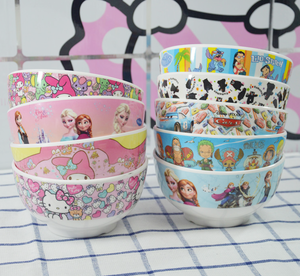

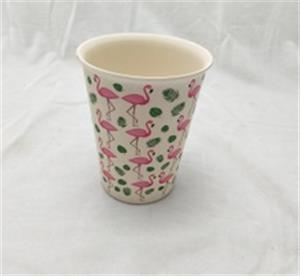

Like bowls / glasses / lids, or other shapes which has the radius, the decal paper needs to be joined first, before putting in the mold.
*HISTORY*
Melamine tableware is colorful with all kinds of the papers decarations. Melamine bowls or glasses or other items, need to put the decal paper, you need to cut the papers first from the printing paper, and then join the papers into complete circle. Traditional way is using the glue by manual.

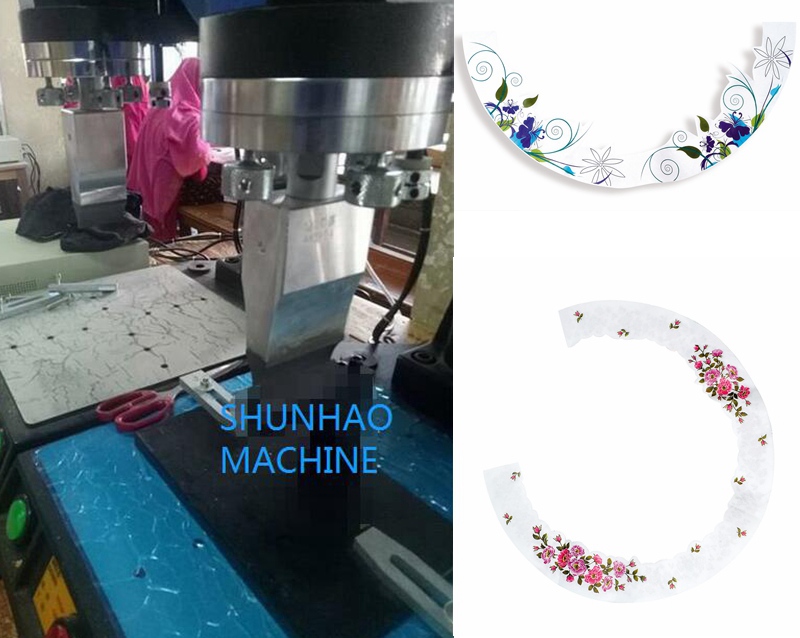

Auto joint machine for decal paper is working without the glue, by pnuematic system, friendly enviroment and high speed!

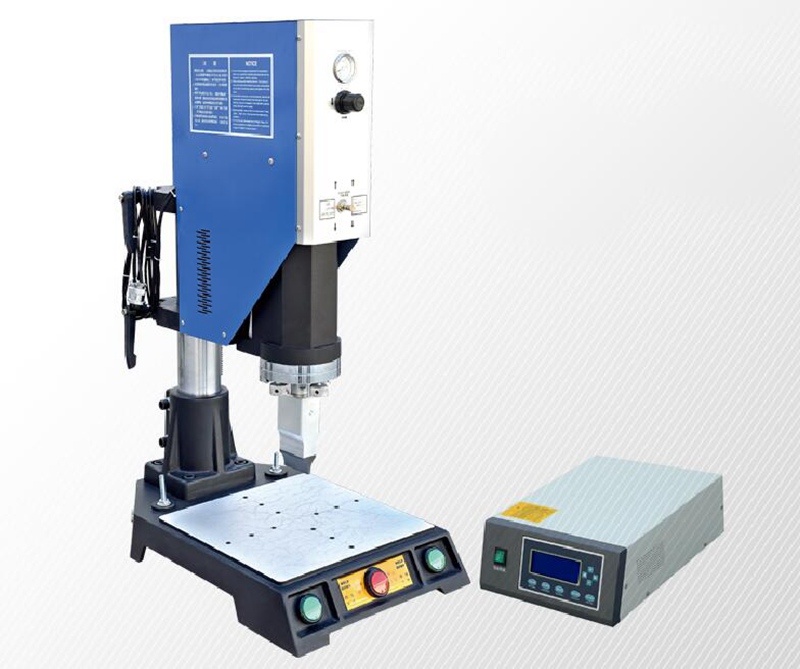

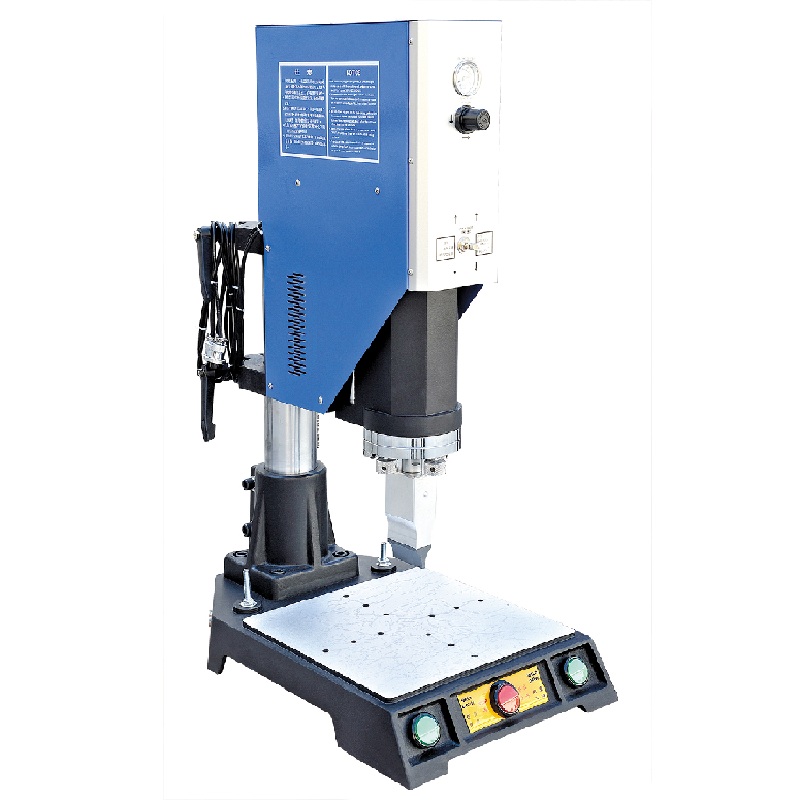

*Technical Parameters*
|
Name
|
Decal
Paper Bonding Machine
|
|
Model
|
SH-2020ZA
|
|
Input Voltage
|
220V
|
|
Working Frequency
|
20KHZ
|
|
Output Power
|
2000W
|
|
Machine Head
|
Square Post
|
|
Weld Head Stroke
|
Effective Stroke 75MM
|
|
Output Time Control
|
0-9.9S
|
|
Adjustable Pressure
|
Adjustable 0-10KG
|
|
Pressure Requirements
|
More than 6KG
|
|
Working Table
|
350 * 350mm
|
|
Machine Size
|
650 * 400 * 950mm
|
|
Cylinder
|
Taiwan Air TAC
|
|
Guide Bar
|
Japan Precision Linear Guide
|
|
Transistor
|
Original Japan Sanyo
|
|
Vibrator
|
Taiwan YK
|
TIPS: which model you will run?
Melamine tableware factory A:
More than 20 labour to work together, requires more space, more salary, higher percentage of labour-short.
Melamine tableware factory B:
Less than 10 labour to work with less automatic paper joint machine, less space and less trouble.
Shunhao is always glad to introduce new technology for melamine tableware production!
