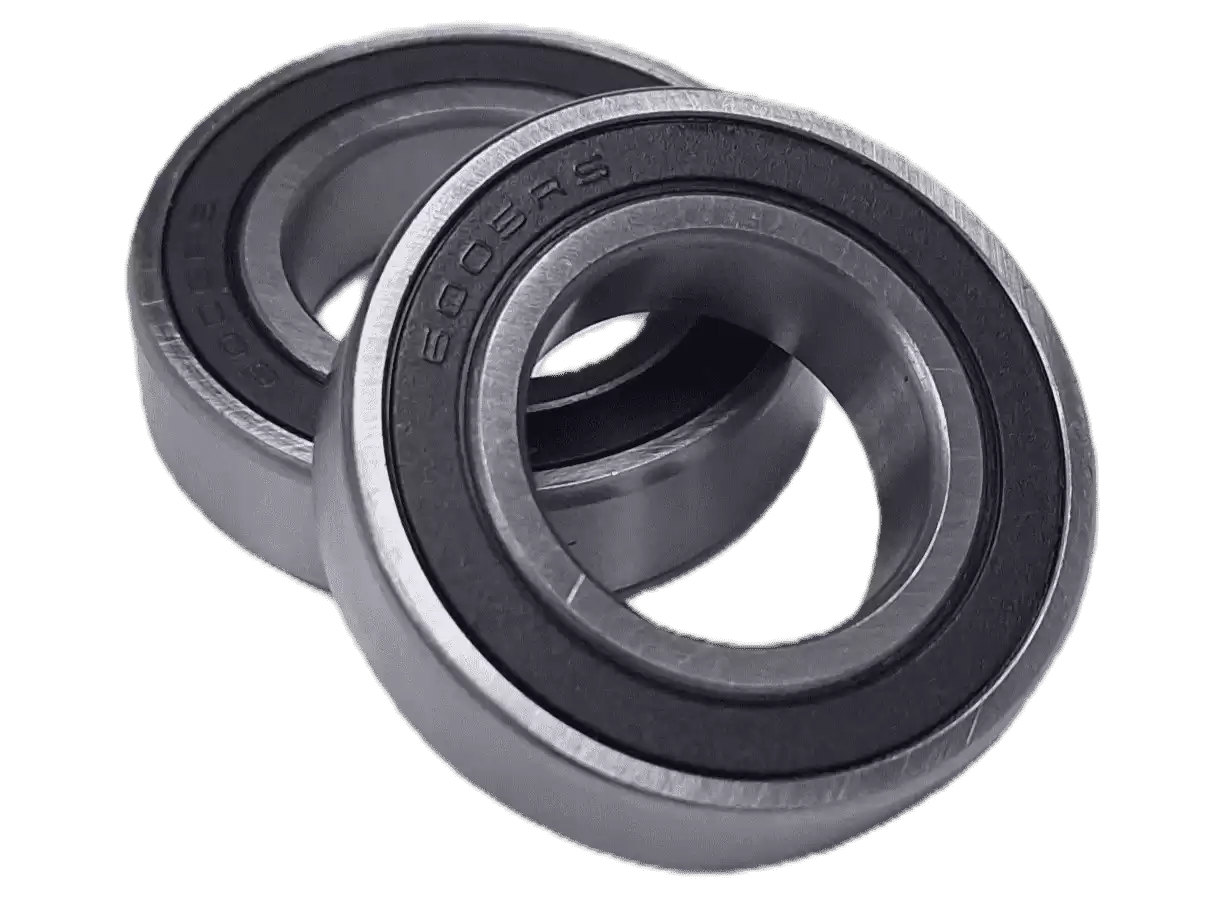

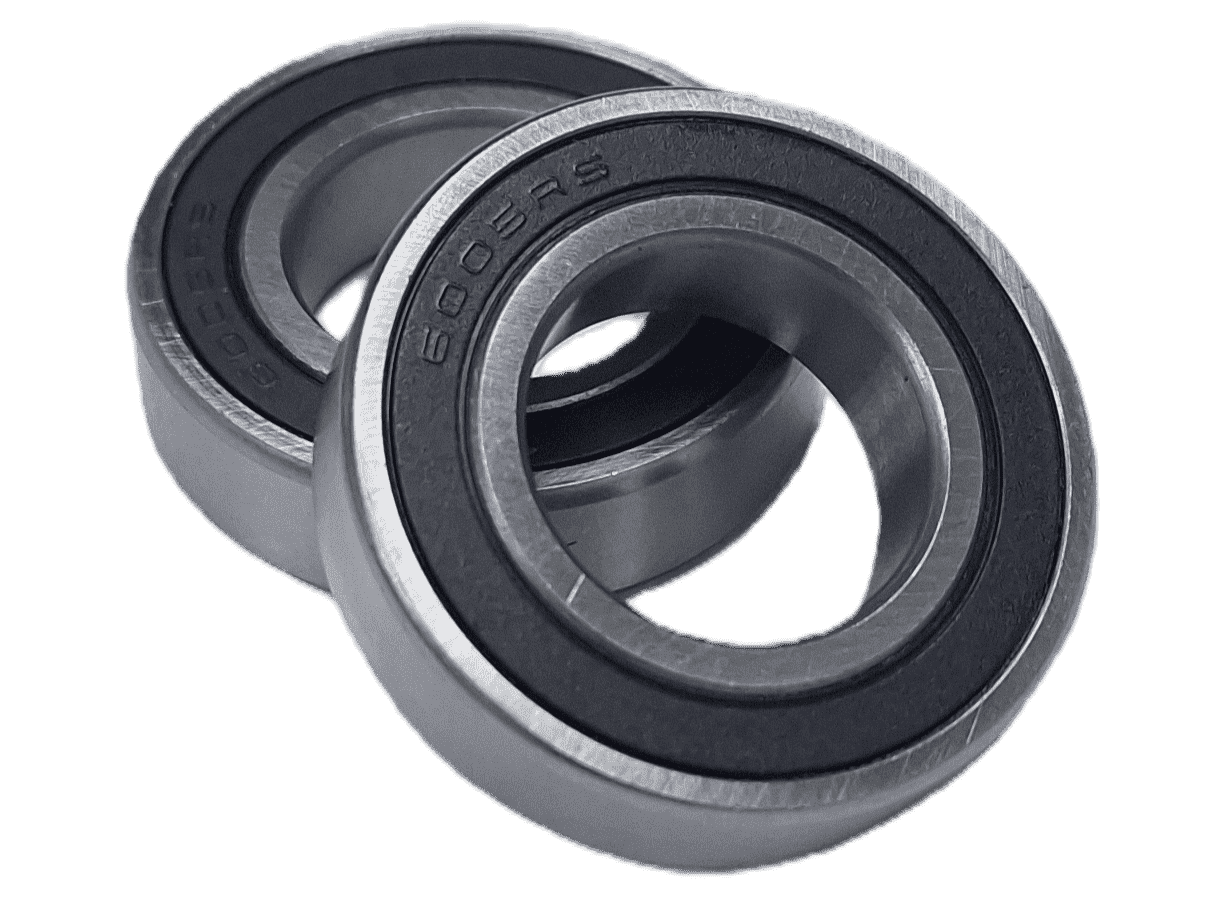

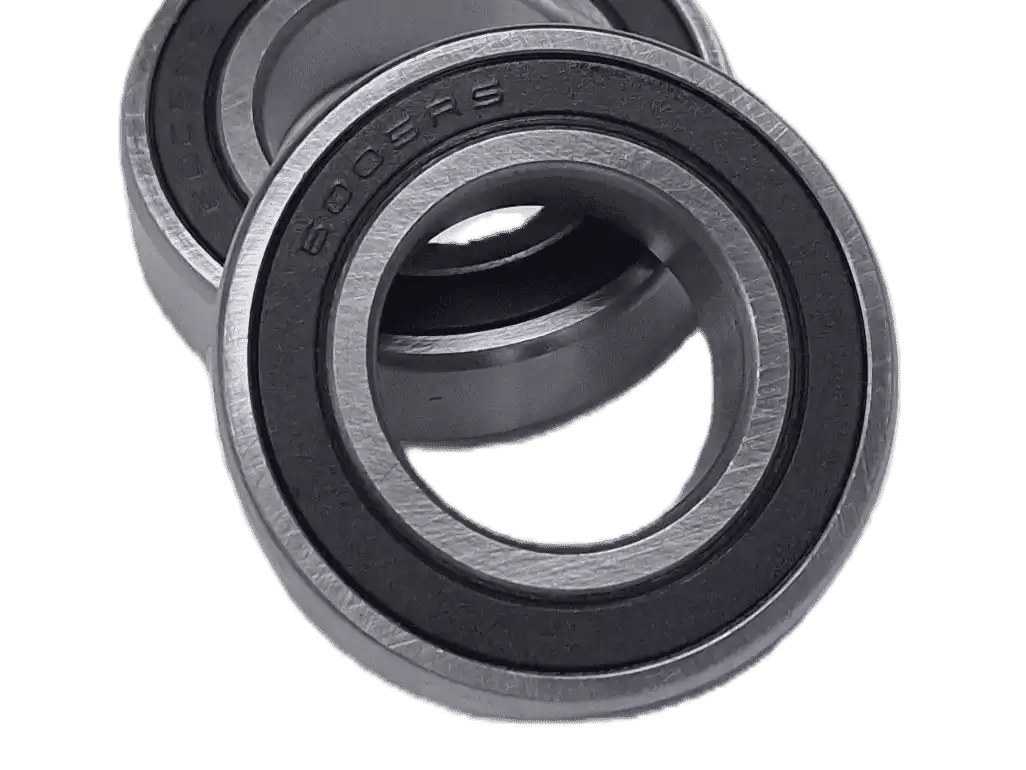

Product Overview: 6005 RS Deep Groove Ball Bearing
Key Features at a Glance:
- Effective Double Sealing: Synthetic rubber contact seals on both sides provide superior protection against dust, dirt, and moisture ingress, ensuring long-term lubricant retention and extended service life.
- Robust Load Capacity: The design offers a reliable balance of radial and axial load-carrying ability within a compact form factor.
- Smooth Running: Engineered for quiet and stable performance across a wide range of operating speeds.
- Precision Option: Available in standard tolerances and capable of being supplied to higher P5 precision grades for critical applications.
Technical Specifications
| Parameter |
Specification |
| Bearing Type |
Single Row Deep Groove Ball Bearing |
| ISO Dimension Series |
60 Series – Extra Light |
| Basic Designation |
6005 |
| Suffix |
2RS (Both sides with rubber contact seals) |
| Bore Diameter (d) |
25 mm |
| Outer Diameter (D) |
47 mm |
| Width (B) |
12 mm |
| Dynamic Load Rating (Cʳ) |
10.0 kN |
| Static Load Rating (Cₒʳ) |
5.85 kN |
| Limiting Speed (Grease) |
16,000 r/min |
| Limiting Speed (Oil) |
20,000 r/min |
| Weight (approx.) |
85.0 g |
Detailed Product Information
Design & Protection
The 6005RS features the standard deep groove geometry, suitable for carrying significant radial and moderate axial loads. Its defining feature is the inclusion of synthetic rubber (NBR) contact seals on both sides. These seals provide a high degree of protection against fine contaminants and splashing fluids, making the bearing pre-lubricated and largely maintenance-free. This design is ideal for applications where reliability and minimal maintenance are priorities.
Performance Characteristics
This bearing is built for durability and reliability in challenging conditions. The contact seals ensure excellent defence against contaminant ingress. We produce the 6005RS to standard industrial tolerances, with the capability to provide P5 precision grades for applications requiring exceptional running accuracy alongside robust environmental protection.
Applications
The sealed design of the 6005RS makes it particularly suitable for applications exposed to contaminants or where lubricant loss must be prevented, such as:
- Industrial Electric Motors: Motors in agricultural, packaging, or manufacturing equipment exposed to dust and debris.
- Power Tools and Outdoor Equipment: Drills, saws, and garden machinery requiring protection from workshop or outdoor environments.
- Automotive Components: Auxiliary drives, idler pulleys, and fan assemblies.
- General Machinery: Conveyor rollers, pulleys, and gearboxes in non-clean industrial settings.
