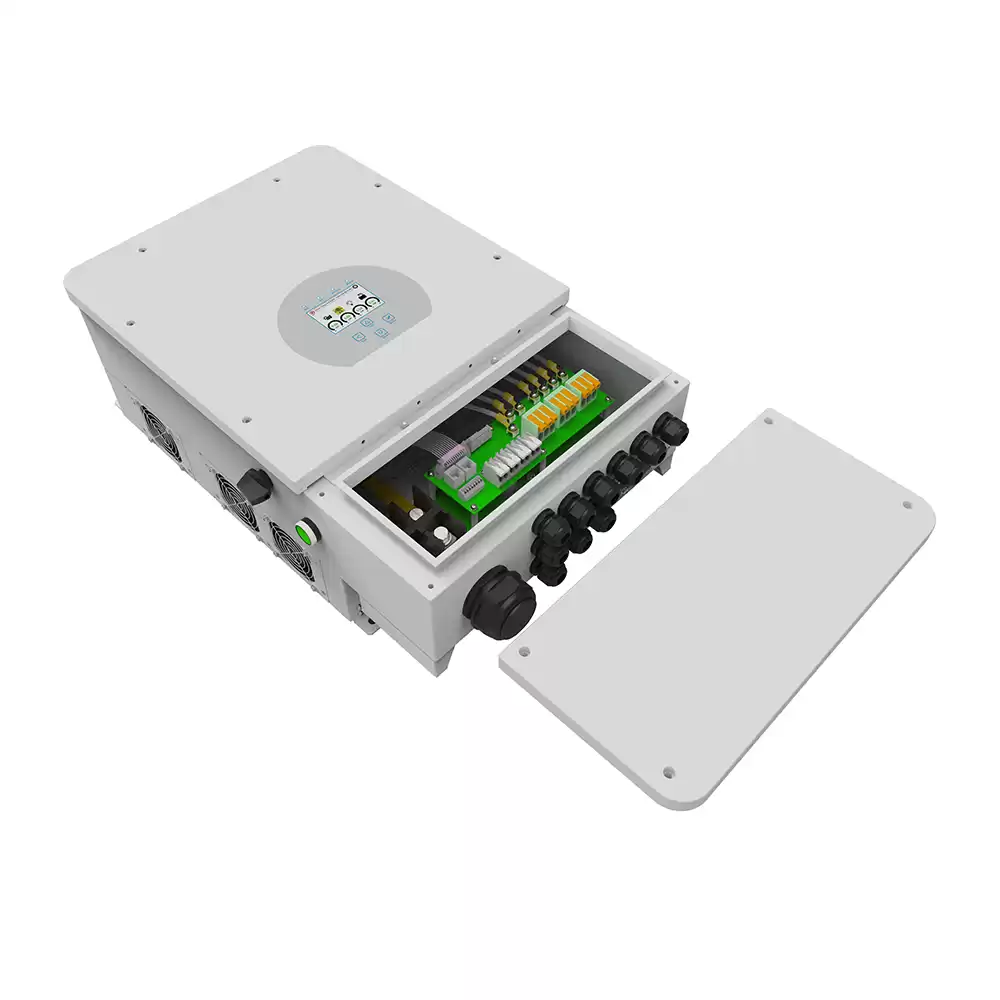

Deye hybrid pv inverter with charge controller build in, which can connect deep cycle batteries and lithium iron phosphate batteries directly.
Inverter specifications include EU standard inverter voltage single-phase 220-240v, 50hz; three-phase 380-415V 50hz;
US standard inverter voltage single-phase 120v / 240v 60hz; and three-phase 480v.

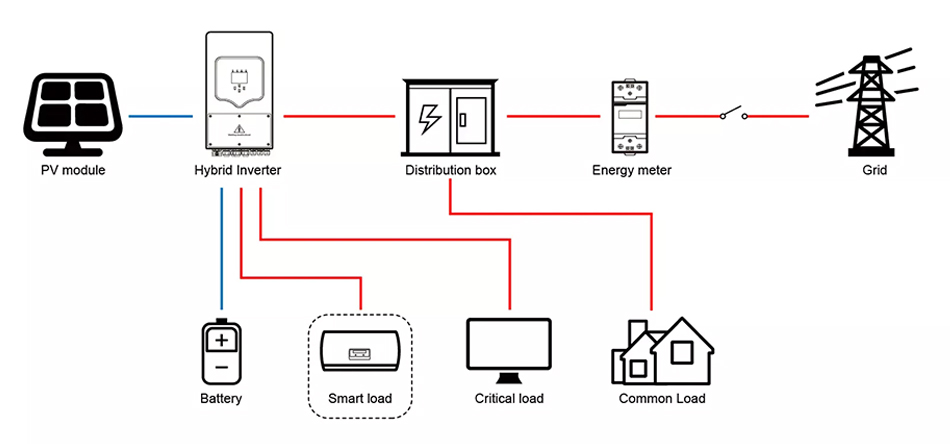

Hybrid Inverter Block Diagram

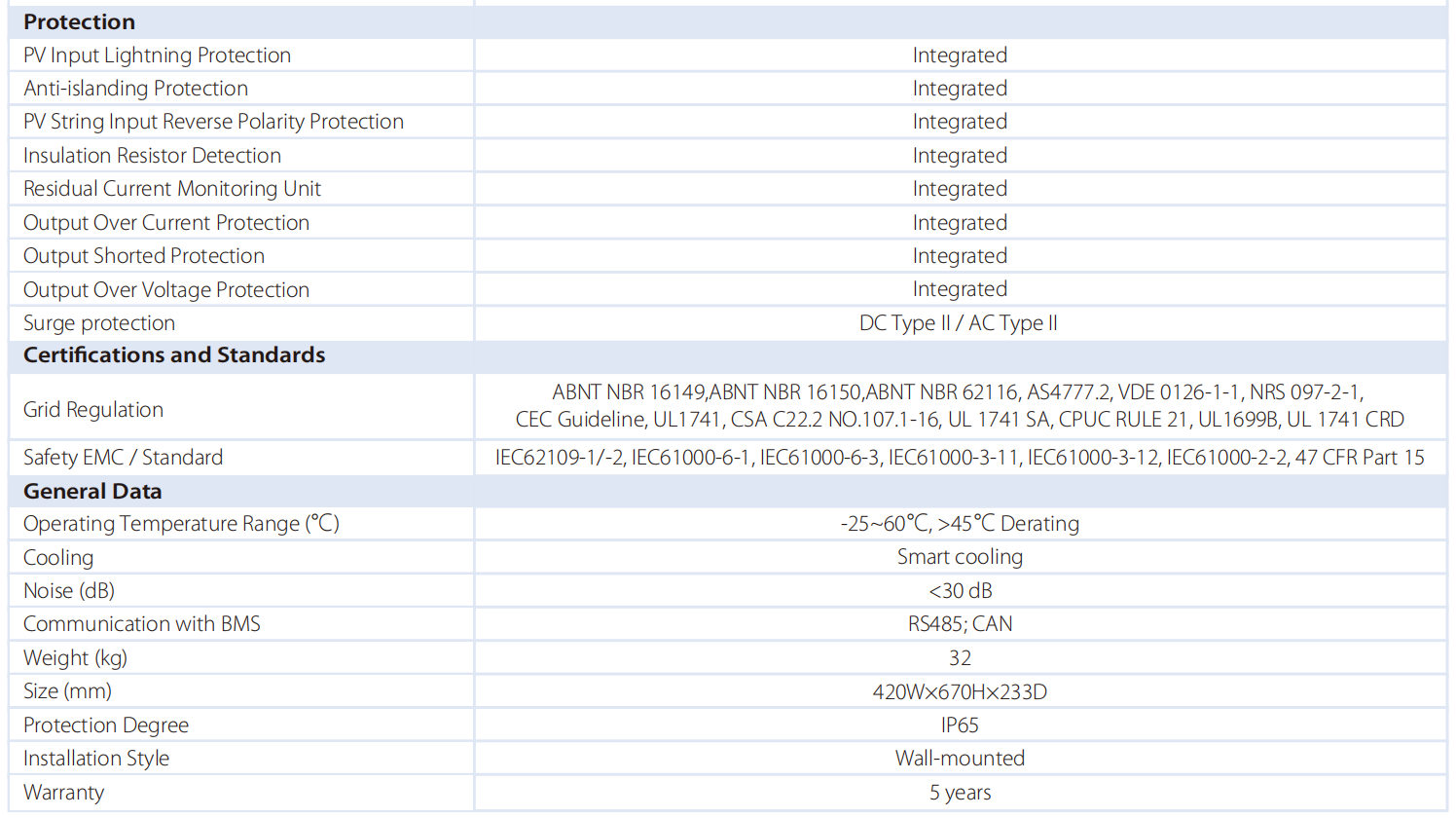

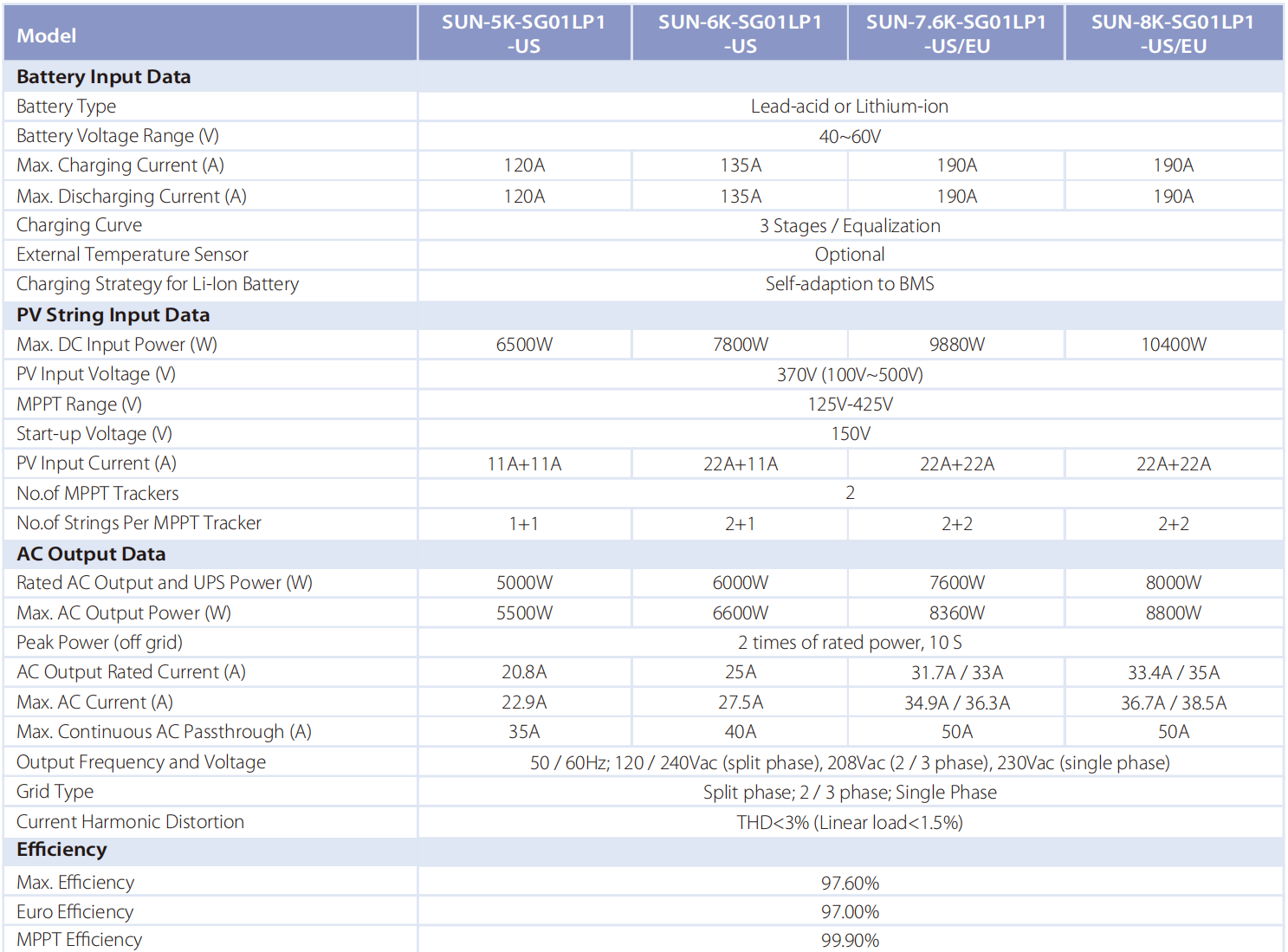

Technical Data:
Key Features / Advantages:
Higher Yields
Improve self-consumption ratio up to 80% / Reducing your electricity bill DC/AC ratio up to 1.3 / Completely suitable for double-side PV modular Two MPPT design.
User Friendly
LCD Touch screen and buttons / Easy operation Compatible with a lithium-ion battery and lead-acid battery / Web browser and mobile App monitoring supported.
Reliable
PV lightning protection / Anti-islanding protection / Leakage current protection / IP65 protection/ Automatically switch from Grid-Tied to Off-Grid mode within 5ms.
Smart
Programmable charging and discharging schedule / Both wind turbine sand solar panels can be connected as DC input power / 16 units con be paralleled for higher system power.

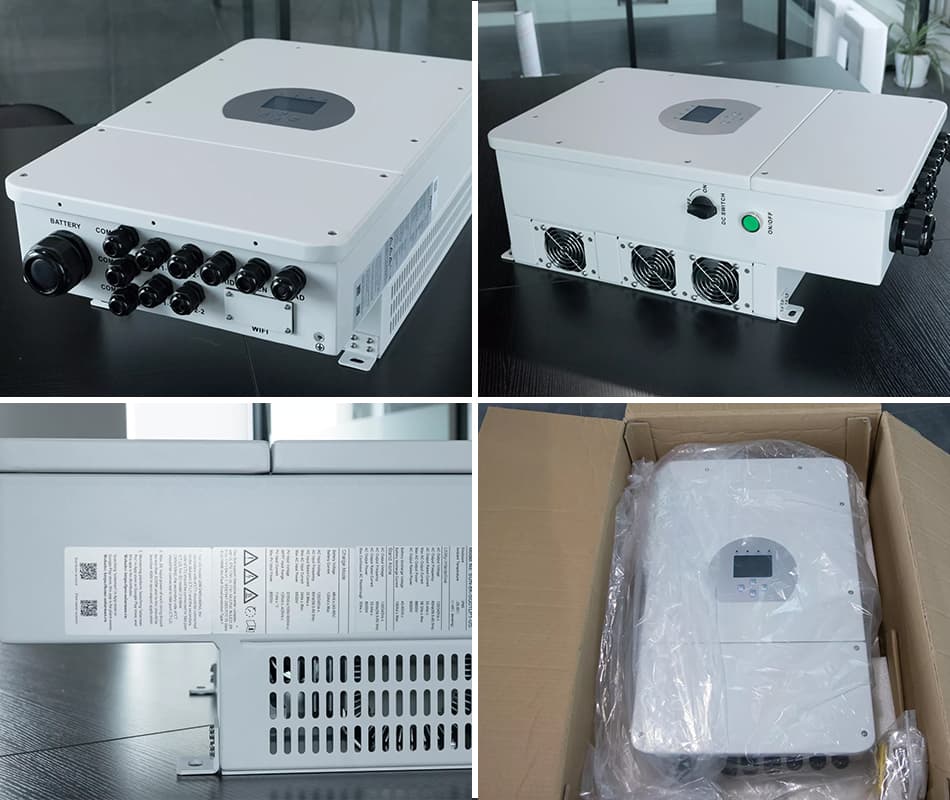

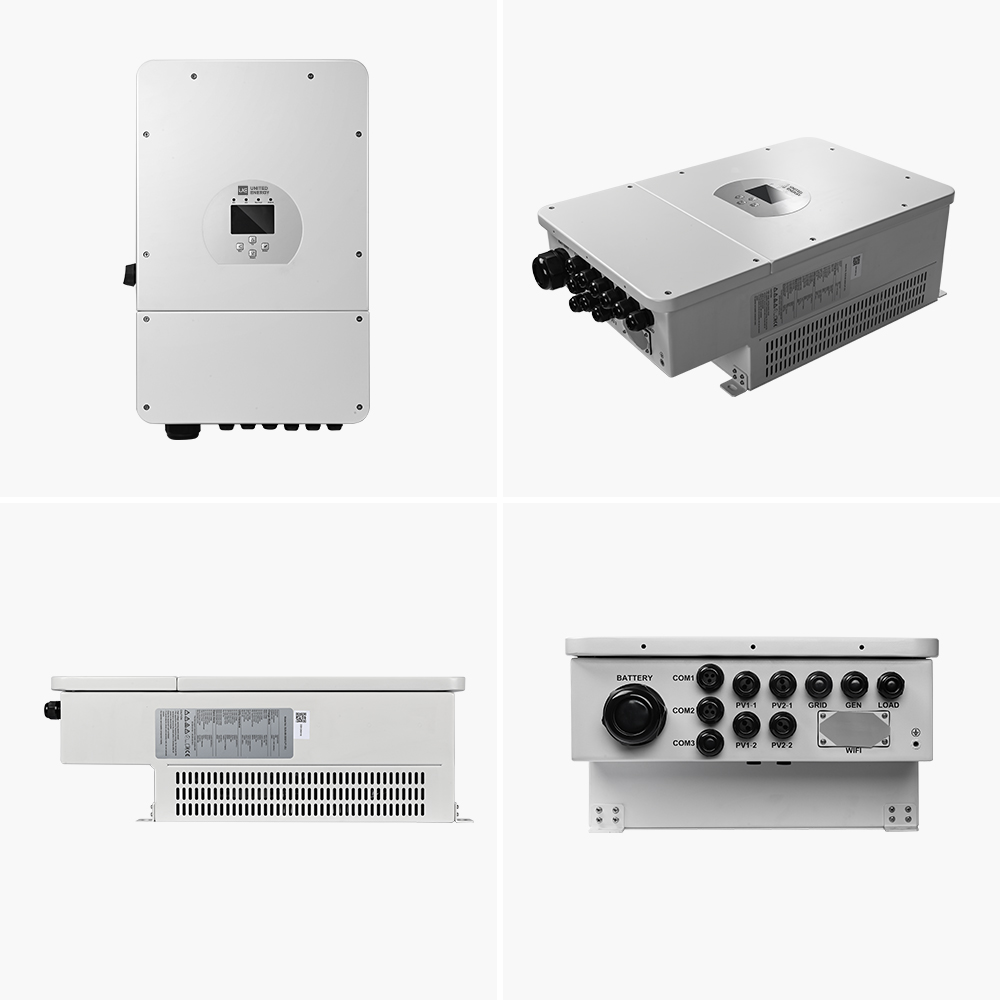

Inverter Dimension: 430 × 710 × 210mm
Available Certificate:
Modbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B
EC62109-1, IEC62109-2 / UL1741 ,IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99
