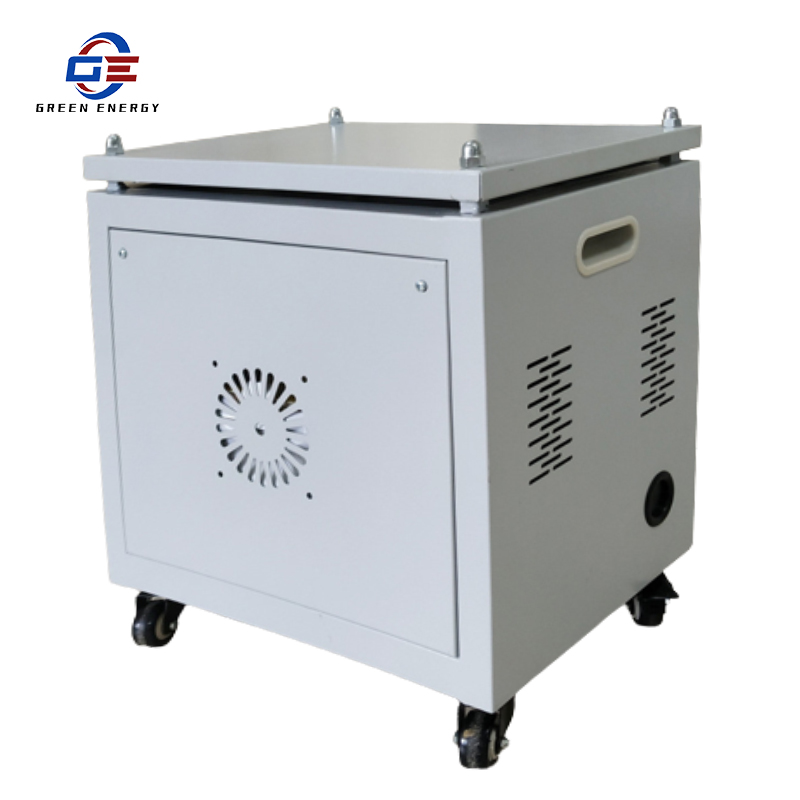

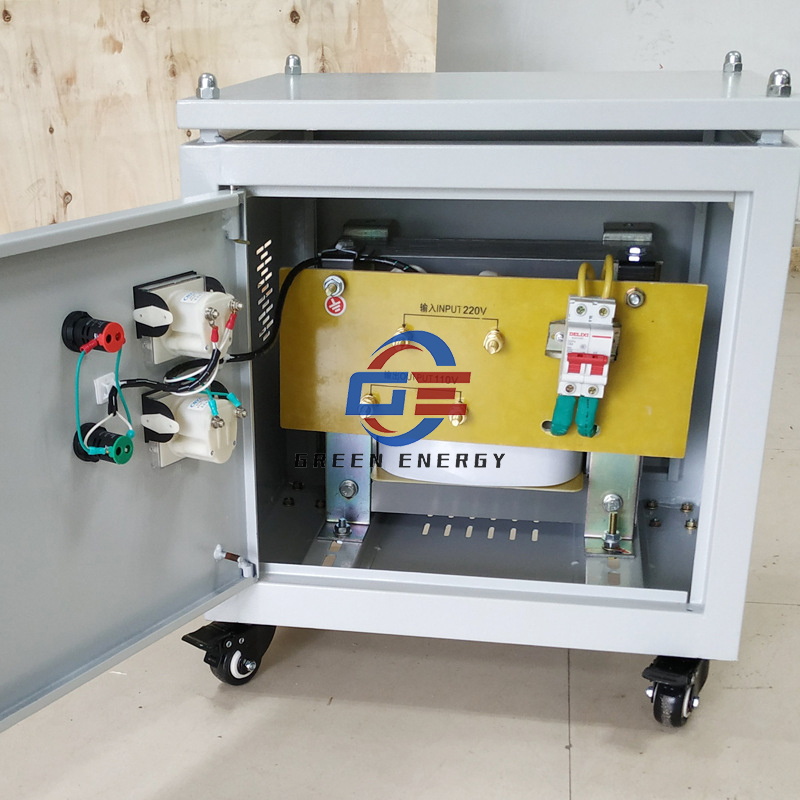

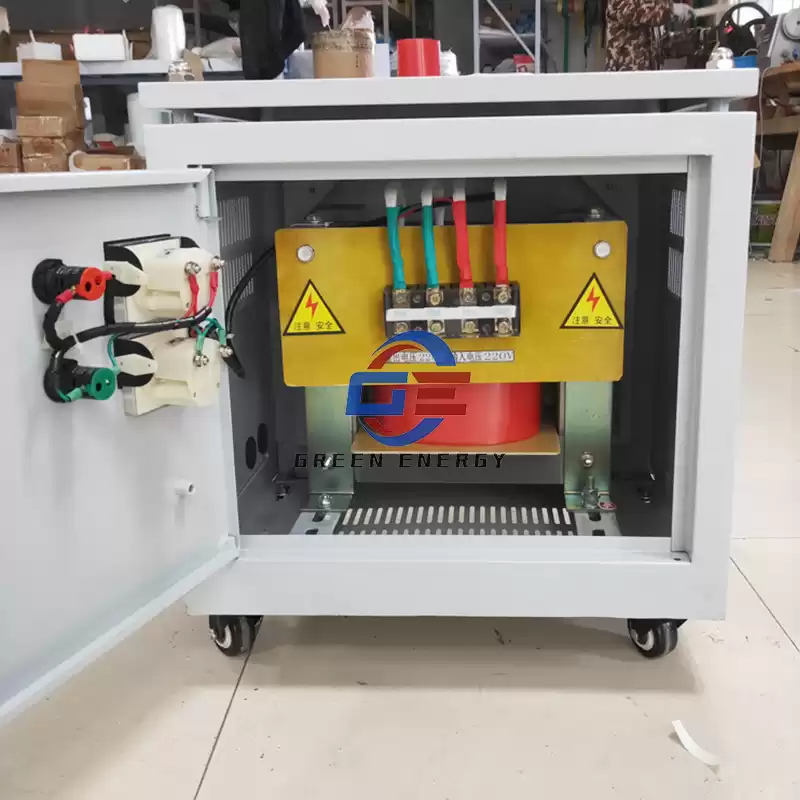

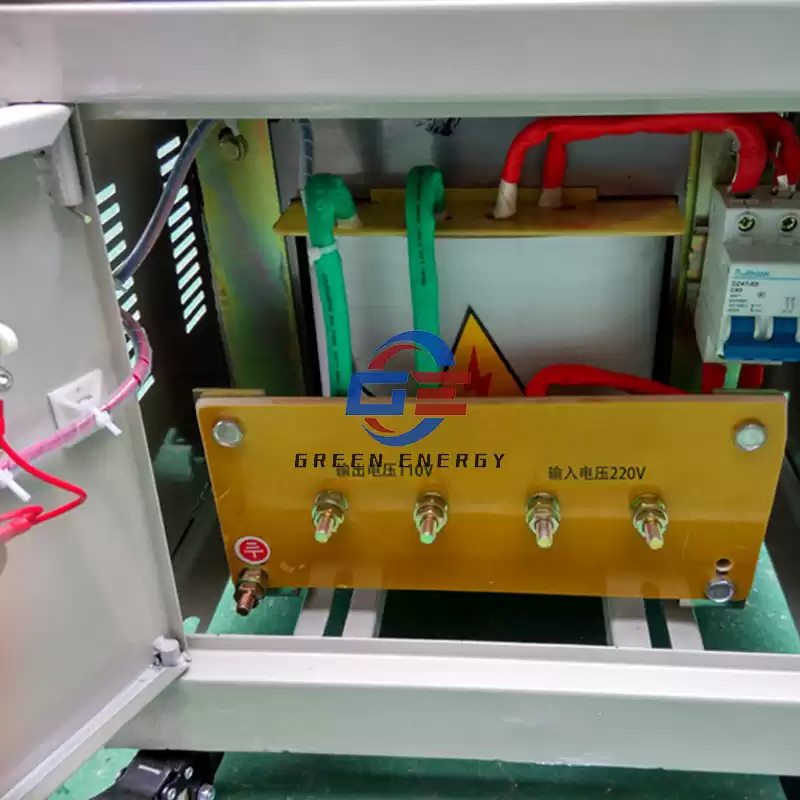

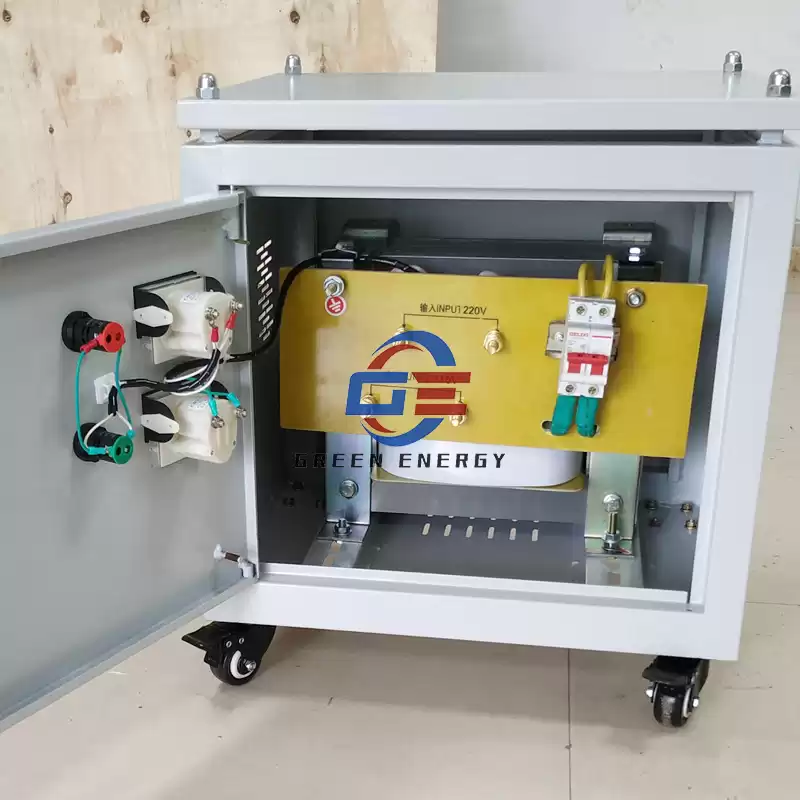

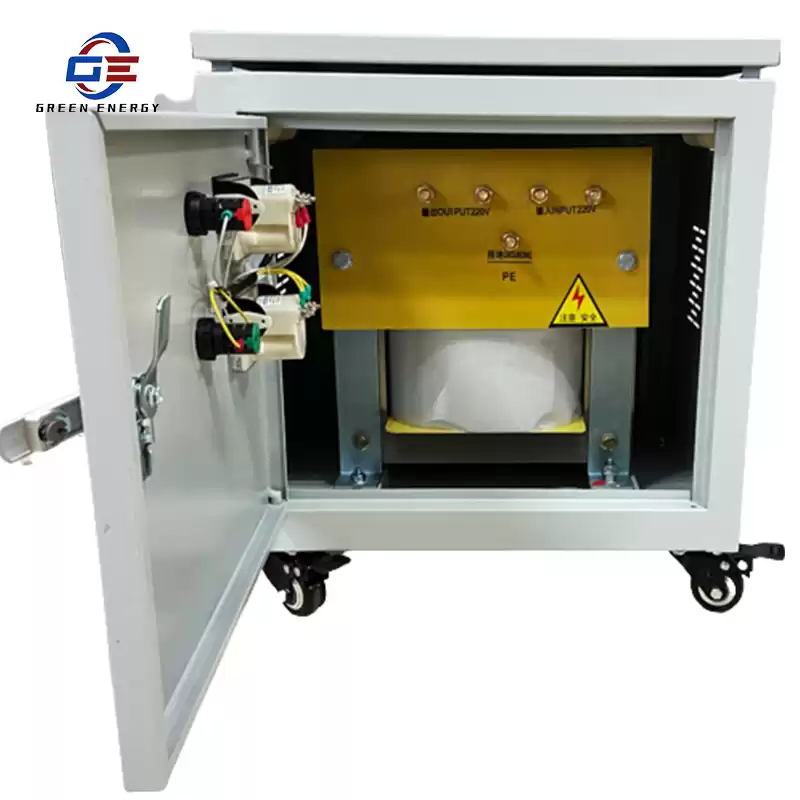

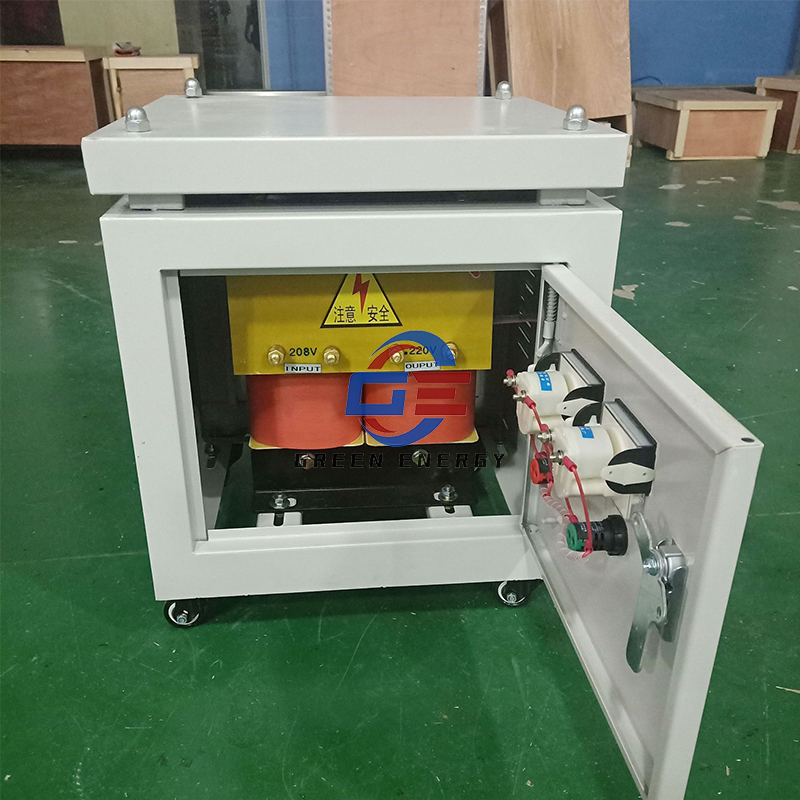

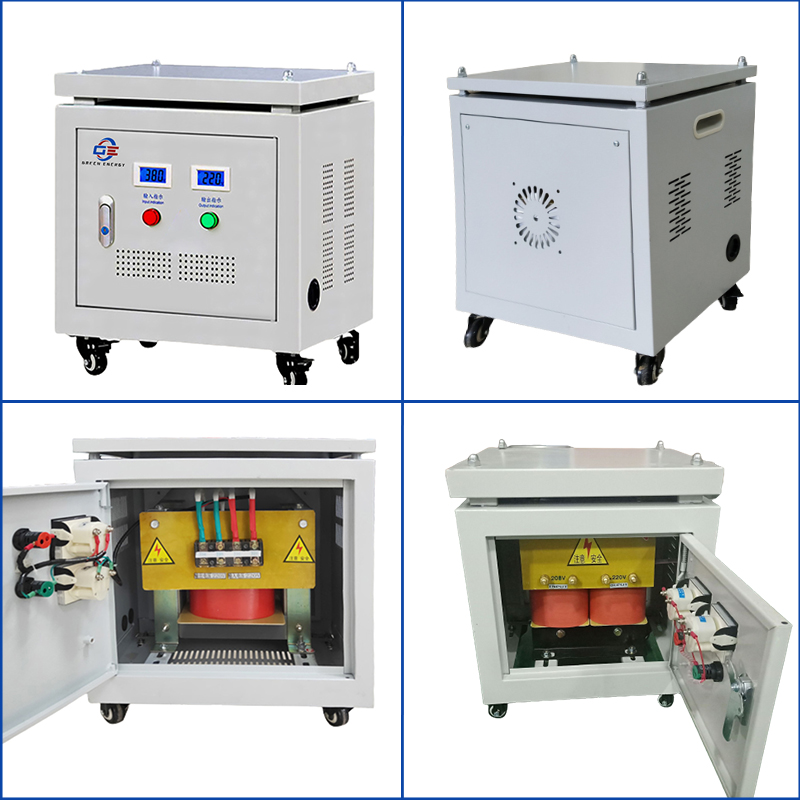

DG 220V to 110V Single Phase Isolation Transformer

⇒ PRODUCT DESCRIPTION

DG single-phase dry-type isolation transformer is mainly used in various power supply places with AC 50-60Hz and voltage not exceeding 500V. Requires careful design and manufacture. It has the advantages of moisture resistance and convenient maintenance. It can penetrate deep into the load center and can be used in power transmission and distribution places such as subways, high-rise buildings, airports, stations, wharves, enterprises and tunnels.

Normally Use Condition:

1. Ambient temperature: -15℃—+40℃

2. Altitude: <1000m

3. Relative humidity: <90%

4. There is no gas vapor, chemical deposition, dust, dirt and other explosive and corrosive media that seriously affect the insulation of the transformer in the installation site.

5. Any special conditions of use that do not meet the above requirements should be determined through consultation between the user and our factory.

Feature:

1.Input voltage: rated voltage ±10%

2. Output voltage: rated voltage +5% (load capacity)

3. Efficiency: ≥90%

4. Waveform distortion: no additional waveform distortion

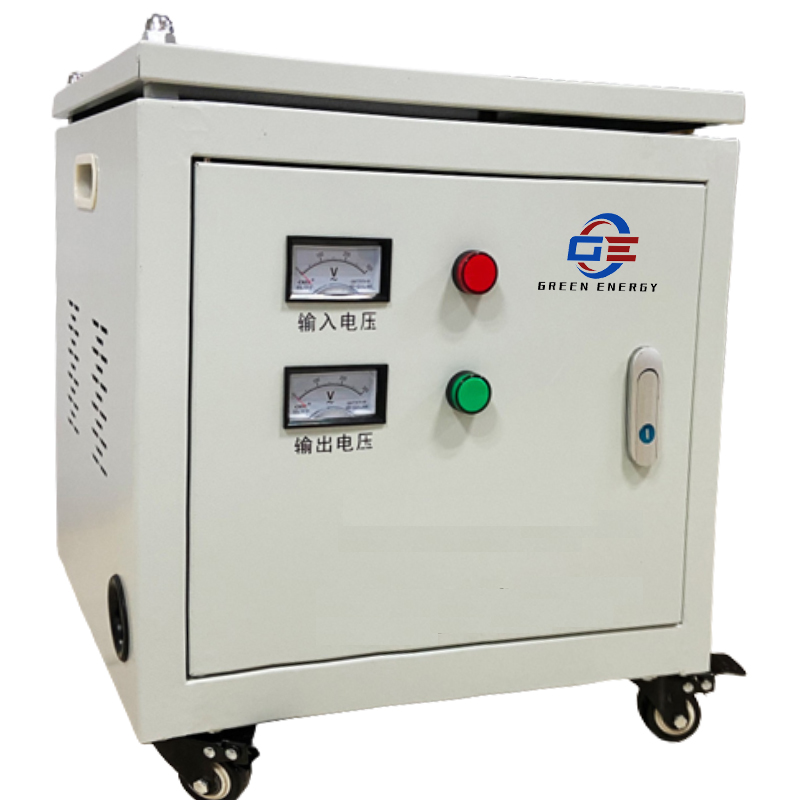

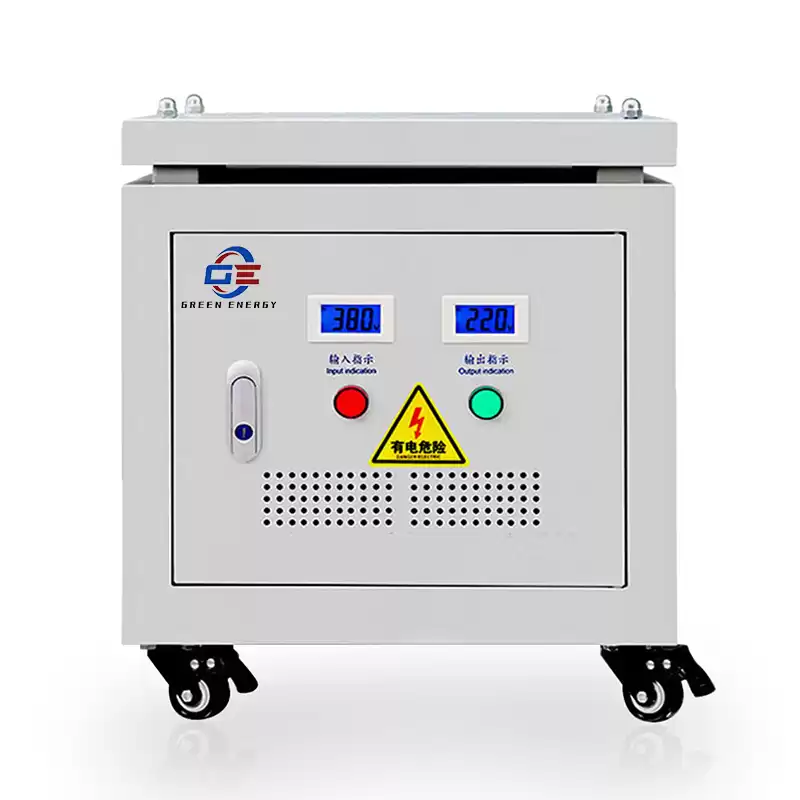

5. Function: with input voltage, output voltage, current and other indications

6. Protection: with overcurrent protection

7. Long-term continuous unattended work

8. Insulation resistance: ≥50MΩ

9. Electric strength: no breakdown and flashover phenomenon at power frequency sinusoidal voltage of 2000V for one minute

10. Overload capacity: twice the rated current for one minute.

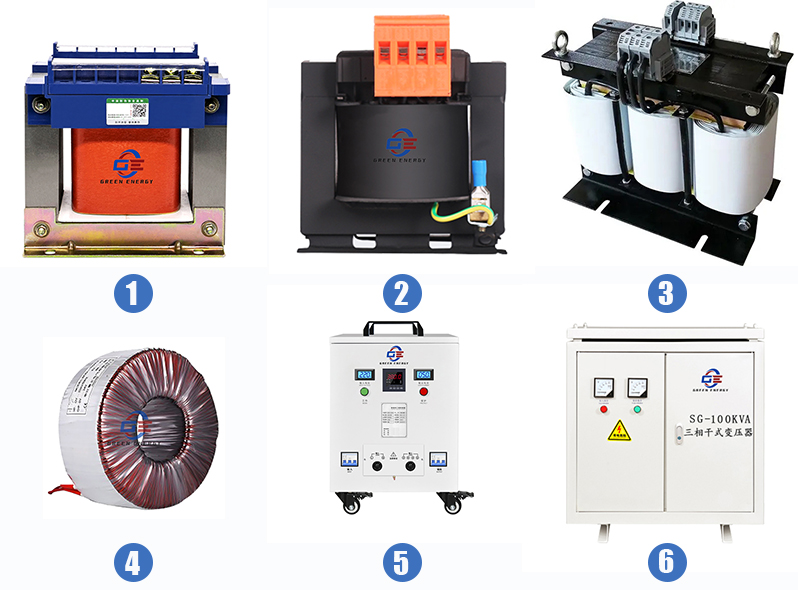

⇒ RELATED PRODUCT

1.BK Control Transformer

2.JBK Control Transformer

3.SBK Control Transformer

4.Toroidal Transformer

5.Single to Three Phase Convert

6.Three Phase Isolation Transformer

⇒ PRODUCT APPLICATION

A wide range of applications to meet the use of various import and export machinery and equipment.
