Main uses and advantages
Diamond Calibrating Roller is applied for thickness calibrating on ceramic tiles before polishing. Provide with the latest formula and most advanced manufacturing technical, SANSO Diamond Calibrating Rollers are approved satisfied for their good sharpness, long working lifetime, low energy consumption, low working noise, excellent working effect and stable performance.
Applicable equipment
Diamond Calibration Roller is suitable for all types of calibrating machine. Upon request, we will design the spiral length and grits assembly according to different machine and tiles to perfect the calibrating effect.
Parameter table
|
Type
|
D（mm）
|
L（mm）
|
Segment Size
|
Spiral
|
Grit
|
|
L400
|
235
|
395
|
40*9*12
|
5/7
|
30/40 40/50
50/60 60/80
100/120
120/140
|
|
L450
|
235
|
445
|
40*9*12
|
5/7
|
|
L500
|
235
|
495
|
40*9*12
|
5/7
|
|
L600
|
235
|
595
|
40*9*12
|
5/7
|

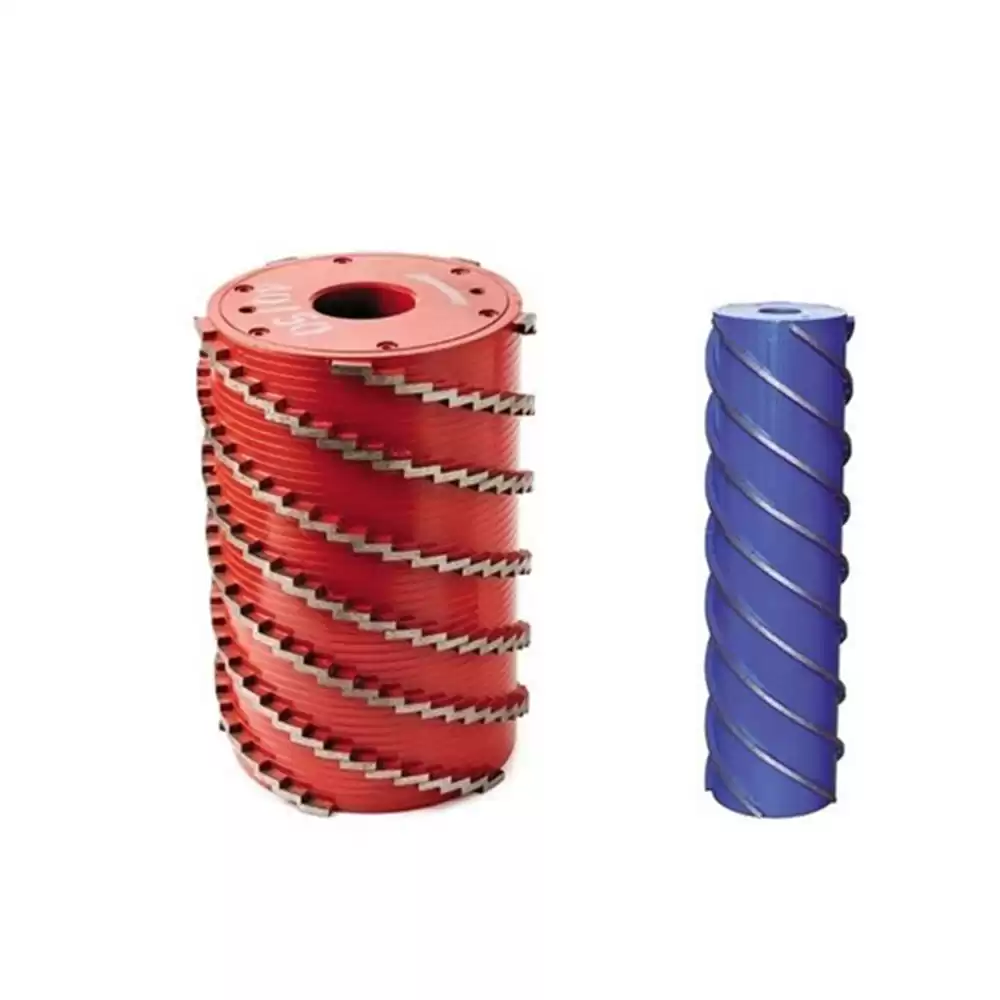

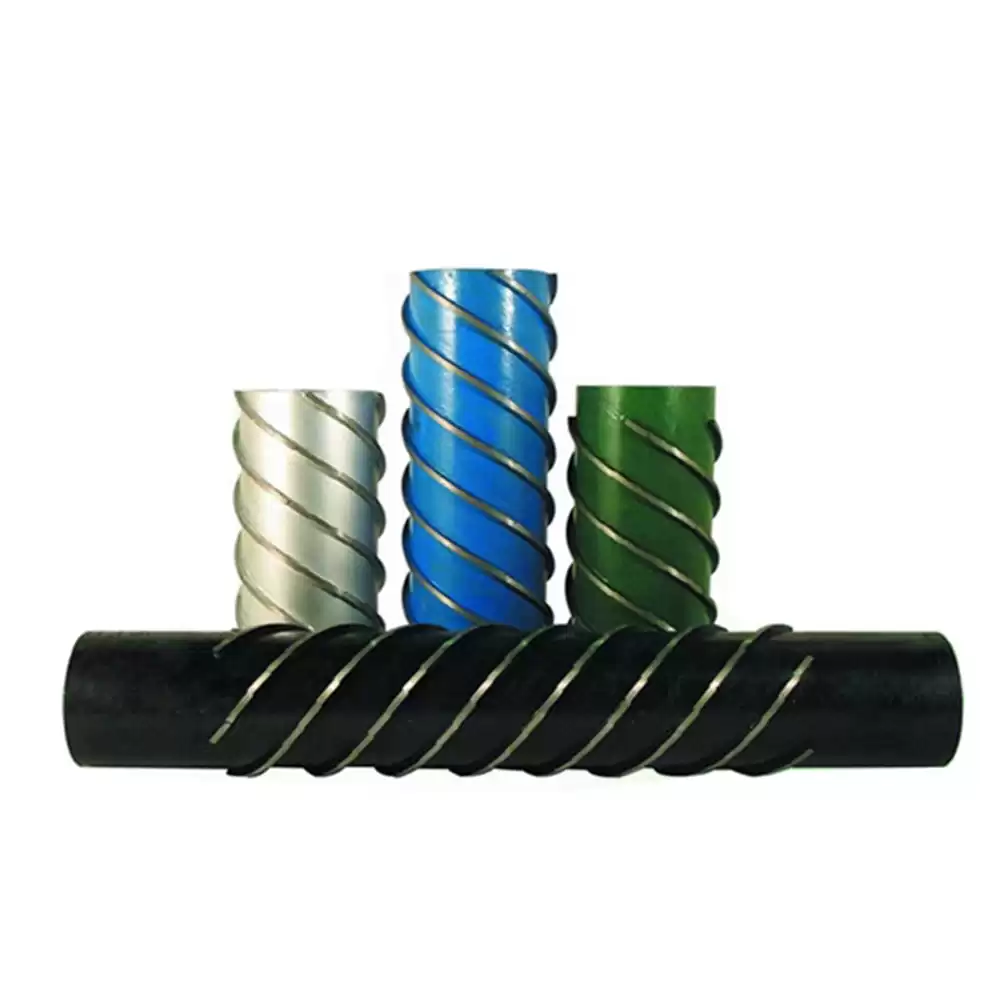

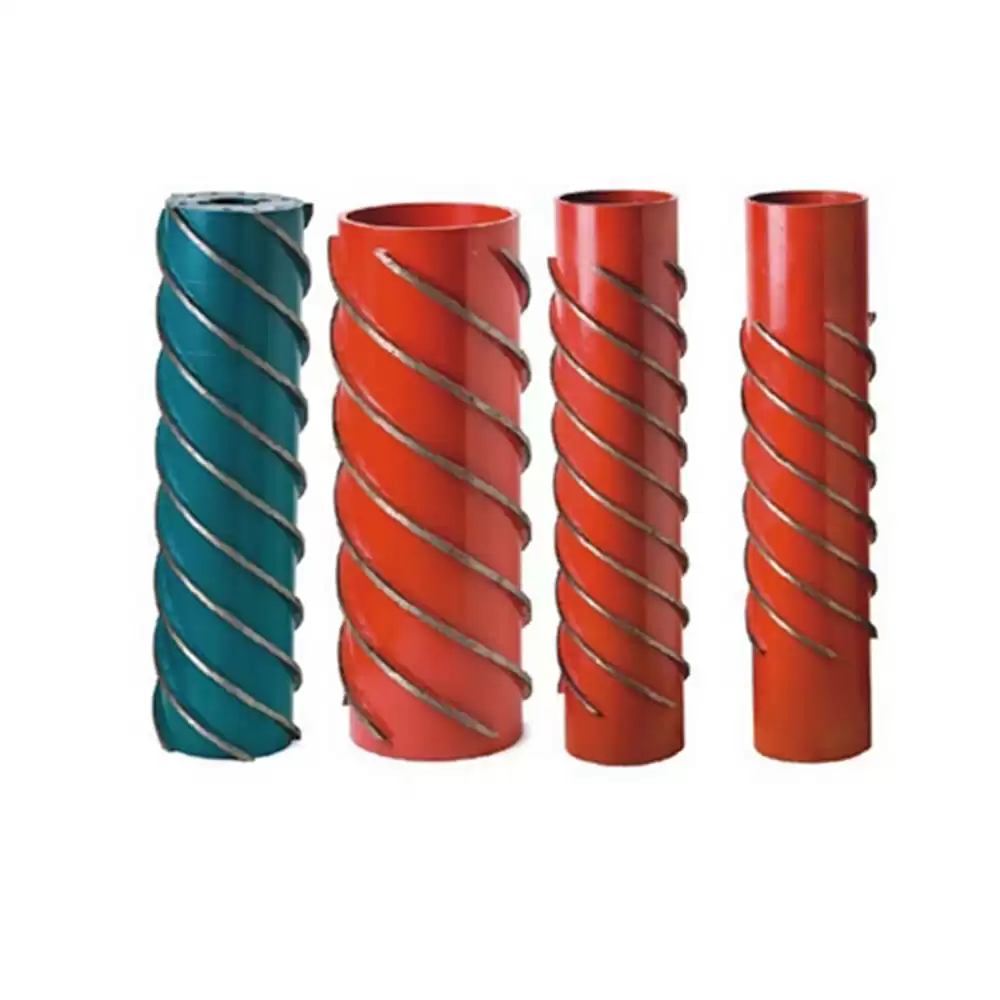

DETAIL PHOTOS
