Diamond Tip Drill Bits for Granite and Marble

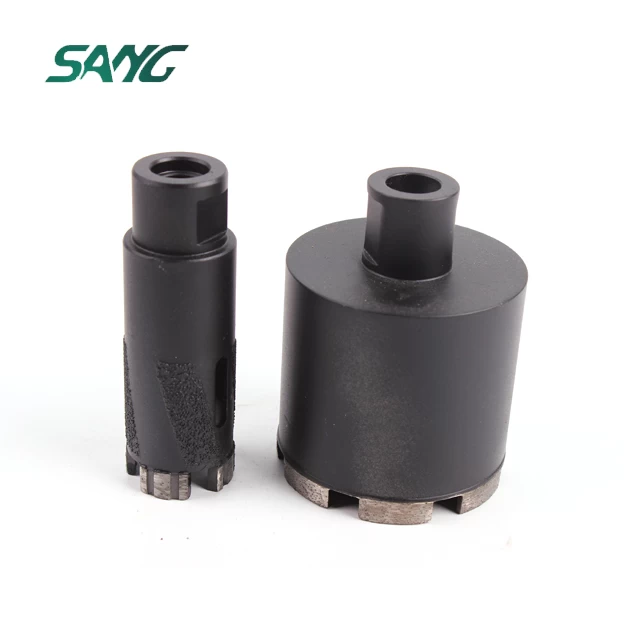

WET DRILLING CORE BIT


Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
SANG
Model Number:
diamond tools for cnc
Quality:
A
Certificate:
ISO9001:2008
Type:
diamond tools for cnc, Core Drill Bit
Best price:
diamond tools factory
connection:
G1/2",5/8"-11, Straight shank etc
Delivery details:
7-15 days after payment received
Size:
D6mm-600mm
Package details:
diamond tools for cnc,carton,box
Working length:
50mm-450mm
segment height:
8/10mm
Material:
diamond
Use:
Masonry Drilling



  • MOQ10
  • ServiceD2D
  • Hole size5/8

New type hot selling granite wet diamond core drill bit

Granite Marble Drilling Bits

Company

New type hot selling granite wet diamond core drill bit

Product Description



For drilling granite, sandstone, basalt, gabbro, marlbe, travertine.

Item No. Diameter
(mm)
Working
Length (mm)
Segment Dimension (mm)
L W H Quantity
SGCB-T6 6 30, 50 column 10 1
SGCB-T8 8 60 column 10 1
SGCB-T10 10 60 column 10 1
SGCB-T12 12 60 column 10 1
SGCB-T14 14 60 column 10 1
SGCB-T16 16 60 column 10 1
SGCB-T18 18 60 column 10 1
SGCD-R20 20 75
/
100
/
150
/
200
/
400
ring 3.0  10 1
SGCD-R26 26 ring 3.0  10 1
SGCD-R32 32 ring 3.0  10 1
SGCD-R36 36 ring 3.0  10 1
SGCD-S42 42 23/19.7 3.0  10 4
SGCD-S52 52 23/20 3.5  10 5
SGCD-S62 62 24 3.5  10 5
SGCD-S82 82 24 4.0  10 7
SGCD-S102 102 24 4.0  10 9
SGCD-S112 112 24 4.0  10 9
SGCD-S132 132 24 4.0  10 10
SGCD-S152 152 24 4.0  10 12
SGCD-S178 178 24 4.5  10 13



Quality Inspection

New type hot selling granite wet diamond core drill bit

Packing

New type hot selling granite wet diamond core drill bit

Hot Sale
Company Information





1-3/8" vacuum brazed dry use diamond core drill bits
