The product description

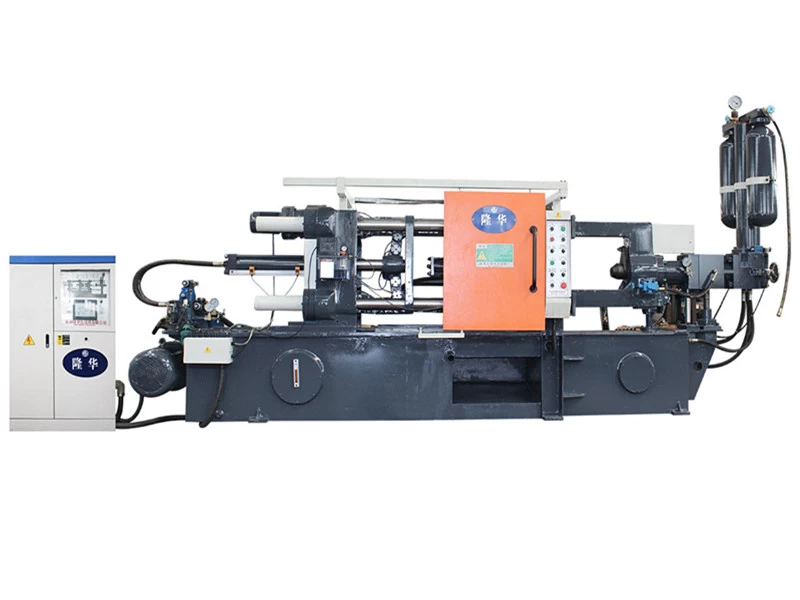

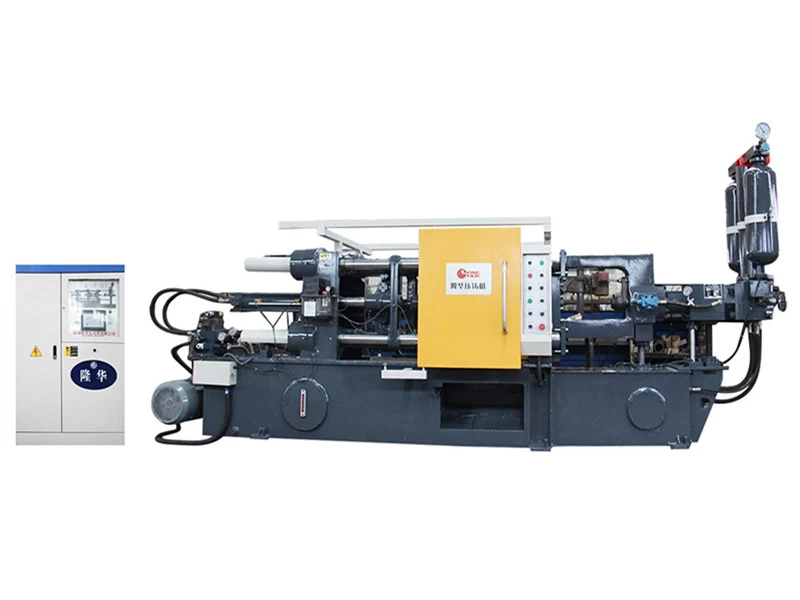

This die casting machine has 4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection rate over 4M/s, and minimum boosting time less than 30ms. Hydraulic motor automaticdie height adjustment system is precise and easy to operate
Longhua die casting machine advantage
The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.
1. Easy to handle
- Completely automatic process cycle and analysis function
- Permanent process monitoring via sensors
- Extensive security installations
2.Excellent performance
- High efficiency and reduced scrap
- High quality casting of complex and large parts
- Extremely stable value of the machine
- Multi-shift operation possible
3.Flexible
- Small or large casting clusters
- Non-ferrous metals including zinc, aluminium, bronze and brass alloys
- Moulding chamber easily adaptable for shell-, sand- and block moulds
Product parameters
LH series of standard parameter table (160 G)
|
ITEMS
|
Unit
|
Specification
|
|
HYDRAULIC WORKING PRESSURE
|
MPa
|
7
|
|
CLAMPING FORCE
|
KN
|
1600
|
|
SPACE BETWEEN TIE BARS
|
mm
|
440*440
|
|
Tie Bar Diameter
|
mm
|
80
|
|
DIE OPENING STROKE
|
mm
|
350
|
|
INJECTION FORCE(intensify)
|
KN
|
220
|
Plunger launch distance
|
mm
|
120
|
|
Injection position
|
mm
|
0 -- 140
|
|
PLUNGER DIAMETER
|
mm
|
40----60
|
|
INJECTION STROKE
|
mm
|
320
|
Casting pressure (intensify)
|
MPa
|
143/92/64
|
Casting Fiange Protrusion
|
mm
|
10
|
Casting Fiange Diameter
|
mm
|
110
|
|
MAX CASTING AREA UNDER 40Mpa
|
CM2
|
400
|
|
lnjection Weight(Al)
|
Kg
|
1.8
|
|
Die Height(Min--Max)
|
mm
|
200～550
|
|
EJECTOR FORCE
|
KN
|
100
|
|
EJECTOR STROKE
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
5.2*1.5*2.05
|
|
Referential Machine Weight For Uplifting
|
T
|
5.2
|
|
Oil Tank Capacity
|
L
|
400
|
We reserve the right to make any technical improvement without further notice
