Die casting machine for aluminum alloy armatures(LH-125T)
Product Description
The Maximum speed of the die casting machine is > 8M/s (6M / s for those more than 2000T), which can effectively control the filling time and casting formation, in addition to unique braking and uniform acceleration injection function that can effectively prevent flash and allow more flexible injection process.
LH SERIES OF STANDARD PARAMETER TABLE (LH-125T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
7
|
|
CLAMPING FORCE
|
KN
|
1250
|
|
SPACE BETWEEN TIE BARS
|
MM
|
420*420
|
|
TIE BAR DIAMETER
|
MM
|
￠80
|
|
DIE OPENING STROKE
|
MM
|
350
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
180
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
120
|
|
INJECTION POSITION
|
MM
|
0 -- 140
|
|
PLUNGER DIAMETER
|
MM
|
￠40----￠60
|
|
INJECTION STROKE
|
MM
|
320
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
143/92/64
|
|
CASTING FIANGE PROTRUSION
|
MM
|
10
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
375
|
|
LNJECTION WEIGHT(AL)
|
KG
|
1.6
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
200～500
|
|
EJECTOR FORCE
|
KN
|
100
|
|
EJECTOR STROKE
|
MM
|
80
|
|
MOTOR CAPACITY
|
KW
|
11
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
4.5*1.2*1.5
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
4.5
|
|
OIL TANK CAPACITY
|
L
|
300
|
PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

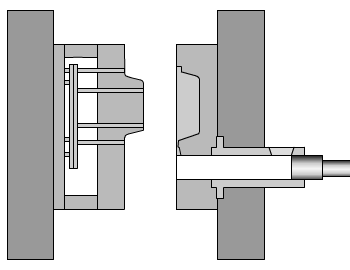

Working principle diagram of die casting machine
Cold chamber die casting machine is ideal for metals such as aluminum which have a high melting point. During this process, metal is liquefied in a furnace at extremely high temperatures and then ladled into a cold chamber to be injected into the mold.
Peripheral robots
Automatic Ladling Machine
Servo Sprayer
Automatic Extractor
Conveyor
Particles machine
To help you achieve automated production, reduce labor costs, improve production efficiency.
