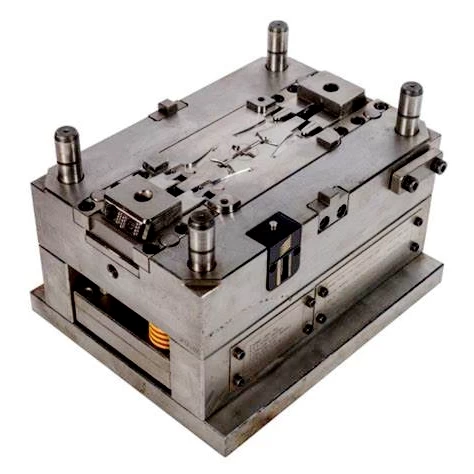

Die design is a kind of mass production of metal products and components technology.

Mould design is one of the most important step in the process, because the shape of the mould and attributes will directly affect the final product using high pressure.

Die casting process forcing molten metal into the mold, and need to have precise specifications of the mold to complete tasks for die casting.

Die design has some very important matters, these key points influence successful die-casting mold manufacturing, in die casting mould design phase, please consider the following keys.

• Die draft angle
• Fillets on mold & part
• Casting die Parting lines
• Casting Part Bosses
• Part Ribs
• Holes and windows on Part
• Symbols
• Wall thickness of Part
